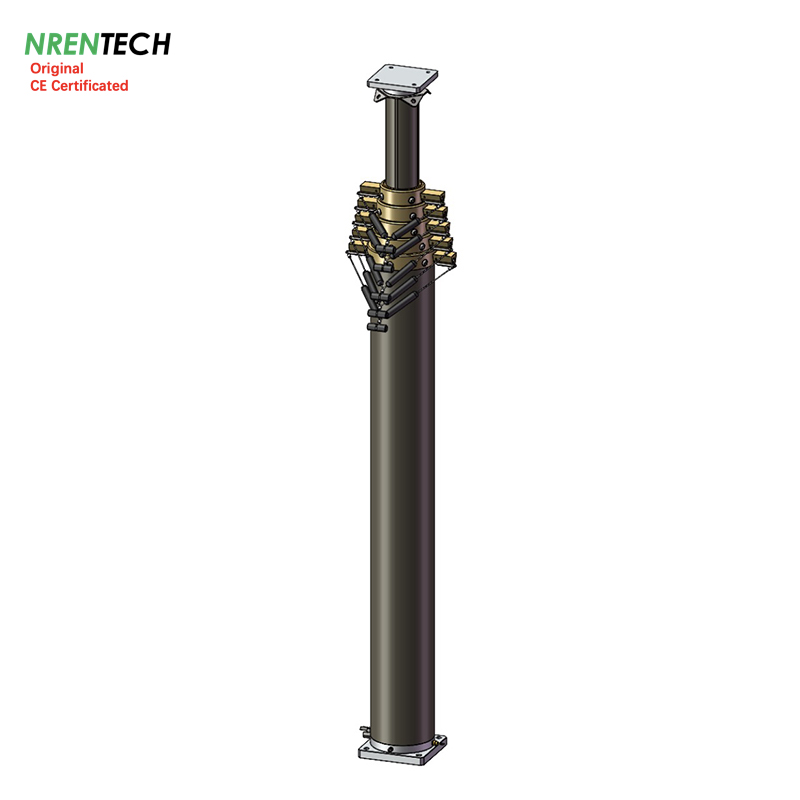

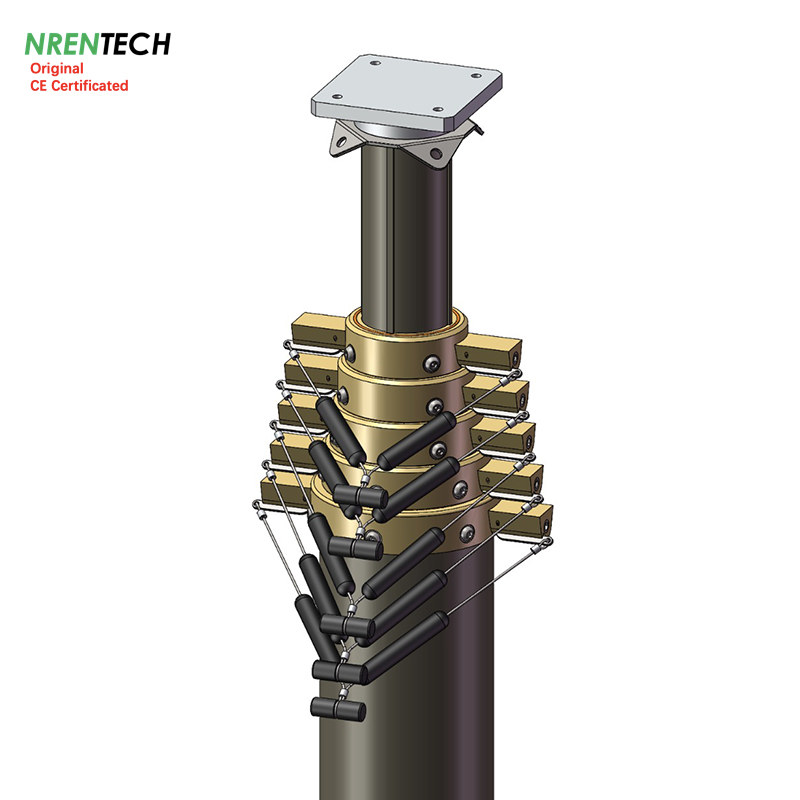

9m Locking Pneumatic Telescopic Mast 200kg Payload 2.2m closed height
Item#: NR-2.2-9.0-200L-6S-118-229

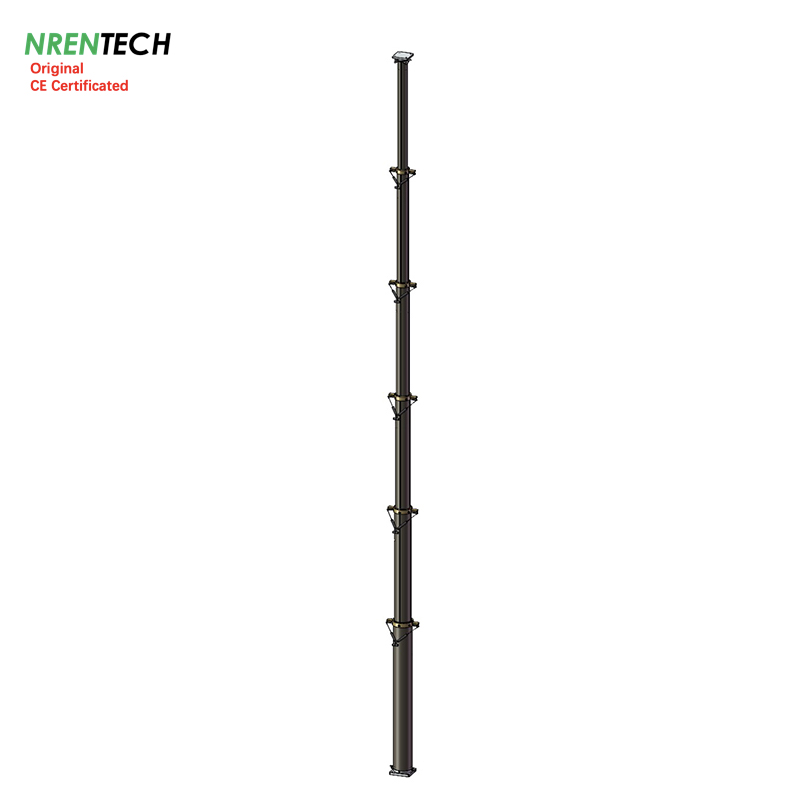

1> Extended height: 9m

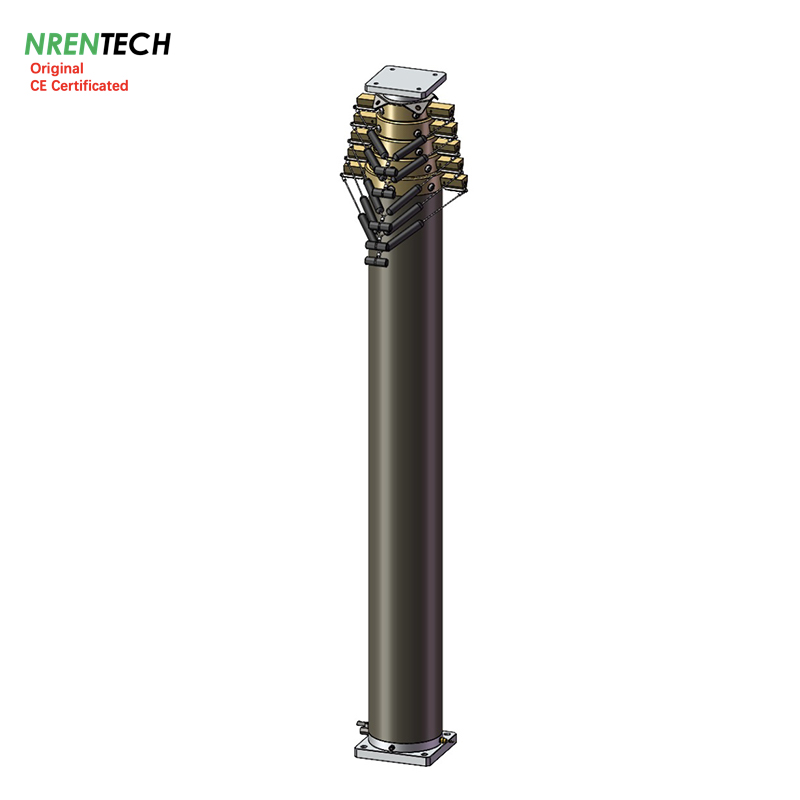

2> Retradted height: 2.2m
3> Vertical Payload: 200kg (0.2MPa/29 PSI working air pressure)
4> Number of sections: 6 sections
5> Section dia. : 118mm~229mm
6> Materials: aluminum alloy 6063T5
7> Mast weight 134kg approx.
8> Installation: vertical and upward
9> Default accessories: top flange, bottom flange, air hose pipe, air control manual, guying ropes/wires mounting plate
10> Chargeable accesssories: side mounting bracket NR-S229, ground mounting tripod NR-TRIPOD229, or Quadpod bracket NR-QUADPOD229, guide rope kits (1 layers, 4 ropes each layer, 9m mounting radius), electric air compressor AC220V or compact electric control box with remote controller
Leading time: 20 days
Guarantee: one year
The latest information has been updated on 20250329
Information is subject to change without notice
9m Locking Pneumatic Telescopic Mast 200kg Payload 2.2m closed height
Item#: NR-2.2-9.0-200L-6S-118-229
1> Extended height: 9m
2> Retradted height: 2.2m
3> Vertical Payload: 200kg (0.2MPa/29 PSI working air pressure)
4> Number of sections: 6 sections
5> Section dia. : 118mm~229mm
6> Materials: aluminum alloy 6063T5
7> Mast weight 134kg approx.
8> Installation: vertical and upward
9> Default accessories: top flange, bottom flange, air hose pipe, air control manual, guying ropes/wires mounting plate
10> Chargeable accesssories: side mounting bracket NR-S229, ground mounting tripod NR-TRIPOD229, or Quadpod bracket NR-QUADPOD229, guide rope kits (1 layers, 4 ropes each layer, 9m mounting radius), electric air compressor AC220V or compact electric control box with remote controller
Leading time: 20 days
Guarantee: one year
The latest information has been updated on 20250329
Information is subject to change without notice
| 9m Lockable Pneumatic Telescopic Mast-200kg Payload | ||||||
| NR-2.2-9-200L-6S-118-229 | ||||||
 | ||||||

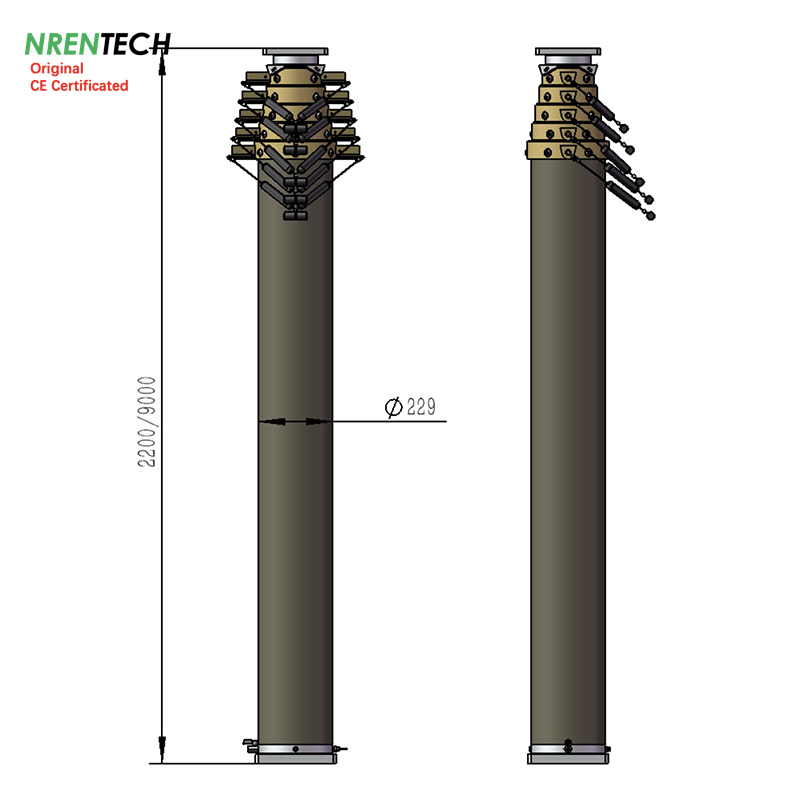

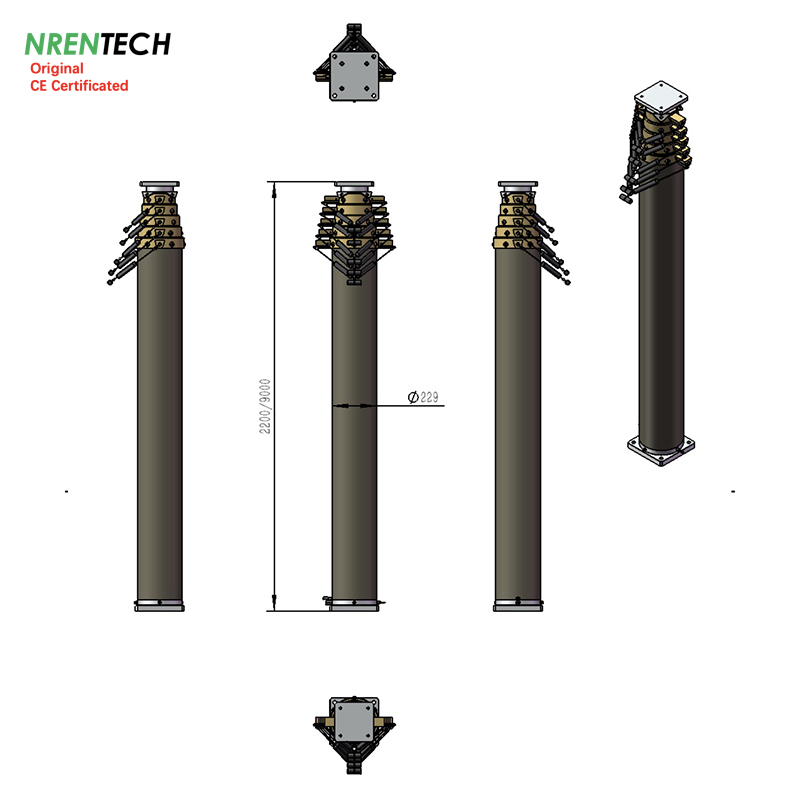

| Extended Height | : | 9 | m | 29.52 | ft | |
| Retracted Height | : | 2.2 | m | 7.2 | ft | |
| Vertical Payload | : | 200 | kg | 440 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Elevation, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 6 | ||||
| Top section diameter | : | 118 | mm | 4.6 | in | |
| Basement section diameter | : | 229 | mm | 9.0 | in | |
| Mast Weight | : | 134 | kg | 294.8 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| guying ropes mounting plate | ||||||
| Optional Accessories | : | Electric air compressor | AC220V/50hz | |||
| Guying Rope Kits | 1x4 (1 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 9m) | |||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod or quadpod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| the latest data has been updated on 20250329 | ||||||
