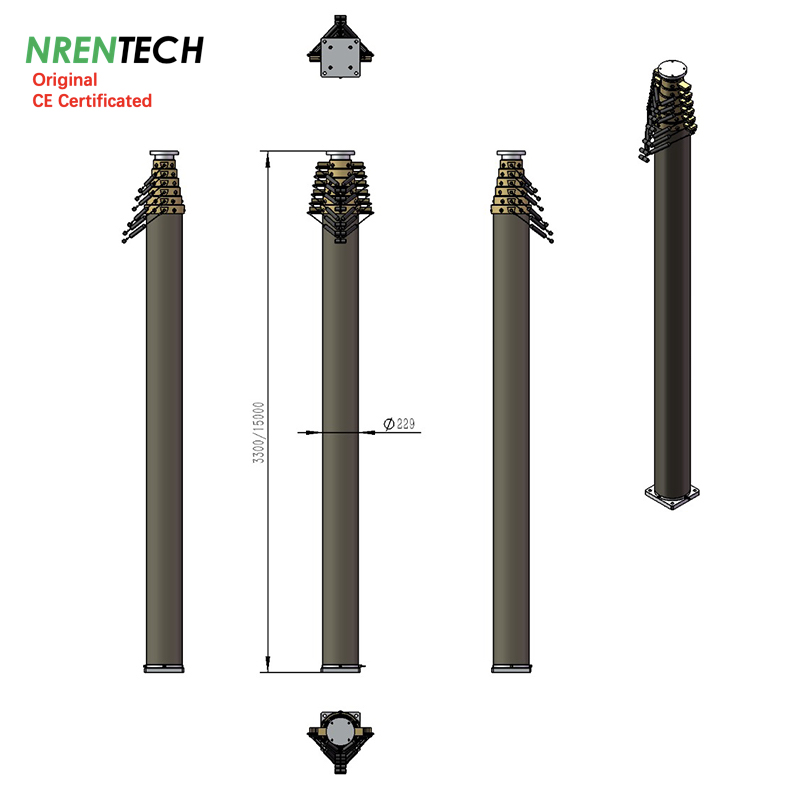

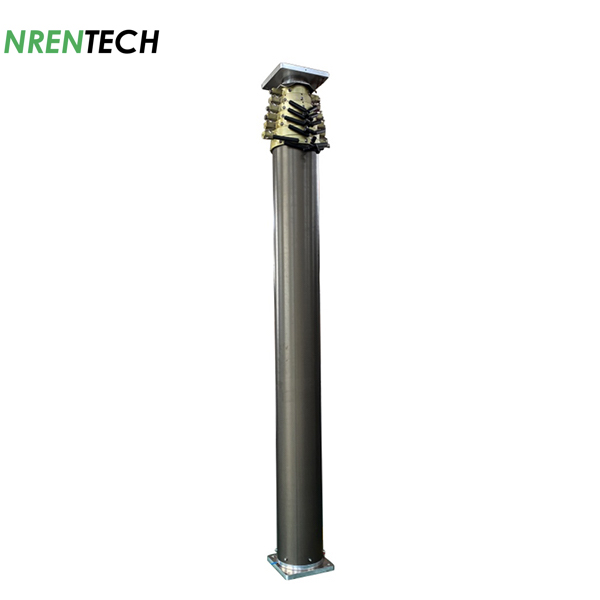

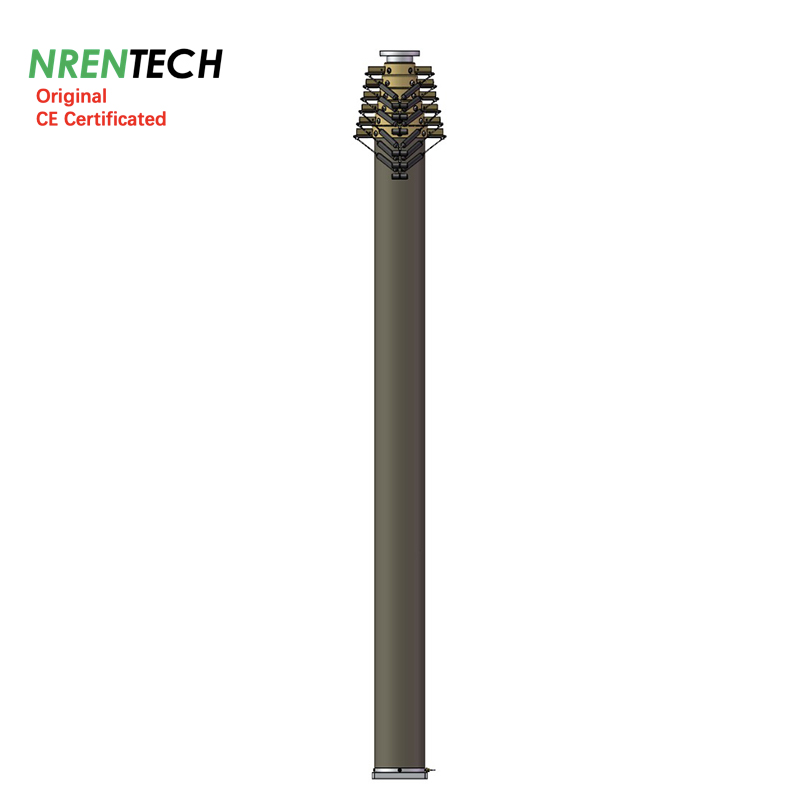

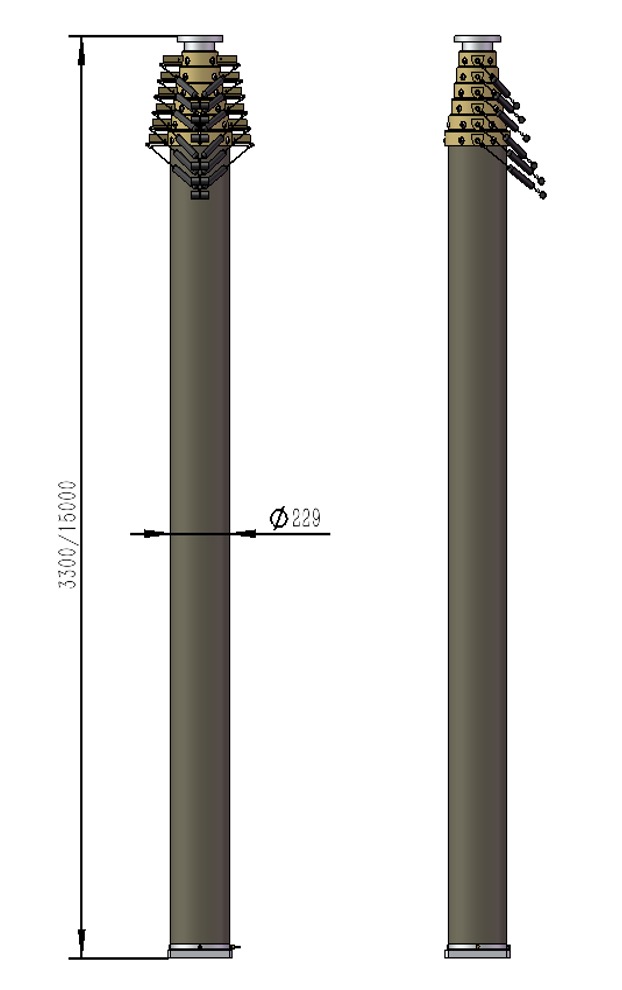

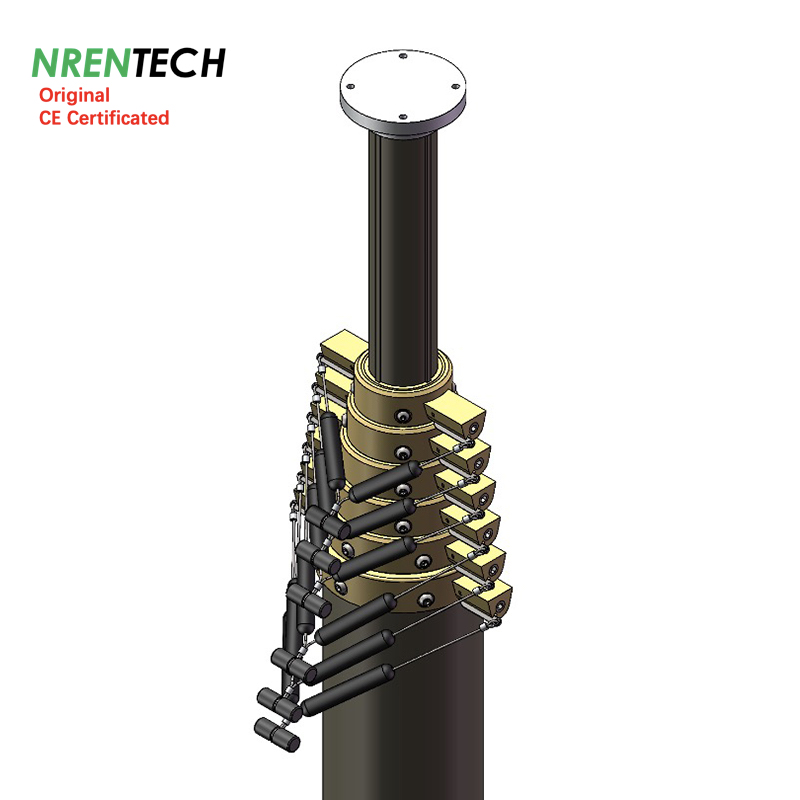

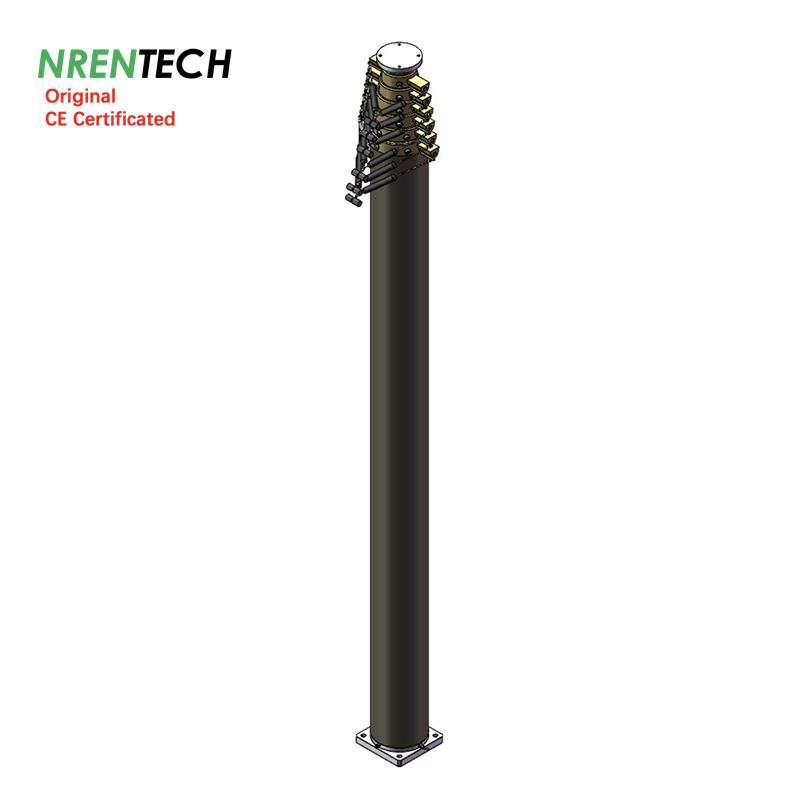

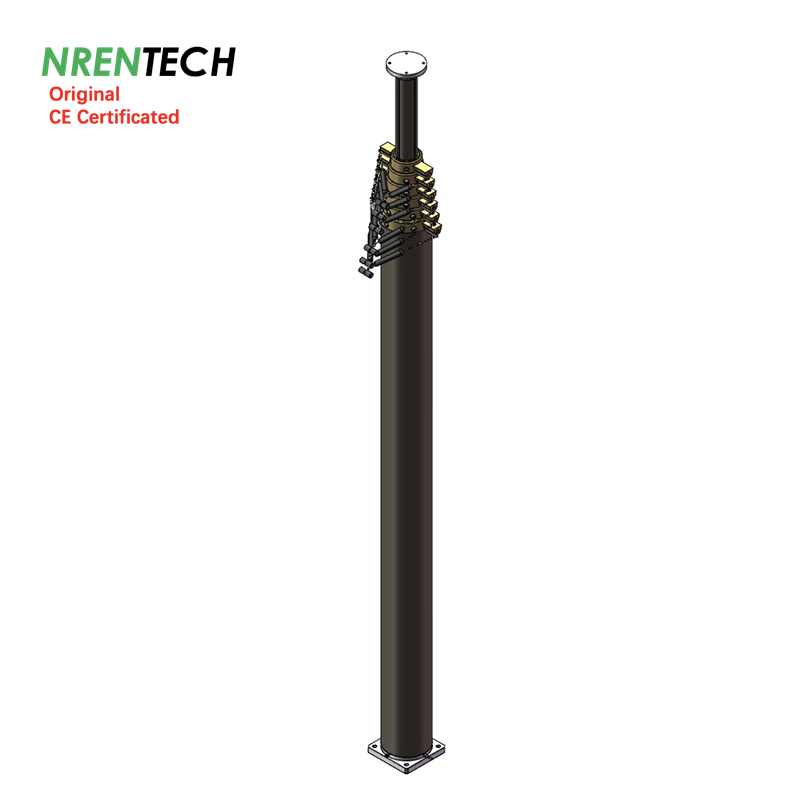

15m pneumatic telescopic mast-150kg payloads-3.3m closed height
Part #: NR-3.3-15-150L-7S-98-229
1> Extended Height: 15m
2> Retracted Height: 3.3m
3> Vertical Payloads: 150kg@0.2Mpa/29PSI
4> Type: lockable type (extension automatic, retraction by manual operating)
5> Number of sections: 7
6> Sections diameter range: 98mm~229mm
7> Materials: Aluminum alloy 6063T6
8> Mast weight: 185kg approx.
9> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual, 1x retraction operating tool, 3x4 guying rope/wires kits mounting plate and eyebolts
Optional accessories:

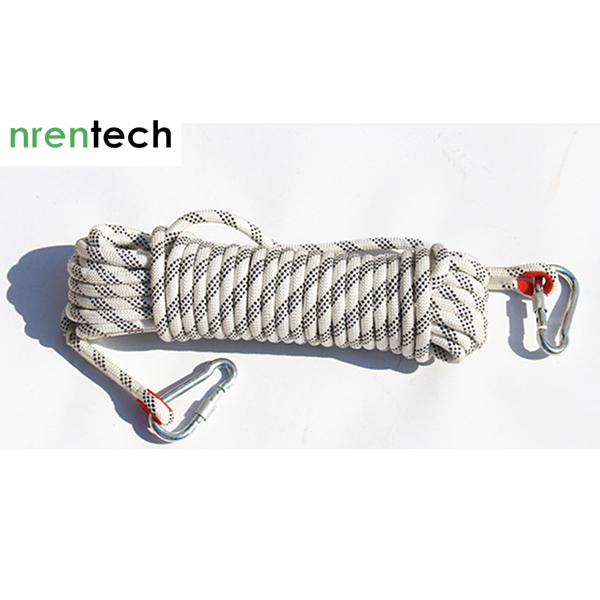

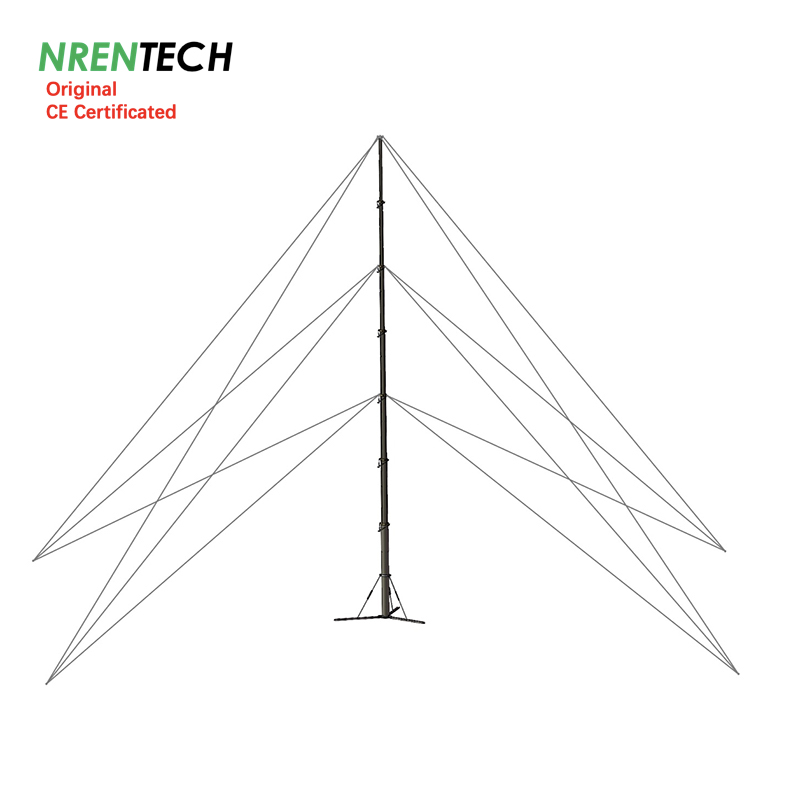

guying rope kits (3 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 15m)
ground mounting quadpod (stainless materials)

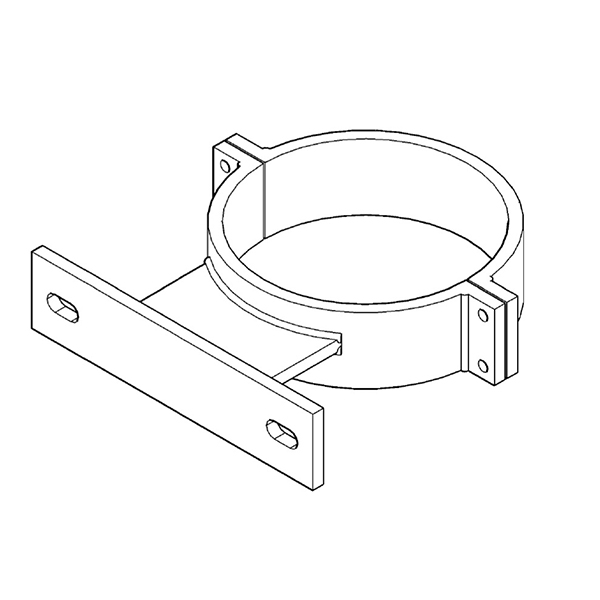

vehicle side mounting brackets(aluminum alloy materials)
electric air compressor
remote control kit (recommend, DC12V)
Wind speed: more than 120km/h with guying wires under 1.0m^2 wind load area
Information update on 20240101
20 days leading time
15m pneumatic telescopic mast-150kg payloads-3.3m closed height
Part #: NR-3.3-15-150L-7S-98-229
1> Extended Height: 15m
2> Retracted Height: 3.3m
3> Vertical Payloads: 150kg@0.2Mpa/29PSI
4> Type: lockable type (extension automatic, retraction by manual operating)
5> Number of sections: 7
6> Sections diameter range: 98mm~229mm
7> Materials: Aluminum alloy 6063T6
8> Mast weight: 185kg approx.
9> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual, 1x retraction operating tool, 3x4 guying rope/wires kits mounting plate and eyebolts
Optional accessories:
guying rope kits (3 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 15m)
ground mounting quadpod bracket (stainless materials)
vehicle side mounting brackets(aluminum alloy materials)
electric air compressor
remote control kit (recommend, DC12V)
Information update on 20240101
20 days leading time
| 15m Lockable Pneumatic Telescopic Mast-150 kg Payload | ||||||
| NR-3.3-15-150L-7S-98-229 | ||||||
 | ||||||
| Extended Height | : | 15 | m | 49.2 | ft | |
| Retracted Height | : | 3.3 | m | 10.8 | ft | |
| Vertical Payload | : | 150 | kg | 330 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Extension, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 7 | ||||
| Top section diameter | : | 98 | mm | 3.9 | in | |
| Basement section diameter | : | 229 | mm | 9.0 | in | |
| Mast Weight | : | 190 | kg | 418 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||

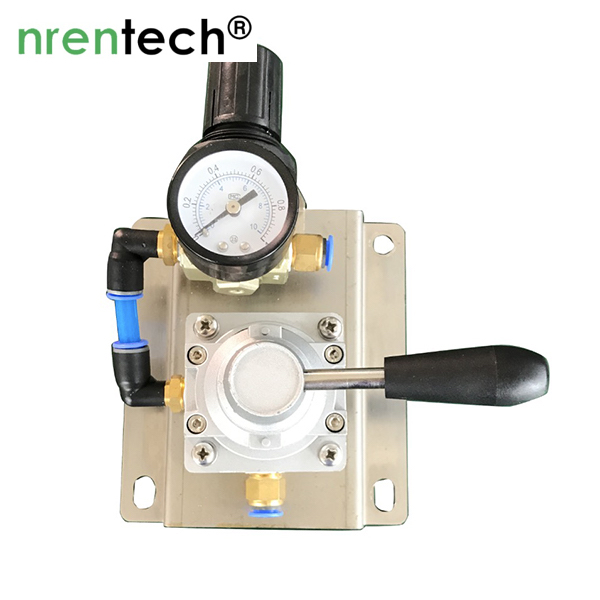

| air control manual | ||||||
| Retraction operation tool | ||||||

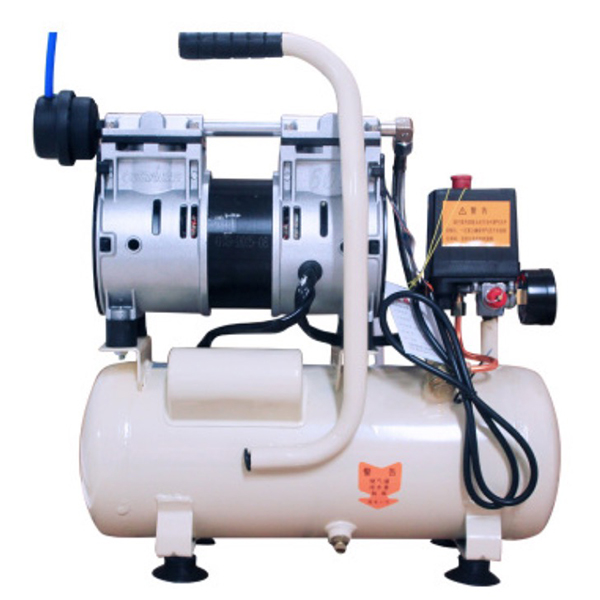

| Optional Accessories | : | Electric air compressor | AC220V/50hz, 3000W | |||
| Guying Rope Kits | 3x4 (3 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 15m) | |||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||

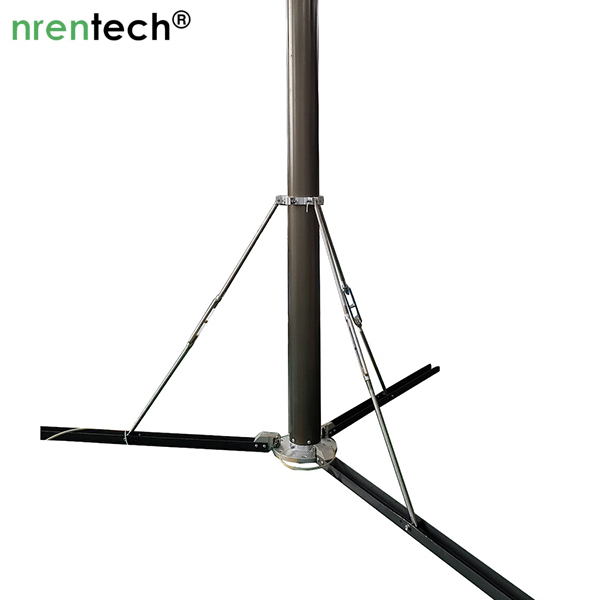

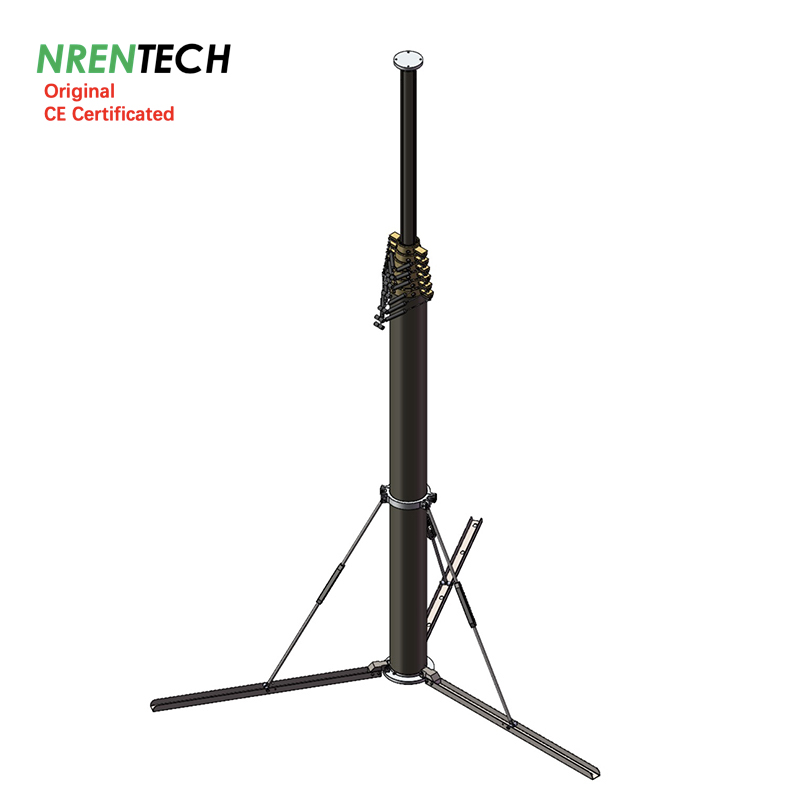

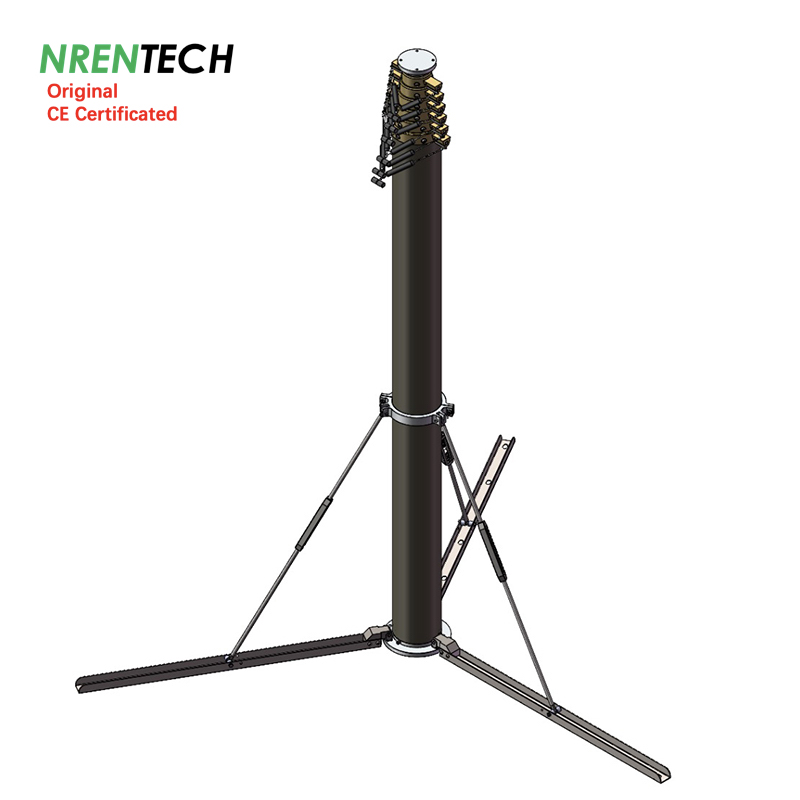

| Ground mounting Tripod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20231027 | ||||||
