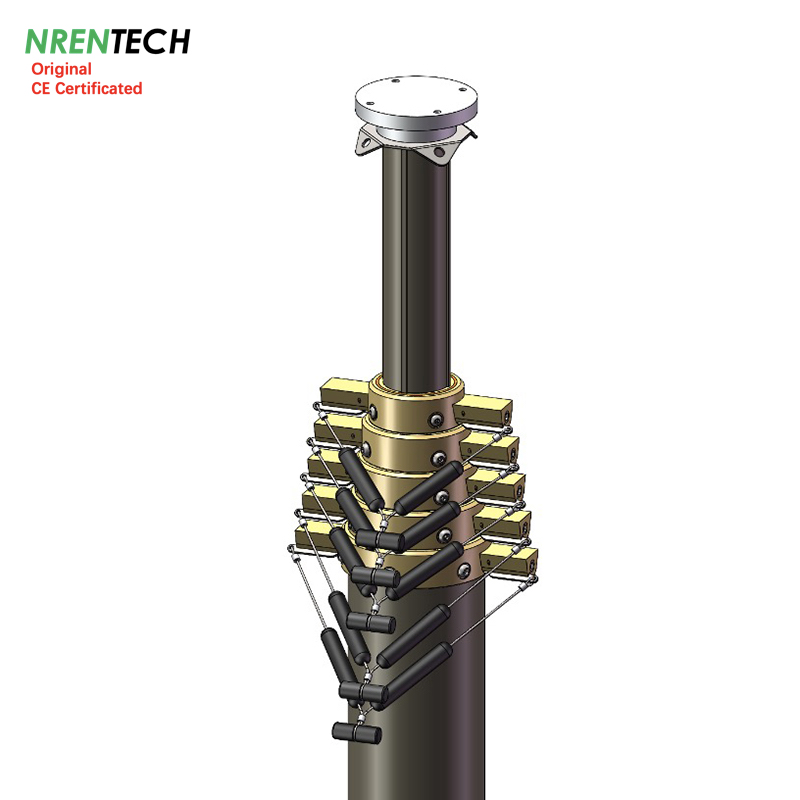

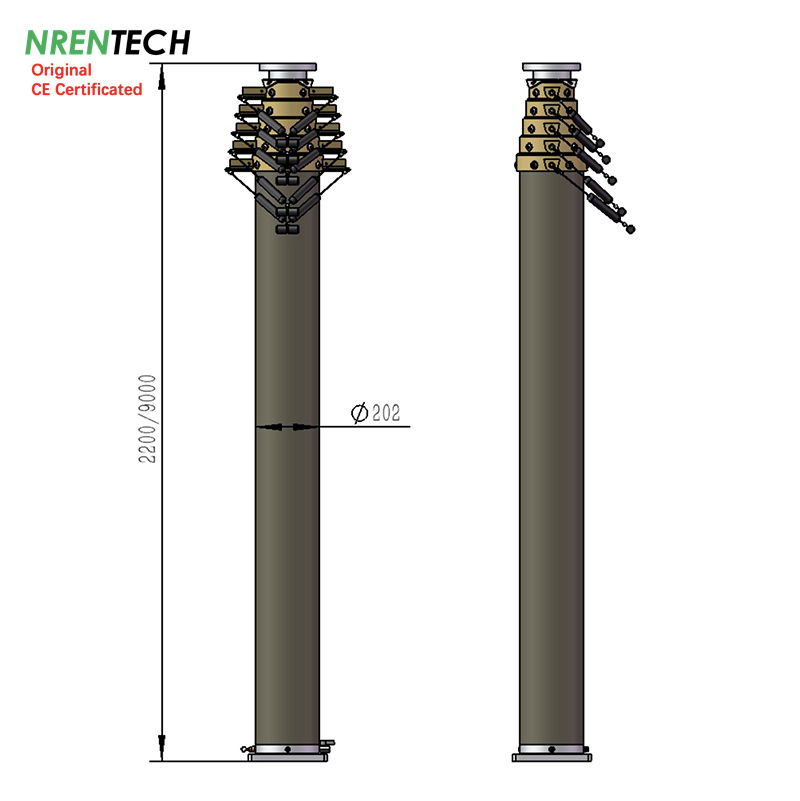

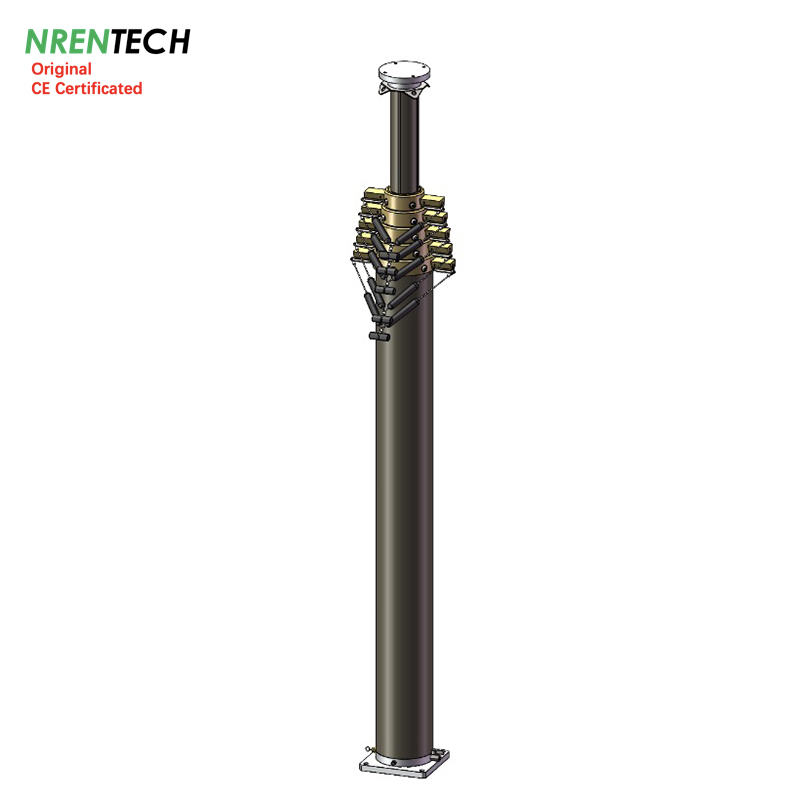

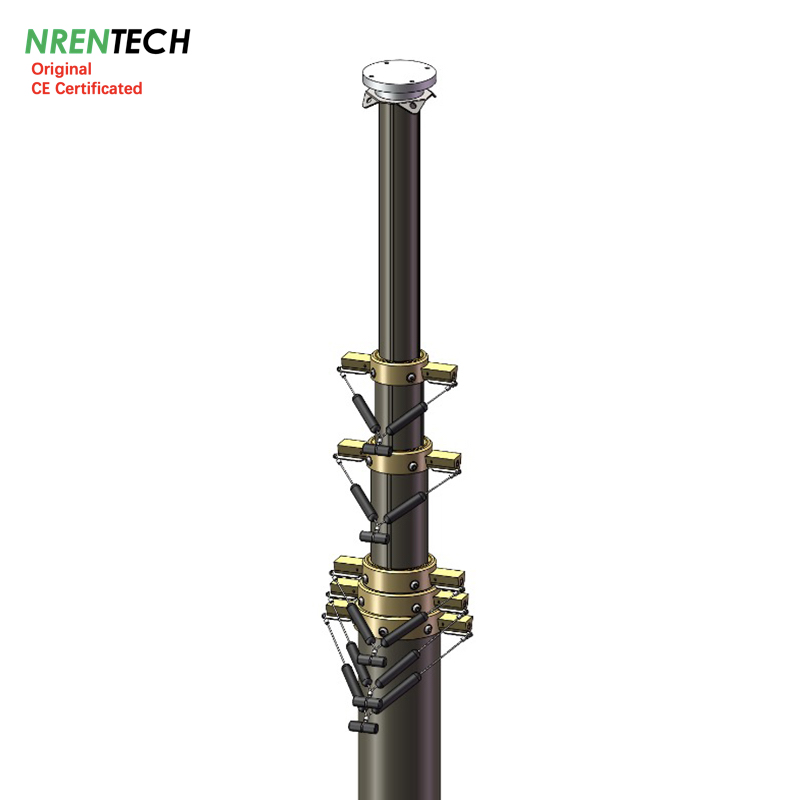

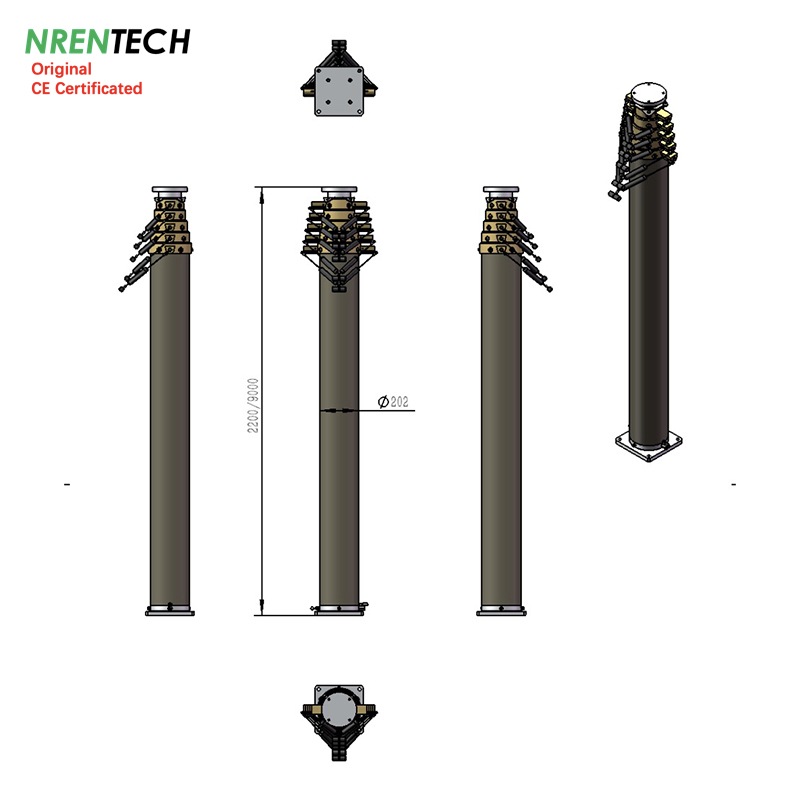

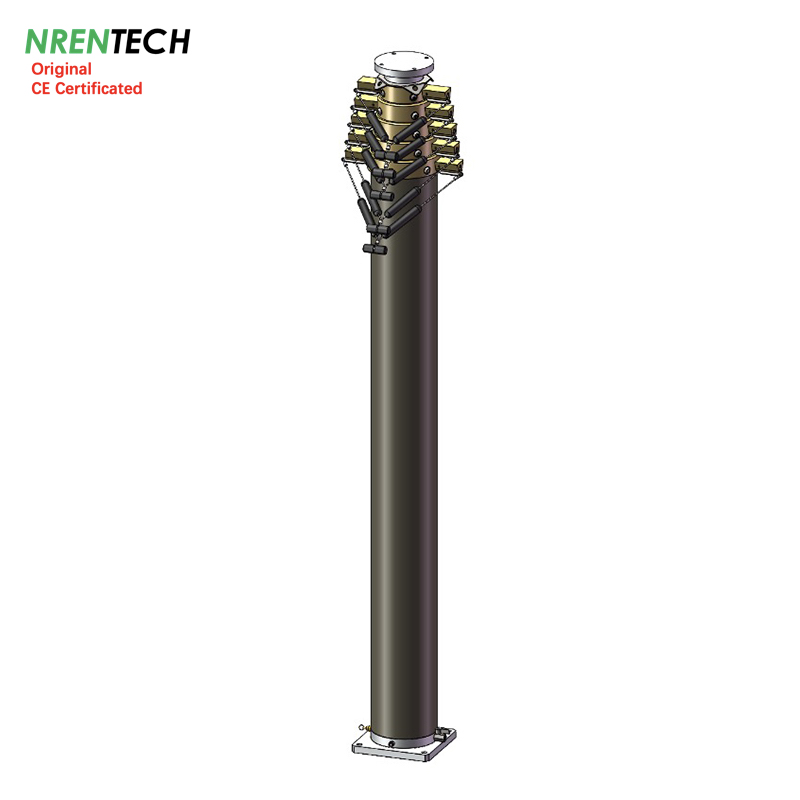

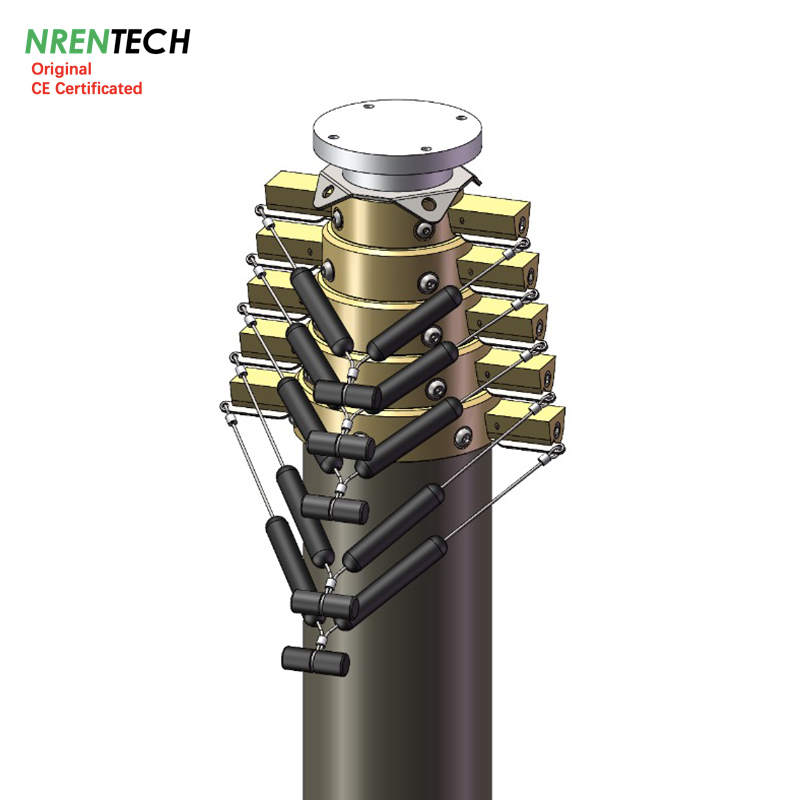

9m Lockable Pneumatic Telescopic Mast 150kg Payload 2.2m closed height NR-2.2-9-150L-6S-98-202
Item code: NR-2.2-9-150L-6S-98-202
1> Extended Height: 9m
2> Closed Height: 2.2m
3> Vertcial Payload: 150kg as maximum @0.2Mpa/29PSI working air pressure.
4> Collar type: lockable collar (automatic extension, retraction by manual)
5> Installation: Vertical and upward
6> Number of sections: 6
7> Section diameter range: 98mm~202mm
8> Materials: aluminum alloy 6063T5
9> Mast weight: 106kg approx.
10> Default accessories: top flange, bottom flange, air hose pipe, air control manual valve, guying rope mounting plate.
11> Chargeable accessories: electric air compressor AC220V/50hz, side mounting bracket NR-S229, guying rope kits, Ground mounting tripod NR-TRIPOD229 or ground mounting quadpod NR-QUADPOD229
Leading time: 20 days
Warranty: one year
the latest date has been updated on 20250330
9m Lockable Pneumatic Telescopic Mast 150kg Payload 2.2m closed height NR-2.2-9-150L-6S-98-202
Item code: NR-2.2-9-150L-6S-98-202
1> Extended Height: 9m
2> Closed Height: 2.2m
3> Vertcial Payload: 150kg as maximum @0.2Mpa/29PSI working air pressure.
4> Collar type: lockable collar (automatic extension, retraction by manual)
5> Installation: Vertical and upward
6> Number of sections: 6
7> Section diameter range: 98mm~202mm
8> Materials: aluminum alloy 6063T5
9> Mast weight: 106kg approx.
10> Default accessories: top flange, bottom flange, air hose pipe, air control manual valve, guying rope mounting plate.
11> Chargeable accessories: electric air compressor AC220V/50hz, side mounting bracket NR-S229, guying rope kits, Ground mounting tripod NR-TRIPOD229 or ground mounting quadpod NR-QUADPOD229
Leading time: 20 days
Warranty: one year
the latest date has been updated on 20250330
| 9m Lockable Pneumatic Telescopic Mast-150kg Payload | ||||||
| NR-2.2-9-150L-6S-98-202 | ||||||
 | ||||||
| Extended Height | : | 9 | m | 29.52 | ft | |
| Retracted Height | : | 2.2 | m | 7.2 | ft | |
| Vertical Payload | : | 150 | kg | 330 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Extension, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 6 | ||||
| Top section diameter | : | 98 | mm | 3.9 | in | |
| Basement section diameter | : | 202 | mm | 8.0 | in | |
| Mast Weight | : | 106 | kg | 233.2 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual valve | ||||||
| guying ropes mounting plate | ||||||
| Optional Accessories | : | Electric air compressor | AC220V/50hz, 1500W, 12L air tank | |||
| Guying Rope Kits | ||||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod/Quadpod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20250319 | ||||||
