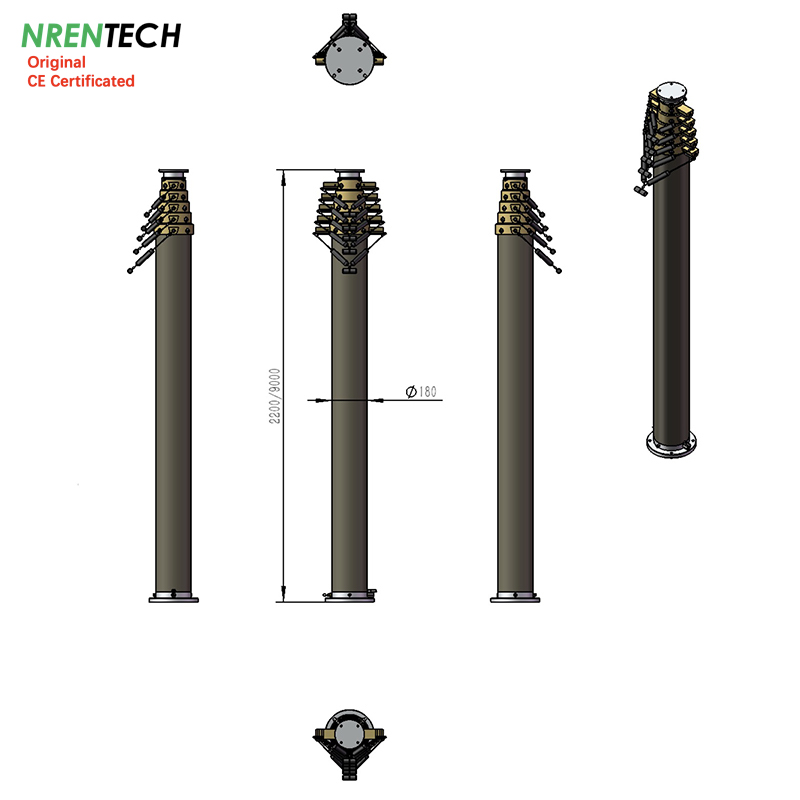

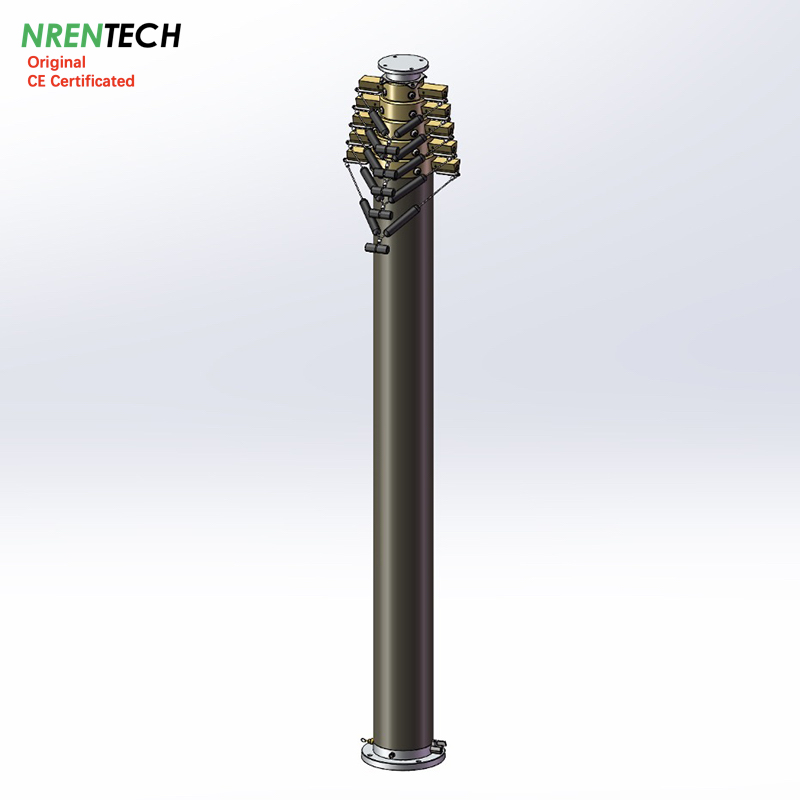

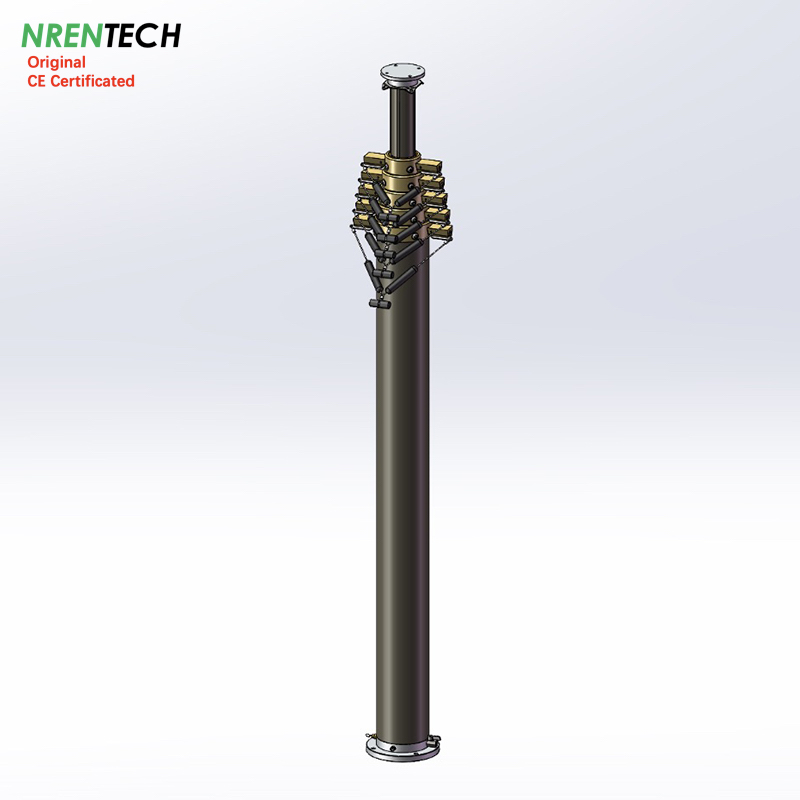

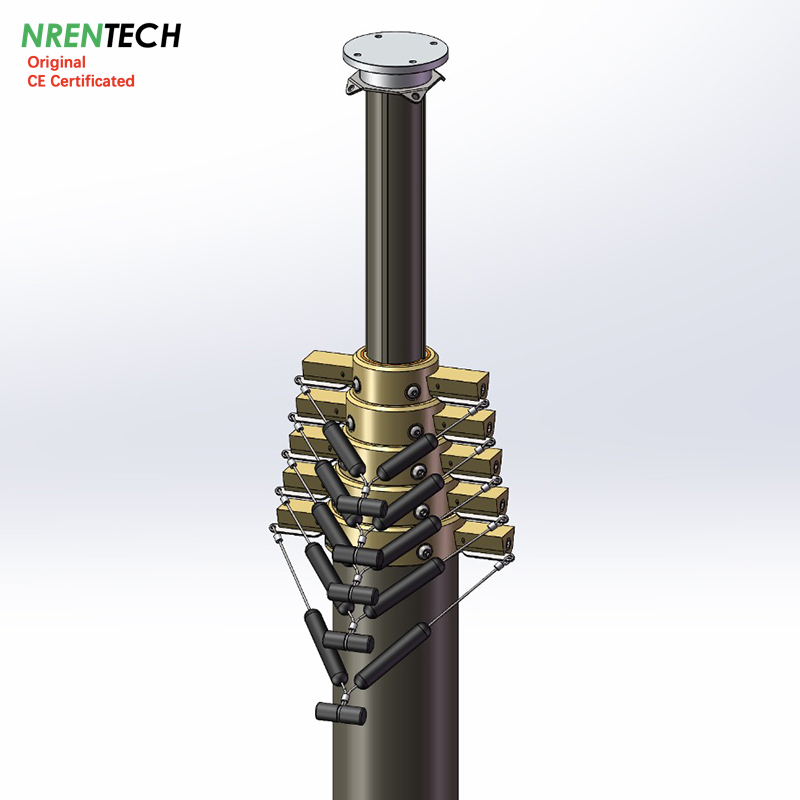

9m Locking Pneumatic Telescopic Mast 100kg payloads-NR-2.2-9.0-100L-6S-82-180
Item #: NR-2.2-9.0-100L-6S-82-180
1> Extended Height: 9m
2> Closed Height: 2.2m
3> Vertical payload: 100kg in vertical @0.2Mpa/29PSI
4> Type: Lockable (automatic extension/retraction by manual)
5> Number of sections: 6
6> Section diameter: 82mm~180mm
7> Materials: Aluminum Alloy materials 6063T5
8> Mast weight: 84kg approx.
9> Working air pressure: maximum 0.2Mpa/29PSI
10> Installation: Vertical only
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve, 1x side mounting bracket)
12> Chargeable accessories: Electric air compressor, ground mounting tripod/quadpod bracket, remote control kit.
leading time: 20 days
guarantee: one year
updated information updated on 20250320
9m Locking Pneumatic Telescopic Mast 100kg payloads-NR-2.2-9.0-100L-6S-82-180
Item #: NR-2.2-9.0-100L-6S-82-180
1> Extended Height: 9m
2> Closed Height: 2.2m
3> Vertical payload: 100kg in vertical @0.2Mpa/29PSI
4> Type: Lockable (automatic extension/retraction by manual)
5> Number of sections: 6
6> Section diameter: 82mm~180mm
7> Materials: Aluminum Alloy materials 6063T5
8> Mast weight: 84kg approx.
9> Working air pressure: maximum 0.2Mpa/29PSI
10> Installation: Vertical only
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve, 1x side mounting bracket)
12> Chargeable accessories: Electric air compressor, ground mounting tripod/quadpod bracket, remote control kit.
leading time: 20 days
guarantee: one year
updated information updated on 20250320
| 9m Lockable Pneumatic Telescopic Mast-100kg Payload | ||||||
| NR-2.2-9-100L-6S-82-180 | ||||||
| ||||||
| Extended Height | : | 9 | m | 29.52 | ft | |
| Retracted Height | : | 2.2 | m | 7.2 | ft | |
| Vertical Payload | : | 100 | kg | 220 | lb | |
| Working air pressure | : | 0.15 | Mpa | 22 | PSI | |
| Collar Type | : | Locking (Automatic Extention, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 6 | ||||
| Top section diameter | : | 82 | mm | 3.2 | in | |
| Basement section diameter | : | 180 | mm | 7.1 | in | |
| Mast Weight | : | 84 | kg | 184.8 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Optional Accessories | : | Electric air compressor | DC12V, DC24V, AC220V/50hz | |||
| Guying Rope Kits | 1x4 (1 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 9m) | |||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20250320 | ||||||
