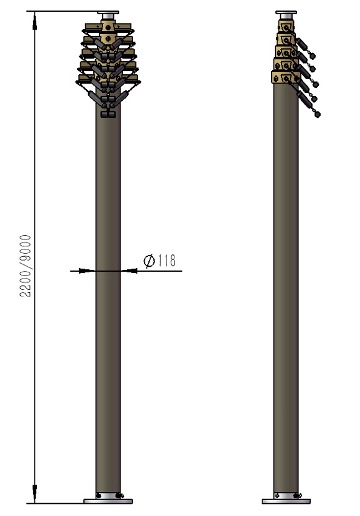

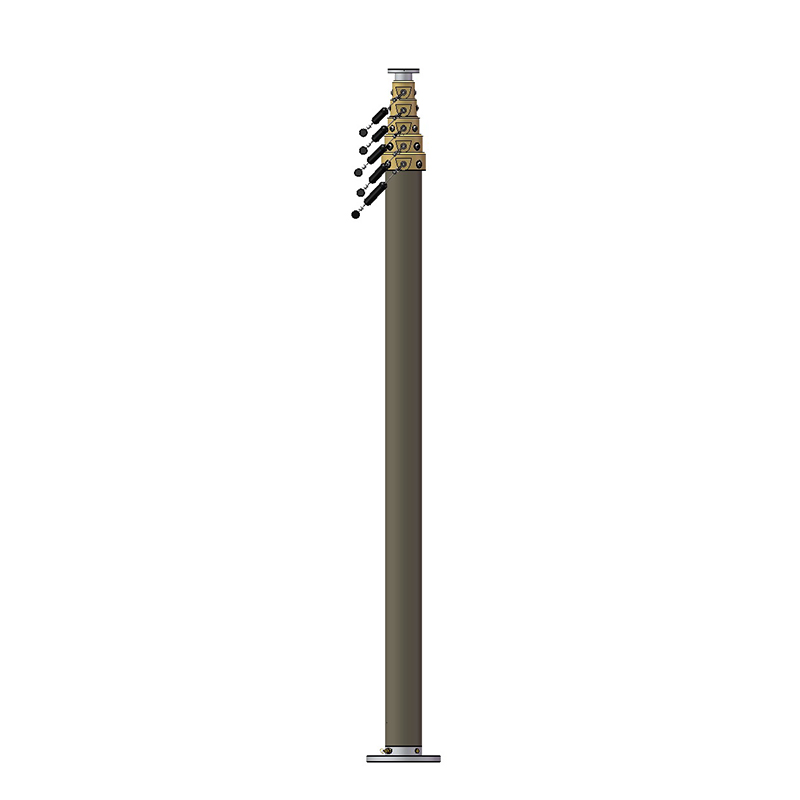

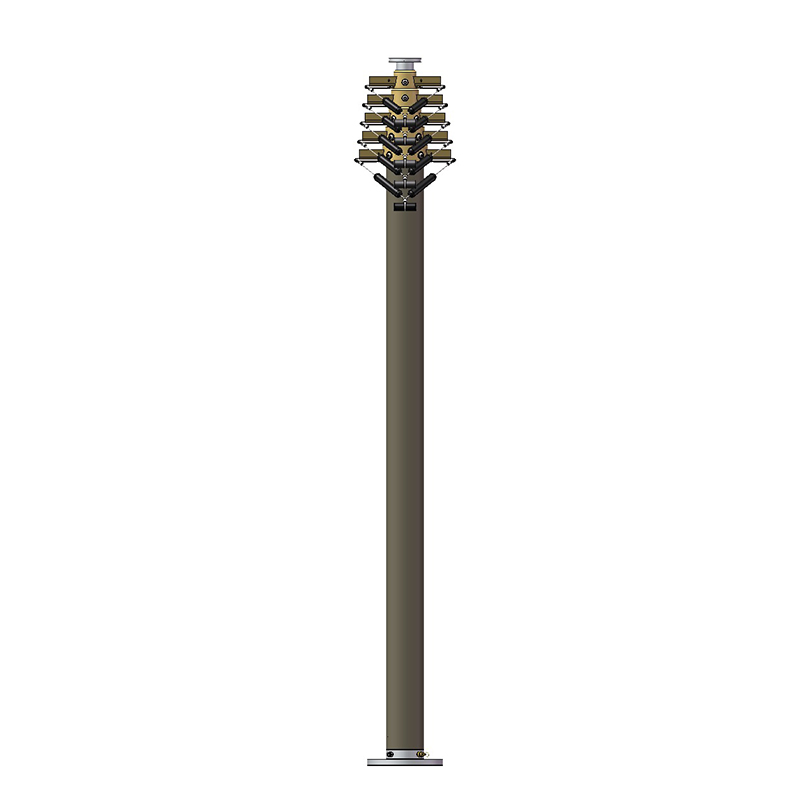

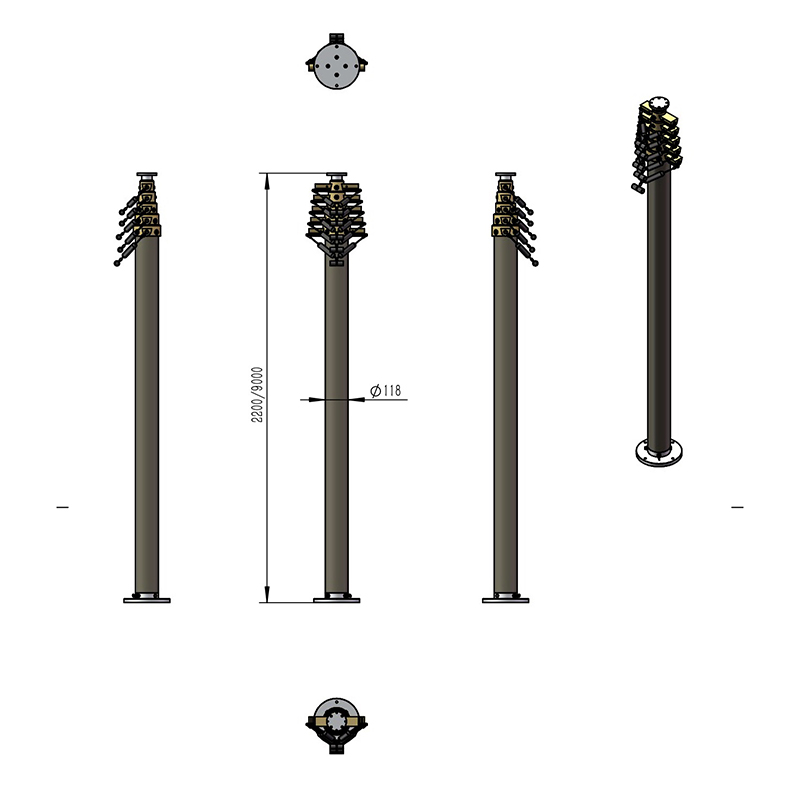

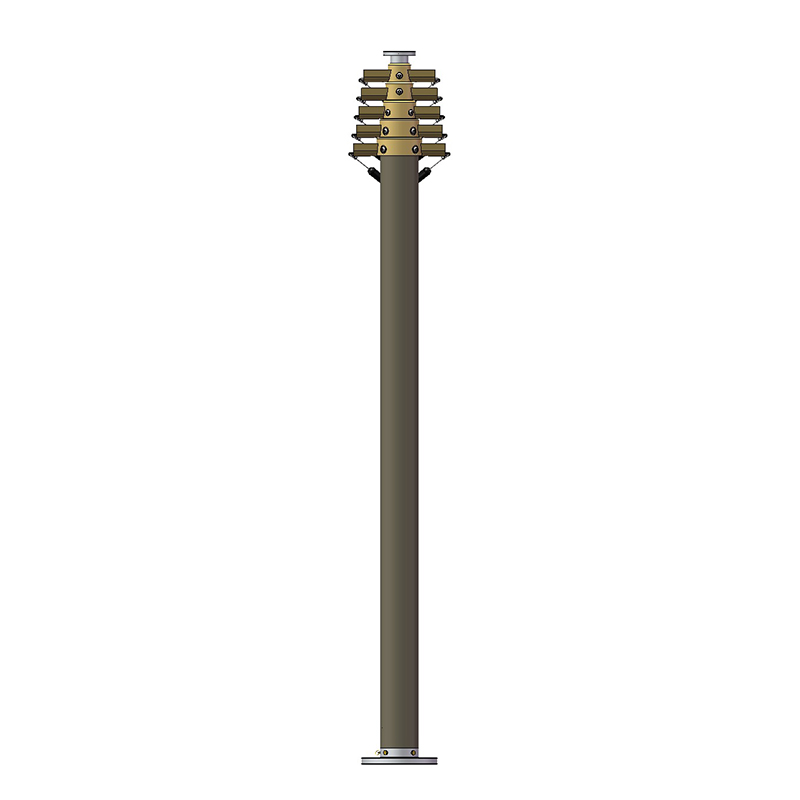

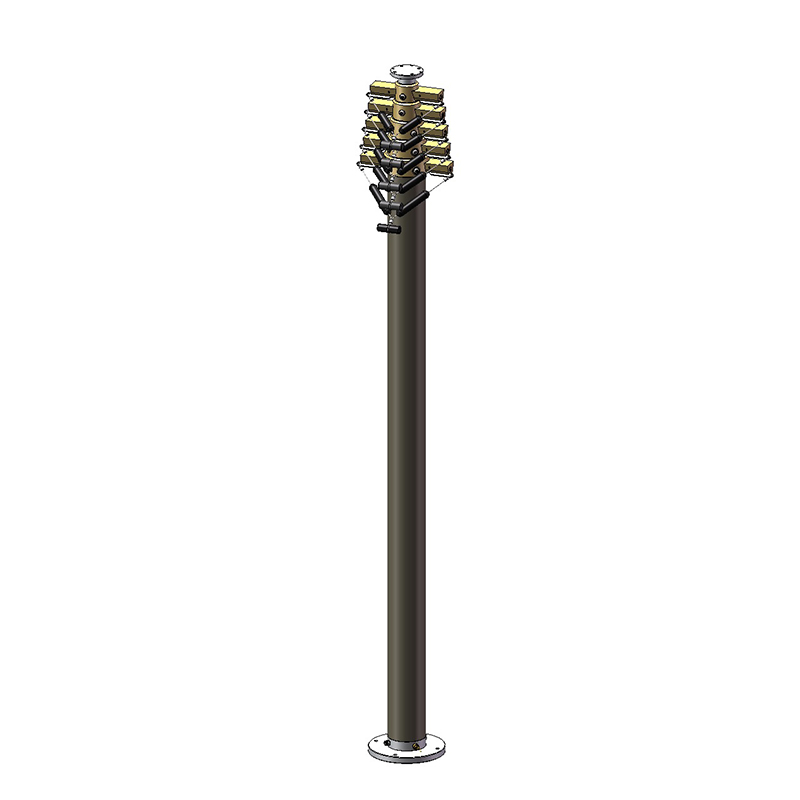

9m Locking Mast-15kg payloads-2.2m closed height
Item #: NR-2.2-9.0-15L-6S-36-118
1> Extended Height: 9m
2> Retracted Height: 2.2m
3> Payloads: 15kg maximum
4> Number of sections: 6 sections
5> Section dia. 36*3mm, 51*3mm, 66*3mm, 82*4mm, 98*4mm, 118*4mm
6> Materials: Aluminum alloy 6063T5
7> Mast weight 42kg
8> Working pressrue: 0.2Mpa/29PSI
9> Working temperture: -25~55 Celsious Degrees
10> Installation: Vertical and upwards
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve
12> Optional accessories: electric air compressor AC220V/50hz, Ground mounting tripods, Guying rope kits, Vehicle side mouting brackets, Air controller
leading time: 20 days
guarantee: one year
the latest information was updated on 20250110
9m Locking Mast-15kg payloads-2.2m closed height
Item #: NR-2.2-9.0-15L-6S-36-118
1> Extended Height: 9m
2> Retracted Height: 2.2m
3> Payloads: 15kg maximum
4> Number of sections: 6 sections
5> Section dia. 36*3mm, 51*3mm, 66*3mm, 82*4mm, 98*4mm, 118*4mm
6> Materials: Aluminum alloy 6063T5
7> Mast weight 42kg
8> Working pressrue: 0.2Mpa/29PSI
9> Working temperture: -25~55 Celsious Degrees
10> Installation: Vertical and upwards
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve
12> Optional accessories: electric air compressor AC220V/50hz, Ground mounting tripods, Guying rope kits, Vehicle side mouting brackets, Air controller
leading time: 20 days
guarantee: one year
the latest information was updated on 20250110
| 9m Lockable Pneumatic Telescopic Mast-15kg Payload | ||||||
| NR-2.2-9.0-15L-6S-36-118 | ||||||
 | ||||||
| Extended Height | : | 9 | m | 29.52 | ft | |
| Retracted Height | : | 2.2 | m | 7.2 | ft | |
| Vertical Payload | : | 15 | kg | 33 | lb | |
| Working air pressure | : | 0.15 | Mpa | 22 | PSI | |
| Collar Type | : | Locking (Automatic Extension, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 6 | ||||
| Top section diameter | : | 36 | mm | 1.4 | in | |
| Basement section diameter | : | 118 | mm | 4.6 | in | |
| Mast Weight | : | 42 | kg | 92.4 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Optional Accessories | : | Electric air compressor | DC12V, DC24V, AC220V/50hz | |||
| Guying Rope Kits | 2x4 (2 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 9m) | |||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20231120 | ||||||
