9m CCTV pneumatic telescopic mast
Inside electric CCTV wires
automatic extension and retraction
Item #: NR-2.2-9-50C-6S-66-160
1> Extended Height: 9m
2> Nested Height: 2.2m
3> Payloads: 50kg
4> Inside wires: 1xCAT5E(strandard wires) + 4x1.5mm^2
5> Number of sections: 6

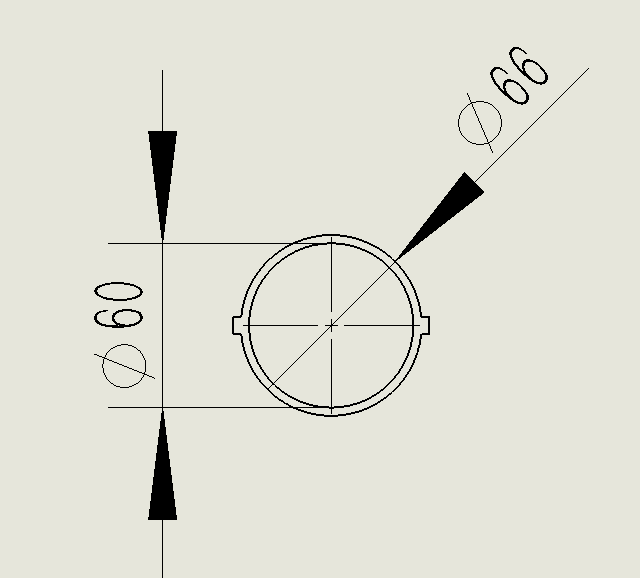

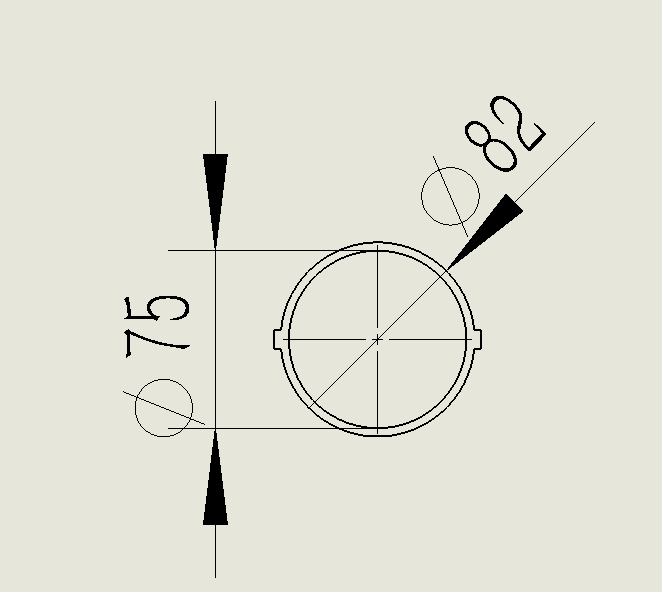

6> Section dia.*thickness: 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm
7> Materials: Aluminum alloy 6063T5
8> Mast weight: 65kg approx.
9> Working air pressure: 0.2Mpa/29PSI recommend
10> Working temperature: -25~55 Celsius Degrees

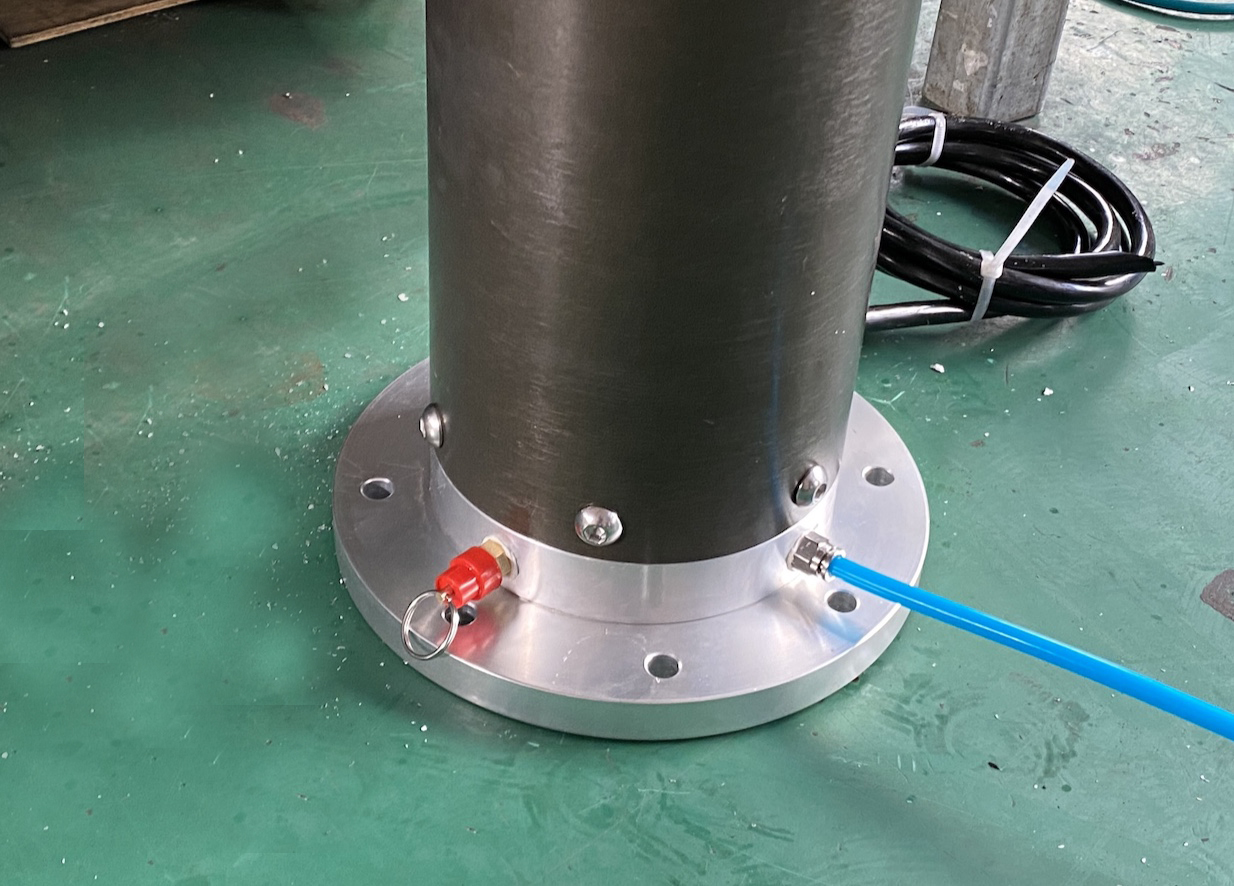

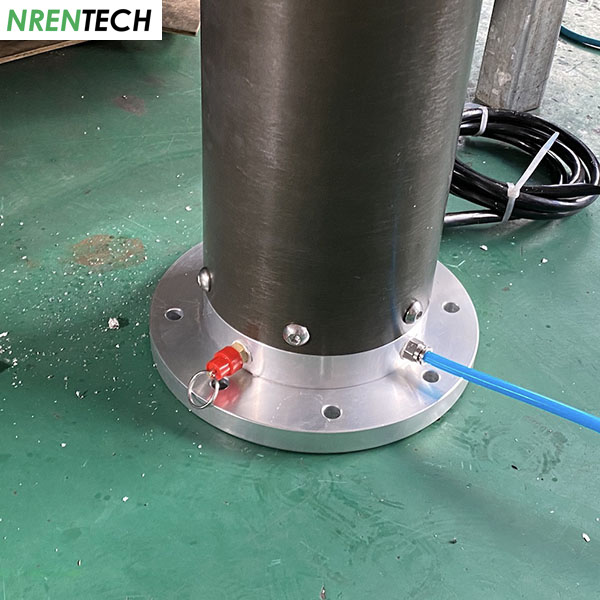

11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual, 1x overpressure protection valve
12> Optional accessories: 120km/h wind speed with guying ropes, DC12V electric air compressor, ground mounting tripods, vehicle side mounting brackets
Leading time: within 20 days
9m CCTV Pneumatic Telescopic Mast-inside cctv wires 4x1.5mm^2 + 1xCAT5E

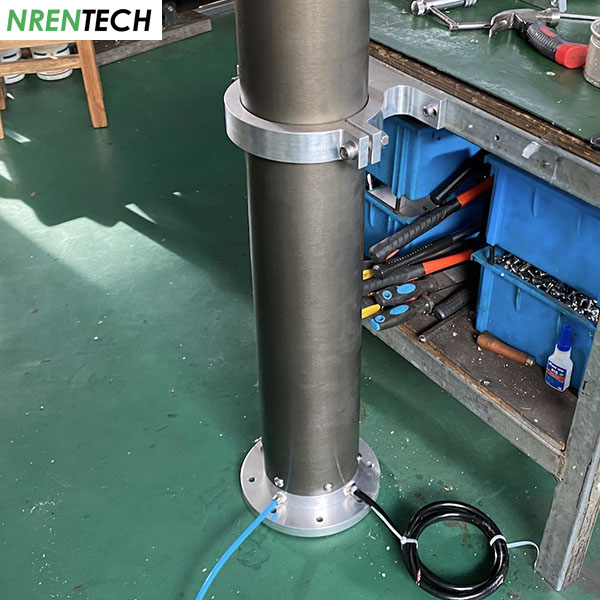

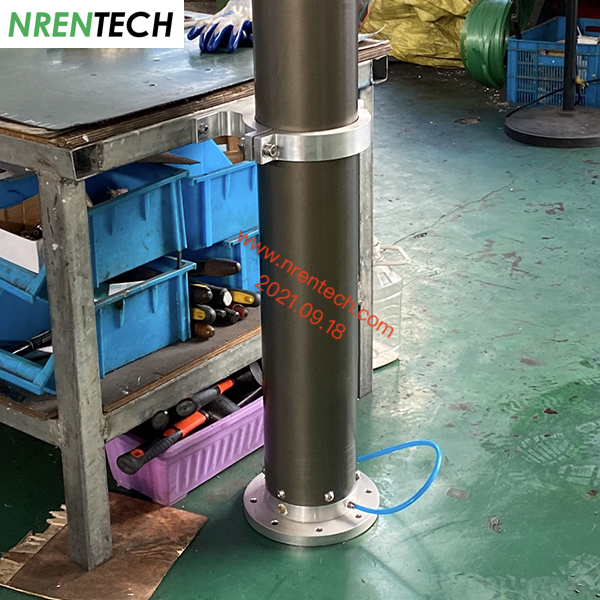

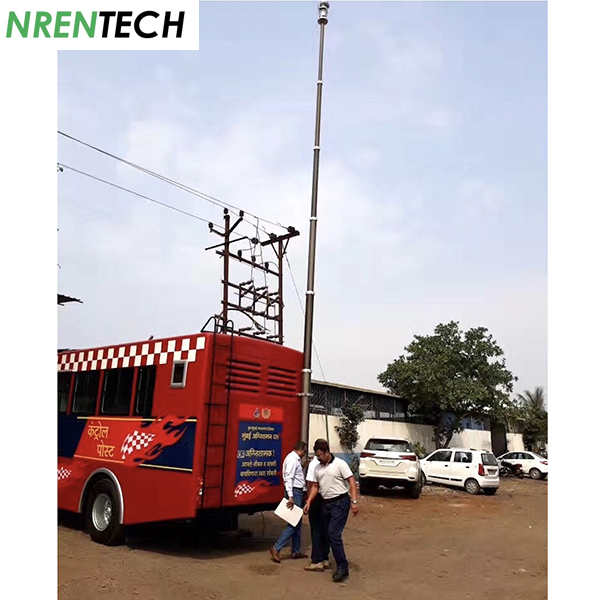

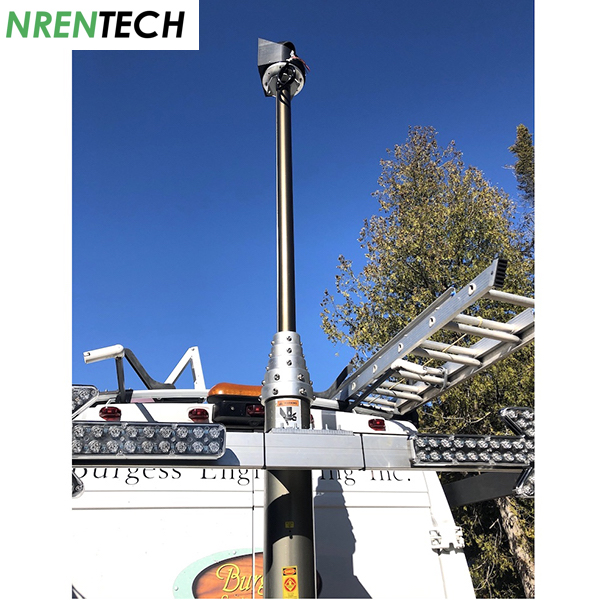

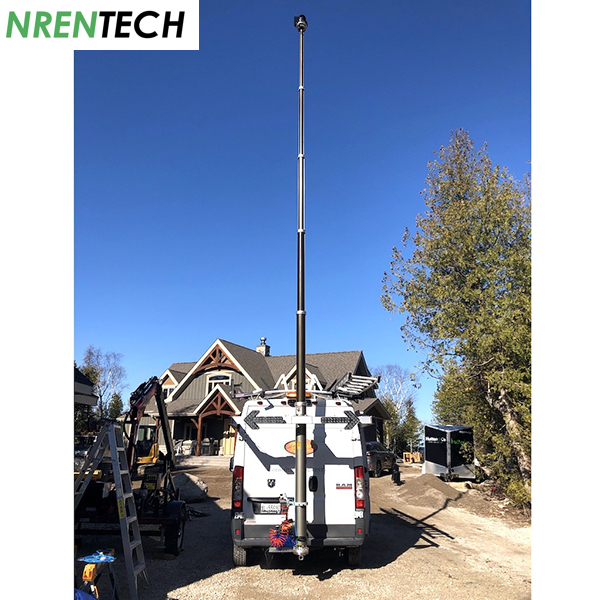

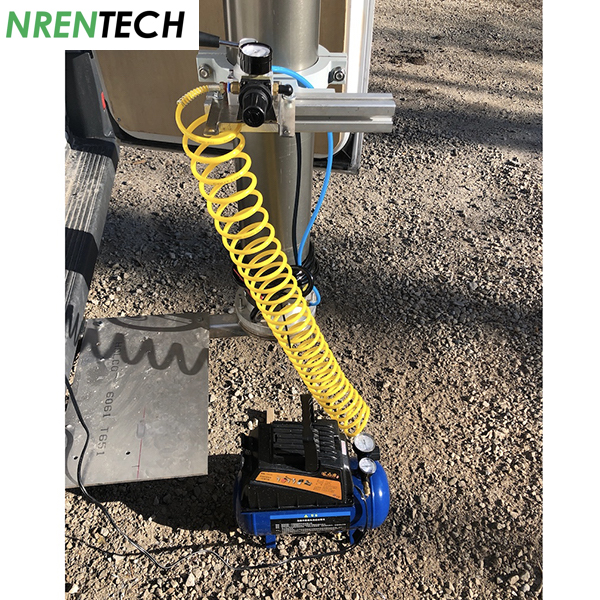

This 9 meter height CCTV pneumatic telescopic mast is designed for Canada, France, India customer for mobile surveillance on a van or fire truck. This mast is mounted on the back of the van by a bottom plate and side mount. The mast is lifted by a DC12V electric air compressor.
9m CCTV Pneumatic Telescopic Mast-50kg Payloads-inside CCTV wires | ||
1> | Item #: | NR-2.2-9-50C-6S-66-160 (previous model NR-2200-9000-50C) |
2> | Extended Height: | 9m |
3> | Retracted Height: | 2.2m |
4> | Maximum Payloads: | 50kg |
5> | Type: | non-lockable, Anti-rotation |
6> | Inside Electric Wires | 1xCAT5E+4x1.5mm^2 for power |
7> | Number of Sections: | 6 |

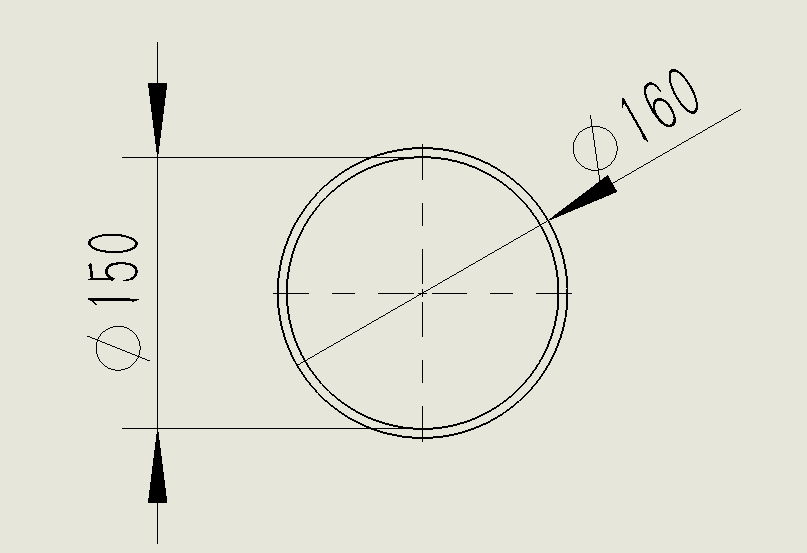

8> | Sections diameter*Thickness: | 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm |
9> | Materials: | Aluminum Alloy, Stainless steel fastners |
10> | Working Air Pressure: | 0.2Mpa/29PSI |
11> | Working Temperature: | -25~55 Degrees Celsius |
12> | Mast Weight: | 65kg approx. |
13> | Wind Loads: | 120km/h with guying rope kits |

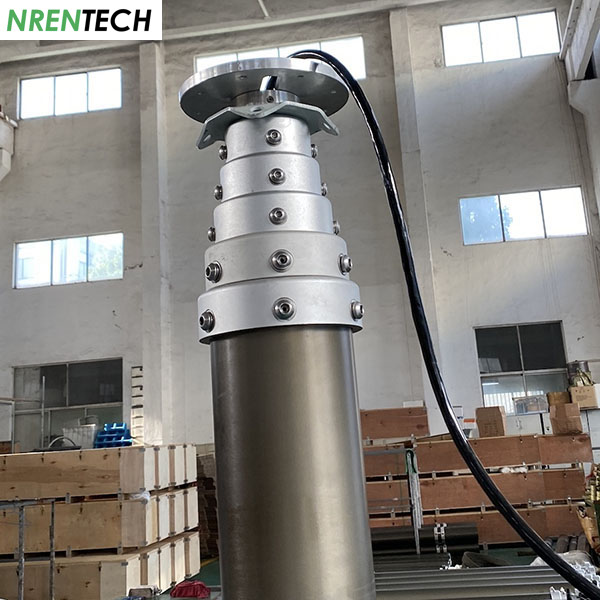

14> | Default accessories: | 1x top flange |

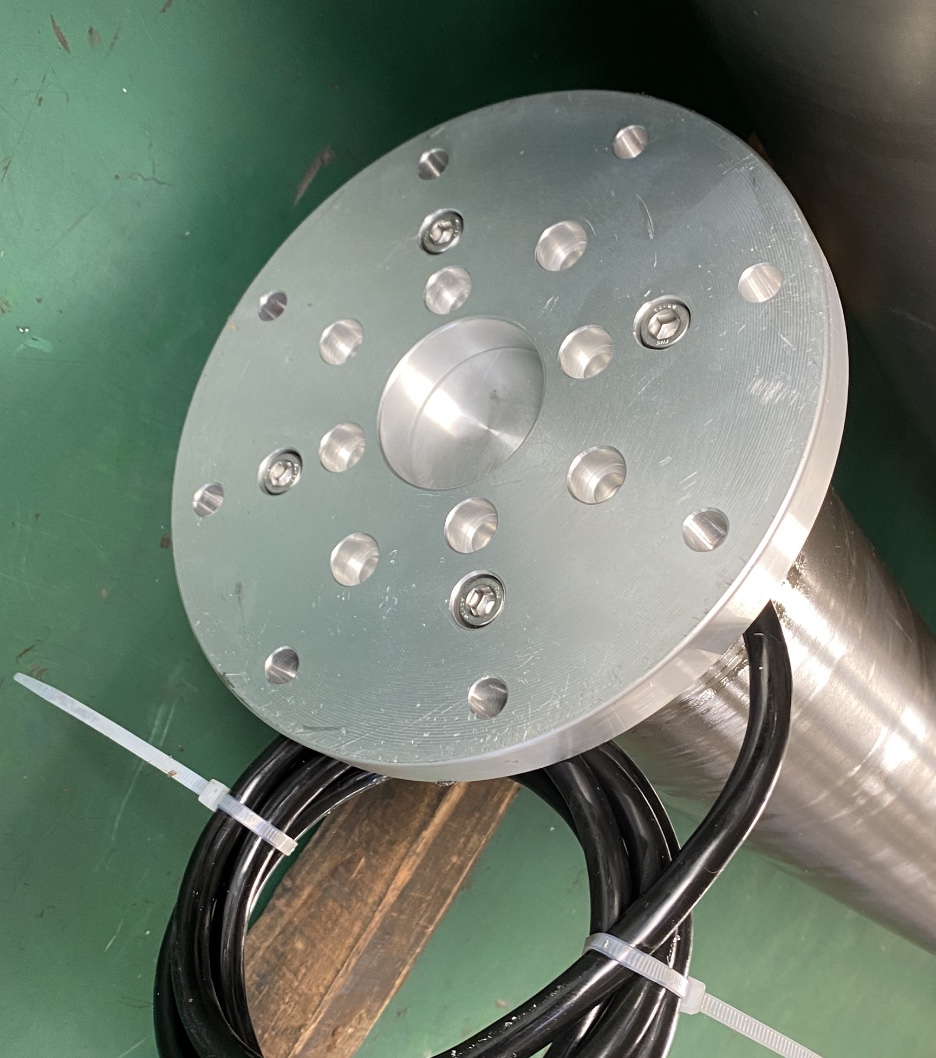

1x bottom flange | ||
1x air hose pipe | ||

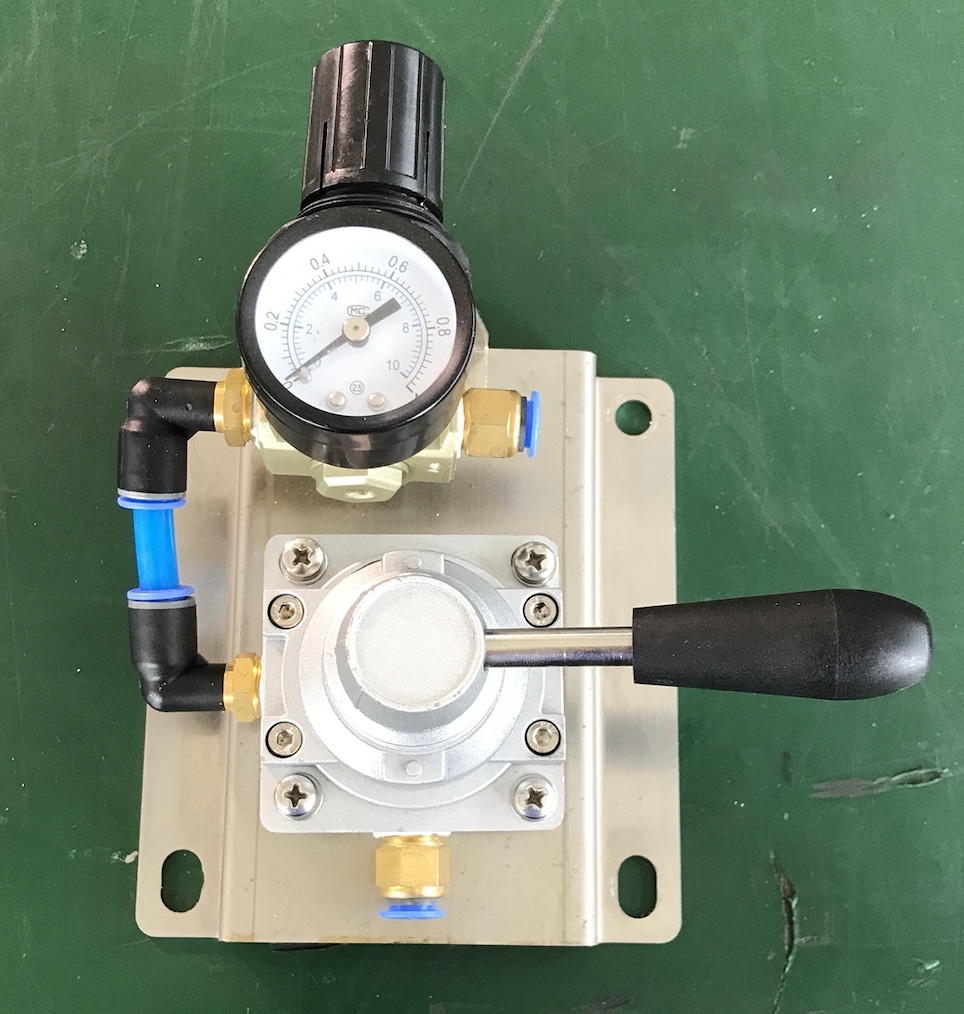

1x air controller | ||
15> | Optional Accessories: | Ground Mounting Tripods |
Guying Rope Kits with Mounting Spikes | ||

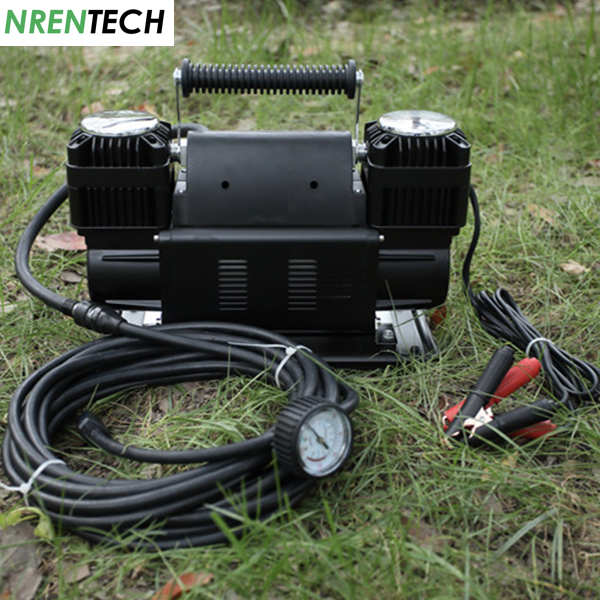

DC12V Electric Air Compressor | ||
AC220V/50Hz Electric Air Compressor | ||

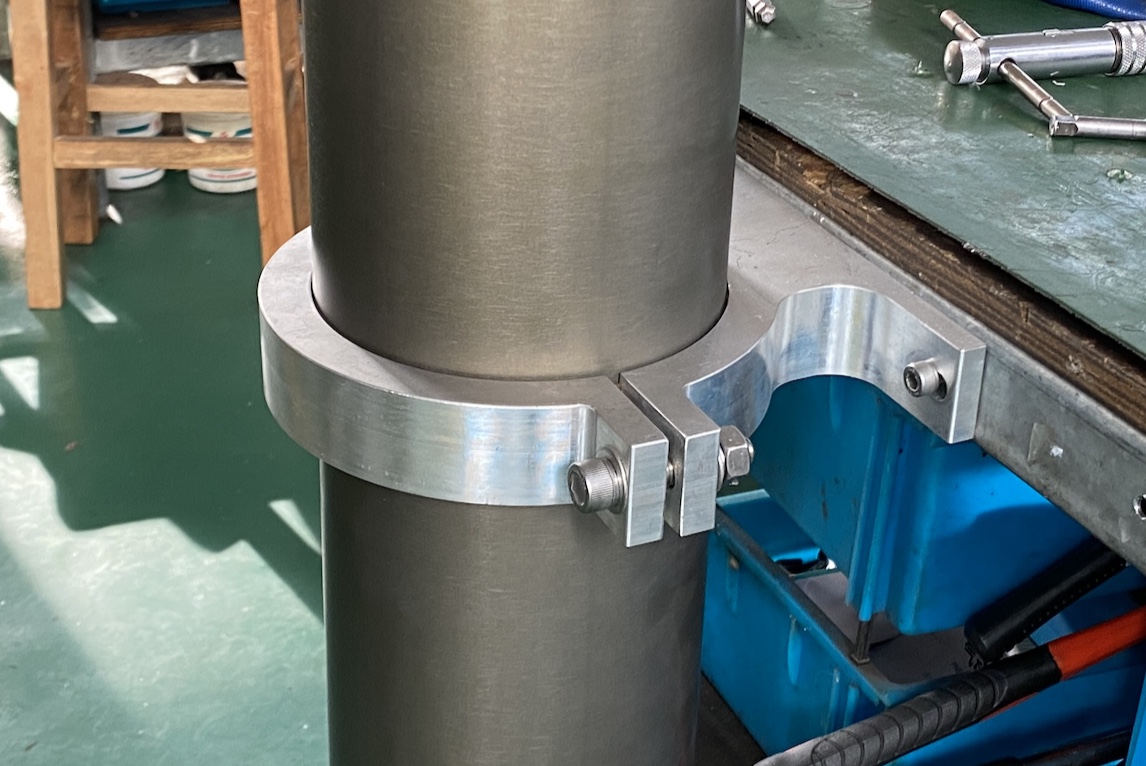

Vehicle Side Mounting Brackets 2 pieces per set | ||
Remote Controller Kit |
