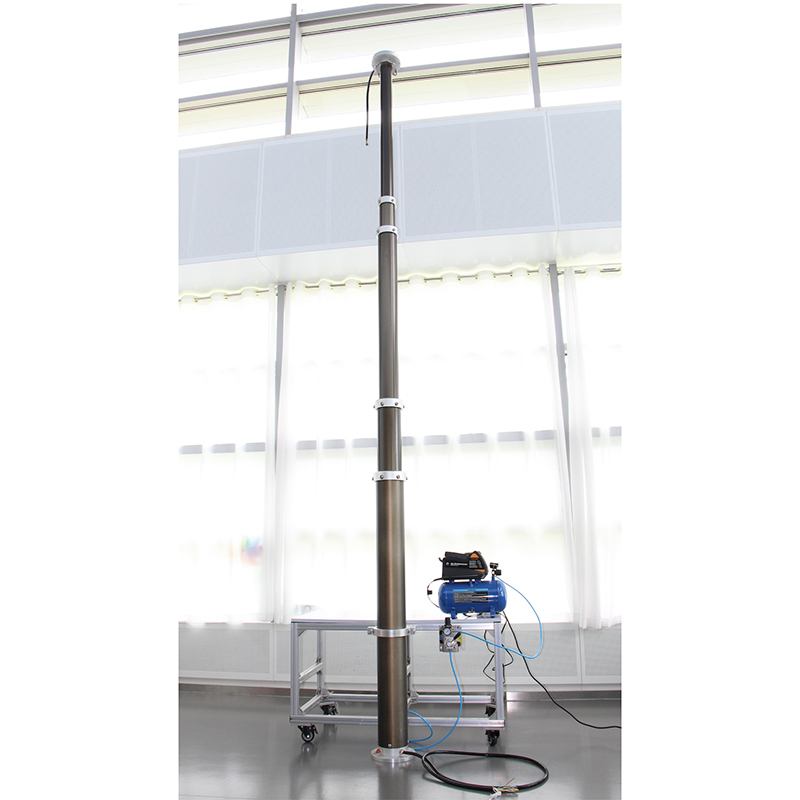

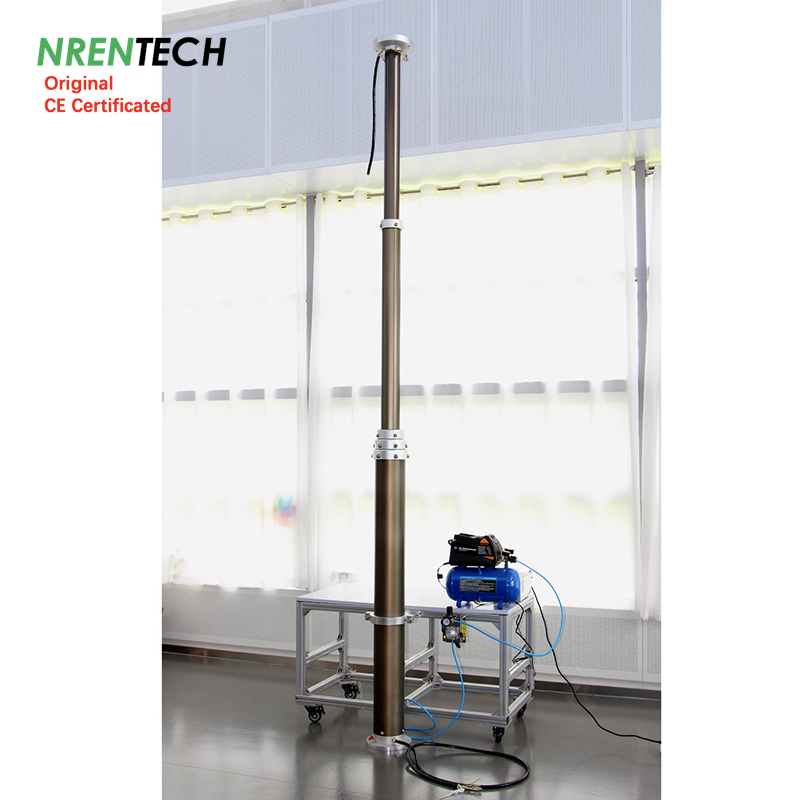

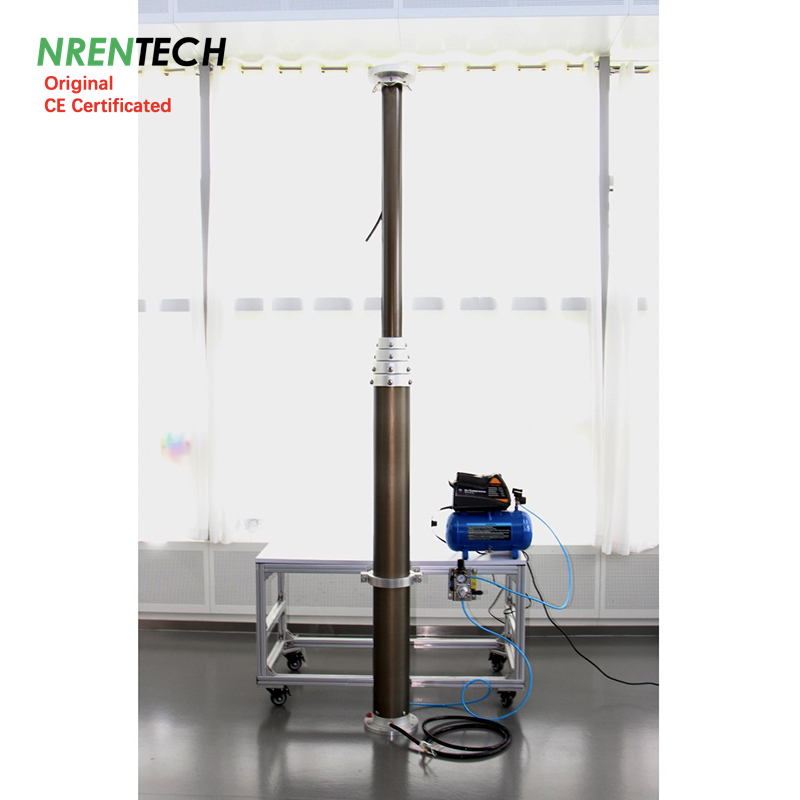

6m CCTV Pneumatic Telescopic Mast inside cables 2xCAT6+6x1.5mm^2
Item #: NR-1.75-6-100C-5S-82-160
1> Extended height: 6m
2> Closed height: 1.75m
3> Inside wires: 2xCAT6 + 6x 1.5mm^ 2 wries
4> Vertical payloads: 50kg @0.2Mpa/29PSI working air pressure
5> Collar type: non lockable (automatic extension/retraction)
6> Number of sections: 5 sections
7> Section diameter: 82mm~160mm
8> Mast weight 65kg approx.
9> Materials: aluminum alloy 6063T5
10> Default Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve
11> Chargeable accessories: Electric air compressor, side mounting bracket, ground mounting tripod/quadpod
leading time: 20 days.
Latest Data Update on 20241127
6m CCTV Pneumatic Telescopic Mast inside cables 2xCAT6+6x1.5mm^2
Item #: NR-1.75-6-100C-5S-82-160
1> Extended height: 6m
2> Closed height: 1.75m
3> Inside wires: 2xCAT6 (sheilded wires) + 6x 1.5mm^ 2 wries
4> Vertical payloads: 50kg @0.2Mpa/29PSI working air pressure
5> Collar type: non lockable (automatic extension/retraction)
6> Number of sections: 5 sections
7> Section diameter: 82mm~160mm
8> Mast weight 65kg approx.
9> Materials: aluminum alloy 6063T5
10> Default Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve
11> Chargeable accessories: Electric air compressor, side mounting bracket, ground mounting tripod/quadpod
leading time: 20 days.
Latest Data Update on 20241127
| 6m CCTV Pneumatic Telescopic Mast-50kg Payload | ||||||
| NR-1.75-6-50C-5S-82-160 | ||||||
| Extended Height | : | 6 | m | 19.68 | ft | |
| Retracted Height | : | 1.75 | m | 5.7 | ft | |
| Vertical Payload | : | 50 | kg | 110 | lb | |
| Inside Electric Wires | : | 2xCAT6 + 6x1.5 sq.mm | ||||
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | non-lockable mast (automatic extension/retraction) | ||||
| Number of sections | : | 5 | ||||
| Top section diameter | : | 82 | mm | 3.2 | in | |
| Basement section diameter | : | 160 | mm | 6.3 | in | |
| Mast Weight | : | 60 | kg | 132 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Optional Accessories | : | Electric air compressor | DC12V, DC24V, AC220V/50hz | |||
| Compact control box | ||||||
| Guying Rope Kits | ||||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod | Portable Aluminum Tripod | |||||
| Rotation Basement | ||||||
| Remote control kit | ||||||
| data update on 20241127 | ||||||
