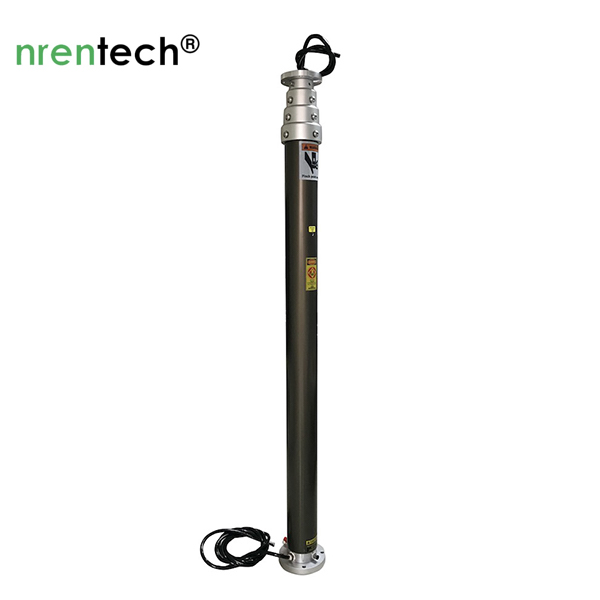

4.2m CCTV Pneumatic Telescopic Mast
Item #: NR1500-4200-30C
4x1.0mm + 1xCAT5E wires mounted inside
4.2m Extended Height/ 1.5m Retracted Height/30kg payloads

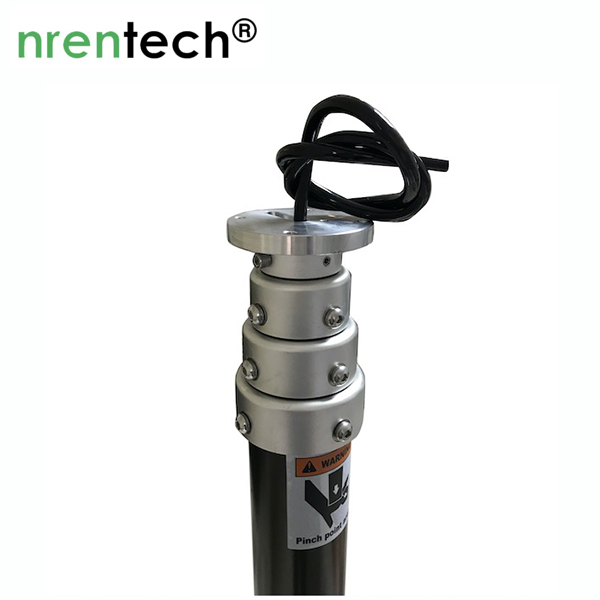

Non-locking collar/ automatic extend/retract
Mast weight 18.5kg approx.
4.2m Portable Pneumatic Telescopic Mast for mobile CCTV Solutions | ||
1> | Item #: | NR-1500-4200-30C |
2> | Extended Height: | 4.2m |
3> | Retracted Height: | 1.5m |
4> | Maximum Payloads: | 30kg |
5> | Type: | non-Lockable, Anti-rotation |
6> | Inside Electric Wires | 1xCAT5E +4x1.5mm^2 |
7> | Number of Sections: | 4 |

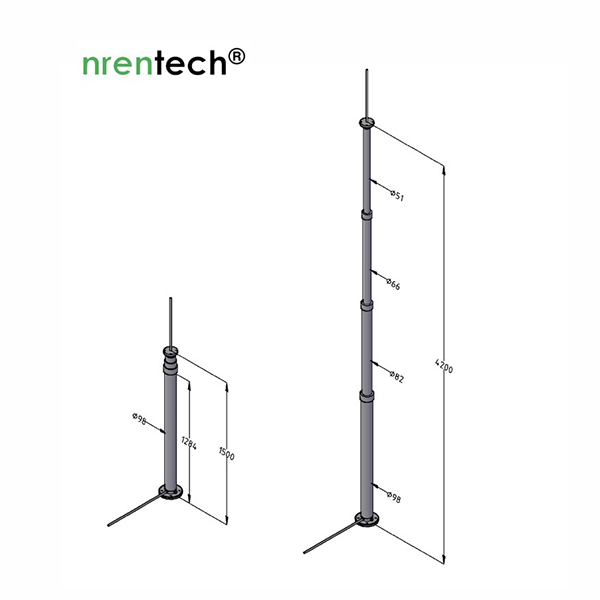

8> | Sections diameter*Thickness: | 51*3mm, 66*3mm,82*4mm, 98*4mm |
9> | Materials: | Aluminum Alloy, Stainless steel fastners |
10> | Working Air Pressure: | 0.2Mpa/29PSI |
11> | Working Temperature: | -25~55 Degrees Celsius |
12> | Mast Weight: | 18.5kg approx. |
13> | Wind Loads: | 80km/h |
14> | Default accessories: | 1x top flange |

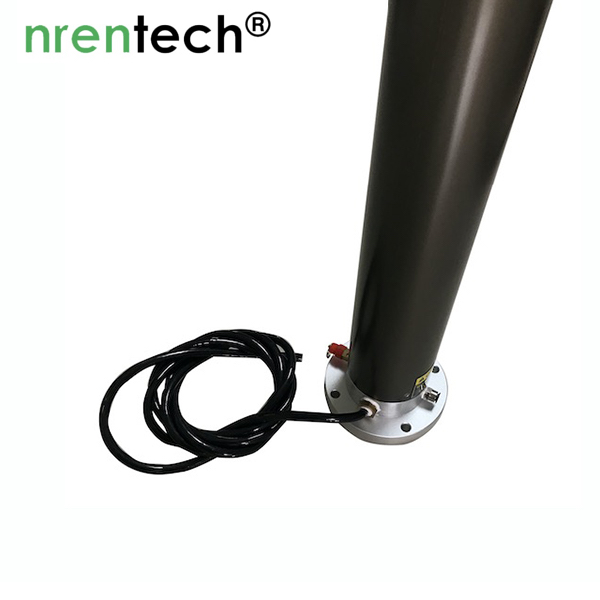

1x bottom flange | ||
1x air hose pipe | ||
1x air controller | ||
15> | Optional Accessories: | Ground Mounting Tripods |
Guying Rope Kits with Mounting Spikes | ||
DC12V Electric Air Compressor | ||
AC220V/50Hz Electric Air Compressor | ||
Vehicle Side Mounting Brackets 2 pieces per set | ||
Remote Controller Kit |
