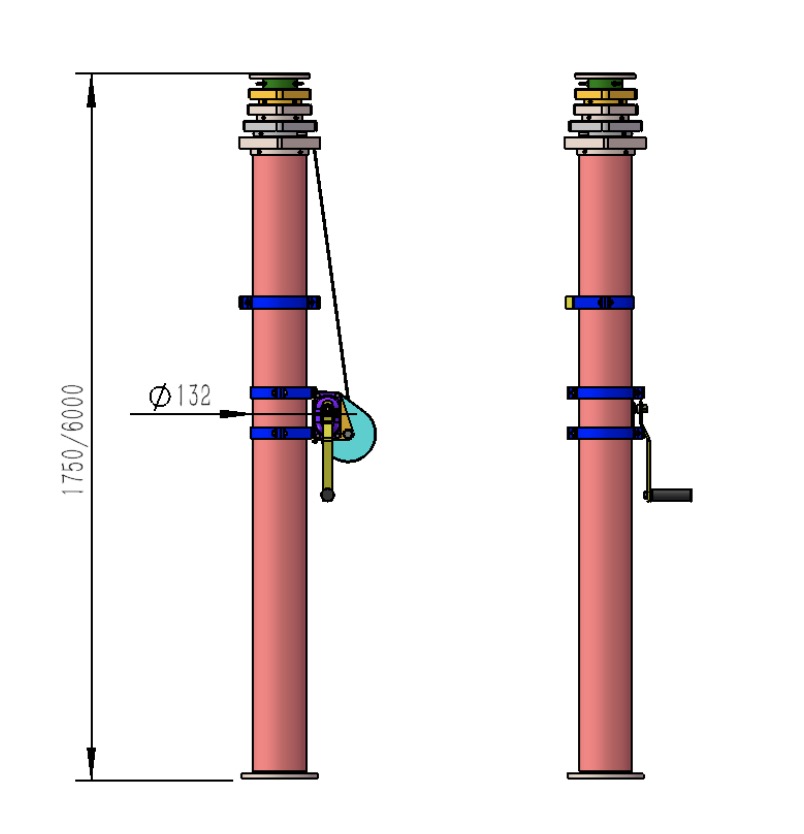

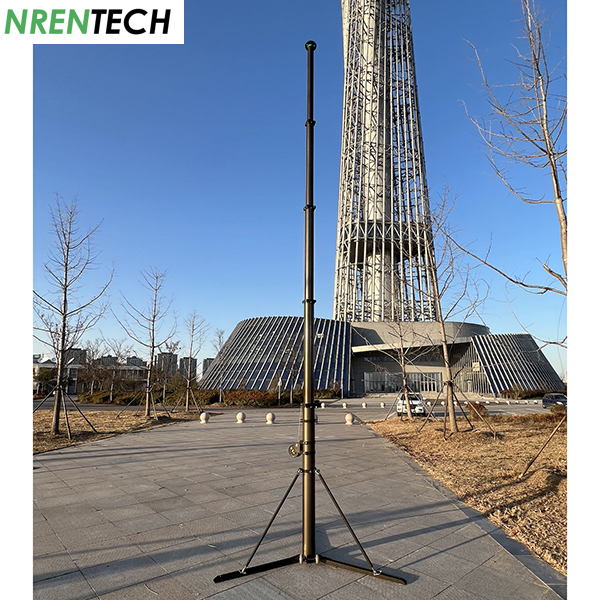

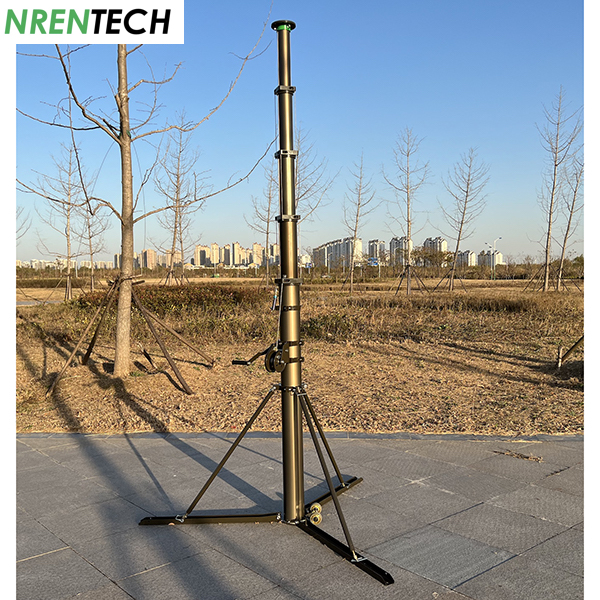

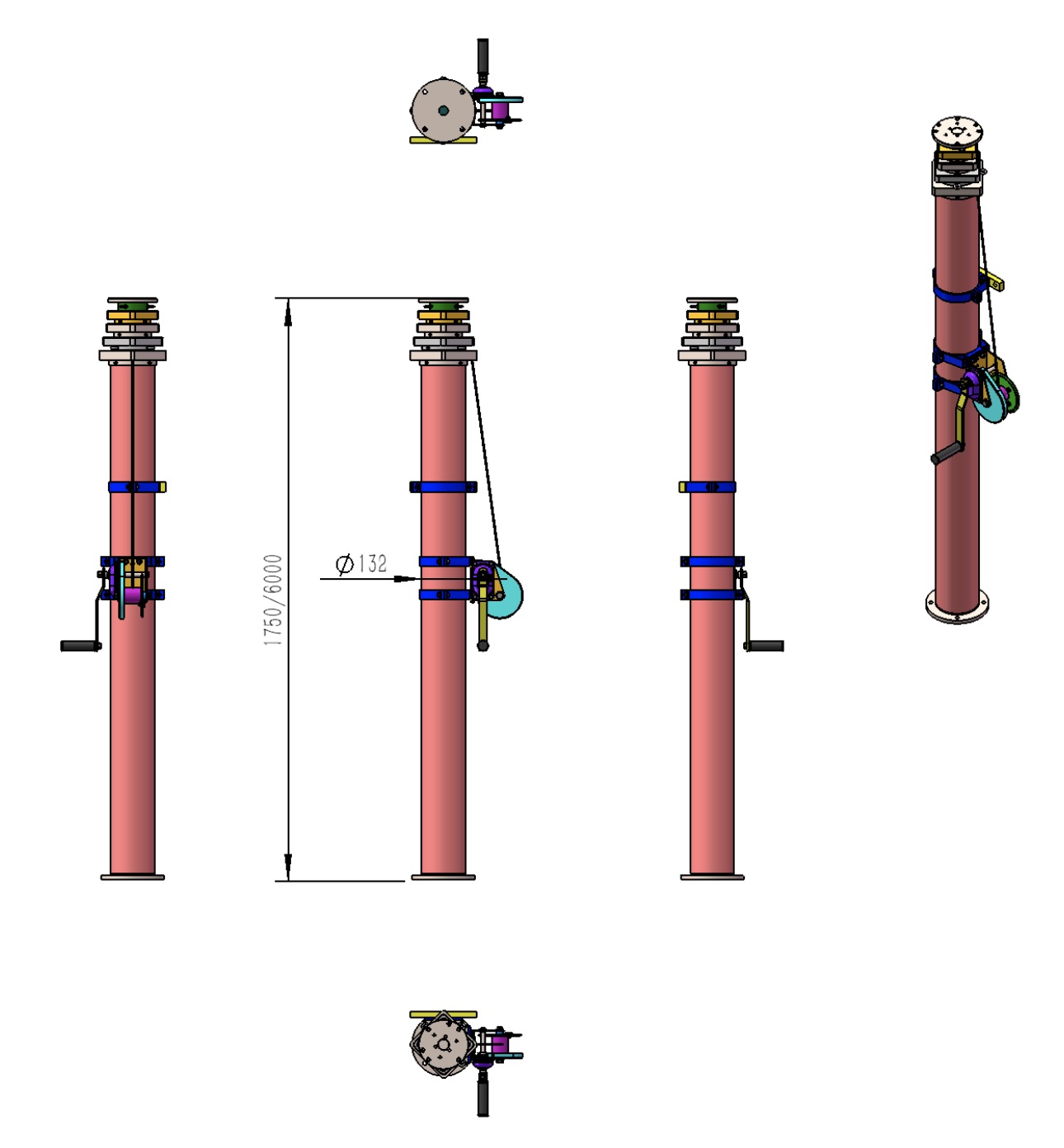

6m Aluminum Manual Winch Operation Telescopic Mast
Part #: NR-M1700-6000
6m extended height/1.7m retracted height/40kg payloads
5 sections/section dia. 76mm~132mm
aluminum alloy materials/ manual crank operation/
top flange, bottom flange included
mast weight 38kg approx.
Optional accessories:
ground mounting tripod,
vehicle side mounting brackets,
guying ropes for 120km/h wind speed available
10 days leading time
Information update on 20240101
Mast NR-M1700-6000 Catalogue 20240101 Down Load
Electric Driven Available
6m Aluminum Manual Winch Operation Telescopic Mast
Part #: NR-M1700-6000
6m extended height/1.7m retracted height/40kg payloads
5 sections/section dia. 76mm~132mm
aluminum alloy materials/ manual crank operation/
top flange, bottom flange included
mast weight 38kg approx.
Optional accessories:
ground mounting tripod,
vehicle side mounting brackets,
guying ropes for 120km/h wind speed available
10 days leading time
Information update on 7th Jan. 2023
Mast NR-M1700-6000 Catalogue 202301 Down Load
Electric Driven Available
6m Aluminum Manual Crank Up Telescopic Mast-40kg Payloads | ||
1> | Item #: | NR-M1700-6000 |
2> | Extended Height: | 6m |
3> | Retracted Height: | 1.7m |
4> | Maximum Payloads: | 40kg |
5> | Type: | Manual Crank Up, Anti-rotation |
6> | Number of Sections: | 5 |
7> | Section’s diameter: | 76mm~132mm |
8> | Materials: | Aluminum Alloy 6063T6 |
9> | Color: | Anodizing “Olive Green” |
10> | Working Temperature: | -25~55 Degrees Celsius |
11> | Mast Weight: | 35kg |
12> | Wind Loads: | 60km/h with guying ropes |
13> | Default accessories: | 1x top flange |
1x bottom flange | ||
Guying Rope Kits with Mounting Spikes 1 layer x 3 directions | ||
14> | Optional Accessories: | Ground Mounting Tripods |
moving wheels kit for tripod | ||
Vehicle Side Mounting Bracket (upper mounting) | ||
Bottom support bracket | ||
Data update on 7th Jan. 2023
