12m Manual Operation Telescopic Mast-10kg payloads
Part #: NR-M2100-12000

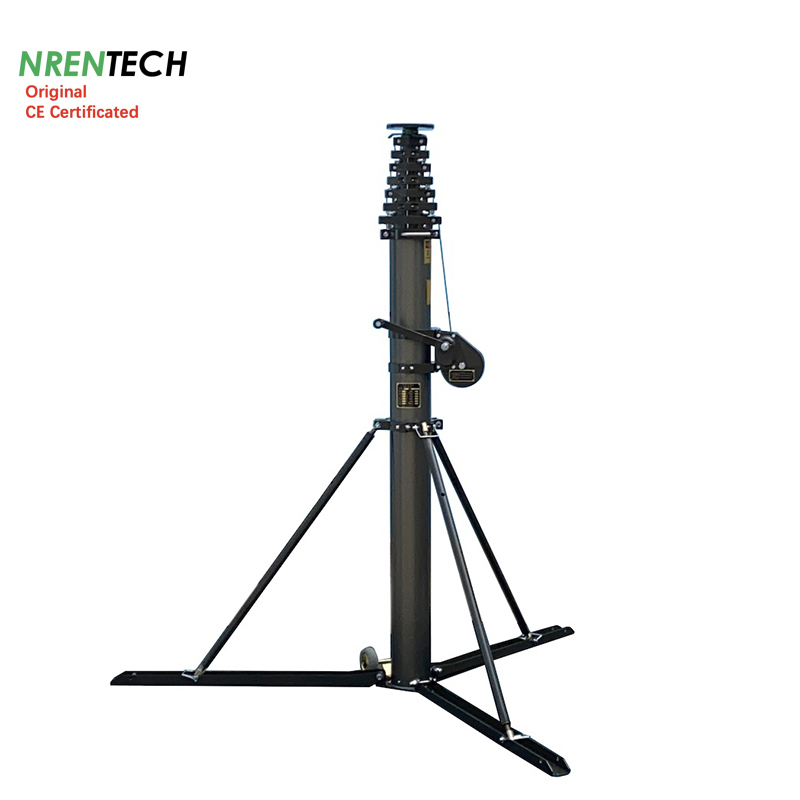

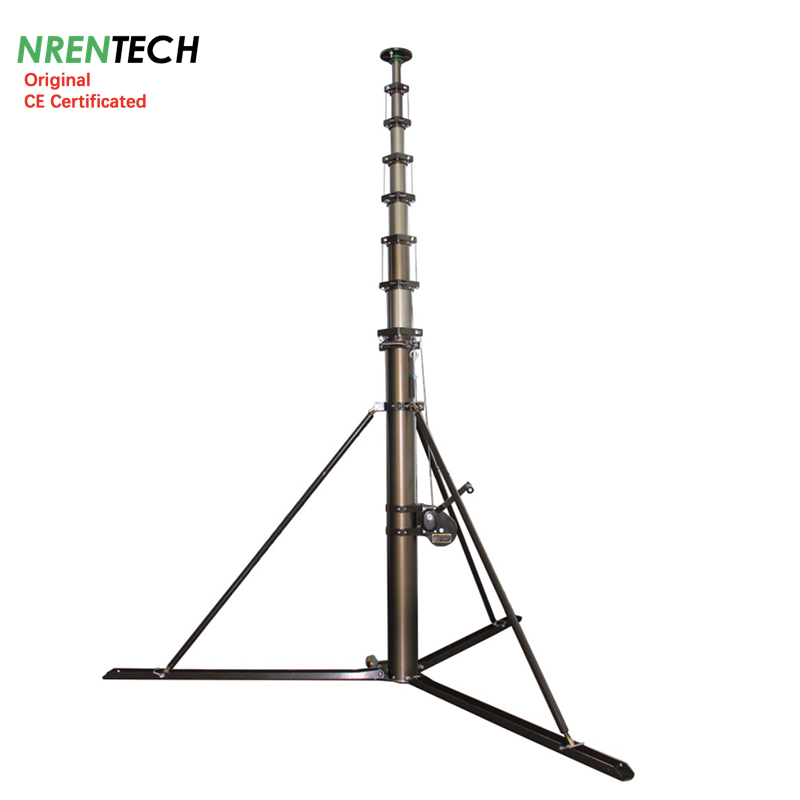

12m manual winch operation telescopic mast

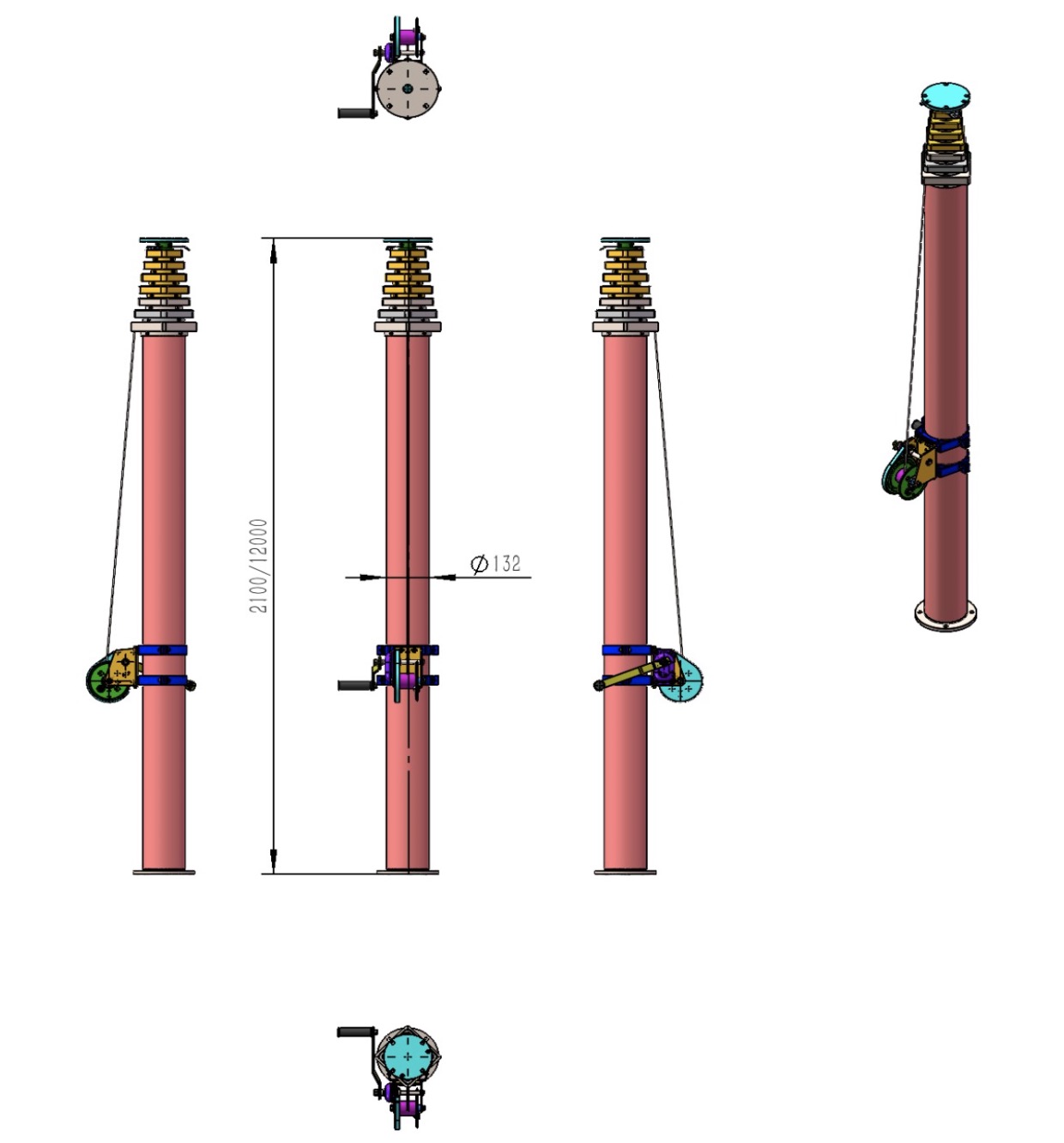

2.1m retracted height/10kg payloads/8 sections/section dia. 40mm~130mm
mast weight 47kg approx.
guy rope kits (2 layers, 3 ropes each layer, 4 mounting spikes)

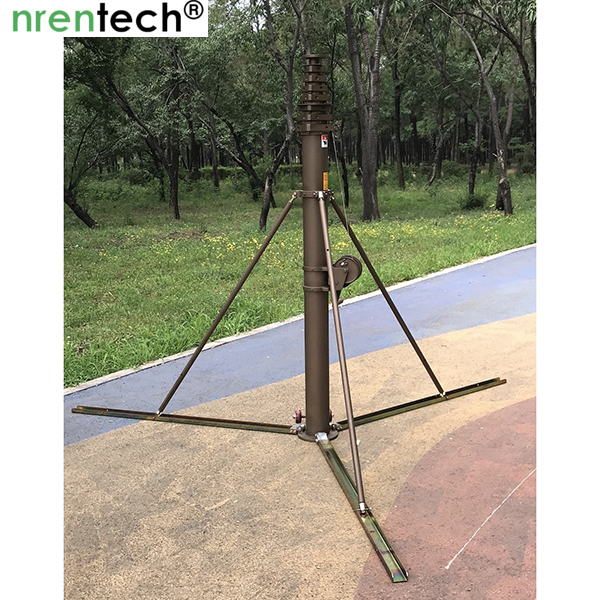

tripod ground mounting brackets with wheels (optional accessories)
vehicle side mounting brackets (optional accessories)

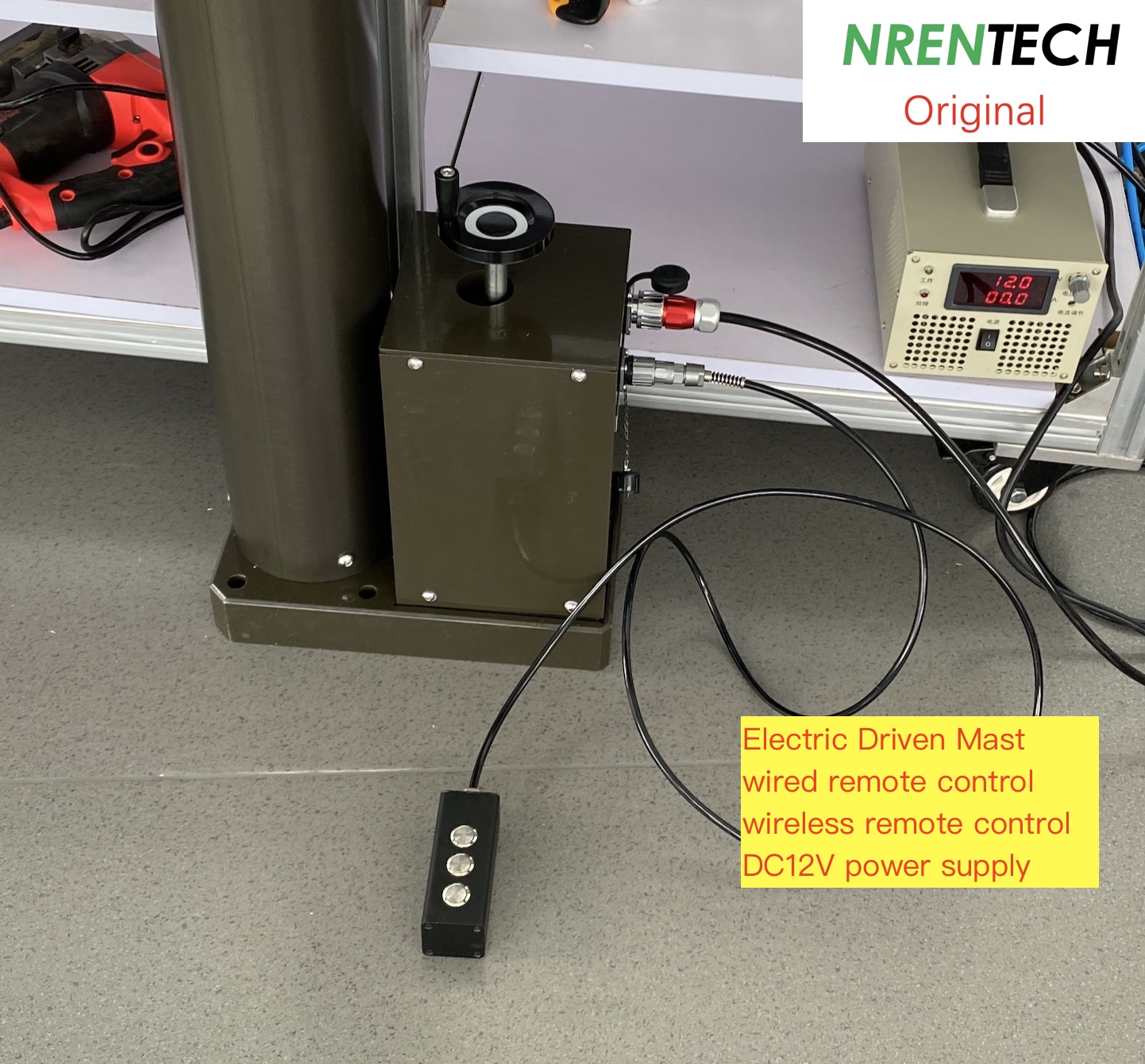

(Electric driven available)
Data updated on 2024.01.04 (Catalogue Down Load)
15days leading time
12m Manual Crank Up Telescopic Mast 10kg Payloads | ||
1> | Item #: | NR-M2100-12000 |
2> | Extended Height: | 12m |
3> | Retracted Height: | 2.1m |
4> | Maximum Vertical Payloads: | 10kg |
5> | Type: | manual crank up, anti-rotation |
6> | Inside Electric Wires | non |
7> | Number of Sections: | 8 |
8> | Sections’ diameter | 40~132mm |
9> | Materials: | Aluminum Alloy, Stainless steel fasteners |
10> | Working Temperature: | -25~55 Degrees Celsius |
11> | Mast Weight: | 47kg |
12> | Wind Loads: | 60km/h with guying rope kits |

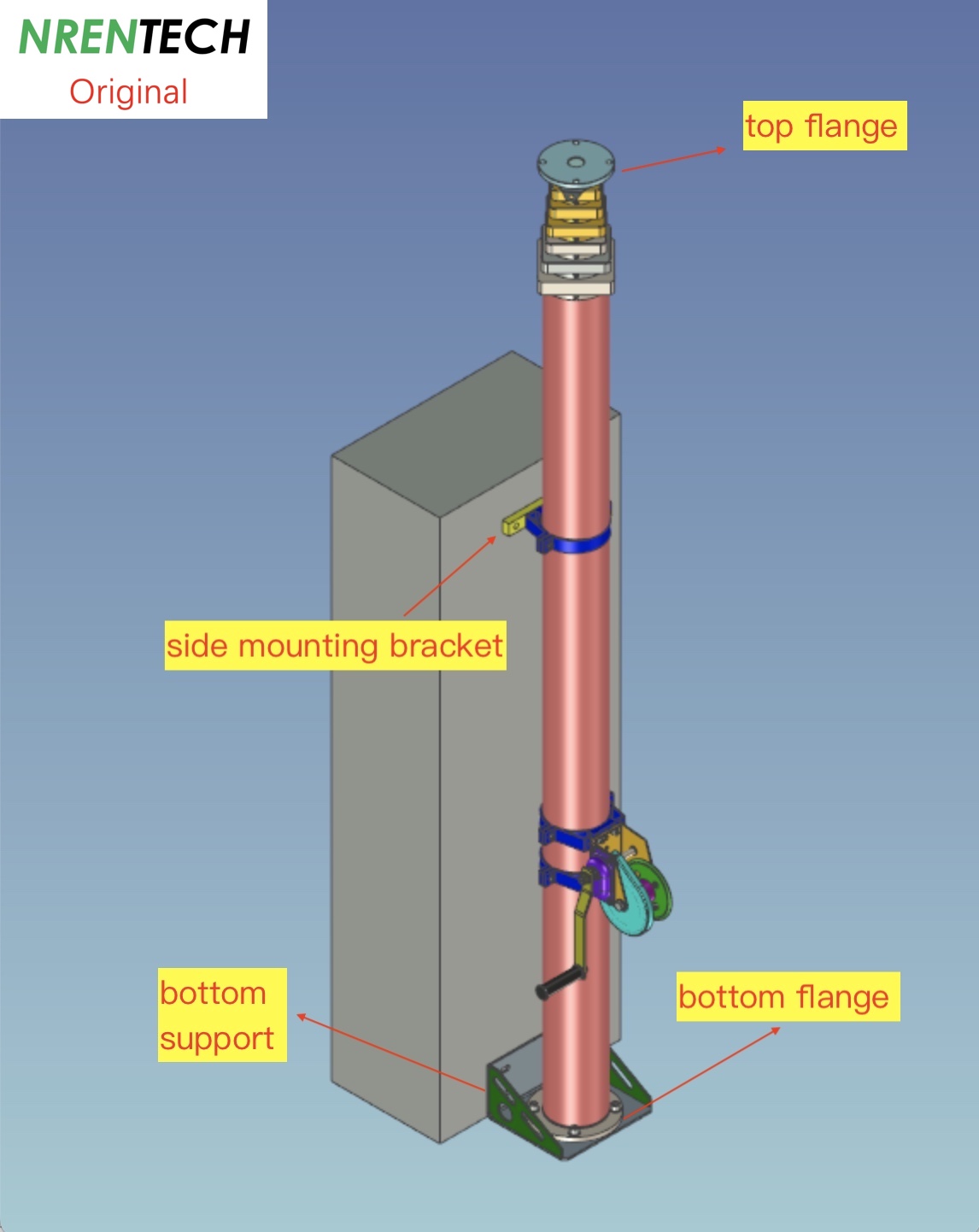

13> | Default accessories: | 1x top flange |
1x bottom flange | ||
Guying Rope Kits with Mounting Pickets (2 layers, 3 ropes each layer) | ||
14> | Optional Accessories: | Ground Mounting Tripods |
Moving wheels kits for ground mounting tripod | ||
Side mounting bracket | ||
bottom support for side mounting bracket |
