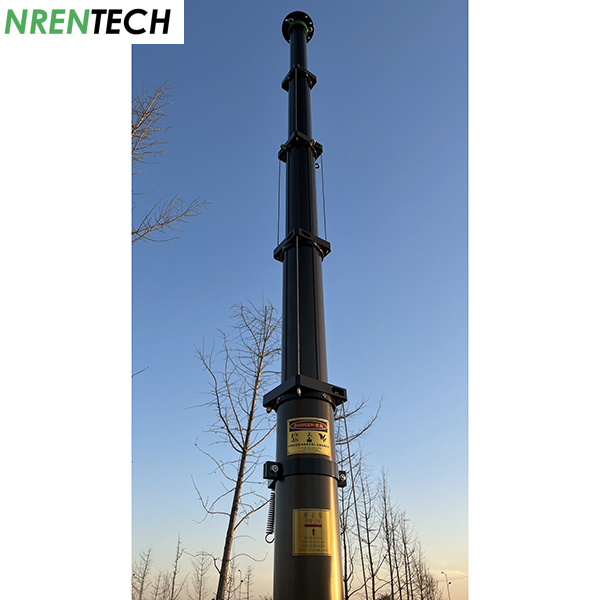

9m Aluminum Manual Winch Operation Telescopic Mast 40kg payloads
Part #: NR-M2300-9000

1> Part #: NR-M2300-9000
2> Extended Height: 9m
3> Closed Height: 2.3m
4> Vertical payload: 40kg

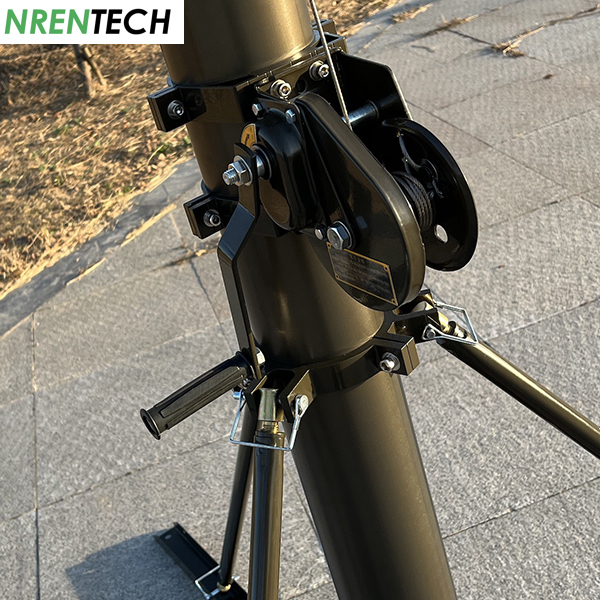

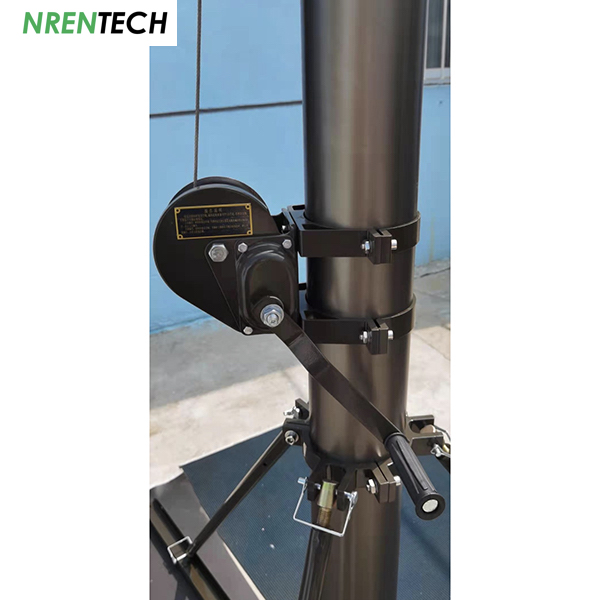

5> Operation: manual crank lifting
6> Number of sections: 5 pcs
7> Sections diameter: 76mm~132mm
8> Materials: aluminum alloy 6063T5
9> Mast weight: 45kg approx.
10> Default accessories: top flange, bottom flange, guying rope kits

11> Chargeable accessories:

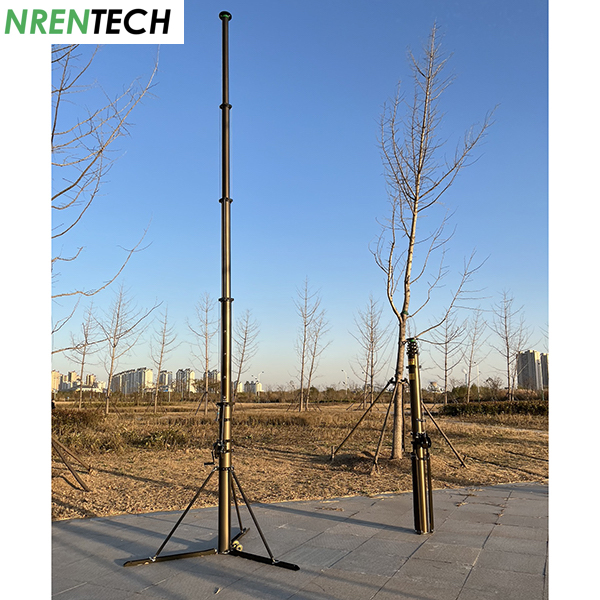

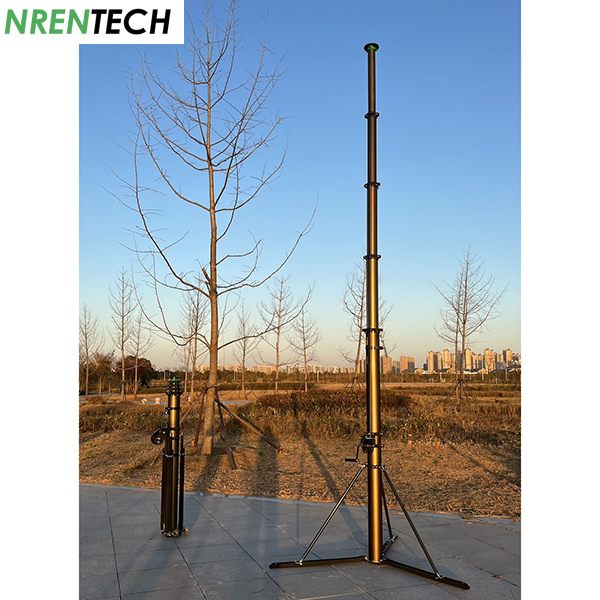

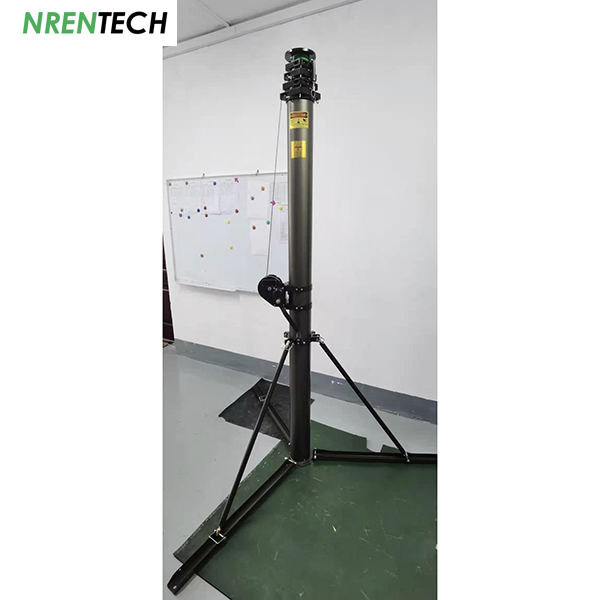

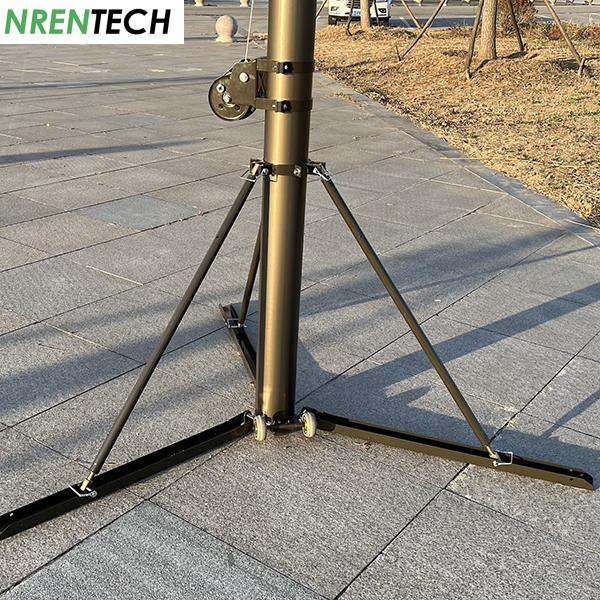

Ground mounting tripod bracket NR-TRIPOD132
Moving wheel kit for tripod bracket
Side mounting bracket: NR-S132
Bottom support bracket for side mounting: NR-BS132

Electric Driven Available
20 days leading time
Latest data updated on 20241128

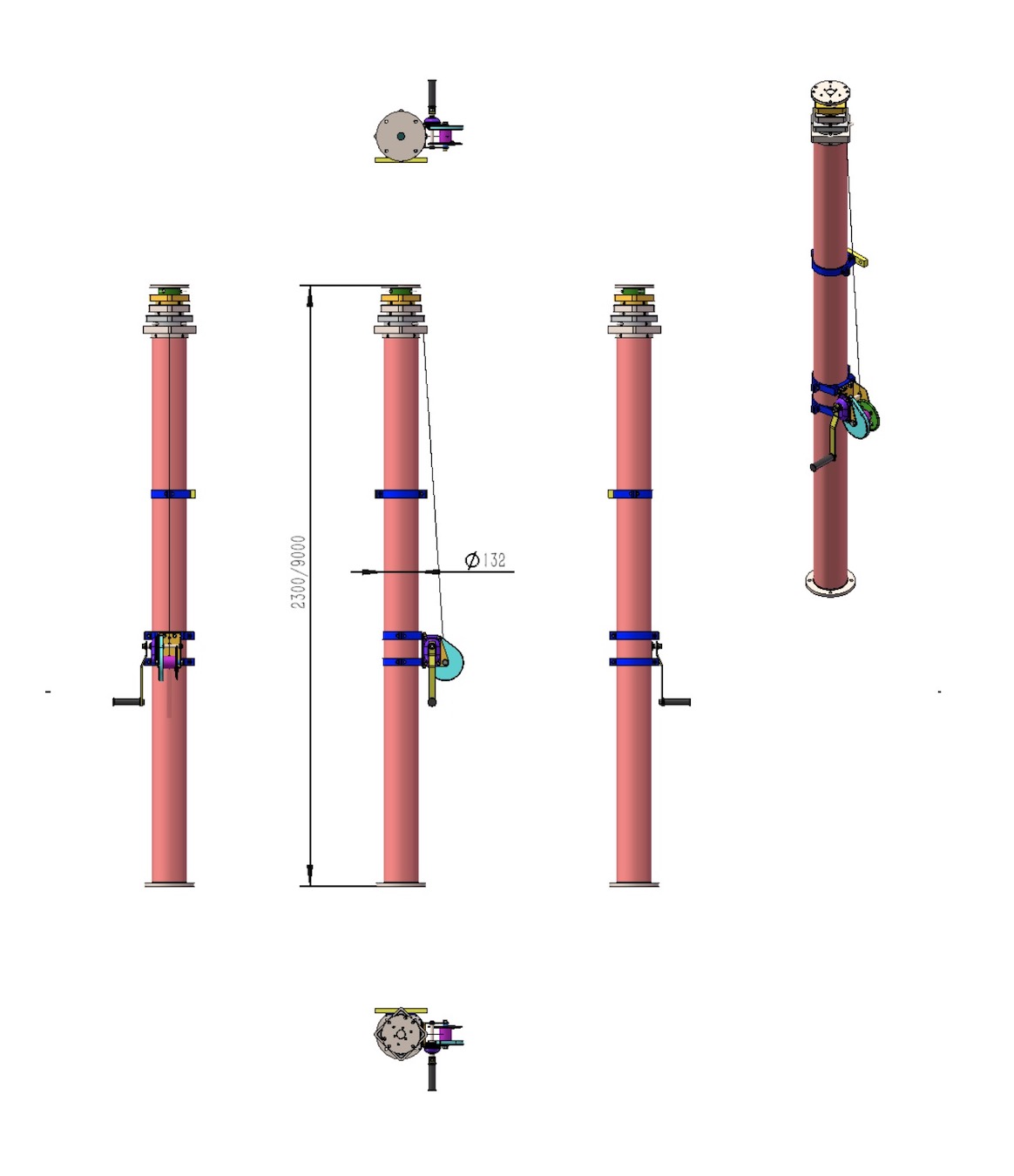

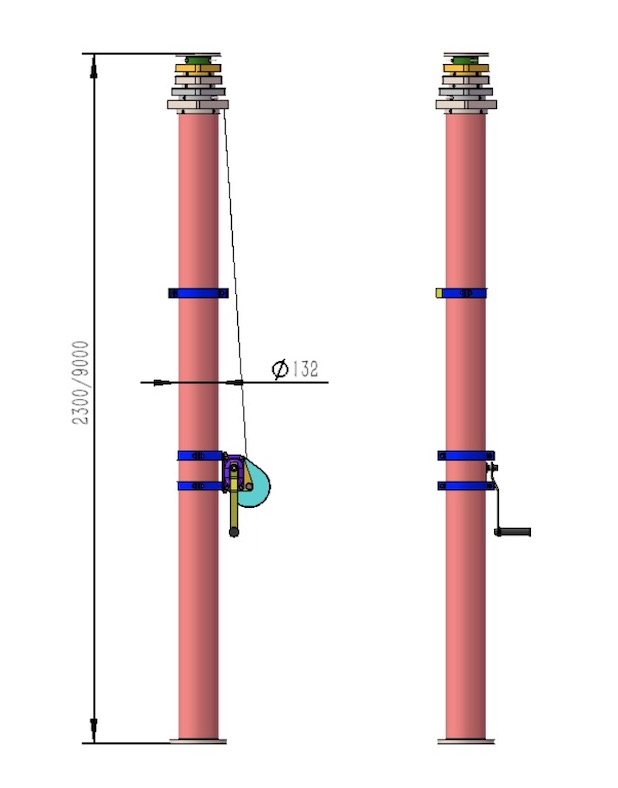

9m Manual Crank Up Telescopic Mast 40kg Payloads
NR-M2300-9000
Extended Height	:	9	m	29.52	ft

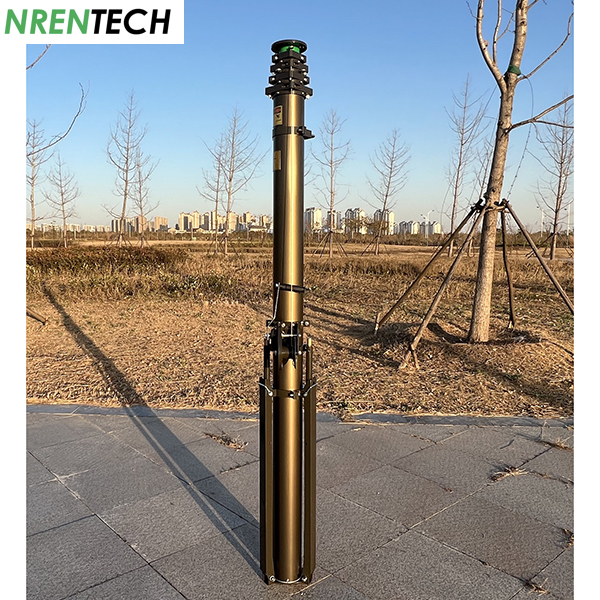

Retracted Height	:	2.3	m	7.5	ft
Vertical Payload	:	40	kg	88	lb
Lifiting Type	:	Manual Crank Up
Inside Electric Wires	:

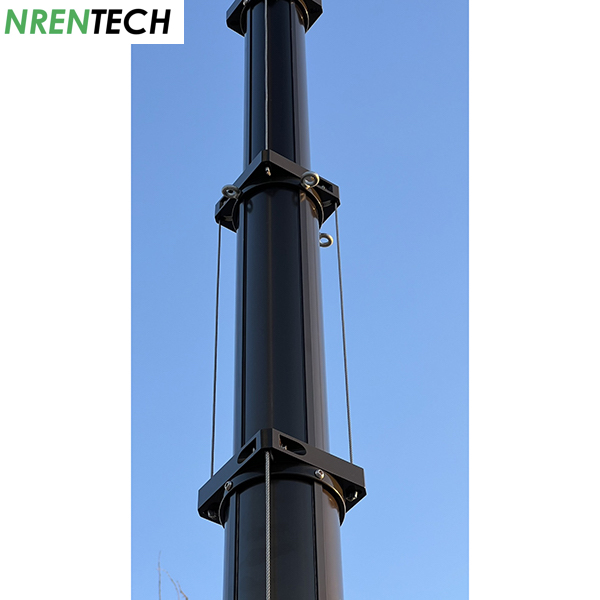

Number of sections	:	5
Top section diameter	:	76	mm	3.0	in
Basement section diameter	:	132	mm	5.2	in
Mast Weight	:	45	kg	99	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		Side Mounting Bracket
		guying rope kits
Optional Accessories	:	Ground mounting Tripod			steel materials
		Moving wheel kit			for tripod bracket
		Lower Side Mounting Bracket			steel materials
		Remote control kit
data update on 20241128
