6m CCTV Pneumatic Telescopic Mast 4xCAT5E+4x2.5mm^2
Item #: NR-1.75-6-150C-5S-98-180 (NR-1750-6000-150C)
Non-lockable collar, suitable for automatic extension, automatic retraction operation by remote control.
150kg Heavy Duty Payloads
Inside CCTV wires 4x1.5mm^2 + 4xCAT5E
6m Extended Height/1.75m Retracted Height
Aluminum alloy materials AL6063T5
5 sections, section dia. 98mm~180mm
Mast weight 80kg approx.
Top flange, bottom flange, air hose pipe included
leading time: 30 days
information updated on 20230723

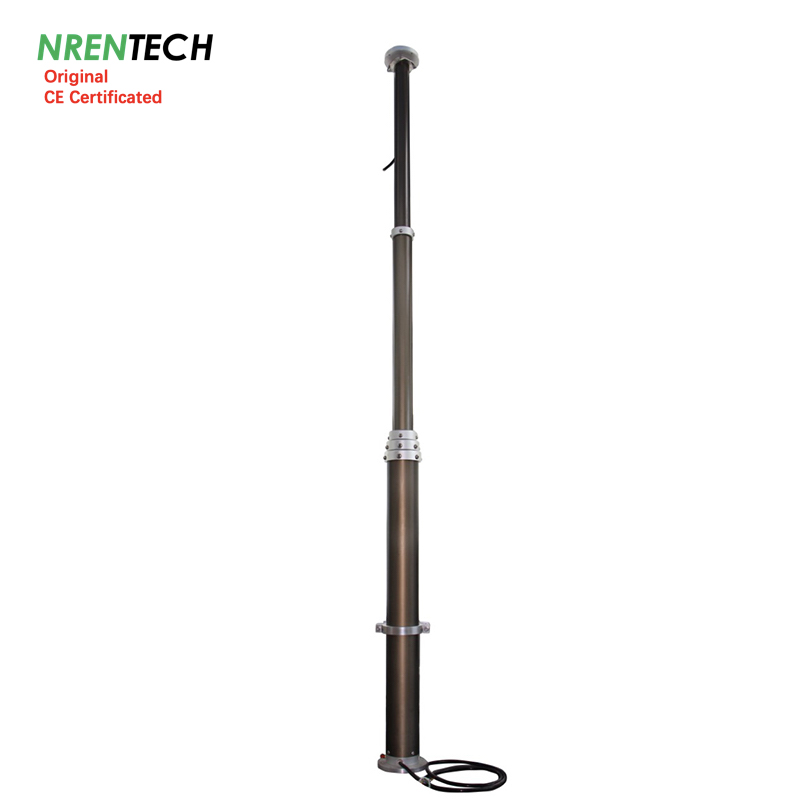

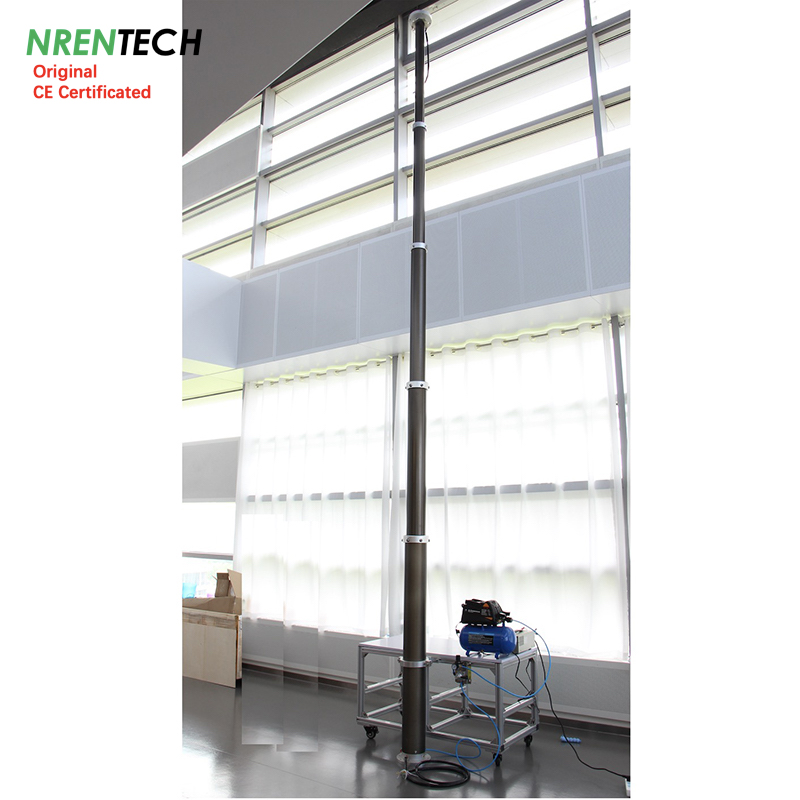

6m CCTV Pneumatic Telescopic Mast NR-1.75-6-150C-6S-98-180 (NR-1750-6000-150C)
non-lockable collar type for automatic extension/retraction
This 6m mast is we design for mobile surveillance trailer system special.

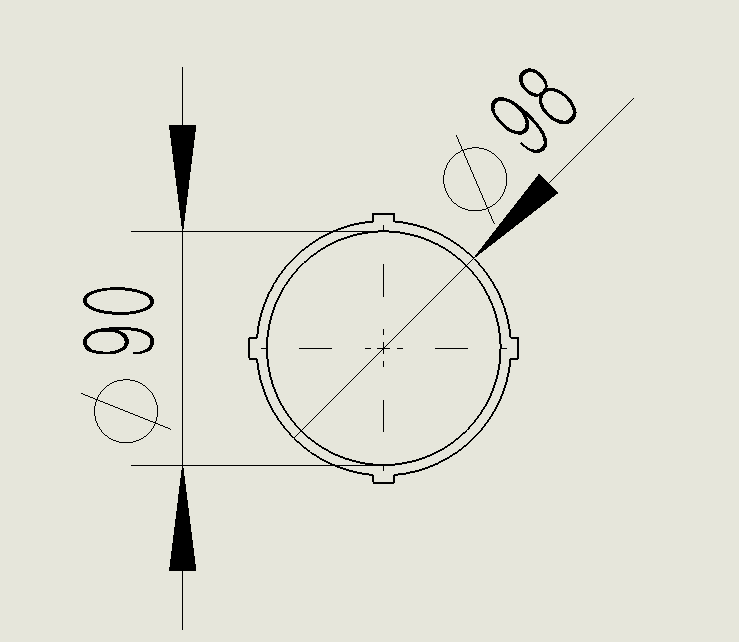

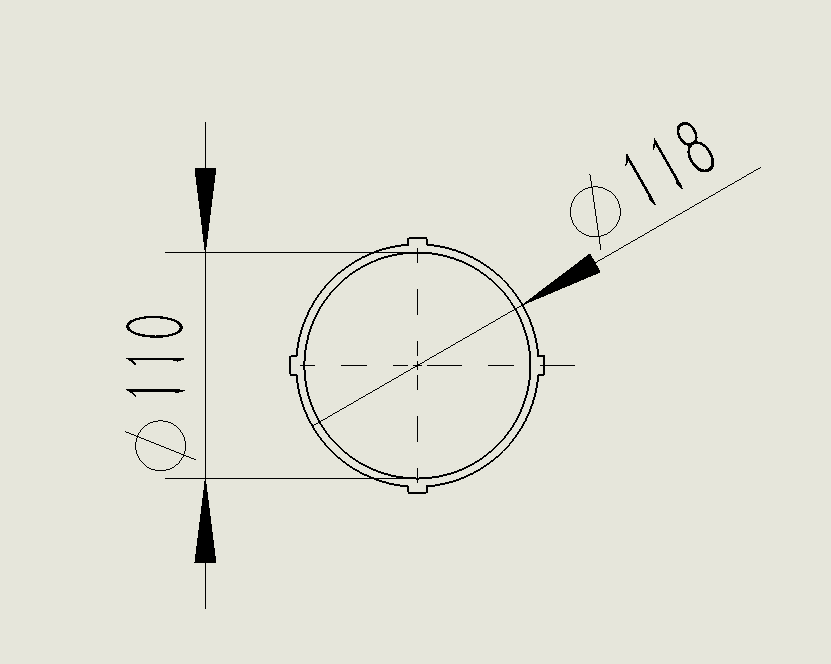

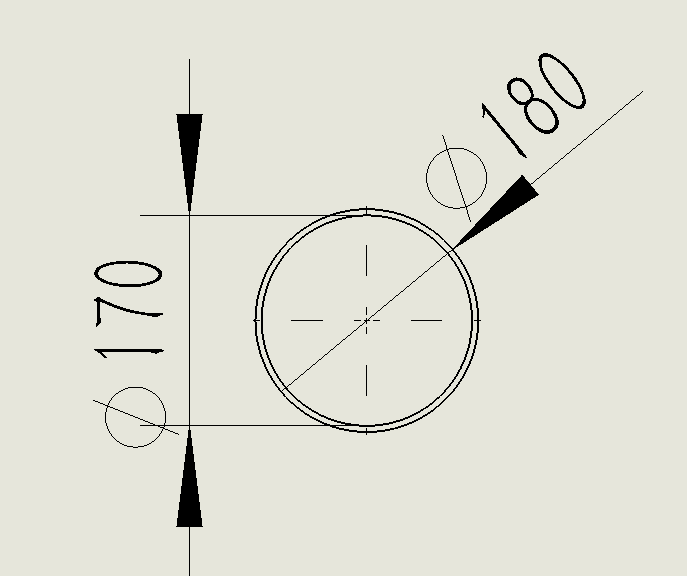

The mast is composed of 5 aluminum alloy sections which diameter and thickness are 98*4mm, 118*4mm, 140*5mm, 160*5mm, 180*5mm. Drawing of the sections bellowed.

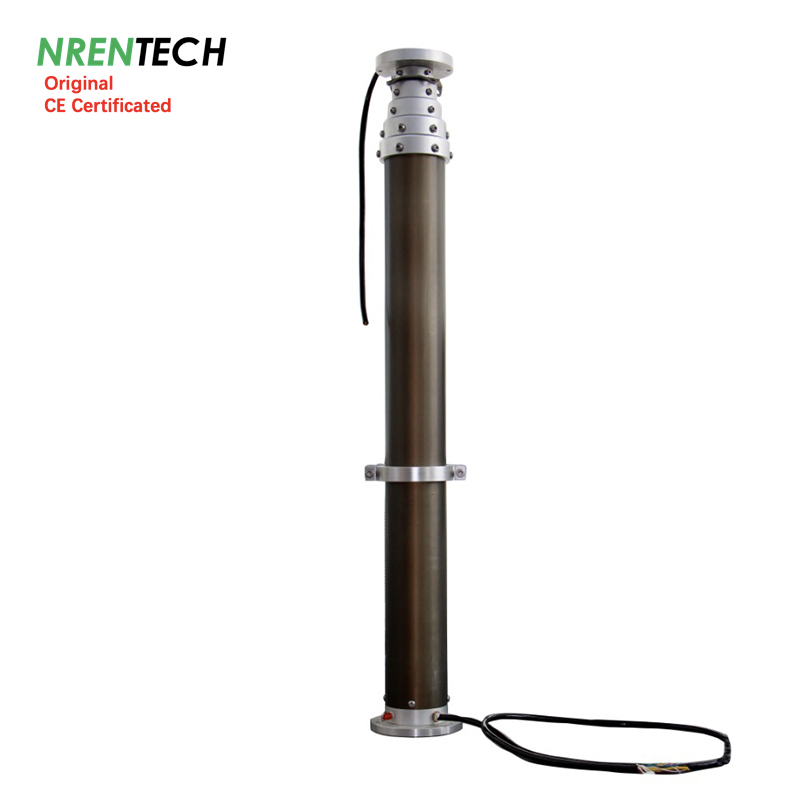

Mast retracted height is 1.75m easy for operation and installation. There is one big CCTV wires mounted inside, 4x1.5mm^2 wires for power, 4xCAT5E for data.
This 6m CCTV mast maximum payloads up to 150kg. With the inside big looms, the mast can meet more requirement for surveillance equipment installation. Mast default accessories come with one top flange, bottom flange, air hose pipe.

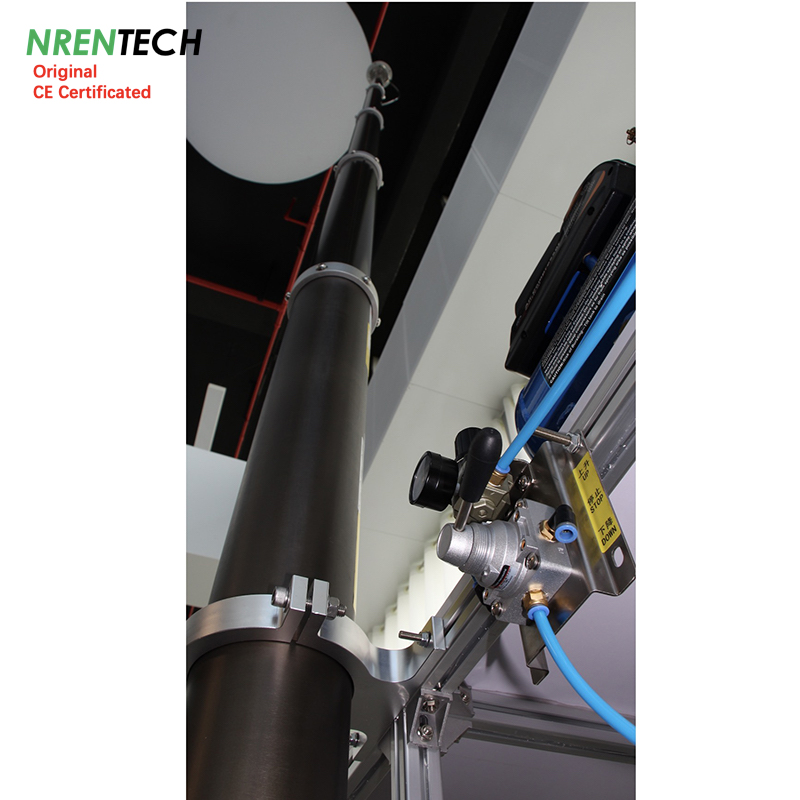

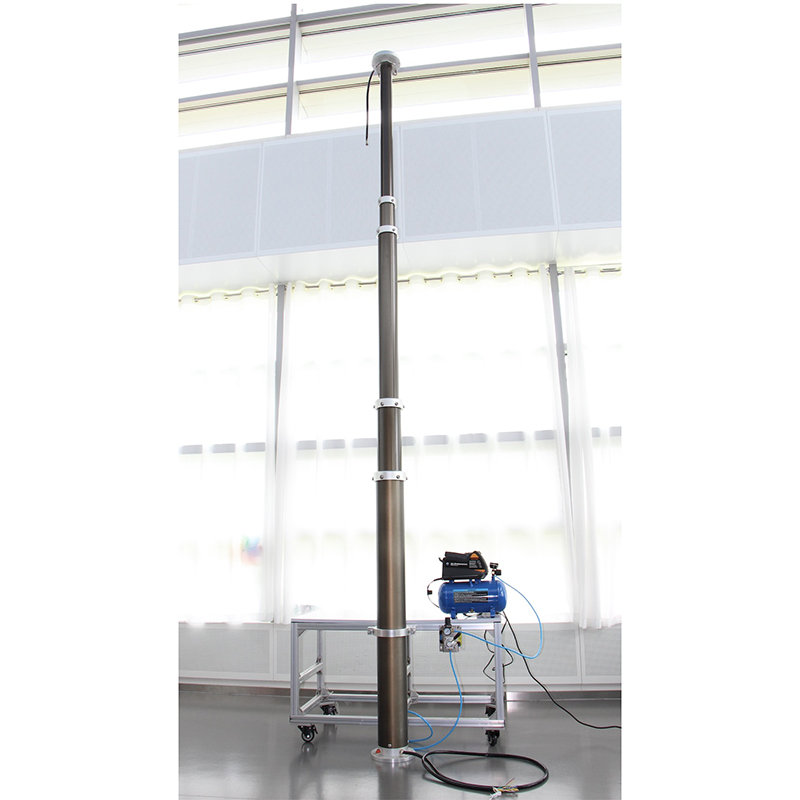

Optional accessories are electric air compressor DC12V or DC24V, AC220V/50Hz, vehicle side mounting bracket, air controller.
This type CCTV mast maximum height we recommend 8m with 2.2m retraction. Due to the manual operation, 2.2m is the suitable for people operating.
| 6m non-lockable Pneumatic Telescopic CCTV Mast-150kg Payloads | ||
| 1> | Item #: | NR-1.75-6-150C-6S-98-180(NR-1750-6000-150C) |
| 2> | Extended Height: | 6m |
| 3> | Retracted Height: | 1.75m |
| 4> | Maximum Payloads: | 150kg |
| 5> | Type: | non--Locking, Anti-rotation |
| 6> | Inside Electric Wires | 4x1.5mm^2 + 4xCAT5E |
| 7> | Number of Sections: | 5 |
| 8> | Sections’ diameter*Thickness: | 98*4mm, 118*4mm, 140*5mm, 160*5mm, 180*5mm |
| 9> | Materials: | Aluminum Alloy, Stainless steel fasteners |
| 10> | Working Air Pressure: | 0.2Mpa/29PSI |
| 11> | Working Temperature: | -25~55 Degrees Celsius |
| 12> | Mast Weight: | 80kg |
| 13> | Wind Loads: | 120km/h |
| 14> | Default accessories: | 1x top flange |
| 1x bottom flange | ||
| 1x air hose pipe | ||
| 1x air controller | ||
| 15> | Optional Accessories: | Ground Mounting Tripods |
| DC12V or DC24V Electric Air Compressor | ||
| AC220V/50Hz Electric Air Compressor | ||
| Vehicle Side Mounting Bracket | ||
| Remote Controller Kit | ||
