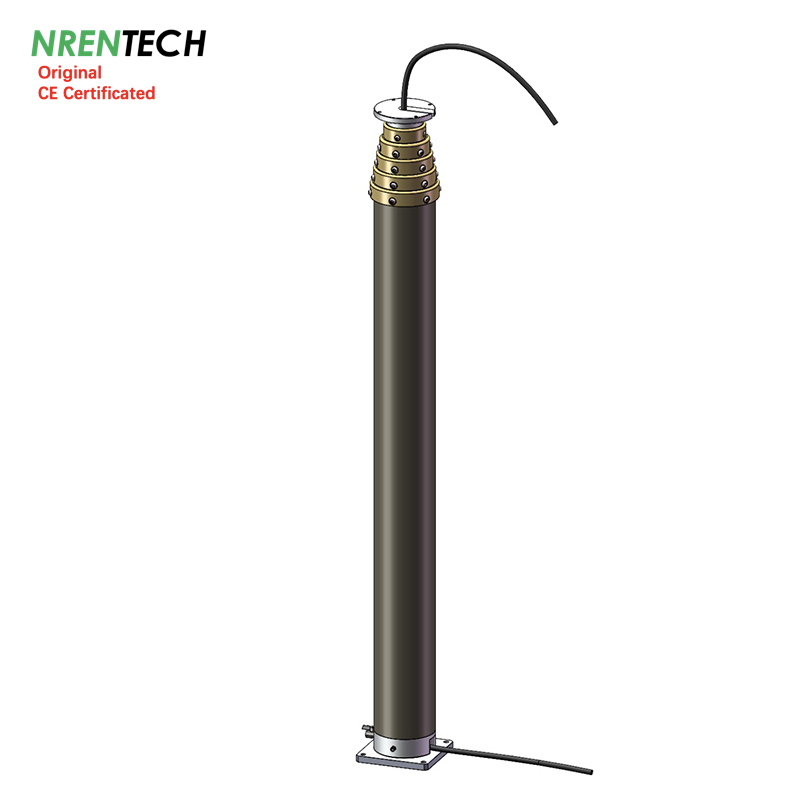

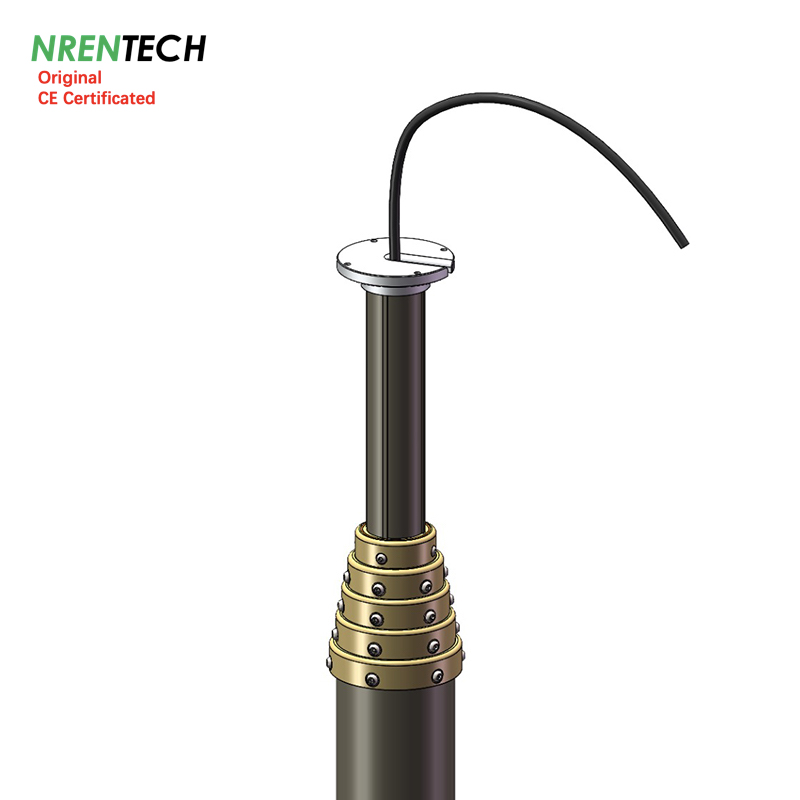

9m Pneumatic Telescopic Communication Mast 150kg Payload 2.3m closed Height-inside wires
Item #: NRC-2.3-9.0-150N-6S-98-202
1> Extended Height: 9m
2> Closed Height: 2.3m
3> Inside electric wires: 1xCAT6+1x 75Ohm + 1x 50Ohm + 8x 1.0mm^2 + 4x0.5mm^2 wires
4> Vertial Payload: 150kg @0.2Mpa/29PSI air pressure
5> Collars type: non lockable (automatic extension, automatic retraction, suitable for remote control)
6> Number of sections: 6 sections
7> Sections diameter range: 98~202mm
8> Materials: aluminum alloy6063T5
9> Mast weight: 98kg approx.
10> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve, guying mounting plate
11> Working air pressure: 0.2Mpa/29PSI recommend
12> Mast working temperature: -25~55 Celsius Degrees
13> Charging accessories:
AC220V/50hz compressor,
vehicle side mounting brackets available NR-S202
ground mounting tripod bracket or quadpod bracket available
guying ropes kits: 1 layers, 4 ropes each layer, mounting radius 9m
Leading time: 30 days
One year guarantee
the lastest data has been updated on 20250415
9m Pneumatic Telescopic Communication Mast 150kg Payload 2.3m closed Height-inside wires
Item #: NRC-2.3-9.0-150N-6S-98-202
1> Extended Height: 9m
2> Closed Height: 2.3m
3> Inside electric wires: 1xCAT6+1x 75Ohm + 1x 50Ohm + 8x 1.0mm^2 + 4x0.5mm^2 wires
4> Vertial Payload: 150kg @0.2Mpa/29PSI air pressure
5> Collars type: non lockable (automatic extension, automatic retraction, suitable for remote control)
6> Number of sections: 6 sections
7> Sections diameter range: 98~202mm
8> Materials: aluminum alloy6063T5
9> Mast weight: 98kg approx.
10> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve, guying mounting plate
11> Working air pressure: 0.2Mpa/29PSI recommend
12> Mast working temperature: -25~55 Celsius Degrees
13> Charging accessories:
AC220V/50hz compressor,
vehicle side mounting brackets available NR-S202
ground mounting tripod bracket or quadpod bracket available
guying ropes kits: 1 layers, 4 ropes each layer, mounting radius 9m
Leading time: 30 days
One year guarantee
the lastest data has been updated on 20250415
| 9m Pneumatic Telescopic Communication Mast-150kg Payload | ||||||
| NRC-2.3-9.0-150N-6S-98-202 | ||||||
 | ||||||

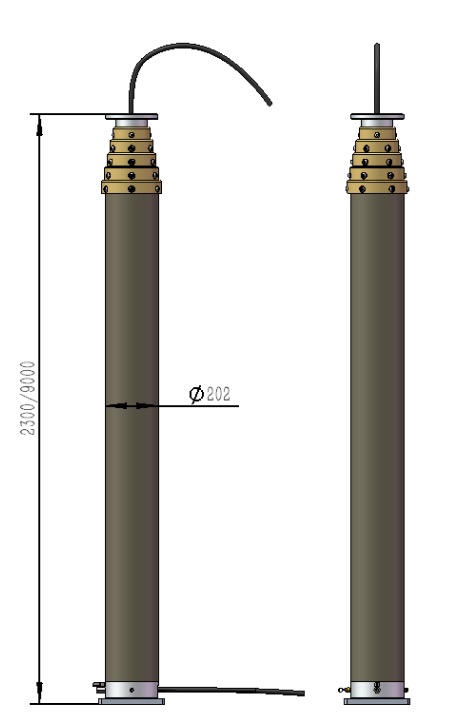

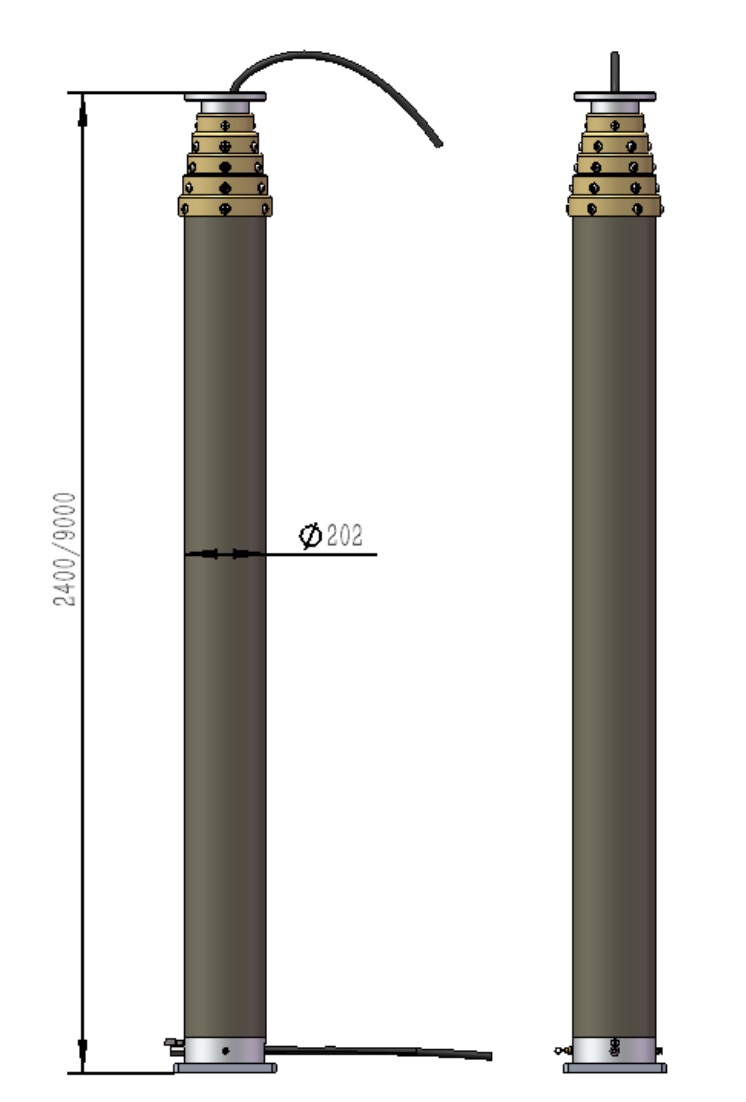

| Extended Height | : | 9 | m | 29.52 | ft | |
| Retracted Height | : | 2.3 | m | 7.5 | ft | |
| Vertical Payload | : | 150 | kg | 330 | lb | |
| Inside Electric Wires | : | 1xCAT6+1x75Ohm + 1x 50Ohm + 8x1.0mm^2 + 4x0.5mm^2 | ||||
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | non-lockable mast (automatic extension/retraction) | ||||
| Number of sections | : | 6 | ||||
| Top section diameter | : | 98 | mm | 3.9 | in | |
| Basement section diameter | : | 202 | mm | 8.0 | in | |
| Mast Weight | : | 98 | kg | 215.6 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe 8mm diameter | ||||||
| air control manual | ||||||
| Optional Accessories | : | Electric air compressor | DC12V, DC24V, AC220V/50hz | |||
| Compact control box | ||||||
| Guying Rope Kits | ||||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod/Quadpod bracket | stainless materials | |||||
| Rotation Basement | ||||||
| Remote control kit | ||||||
| data update on 20250415 | ||||||
