Products Description

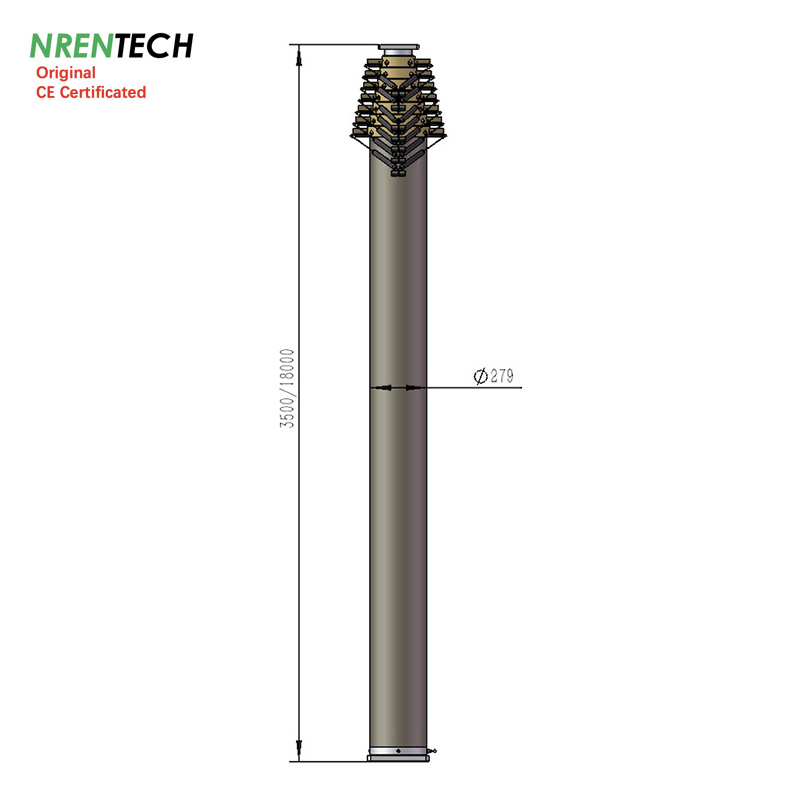

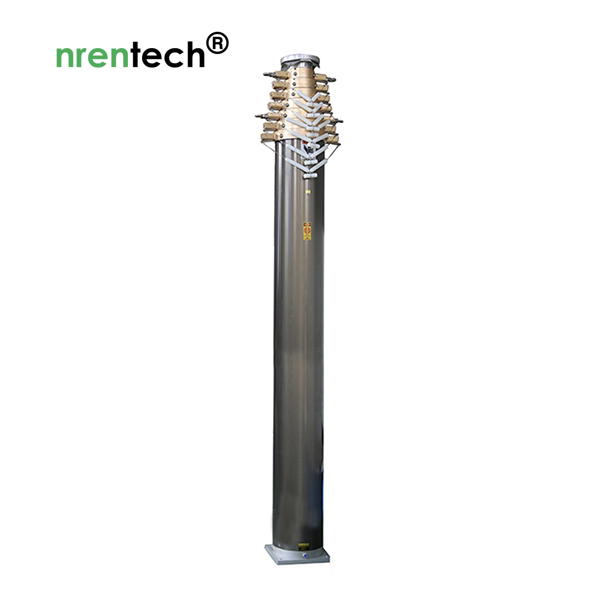

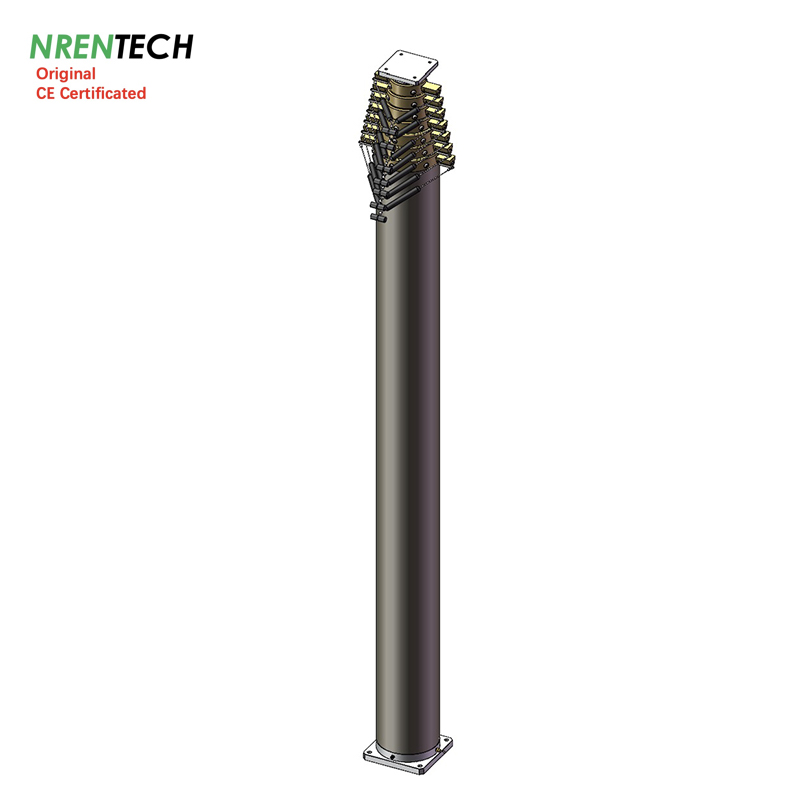

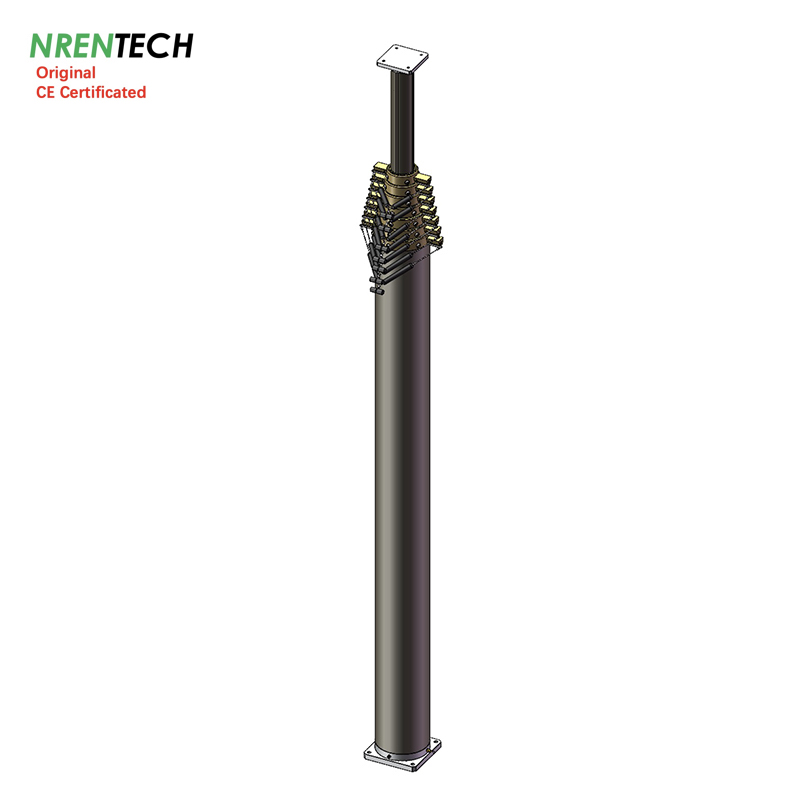

18m Locking Pneumatic Telescopic Mast-200kg Payloads
Item #: NR-3.5-18-200L-8S-118-279
1> Retracted Height: 3.5m
2> Extended Height: 18m
3> Vertical Payloads: 200kg
4> Rated working air pressure: 0.2Mpa/29PSI
5> Number of sections: 8 sections
6> Section dia.: 118mm~279mm
7> Type: Manual T locking (automatic extension/retraction by manual)
8> Materials: aluminum alloy 6063T5
9> Mast weight: 297kg approx.
10> Default accessories: top flange, bottom flange, air hose pipe, air control manual
11> Guide rope kits, ground mounting quadpod brackets, side mounting bracket, remote control kit, electric air compressor
Application for mobile telecommunication tower
information update on 20230626
| 18m Lockable Pneumatic Telescopic Mast-200 kg Payload | ||||||
| NR-3.5-18-200L-8S-118-279 | ||||||
 | ||||||
| Extended Height | : | 18 | m | 59.04 | ft | |
| Retracted Height | : | 3.5 | m | 11.5 | ft | |
| Vertical Payload | : | 200 | kg | 440 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Extention, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 8 | ||||
| Top section diameter | : | 118 | mm | 4.6 | in | |
| Basement section diameter | : | 279 | mm | 11.0 | in | |
| Mast Weight | : | 297 | kg | 653.4 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Retraction operation tool | ||||||
| Optional Accessories | : | Electric air compressor | AC220V/50hz | |||
| Guying Rope Kits | 4x4 (4 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 18m) | |||||
| Side Mounting Bracket | Steel Materials | |||||
| Ground mounting Quadpod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20230805 | ||||||
