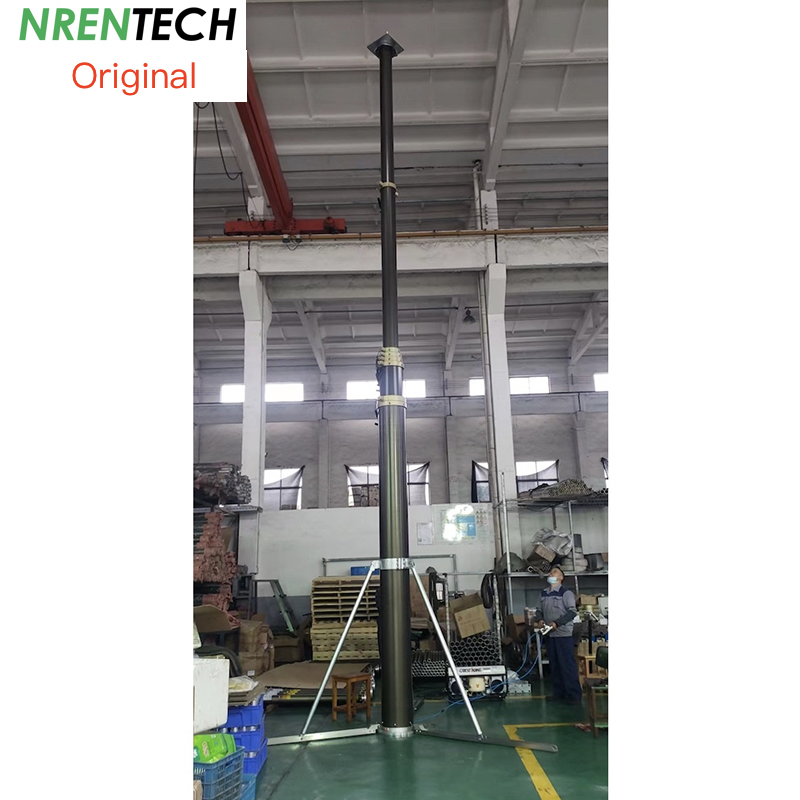

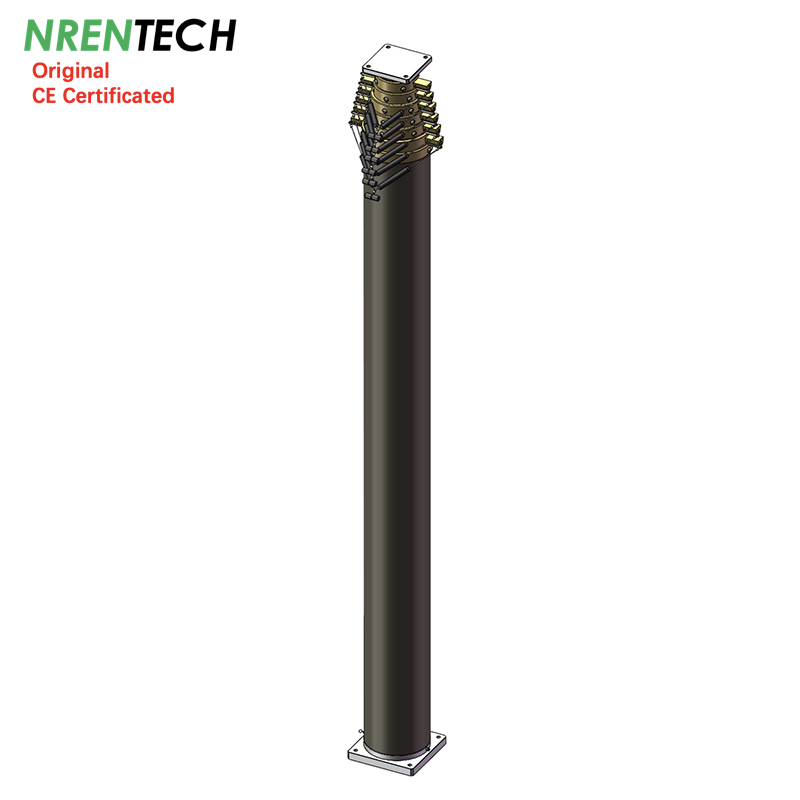

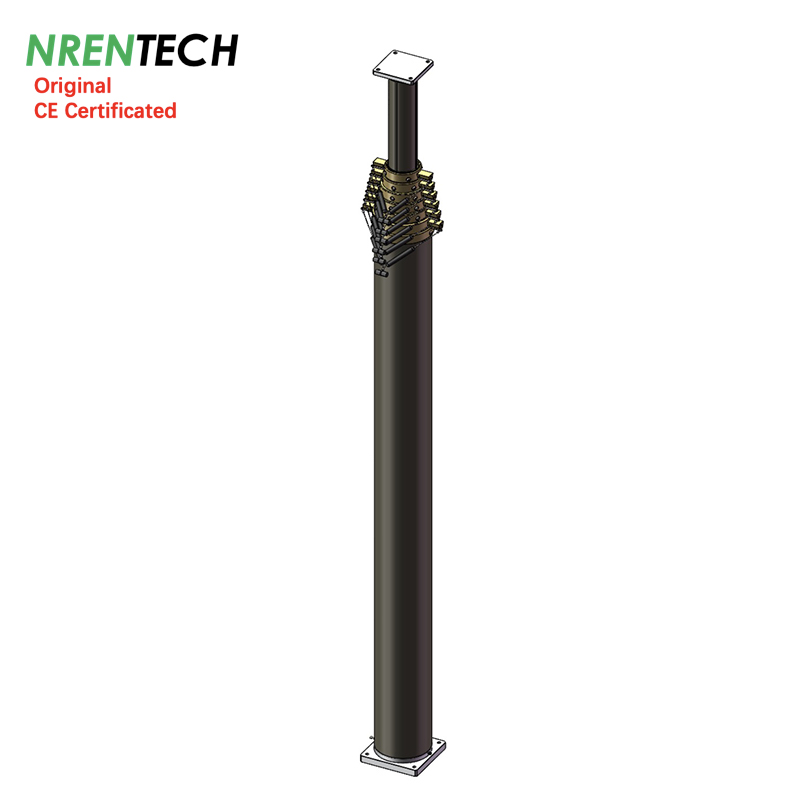

18m Lockable Pneumatic Mast 350kg Payloads
Item #: NR-3.8-18-350L-7S-160-316
3.8m closed height
lockble collar type (automatic extension/ retraction by manual, suitable for long time deployment)
Vertical payloads: 350kg @ 0.2Mpa/29PSI working air pressure
7 sections/ section dia. 160mm~316mm
aluminum alloy 6063T6
mast weight 390kg approx.

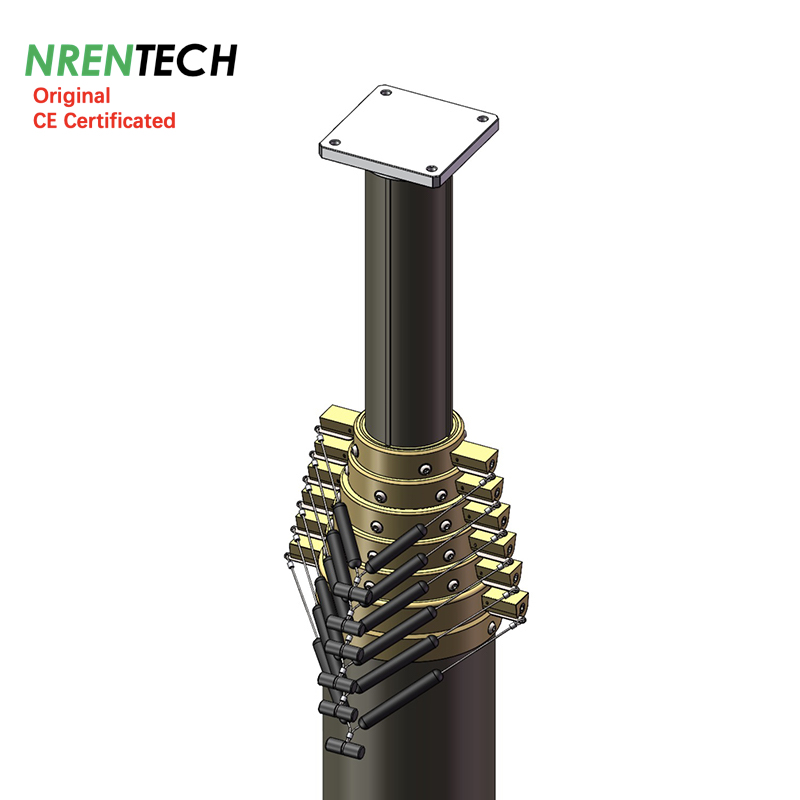

Lockable Collar type (automatic extension, retraction by operate locking collar. Lockable mast suitable for long time deployment weekly, monthly, yearly)
(non-lockable mast payloads up to 550kg maximum, non-lockable mast suitable for automatic extension/retraction by remote)
Leading time: 30 days
Updated catalogue Down Loads
18m pneumatic telescopic mast-350kg payloads
NR-3.8-18-350L-7S-160-316

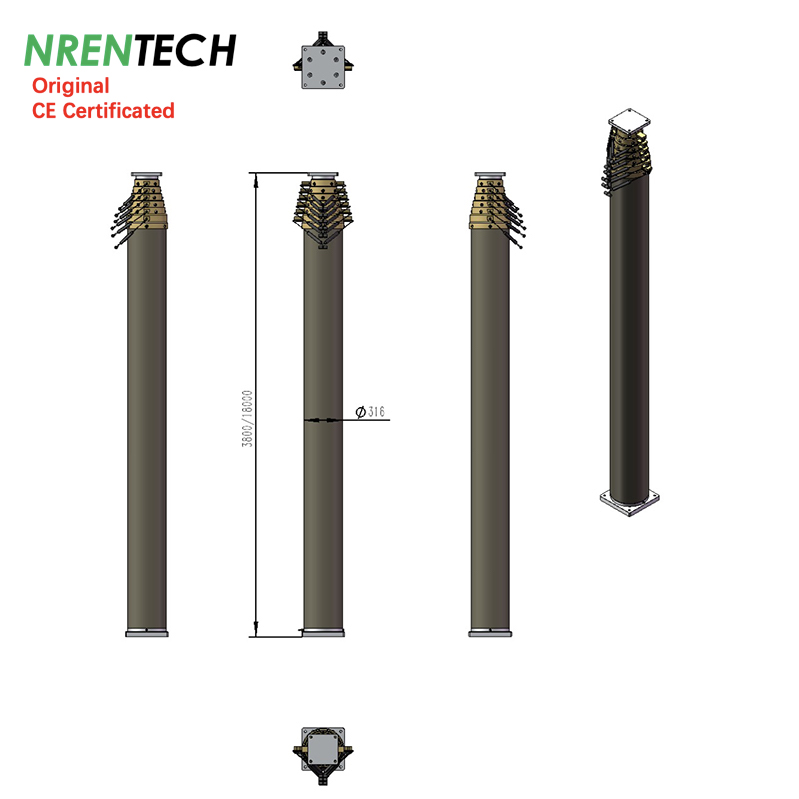

| 18m Lockable Pneumatic Telescopic Mast-350kg Payload | ||||||
| NR-3.8-18-350L-7S-160-316 | ||||||
| ||||||
| Extended Height | : | 18 | m | 59.04 | ft | |
| Retracted Height | : | 3.8 | m | 12.5 | ft | |
| Vertical Payload | : | 350 | kg | 770 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Extention, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 7 | ||||
| Top section diameter | : | 160 | mm | 6.3 | in | |
| Basement section diameter | : | 316 | mm | 12.4 | in | |
| Mast Weight | : | 390 | kg | 858 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Retraction operation tool | ||||||
| Optional Accessories | : | Electric air compressor | AC220V/50hz | |||
| Guying Rope Kits | 4x4 (4 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 18m) | |||||
| Side Mounting Bracket | Steel Materials | |||||
| Ground mounting Quadpod | Stainless Material | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20230627 | ||||||
