Home >> 10m Lockable Pneumatic Telescopic Mast-100kg payloads NR-2.4-10-100L-6S-82-180

❤ Add to collection

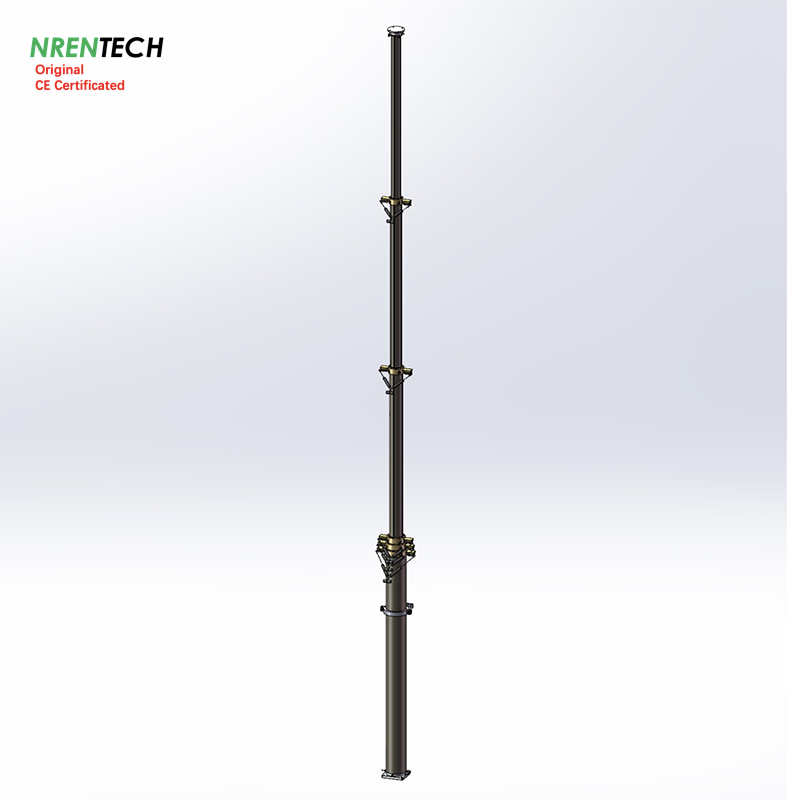

10m Lockable Pneumatic Telescopic Mast-100kg payloads NR-2.4-10-100L-6S-82-180

10m Lockable Pneumatic Telescopic Mast-100kg payloads NR-2.4-10-100L-6S-82-180

CE certificated

Item#: NR-2.4-10-100L-6S-82-180
1> Extended Height: 10m
2> Retracted Height: 2.4m
3> Payloads: 100kg maximum @ 0.2Mpa/29 PSI working air pressure
4> Type: lockable mast (Extension automatic, retraction by manual operating)
5> Number of sections: 6
6> Section dia. * thickness: 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm, 180*5mm
7> Materials: aluminum alloy 6063T5
8> Mast weight: 92kg approx.
9> Working air preesure: 0.2Mpa/29PIS as maximum recommend
10> Working temperature: -25~55Celcius Degrees
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe 8mm O.D., 1x air control valve

Chargeable accessories:
Ground mounting tripod/quadpod bracket
Guying wires kits
vehicle side mounting brackets
Electric air compressor DC or AC

leading time: 20 days
Guarantee: two years
the latest data update on 20241219

List price： U.S.＄0.00

Price： U.S.＄0.00

MemberPrice：

Ordinary： U.S.＄0.00

VIP： U.S.＄0.00

Weight：0.000KG

Quantity：

(Inventory: 0)

Buy now

Add to cart

Charging Accessories

Ground Mounting Tripod S
Original ：U.S.＄350.00
With a price ：U.S.＄350

Quantity

160mm Section Side Mounting Bracket
Original ：U.S.＄50.00
With a price ：U.S.＄50

Quantity

DC12V electric air compressor FTC-357
Original ：U.S.＄185.00
With a price ：U.S.＄185

Quantity

600W-8L AC Electric Air Compressor
Original ：U.S.＄150.00
With a price ：U.S.＄150

Quantity

Guying ropes 8mm dia.
Original ：U.S.＄0.00
With a price ：U.S.＄0

Quantity

Air Control Manual
Original ：U.S.＄100.00
With a price ：U.S.＄100

Quantity

Products Description

10m Lockable Pneumatic Telescopic Mast-100kg payloads NR-2.4-10-100L-6S-82-180

CE certificated

Item#: NR-2.4-10-100L-6S-82-180
1> Extended Height: 10m
2> Retracted Height: 2.4m
3> Payloads: 100kg maximum @ 0.2Mpa/29 PSI working air pressure
4> Type: lockable mast (Extension automatic, retraction by manual operating)
5> Number of sections: 6
6> Section dia. * thickness: 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm, 180*5mm
7> Materials: aluminum alloy 6063T5
8> Mast weight: 92kg approx.
9> Working air preesure: 0.2Mpa/29PIS as maximum recommend
10> Working temperature: -25~55Celcius Degrees
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe 8mm O.D., 1x air control valve

Chargeable accessories:
Ground mounting tripod/quadpod bracket
Guying wires kits
vehicle side mounting brackets
Electric air compressor DC or AC

leading time: 20 days
Guarantee: two years
the latest data update on 20241219

10m Lockable Pneumatic Telescopic Mast-100kg payloads NR-2.4-10-100L-6S-82-180
CE certificated

Item#: NR-2.4-10-100L-6S-82-180
1> Extended Height: 10m
2> Retracted Height: 2.4m
3> Payloads: 100kg maximum @ 0.2Mpa/29 PSI working air pressure
4> Type: lockable mast (Extension automatic, retraction by manual operating)
5> Number of sections: 6
6> Section dia. * thickness: 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm, 180*5mm
7> Materials: aluminum alloy 6063T5
8> Mast weight: 92kg approx.
9> Working air preesure: 0.2Mpa/29PIS as maximum recommend
10> Working temperature: -25~55Celcius Degrees
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe 8mm O.D., 1x air control valve

Chargeable accessories:
Ground mounting tripod/quadpod bracket
Guying wires kits
vehicle side mounting brackets
Electric air compressor DC or AC

leading time: 20 days
Guarantee: two years
the latest data update on 20241219

10m Lockable Pneumatic Telescopic Mast-100kg Payload
NR-2.4-10-100L-6S-82-180

Extended Height	:	10	m	32.8	ft
Retracted Height	:	2.4	m	7.9	ft
Vertical Payload	:	100	kg	220	lb
Working air pressure	:	0.2	Mpa	29	PSI
Collar Type	:	Locking (Automatic Extension, Manual Retraction)
Inside Electric Wires	:
Number of sections	:	6
Top section diameter	:	82	mm	3.2	in
Basement section diameter	:	180	mm	7.1	in
Mast Weight	:	92	kg	202.4	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control valve

Optional Accessories	:	Electric air compressor			AC220V/50hz, 1500W
		Guying Rope Kits			2x4 (2 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 10m)
		Side Mounting Bracket			Aluminum alloy 6061 Materials
		Ground mounting Quadpod Bracket			Stainless Materials, unit weight 40kg approx.
		Rotation Basement			/
		Remote control kit			12VDC
data update on 20241219
