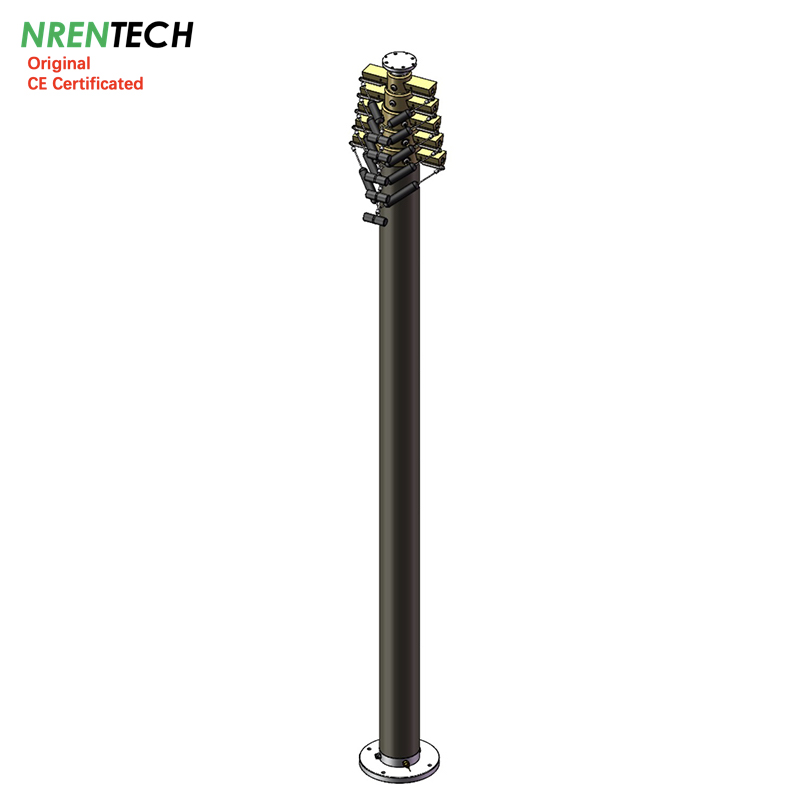

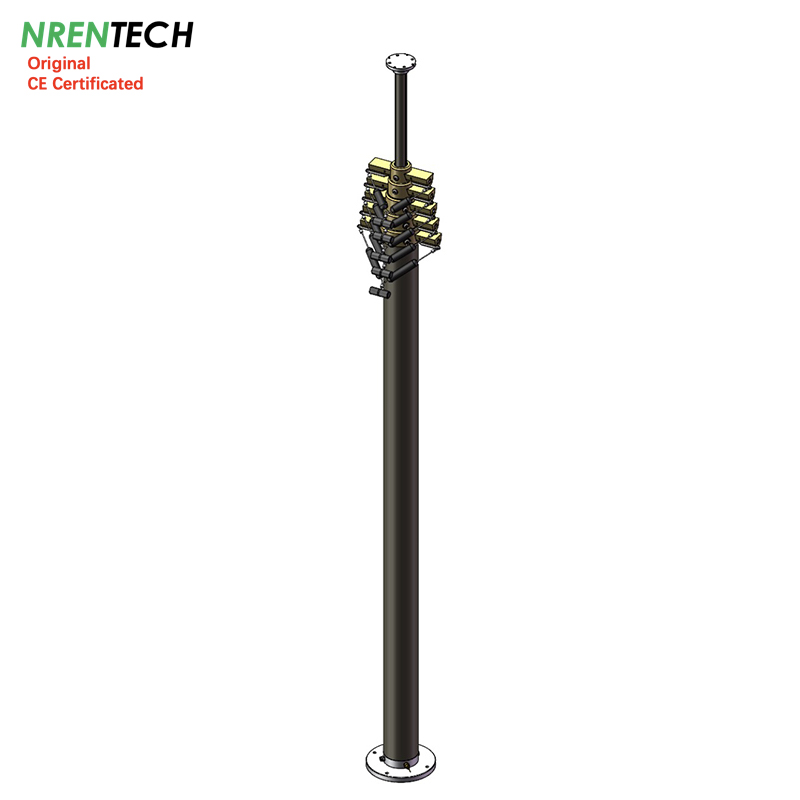

10m Locking Pneumatic Telescopic Mast 15kg Payloads
2.4m closed height

1> Item#: NR-2.4-10-15L-6S-36-118
2> Extended Height: 10m
3> Closed Height: 2.4m
4> Vertical Payload: 15kg @0.15Mpa/22 PSI working air pressure
5> Type: lockable collar (automatic extension, retraction by manual operating)
6> Number of sections: 6 sections
7> Section diameter range: 36~118
8> Mast weight: 45kg approx.
9> Default accessories: top flange, bottom flange, air hose pipe, air control manual valve, top guying mounting plate.

10> Chargable accessories:
Electric air compressor, AC220V/50hz or DC12V
Ground mounting tripod (stainless materials, 50kg approx.)
Side mounting bracket: NR-S118, aluminum materials

leading time: 20 days

data update on 20241126

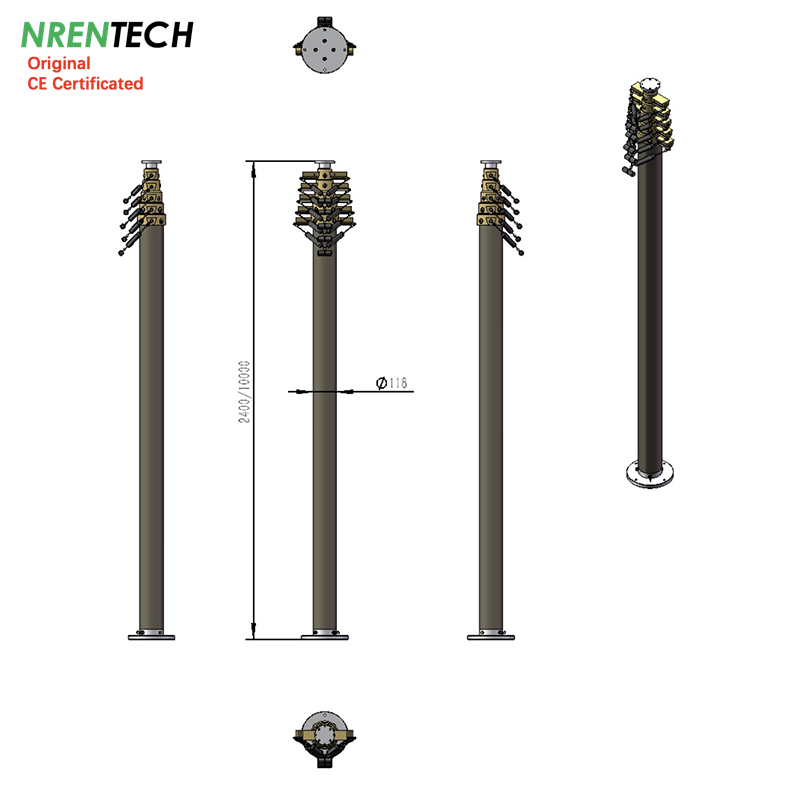

10m Lockable Pneumatic Telescopic Mast-15kg Payload
NR-2.4-10-15L-6S-36-118
Extended Height	:	10	m	32.8	ft
Retracted Height	:	2.4	m	7.9	ft
Vertical Payload	:	15	kg	33	lb
Working air pressure	:	0.15	Mpa	22	PSI

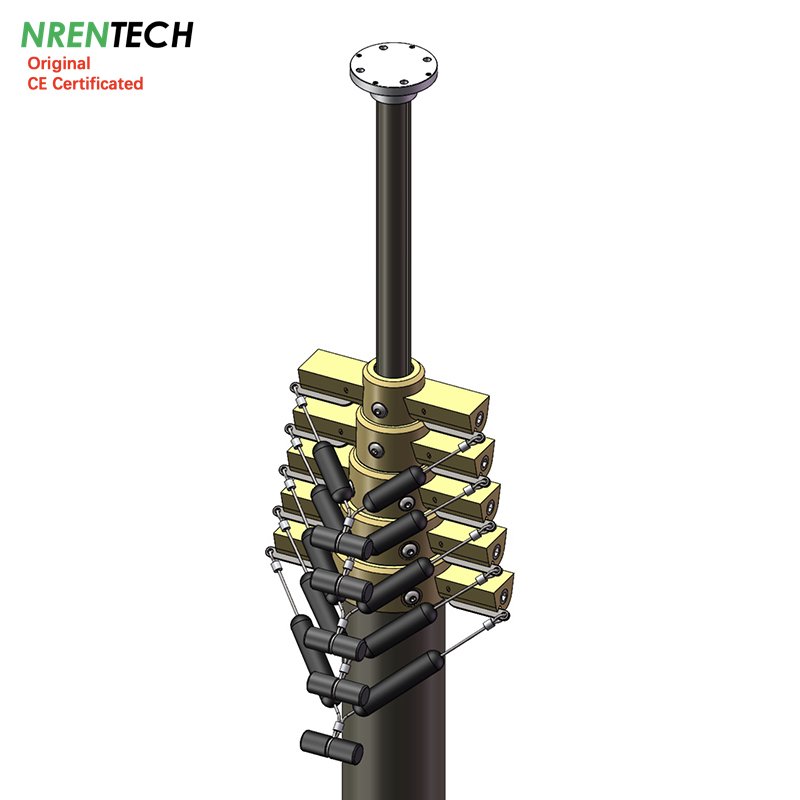

Collar Type	:	Locking (Automatic Extension, Manual Retraction)
Inside Electric Wires	:
Number of sections	:	6
Top section diameter	:	36	mm	1.4	in
Basement section diameter	:	118	mm	4.6	in
Mast Weight	:	45	kg	99	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual valve
Optional Accessories	:	Electric air compressor			DC12V, DC24V, AC220V/50hz
		Guying Rope Kits			2x4 (2 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 9m)
		Side Mounting Bracket			Aluminum alloy 6061 Materials
		Ground mounting Tripod			Stainless Materials
		Rotation Basement			Manual Rotation
		Remote control kit			12VDC
data update on 20230809
