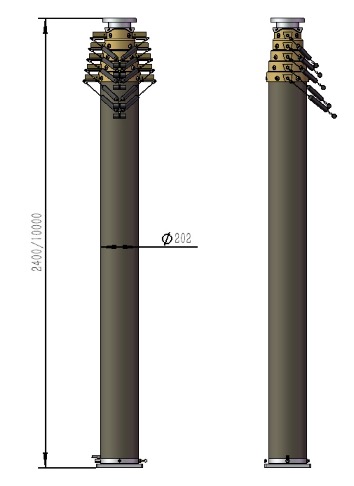

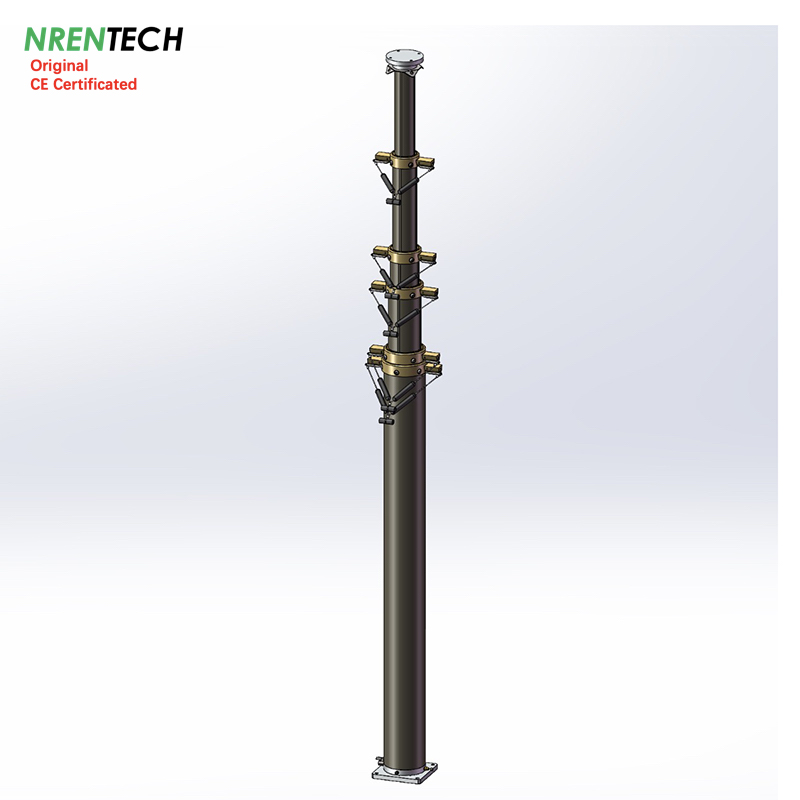

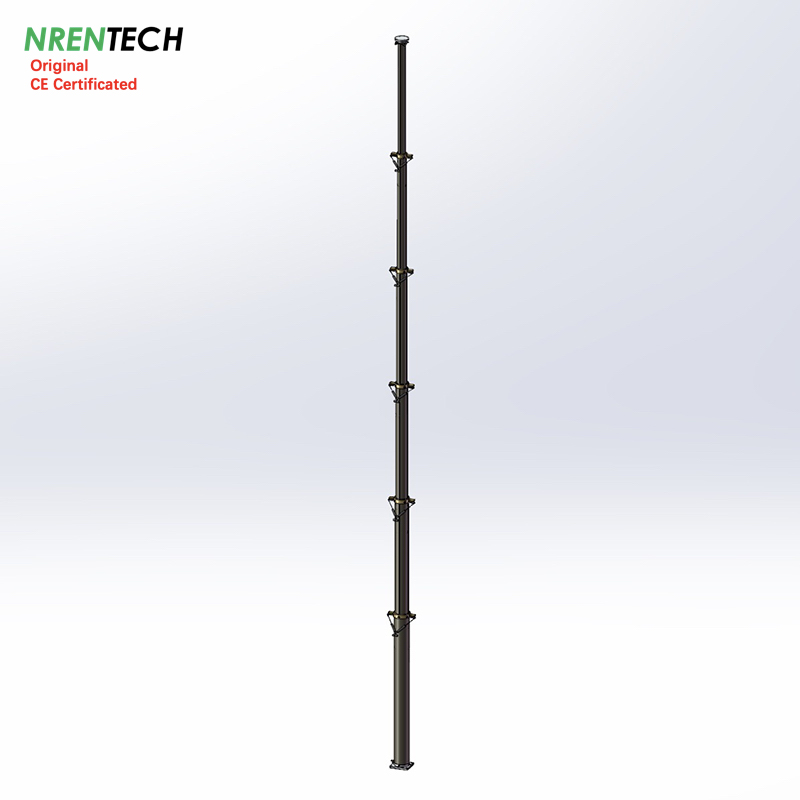

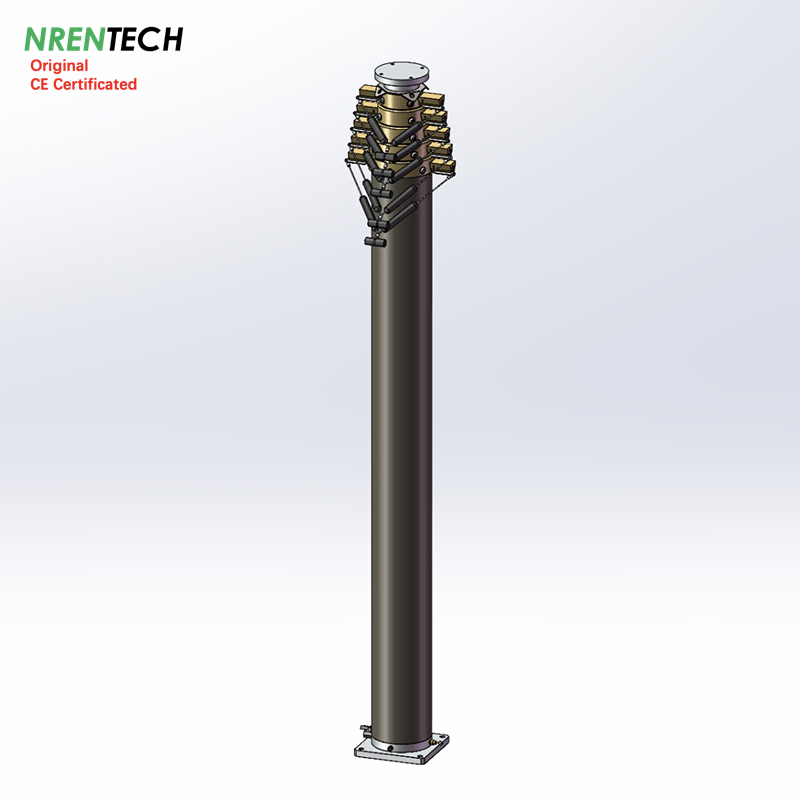

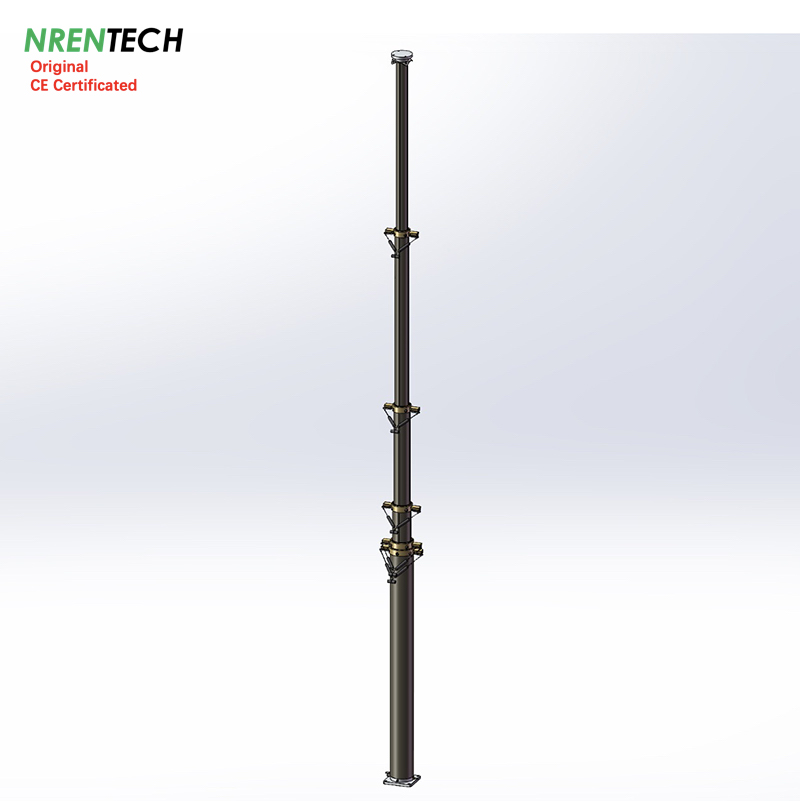

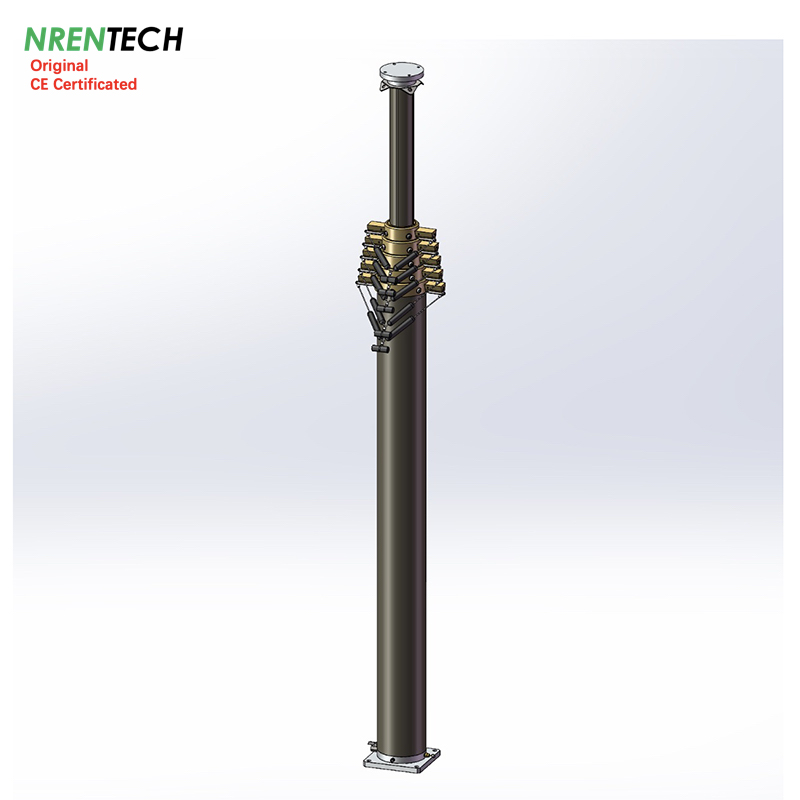

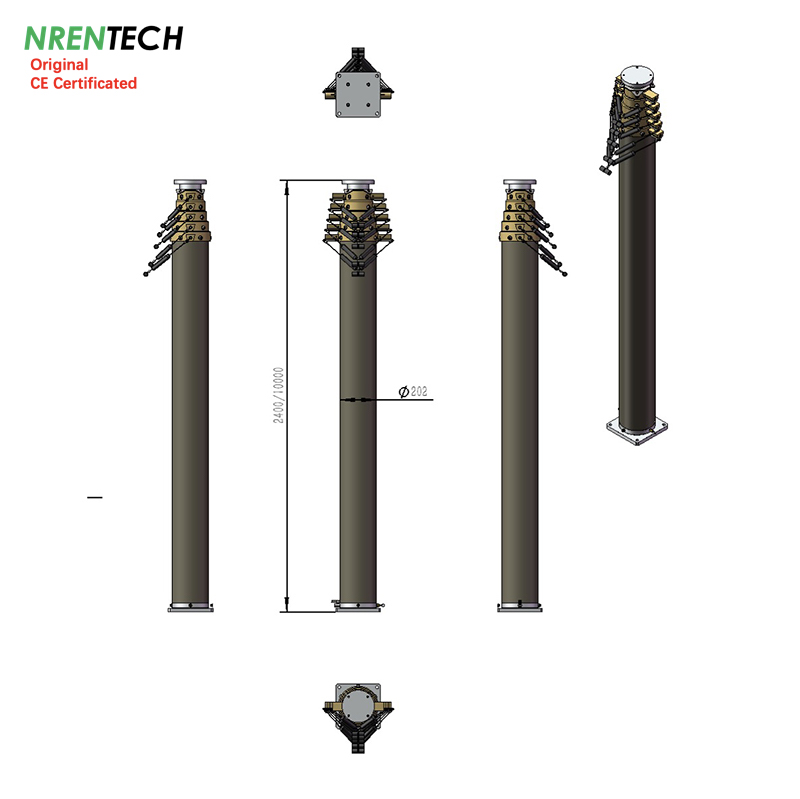

10m Lockable Pneumatic Telescopic Mast 150kg Payloads NR-2.4-10-150L-6S-98-202
Item #: NR-2.4-10-150L-6S-98-202
1>Extended Height: 10m
2> Closed Height: 2.4m
3> Vertical Payloads: 150kg @ 2.0Mpa/29PSI working air pressure

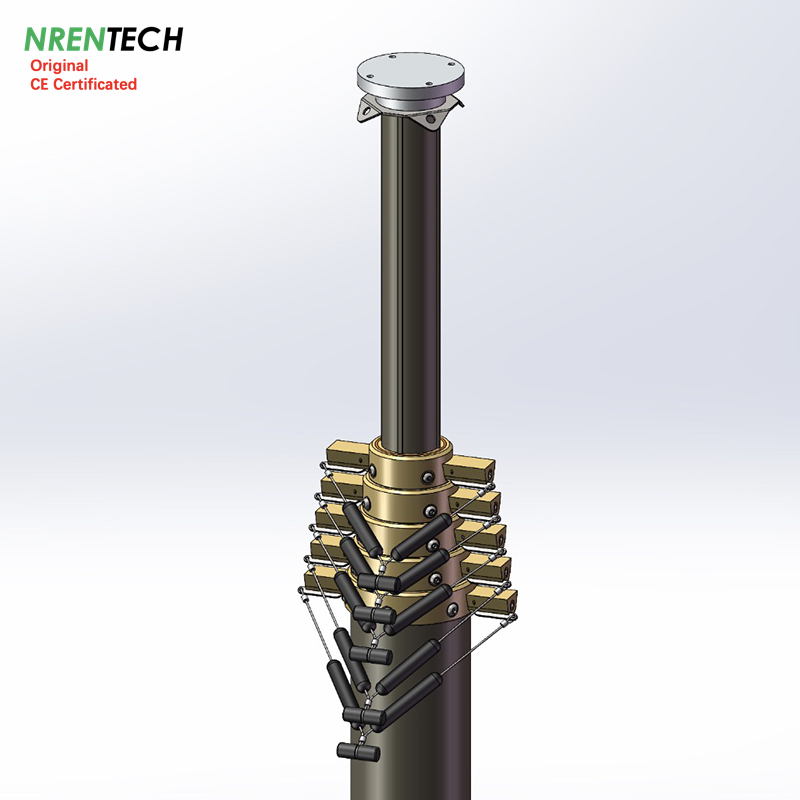

4> Collar type: T manual locking (automatic extension, manual retraction)
5> Number of sections: 6
6> Section dia.: 98mm~202mm
7> Materials: Aluminum alloy 6063T5
8> Mast weight: 114kg approx.
9> Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual
10> Charging accessories: Electric Air Compressor, Guide rope kits 2x4, Ground mounting tripod/quadpod, Aluminum Side mounting bracket, remote control kits
leading time: 20 days
Guarantee: 2 years
the latest date updated on 20241219
10m Lockable Pneumatic Telescopic Mast 150kg Payloads NR-2.4-10-150L-6S-98-202
Item #: NR-2.4-10-150L-6S-98-202
1>Extended Height: 10m
2> Closed Height: 2.4m
3> Vertical Payloads: 150kg @ 2.0Mpa/29PSI working air pressure
4> Collar type: T manual locking (automatic extension, manual retraction)
5> Number of sections: 6
6> Section dia.: 98mm~202mm
7> Materials: Aluminum alloy 6063T5
8> Mast weight: 114kg approx.
9> Accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual
10> Charging accessories: Electric Air Compressor, Guide rope kits 2x4, Ground mounting tripod/quadpod, Aluminum Side mounting bracket, remote control kits
leading time: 20 days
Guarantee: 2 years
the latest date updated on 20241219
| 10m Lockable Pneumatic Telescopic Mast-150kg Payload | ||||||
| NR-2.4-10-150L-6S-98-202 | ||||||
 | ||||||
| Extended Height | : | 10 | m | 32.8 | ft | |
| Retracted Height | : | 2.4 | m | 7.9 | ft | |
| Vertical Payload | : | 150 | kg | 330 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Extention, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 6 | ||||
| Top section diameter | : | 98 | mm | 3.9 | in | |
| Basement section diameter | : | 202 | mm | 8.0 | in | |
| Mast Weight | : | 114 | kg | 250.8 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Optional Accessories | : | Electric air compressor | AC220V/50hz, 1500W | |||
| Guying Rope Kits | 2x4 (2 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 10m) | |||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod | Stainless Materials | |||||
| Rotation Basement | / | |||||
| Remote control kit | 12VDC | |||||
| data update on 20241219 | ||||||
