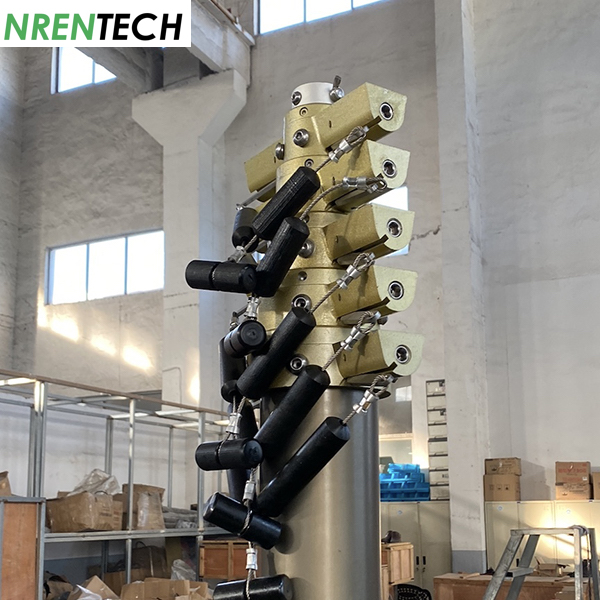

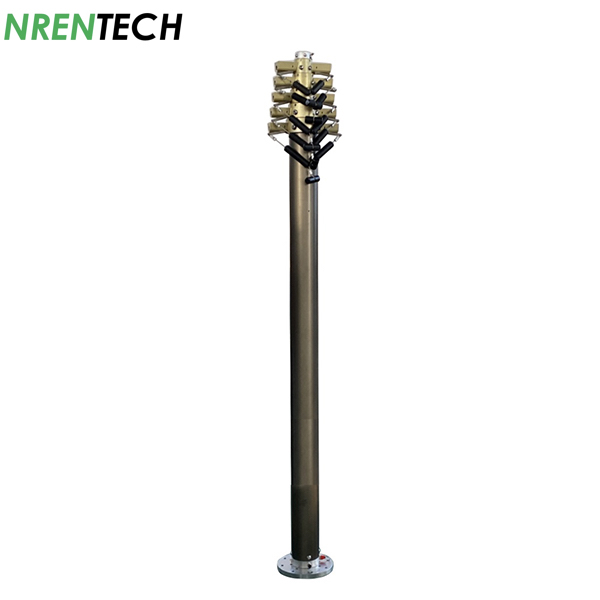

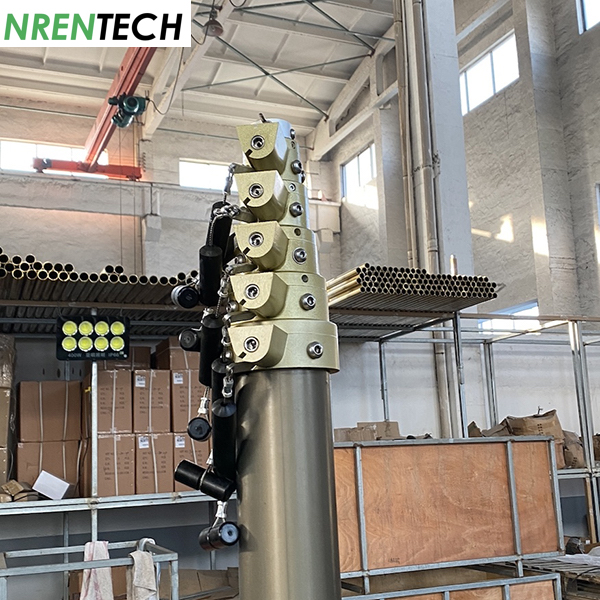

8m Locking Pneumatic Telescopic Mast 15kg Payloads
Item #:NR-2.0-8-15L-6S-36-118
1> Extended Height: 8m
2> Retracted Height: 2m
3> Payloads: 15kg maximum
4> Number of sections: 6 sections
5> Section dia. 36*3mm, 51*3mm, 66*3mm, 82*4mm, 98*4mm, 118*4mm
6> Materials: Aluminum alloy 6063T5
7> Mast weight 40kg
8> Working pressrue: 0.2Mpa/29PSI
9> Working temperture: -25~55 Celsious Degrees
10> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe
11> Optional accessories: electric air compressor AC220V/50hz, Ground mounting tripods, Guying rope kits, Vehicle side mouting brackets, Air controller
Information update on 14th Jan. 2023
20 days leading time
8m Lockable Pneumatic Telescopic Mast-15kg Payloads | ||
1> | Item #: | NR-2.0-8-15L-6S-36-118 |
2> | Extended Height: | 8m |
3> | Retracted Height: | 2m |
4> | Maximum Payloads: | 15kg |
5> | Type: | T-Lockable, Anti-rotation |
6> | Inside Electric Wires | Non |
7> | Number of Sections: | 6 |
8> | Sections diameter*Thickness: | 36*3mm, 51*3mm, 66*3mm, 82*4mm, 98*4mm, 118*4mm |
9> | Materials: | Aluminum Alloy, Stainless steel fasteners |
10> | Working Air Pressure: | 0.2Mpa/29PSI |
11> | Working Temperature: | -25~55 Degrees Celsius |
12> | Mast Weight: | 40kg |
13> | Wind Loads: | 120km/h with guying wires |
14> | Default accessories: | 1x top flange |
1x bottom flange | ||
1x air hose pipe | ||
1x air controller | ||
15> | Optional Accessories: | Ground Mounting Tripods |
Guying Rope Kits with Mounting Spikes | ||
DC12V Electric Air Compressor | ||
AC220V/50Hz Electric Air Compressor | ||
Vehicle Side Mounting Bracket | ||
Remote Controller Kit |
