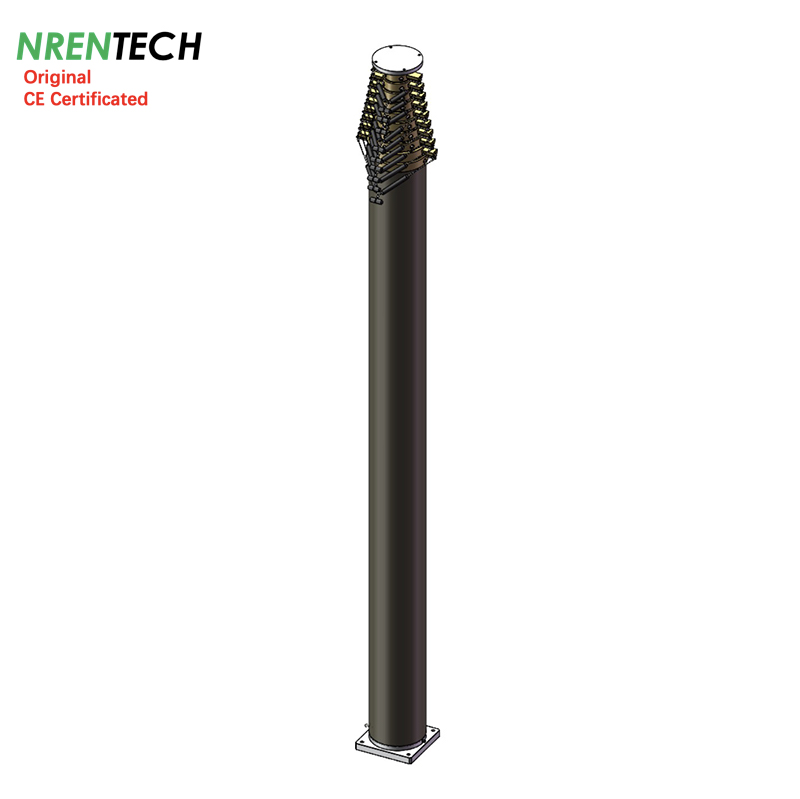

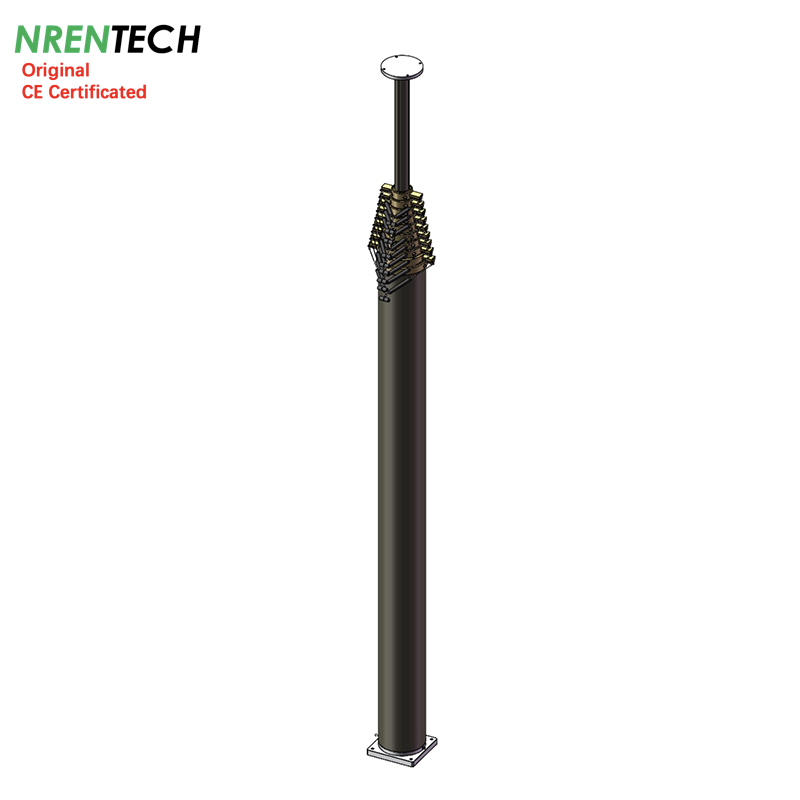

25m Lockable Pneumatic Telescopic Mast-150kg payloads
Item #: NR-4.2-25-150L-10S-98-316
25m Extended Height/4.2m Closed Height
Vertical Payloads: 150kg @0.2Mpa/29PSI working air pressure
Number of 10 sections/section dia. 98mm~316mm
Aluminum alloy 6063T5 materials
Mast weight: 460kg approx.

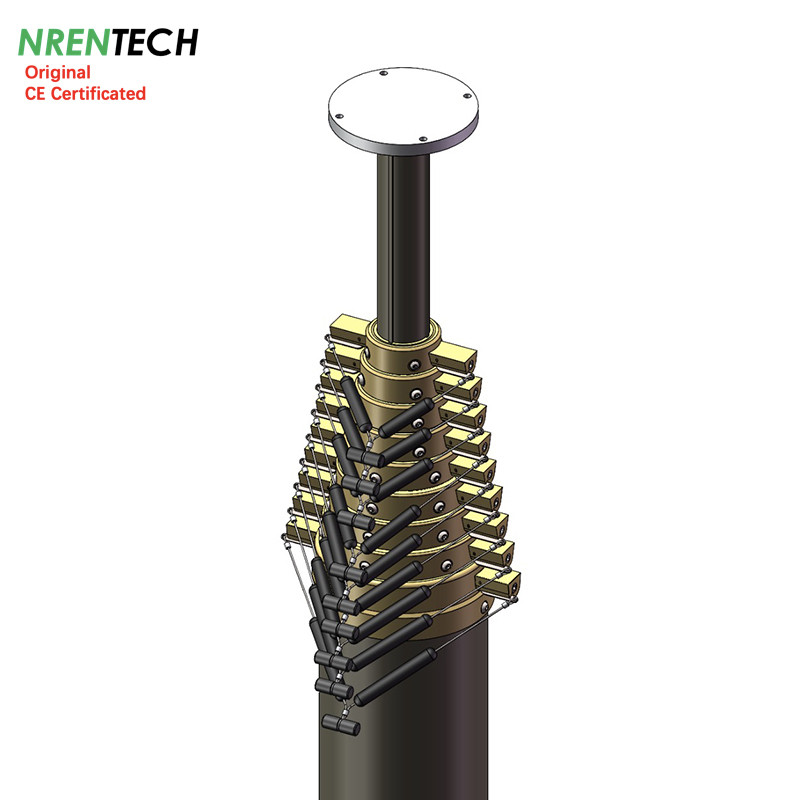

Lockable collar type (automatic extension, retraction by manual operation)
1x top flange, 1x bottom flange, 1x air hose pipe, 1x air controller, 1x operation tool include as default accessories.
Guying wires kits: 5 layers 4 wires each layer, 3mm wires, mounting radius 25m, wind speed 120km/h @ 150kg payloads and 1.5 square wind load area.
Electric air compressor AC220V/50hz, 3000W, 12L air tank.
Remote control kit available DC12V
Quadpod ground mounting bracket available.
last information update on 20230822
leading time: 30 days
| 25m Lockable Pneumatic Telescopic Mast-150kg Payload | ||||||
| NR-4.2-25-150L-10S-98-316 | ||||||
 | ||||||
| Extended Height | : | 25 | m | 82 | ft | |
| Retracted Height | : | 4.2 | m | 13.8 | ft | |
| Vertical Payload | : | 150 | kg | 330 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Extention, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 10 | ||||
| Top section diameter | : | 98 | mm | 3.9 | in | |
| Basement section diameter | : | 316 | mm | 12.4 | in | |
| Mast Weight | : | 460 | kg | 1012 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flang2 | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Retraction operation tool | ||||||
| Optional Accessories | : | Electric air compressor | AC220V/50hz | |||
| Guying Rope Kits | 5x4 (5 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 25m) | |||||
| Side Mounting Bracket | Steel Materials | |||||
| Ground mounting Quadpod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20230822 | ||||||
