Products Description
23m Lockable Pneumatic Telescopic Mast-200kg payloads
Item#: NR-4.2-23-200L-9S-118-316
Extended Height: 23m
Retracted Height: 4.2m
Payloads: 200kg maximum
Number of sections: 9
Section dia. 118mm~316mm
Materials: Aluminum alloy 6063T5
Mast weight: 448kg approx.

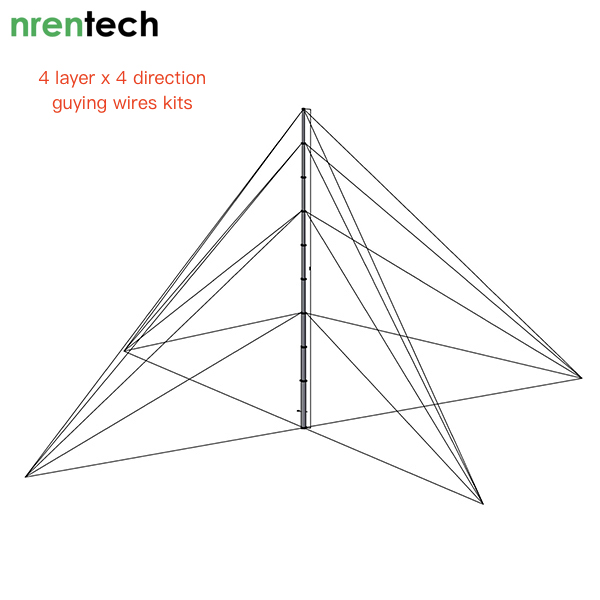

Default guying wires: 4 layer x 4 directions (mounting radius 23m)， 4mm dia. stainless 304 guying wires
Maximum wind speed: 120km/h @ 1.5 m^2 windward area with guying wires
Leading time: 40 days
data update on 20230729
| 23m Lockable Pneumatic Telescopic Mast-200kg Payload | ||||||
| NR-4.2-23-200L-9S-118-316 | ||||||
 | ||||||
| Extended Height | : | 23 | m | 75.44 | ft | |
| Retracted Height | : | 4.2 | m | 13.8 | ft | |
| Vertical Payload | : | 200 | kg | 440 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Extention, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 9 | ||||
| Top section diameter | : | 118 | mm | 4.6 | in | |
| Basement section diameter | : | 316 | mm | 12.4 | in | |
| Mast Weight | : | 448 | kg | 986 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Retraction operation tool | ||||||

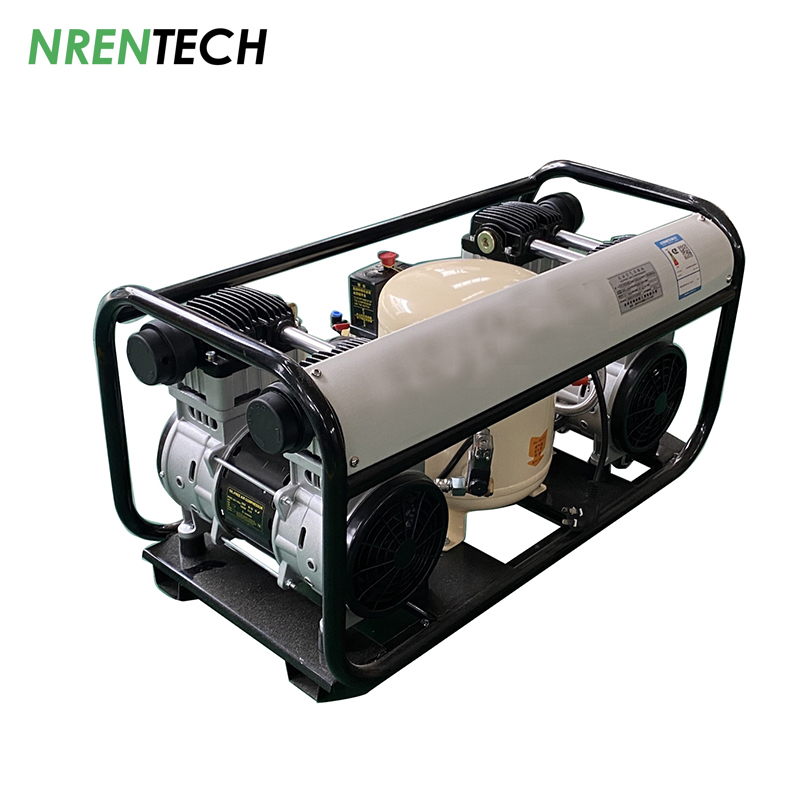

| Optional Accessories | : | Electric air compressor | AC220V/50hz | |||
| Guying Rope Kits | 5x4 (5 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 23m) | |||||

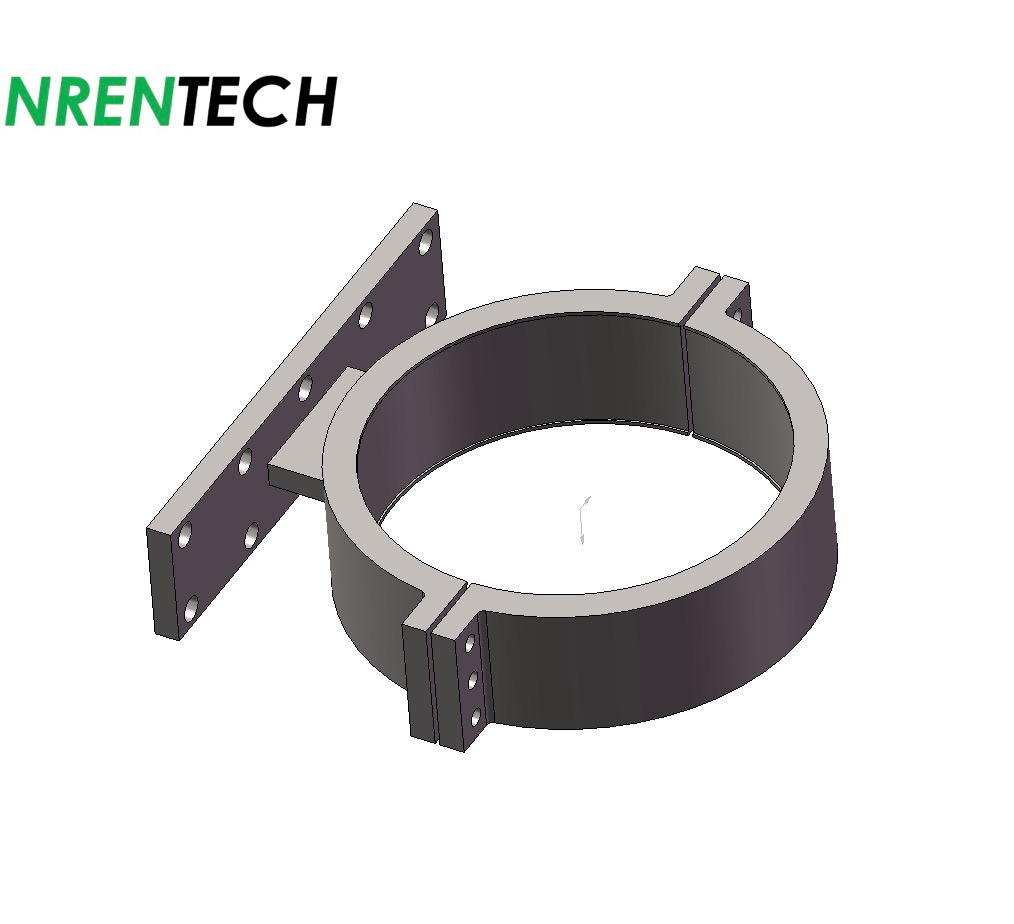

| Side Mounting Bracket | Steel Materials | |||||
| Ground mounting Quadpod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20230827 | ||||||
