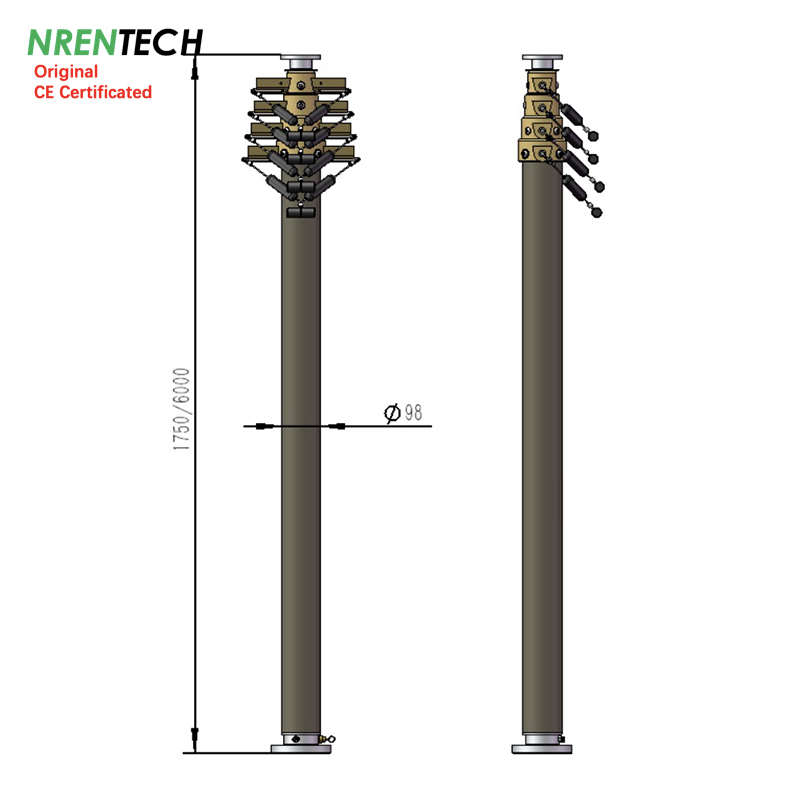

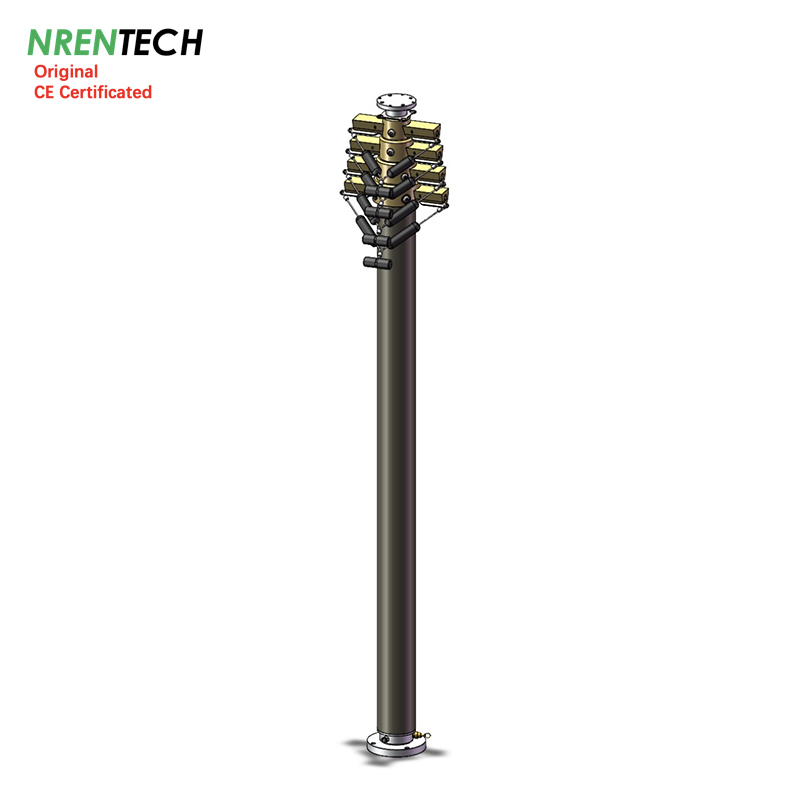

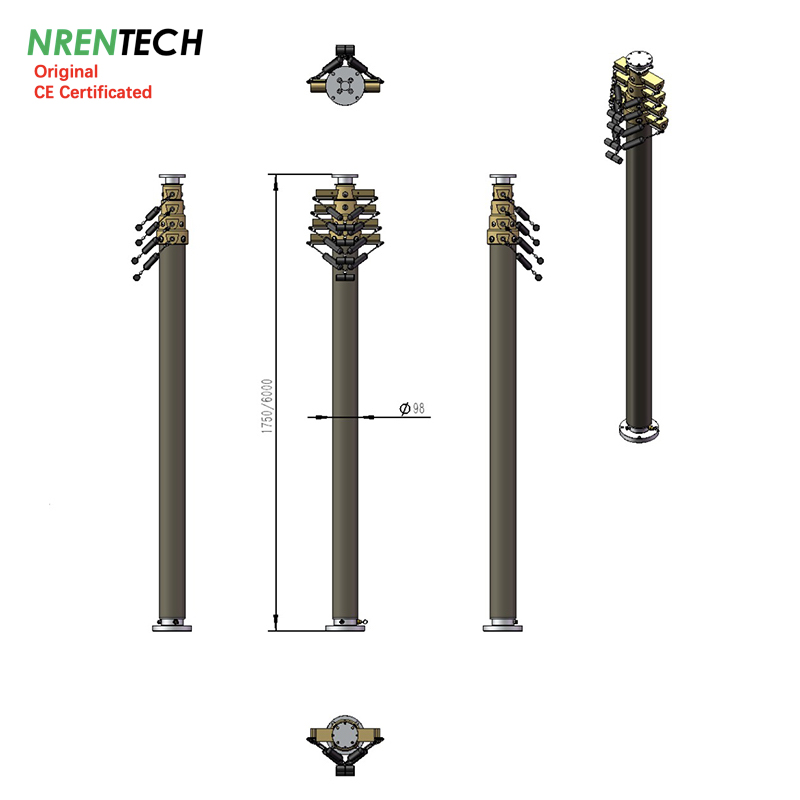

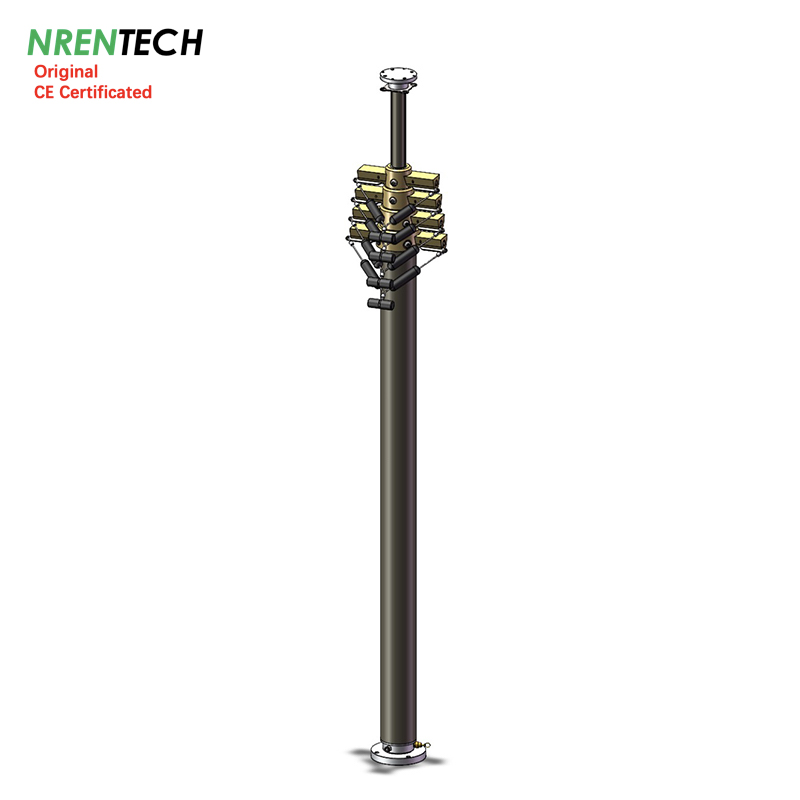

6m Lockable Pneumatic Telescoping Mast-15kg Payloads-1.75m closed height
NR-1.75-6.0-15L-5S-36-98

Item: NR-1.75-6.0-15L-5S-36-98
1> Extened height: 6m
2> Retracted Height: 1.75m
3> Payloads: 15kg maximum
4> Type: Lockable type, T-lockable, Anti-rotation (automatic extension, retraction by manual operating)
5> Number of sections: 5
6> Section diameter*thickness: 36*3mm, 51*3mm, 66*3mm, 82*4mm, 98*4mm
7> Materials: Aluminmum Alloy 6063TT5
8> Mast weight: 25kg approx.
9> Working air pressure: 0.15Mpa/22PSI as recommend
10> Working temperature:-25~55 Degrees Centigrade
10> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air controller, 1x side mounting bracket
11> Optional accessories: DC12V electric air compressor, AC220V electric air compressor, ground mounting tripods, guying rope kits, remote control kits

Leading time: 20 days
Guarantee: one year
the latest data was updated on 20250110

6m Lockable Pneumatic Telescopic Mast-15kg Payload
NR-1.75-6-15L-5S-36-98
Extended Height	:	6	m	19.68	ft
Retracted Height	:	1.75	m	5.7	ft
Vertical Payload	:	15	kg	33	lb
Working air pressure	:	0.15	Mpa	22	PSI
Collar Type	:	Locking (Automatic Extension, Manual Retraction)
Inside Electric Wires	:
Number of sections	:	5
Top section diameter	:	35	mm	1.4	in
Basement section diameter	:	98	mm	3.9	in
Mast Weight	:	25	kg	55	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual
Optional Accessories	:	Electric air compressor			DC12V, DC24V, AC220V/50hz
		Guying Rope Kits			1x4 (1 layer, 4 ropes each layer, 4 mounting spikes, mounting radius 6m)
		Side Mounting Bracket			Aluminum alloy 6061 Materials
		Ground mounting Tripod			Steel Materials
		Rotation Basement			Manual Rotation
		Remote control kit			12VDC
data update on 20250110
