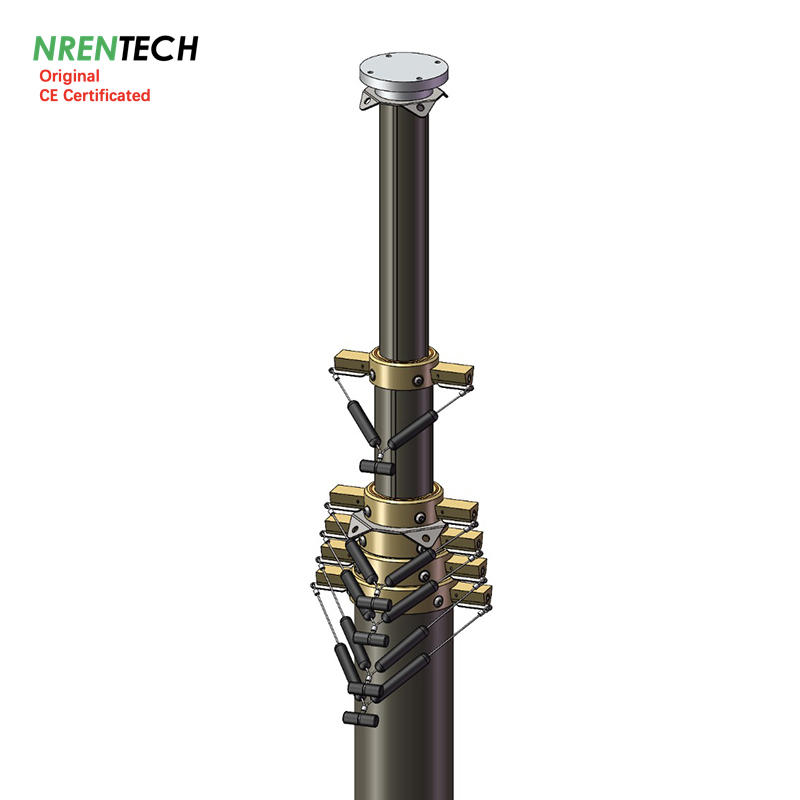

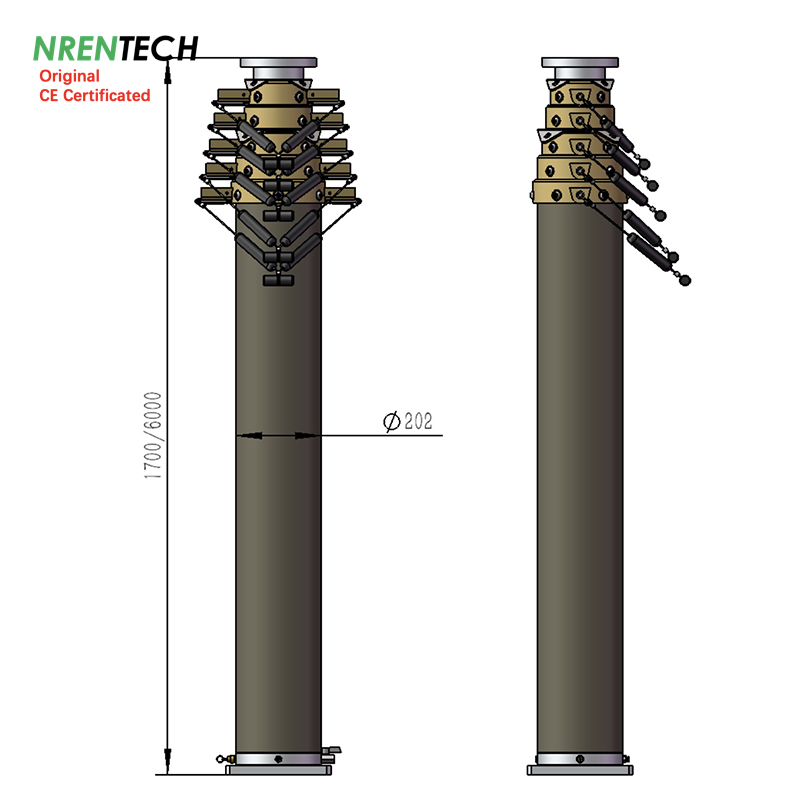

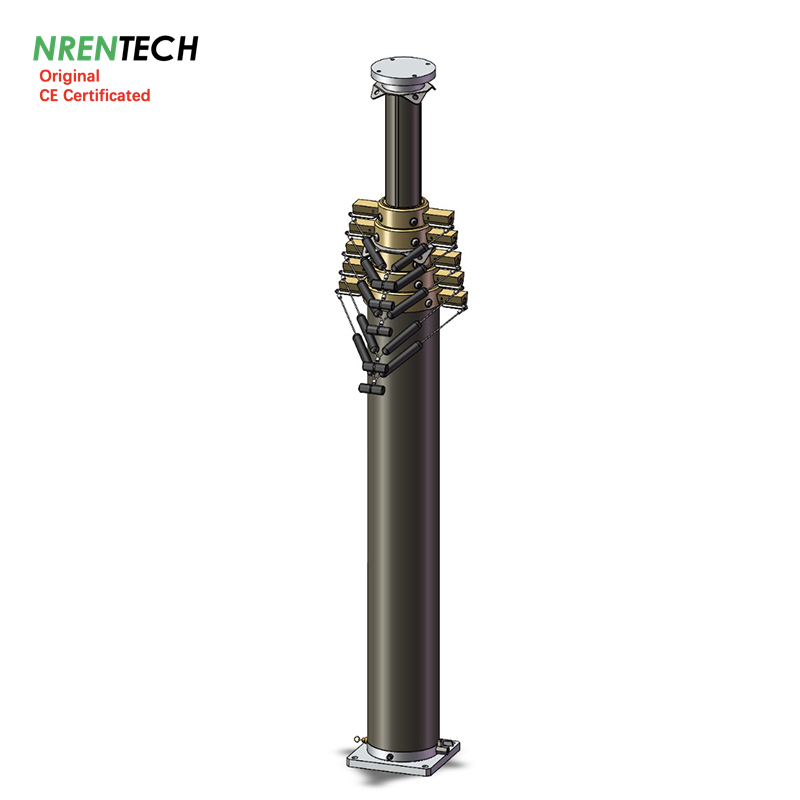

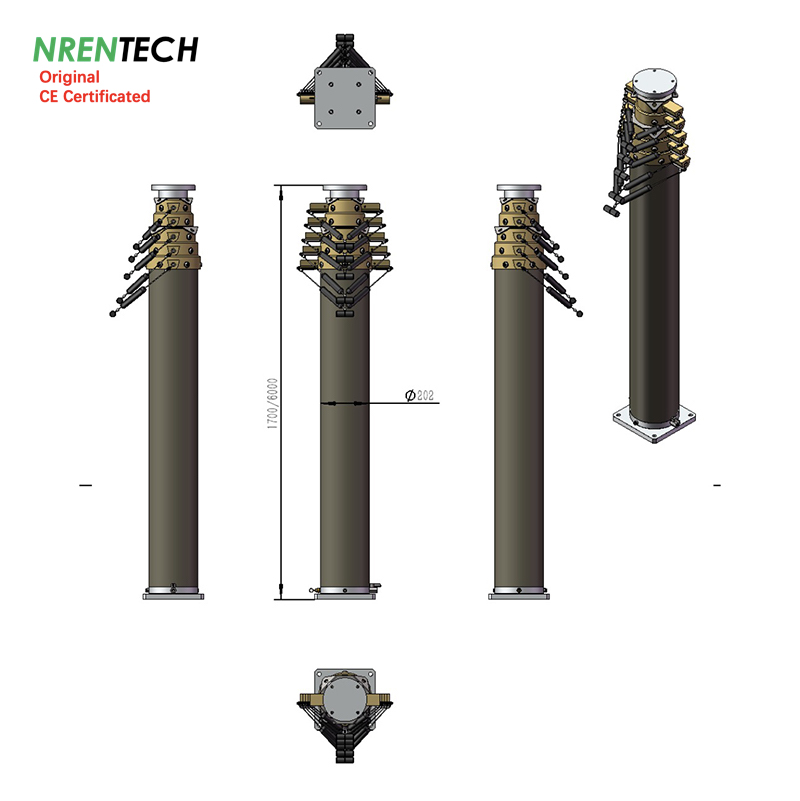

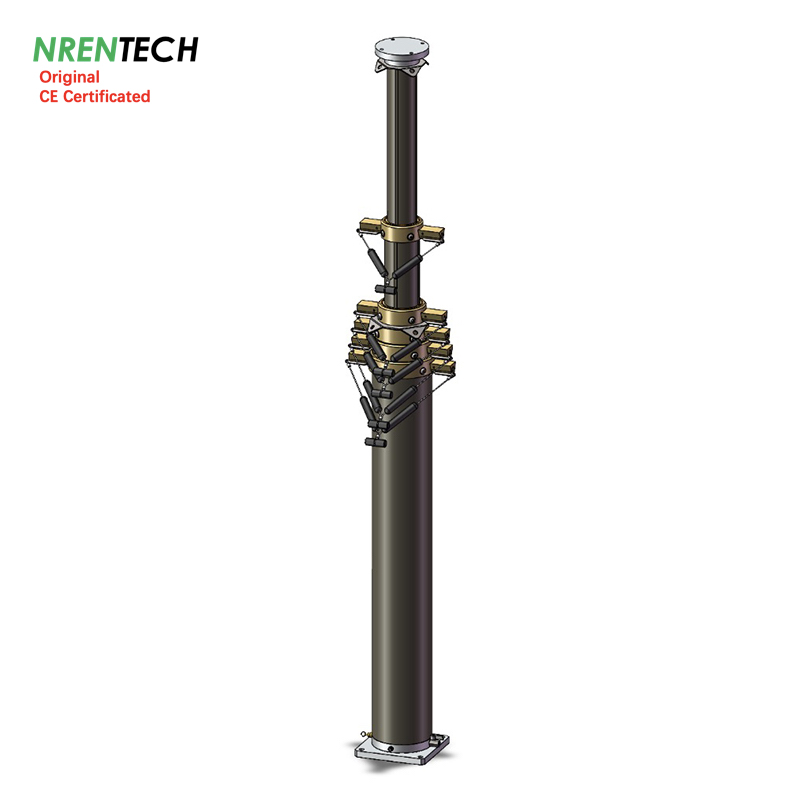

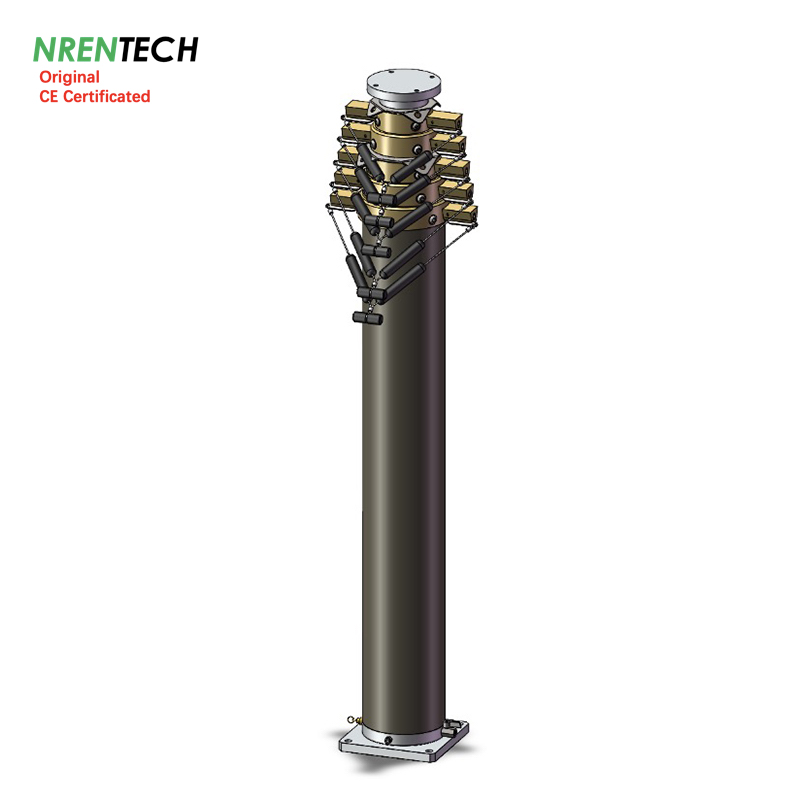

6m Locking Pneumatic Telescoping Mast 150kg payloads-NR-1.7-6.0-150L-6S-98-202
Item #: NR-1.7-6.0-150L-6S-98-202
1> Extended Height: 6m
2> Closed Height: 1.7m
3> Vertical payload: 150kg in vertical @0.2Mpa/29PSI
4> Type: Lockable (automatic extension/retraction by manual)
5> Number of sections: 6
6> Section diameter: 98mm~202mm
7> Materials: Aluminum Alloy materials 6063T5
8> Mast weight: 88kg approx.
9> Working air pressure: maximum 0.25Mpa/29PSI
10> Installation: Vertical and Upward only
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve
12> Chargeable accessories: Side mounting bracket, Electric air compressor, ground mounting tripod/quadpod bracket, remote control kit.
leading time: 20 days
guarantee: one year
updated information updated on 20250104
6m Locking Pneumatic Telescoping Mast 150kg payloads-NR-1.7-6.0-150L-6S-98-202
Item #: NR-1.7-6.0-150L-6S-98-202
1> Extended Height: 6m
2> Closed Height: 1.7m
3> Vertical payload: 150kg in vertical @0.2Mpa/29PSI
4> Type: Lockable (automatic extension/retraction by manual)
5> Number of sections: 6
6> Section diameter: 98mm~202mm
7> Materials: Aluminum Alloy materials 6063T5
8> Mast weight: 88kg approx.
9> Working air pressure: maximum 0.25Mpa/29PSI
10> Installation: Vertical and Upward only
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve
12> Chargeable accessories: Side mounting bracket, Electric air compressor, ground mounting tripod/quadpod bracket, remote control kit.
leading time: 20 days
guarantee: one year
updated information updated on 20250104
| 6m Lockable Pneumatic Telescopic Mast-150kg Payload | ||||||
| NR-1.7-6-150L-6S-98-202 | ||||||
 | ||||||
| Extended Height | : | 6 | m | 19.68 | ft | |
| Retracted Height | : | 1.7 | m | 5.6 | ft | |
| Vertical Payload | : | 150 | kg | 330 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Extension, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 6 | ||||
| Top section diameter | : | 98 | mm | 3.9 | in | |
| Basement section diameter | : | 202 | mm | 8.0 | in | |
| Mast Weight | : | 88 | kg | 193.6 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Optional Accessories | : | Electric air compressor | DC12V, DC24V, AC220V/50hz | |||
| Guying Rope Kits | 2x4 (2 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 6m) | |||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod/Quadpod | 40kg approx. | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20250104 | ||||||
