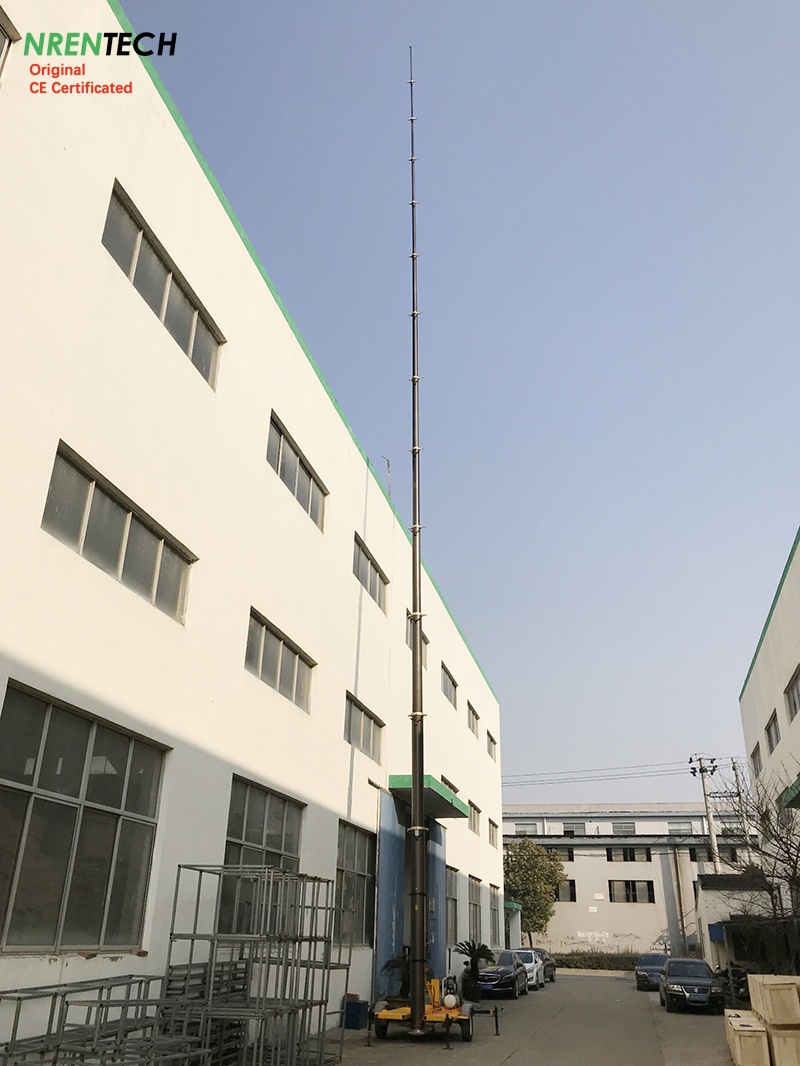

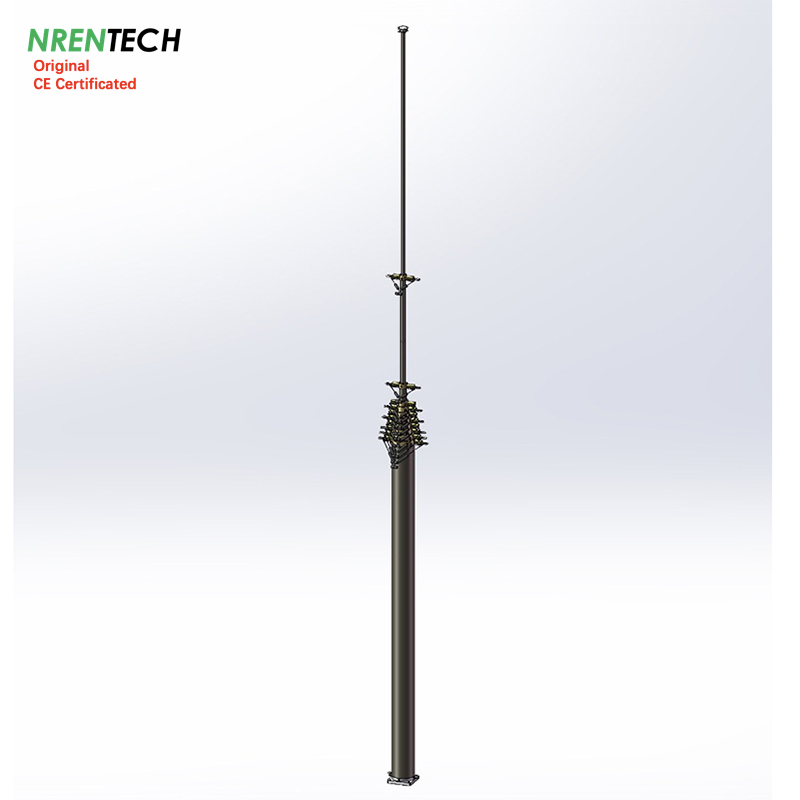

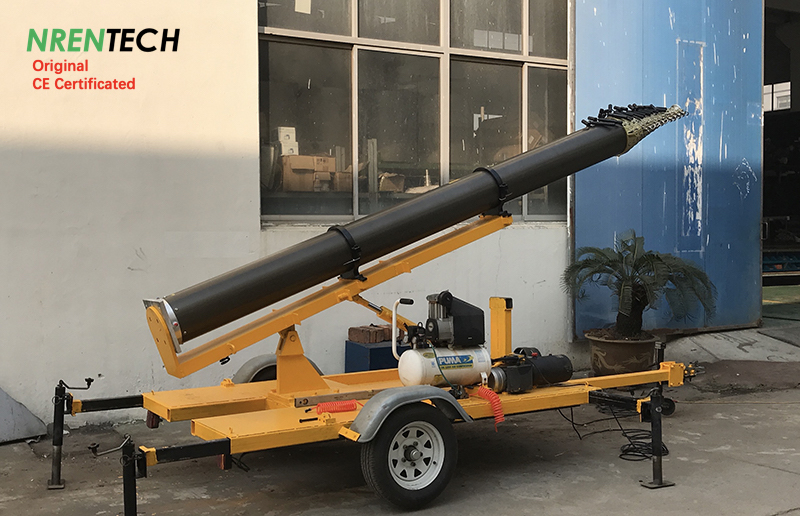

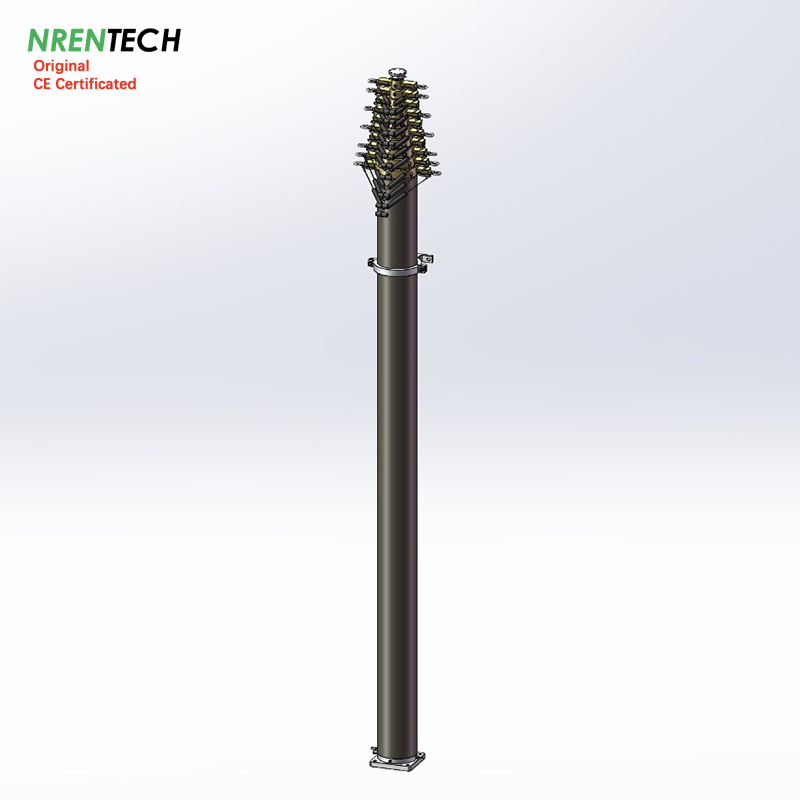

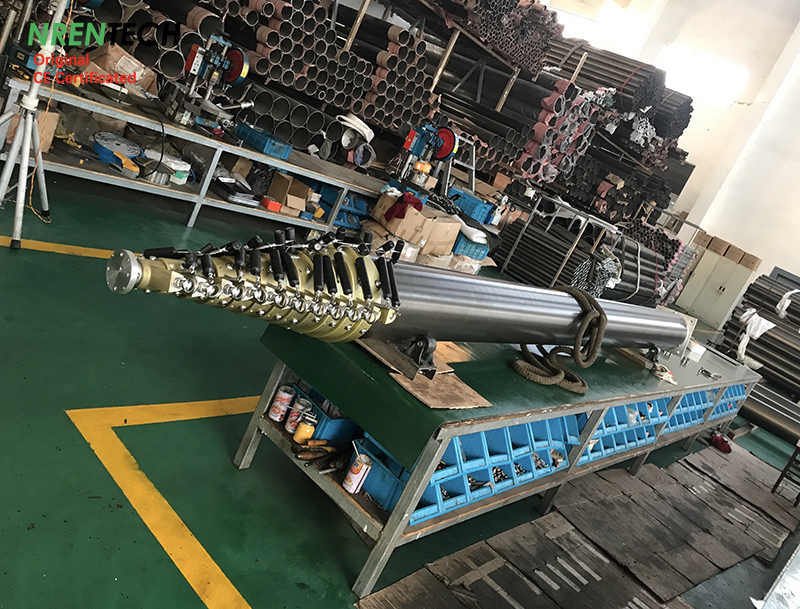

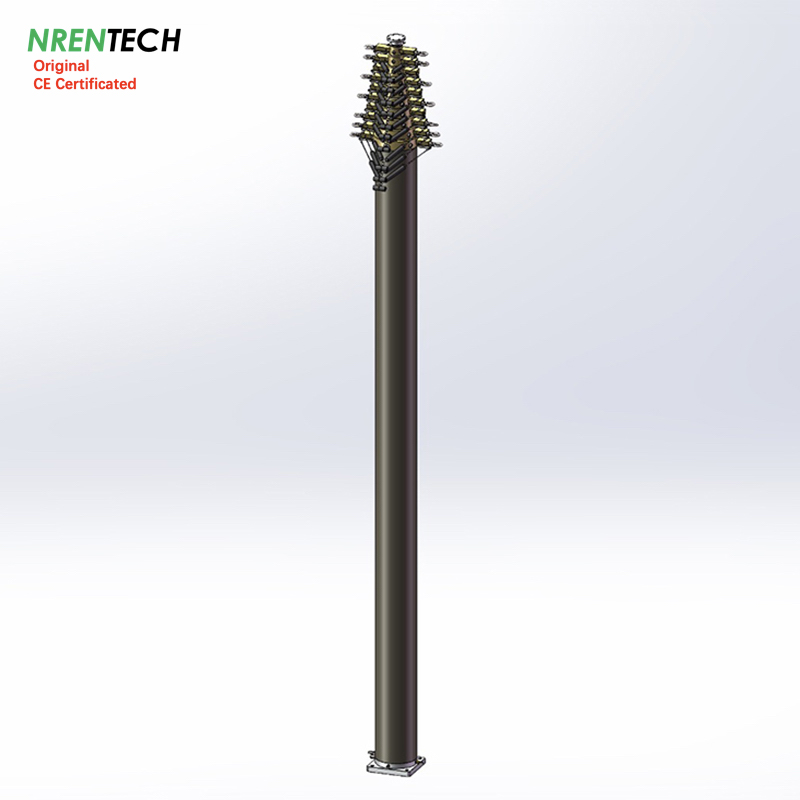

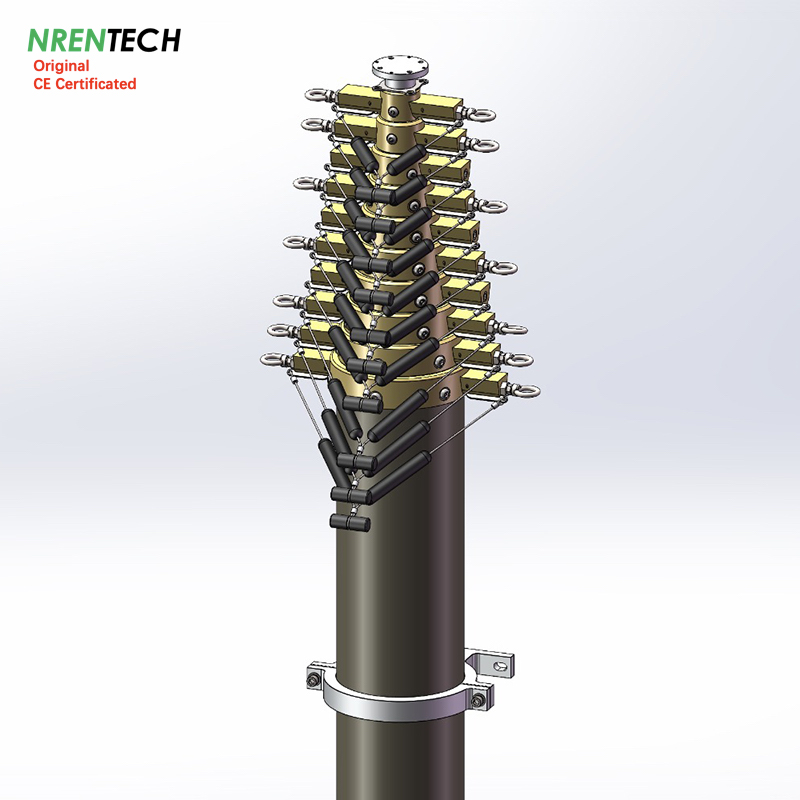

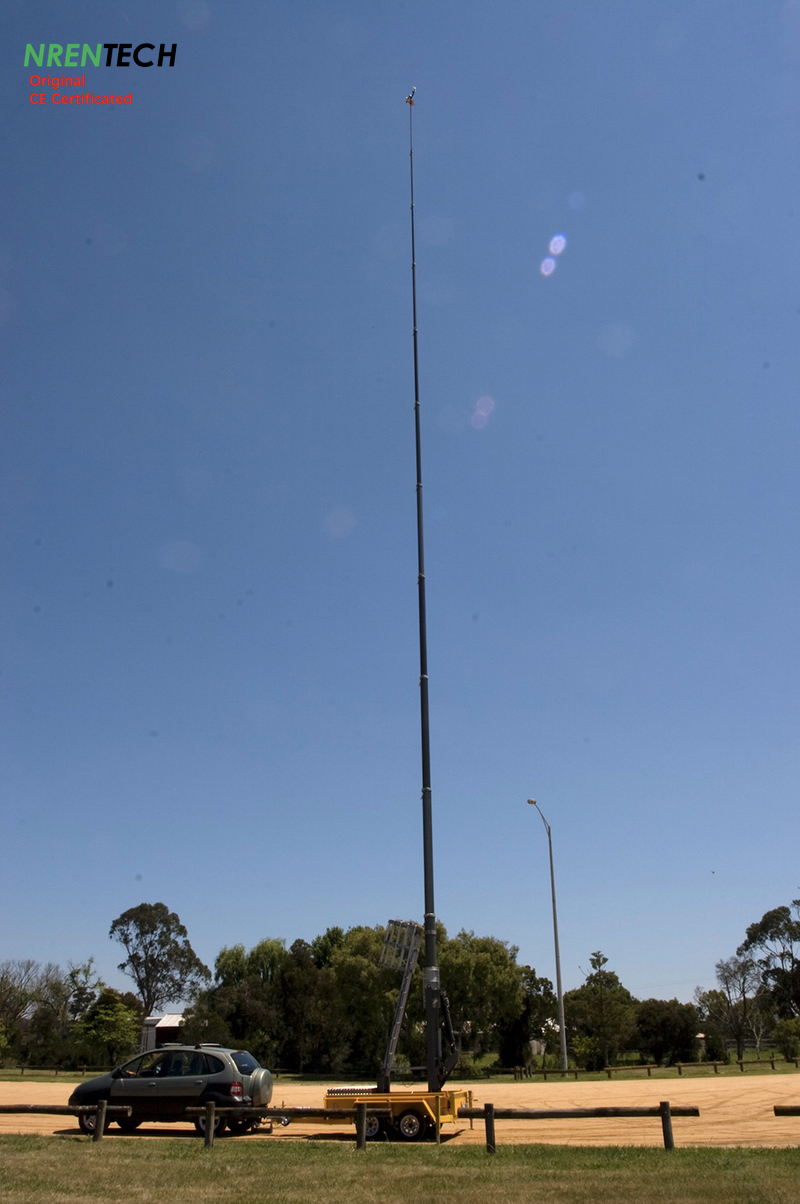

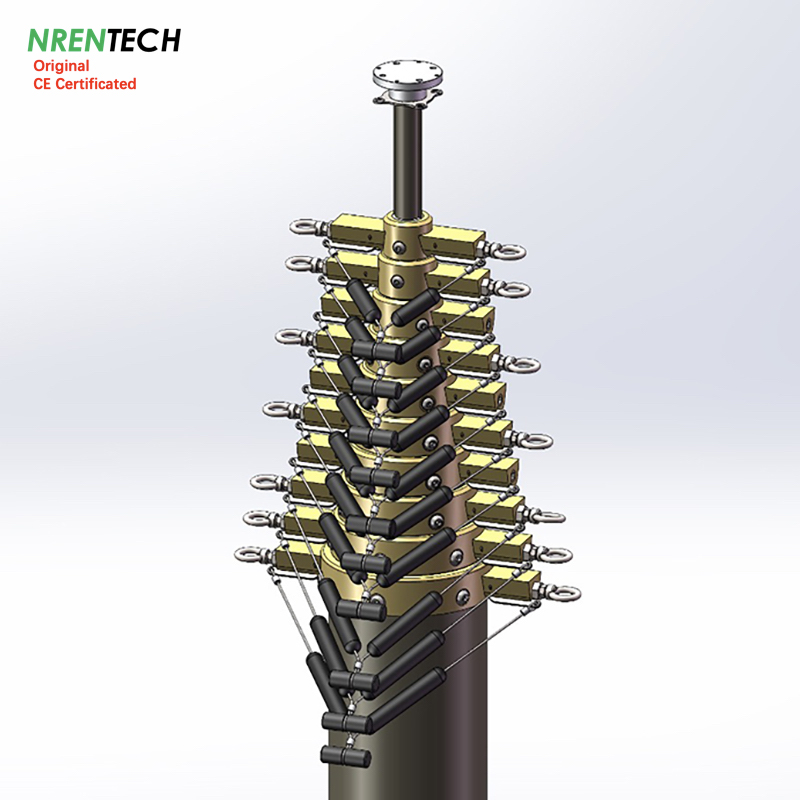

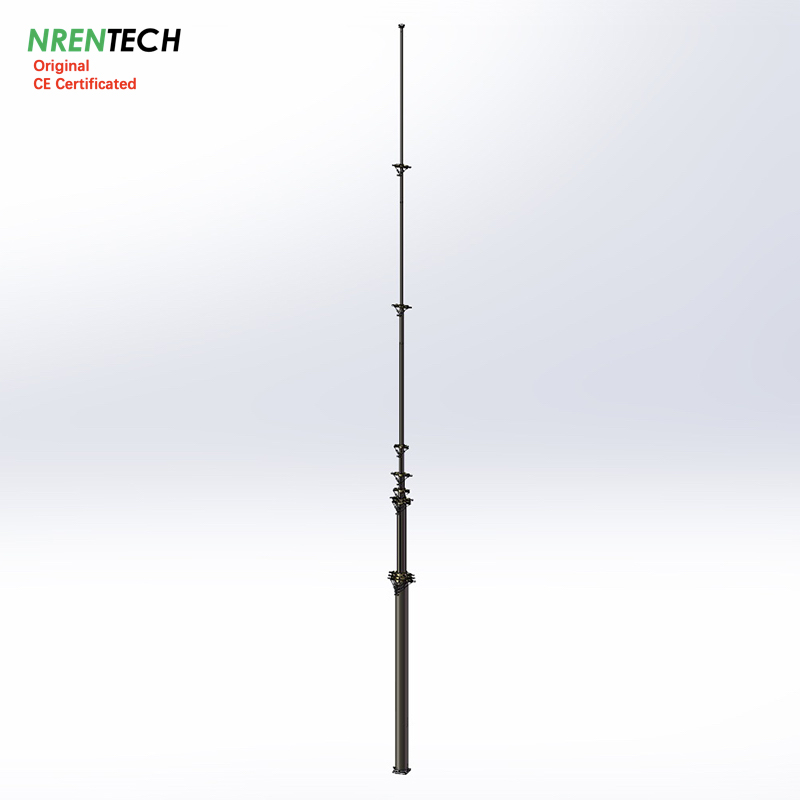

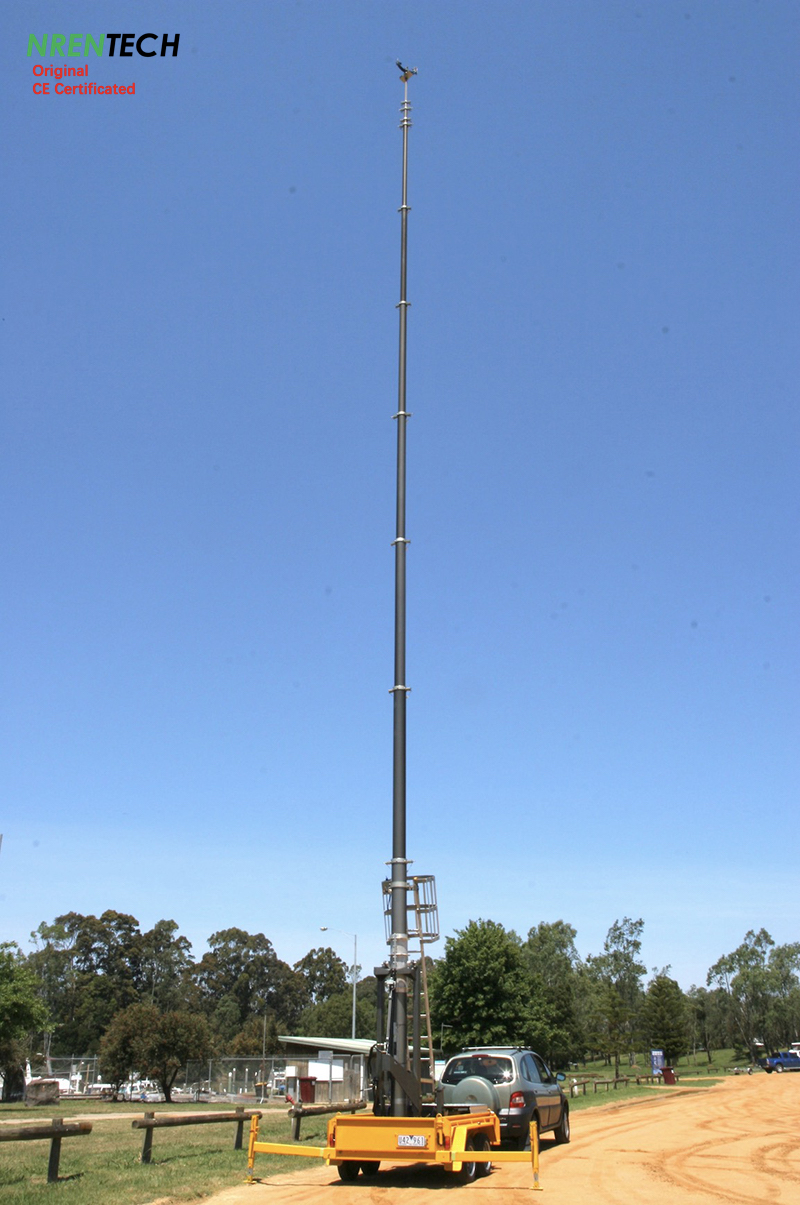

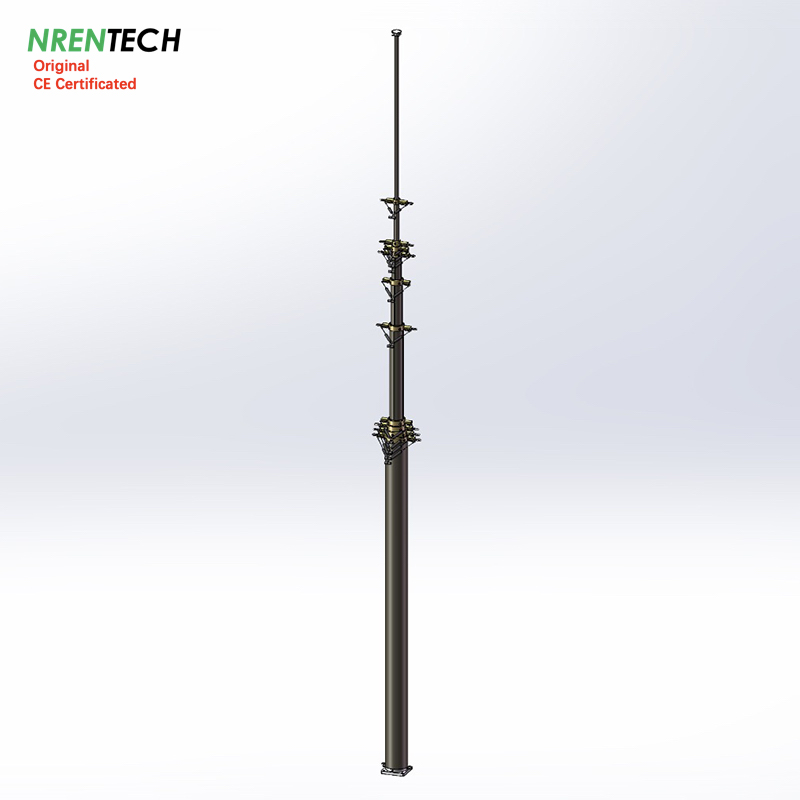

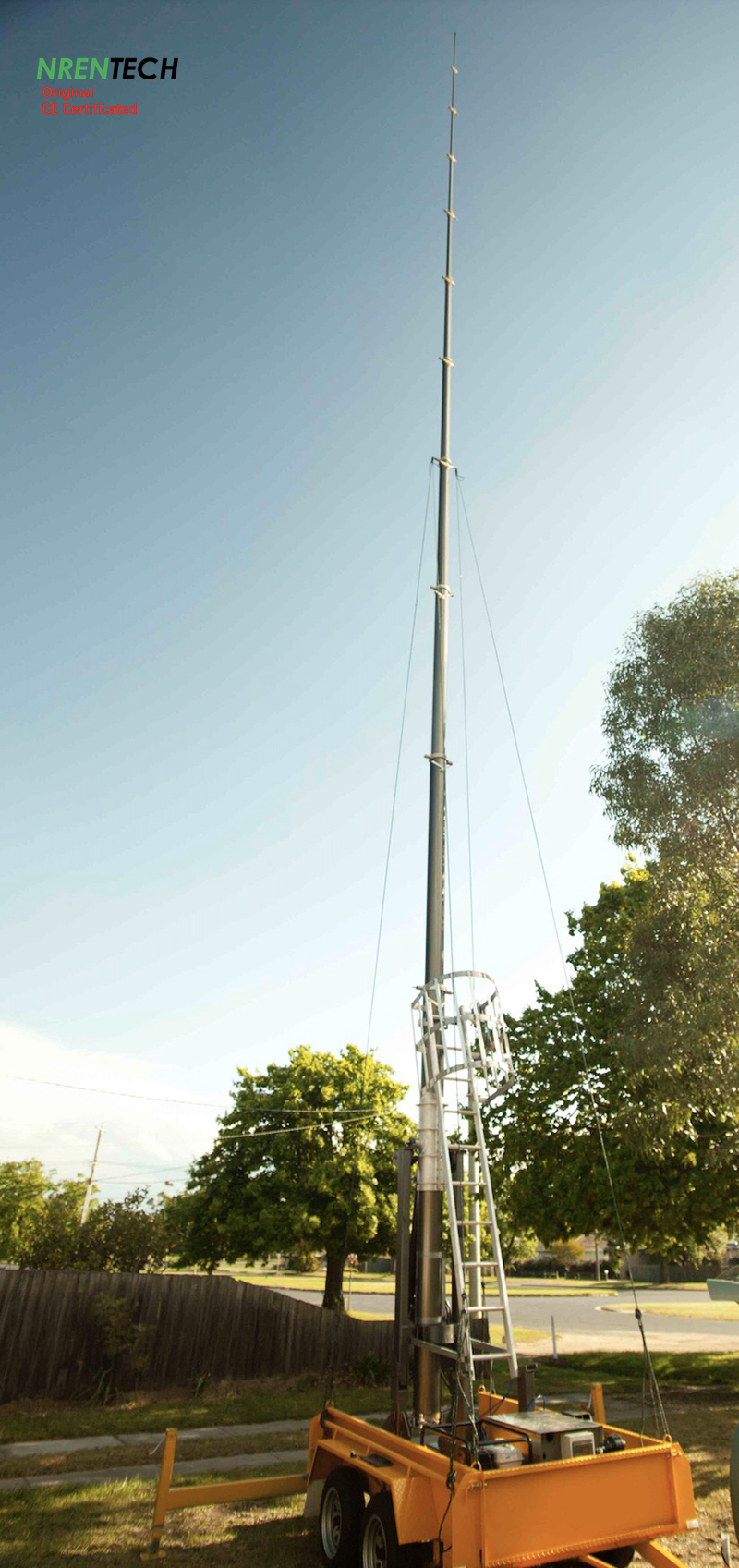

30m Light Weight Lockable Pneumatic Telescopic Mast 10kg Payload-4.2m closed height
NR-4.2-30-10L-11S-36-229
Item #: NR-4.2-30-10L-11S-36-229
1> Extended Height: 30m
2> Retracted Height: 4.2m
3> Payloads: maximum 10kg@0.25Mpa/36PSI
4> Number of sections: 11 sections
5> Section diameter: 36~229mm
6> Materials: aluminum alloy 6063T5
7> Mast weight: 258kg
8> Working pressure: 0.25Mpa/36PSI recommended
9> Working temperature: -25~55 Celsius Degrees
10> Default accessories: top flange, bottom flange, air hose pipe, air control manual, retraction operating tool, eyebolts for guying ropes mounting
Charging accessories: electric air compressor, wireless remote control kit DC12V, guying ropes kits (6 layers, 4 ropes each layer, mounting radius 30m), quadpod ground mounting brackets, aluminum side mounting brackets
Guarantee: 2 years
Leading time: 30 days
Latest Data updated on 2024-12-17
30m Light Weight Lockable Pneumatic Telescopic Mast 10kg Payload-4.2m closed height
NR-4.2-30-10L-11S-36-229
Item #: NR-4.2-30-10L-11S-36-229
1> Extended Height: 30m
2> Retracted Height: 4.2m
3> Payloads: maximum 10kg@0.25Mpa/36PSI
4> Number of sections: 11 sections
5> Section diameter: 36~229mm
6> Materials: aluminum alloy 6063T5
7> Mast weight: 258kg
8> Working pressure: 0.25Mpa/36PSI recommended
9> Working temperature: -25~55 Celsius Degrees
10> Default accessories: top flange, bottom flange, air hose pipe, air control manual, retraction operating tool, eyebolts for guying ropes mounting
Charging accessories: electric air compressor, wireless remote control kit DC12V, guying ropes kits (6 layers, 4 ropes each layer, mounting radius 30m), quadpod ground mounting brackets, aluminum side mounting brackets
Guarantee: 2 years
Leading time: 30 days
Latest Data updated on 2024-12-17
| 30m Lockable Pneumatic Telescopic Mast-10kg Payload | ||||||
| NR-4.2-30-10L-11S-36-229 | ||||||
 | ||||||

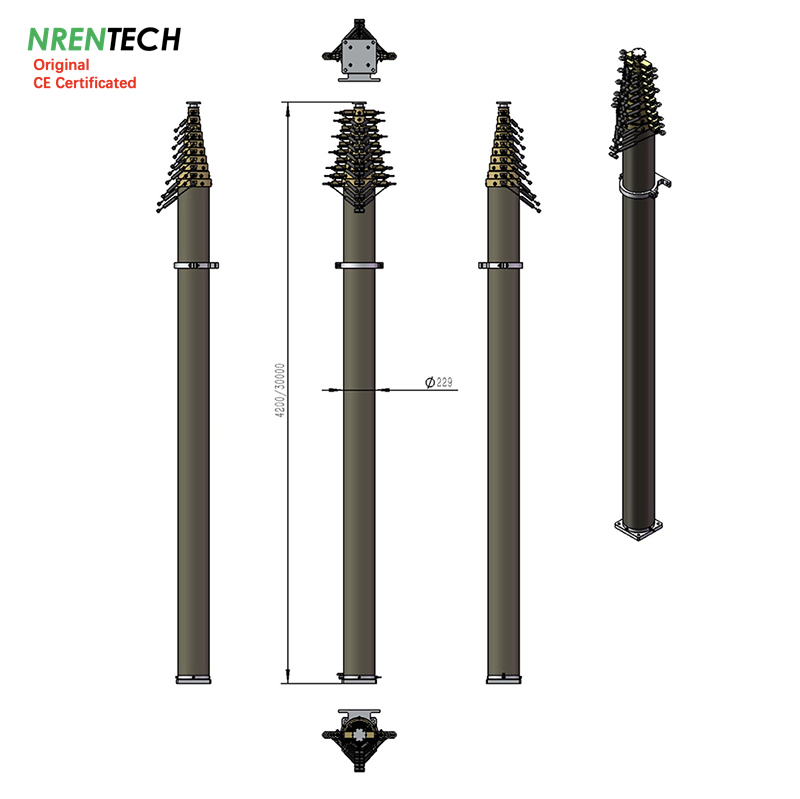

| Extended Height | : | 30 | m | 98.4 | ft | |
| Retracted Height | : | 4.2 | m | 13.8 | ft | |
| Vertical Payload | : | 10 | kg | 22 | lb | |
| Working air pressure | : | 0.25 | Mpa | 37 | PSI | |
| Collar Type | : | Locking (Automatic Extension, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 11 | ||||
| Top section diameter | : | 36 | mm | 1.4 | in | |
| Basement section diameter | : | 229 | mm | 9.0 | in | |
| Mast Weight | : | 258 | kg | 568 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe, 8mm O.D. | ||||||
| air control manual valve | ||||||
| Retraction operation tool | ||||||
| Optional Accessories | : | Electric air compressor | AC220V/50hz | |||
| Guying Rope Kits | 6x4 (6 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 30m) | |||||
| Side Mounting Bracket | Aluminum Alloy 6061T6 Materials | |||||
| Ground mounting Quadpod | Steel Materials 60x60mm pipes | |||||
| Rotation Basement | ||||||
| Remote control kit | 12VDC | |||||
| data update on 20241217 | ||||||
