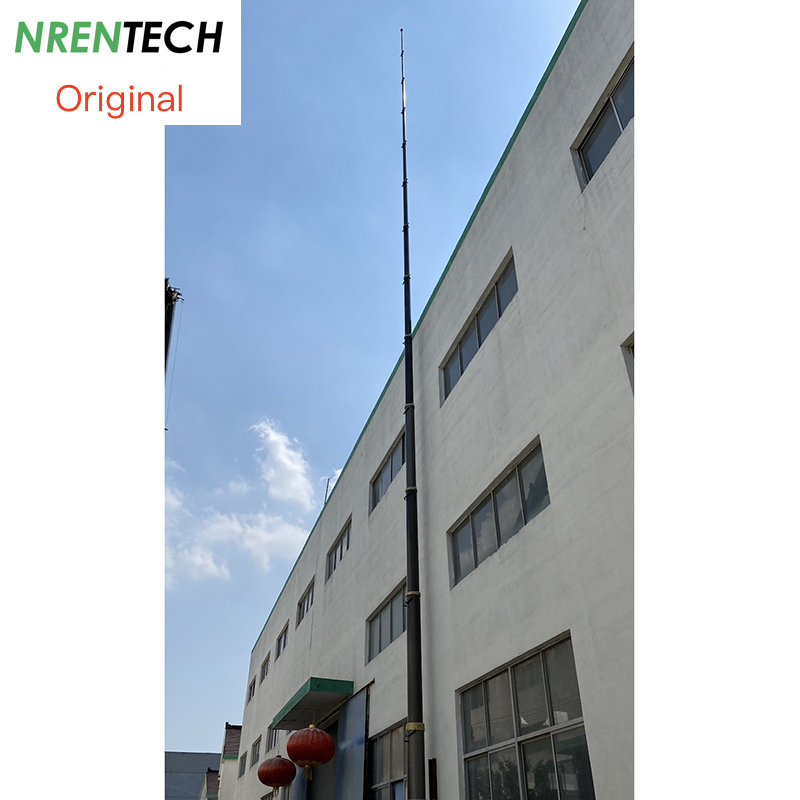

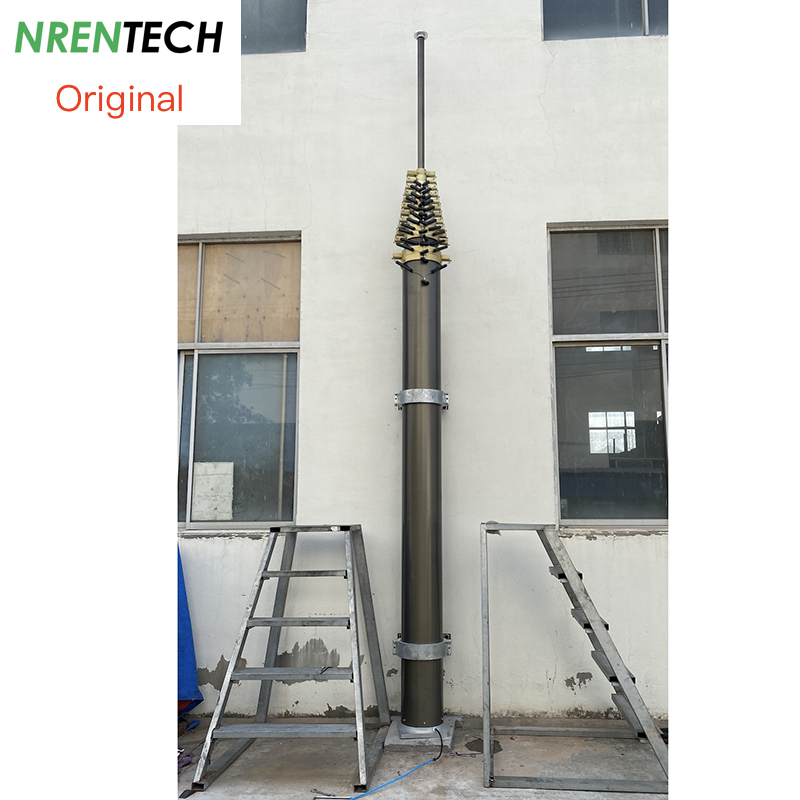

30m Lockable Pneumatic Telescopic Mast 30kg Payloads, 4.4m closed height
Item #: NR-4.4-30-30L-13S-51-316
1> Extended Height: 30m
2> Retracted Height: 4.4m
3> Payloads: maximum 30kg@0.25Mpa/36PSI
4> Number of sections: 13 sections
5> Section diameter: 51-316mm
6> Materials: aluminum alloy 6063T5
7> Mast weight: 480kg
8> Working pressure: 0.25Mpa/36PSI recommended
9> Working temperature: -25~55 Celsius Degrees
10> Default accessories: top flange, bottom flange, air hose pipe, air control manual, retraction operating tool, eyebolts for guying ropes mounting
Charging accessories: electric air compressor, wireless remote control kit DC12V, guying ropes kits for 120km/h, quadpod ground mounting brackets, steel side mounting brackets
Data was updated on 2024-10-11
30m Lockable Pneumatic Telescopic Mast 30kg Payloads, 4.4m closed height
Item #: NR-4.4-30-30L-13S-51-316
1> Extended Height: 30m
2> Retracted Height: 4.4m
3> Payloads: maximum 30kg@0.25Mpa/36PSI
4> Number of sections: 13 sections
5> Section diameter: 51-316mm
6> Materials: aluminum alloy 6063T5
7> Mast weight: 480kg
8> Working pressure: 0.25Mpa/36PSI recommended
9> Working temperature: -25~55 Celsius Degrees
10> Default accessories: top flange, bottom flange, air hose pipe, air control manual, retraction operating tool, eyebolts for guying ropes mounting
Charging accessories: electric air compressor, wireless remote control kit DC12V, guying ropes kits for 120km/h, quadpod ground mounting brackets, steel side mounting brackets
Data was updated on 2024-10-11
| 30m Lockable Pneumatic Telescopic Mast-30kg Payload | ||||||
| NR-4.4-30-30L-13S-51-316 | ||||||
 | ||||||

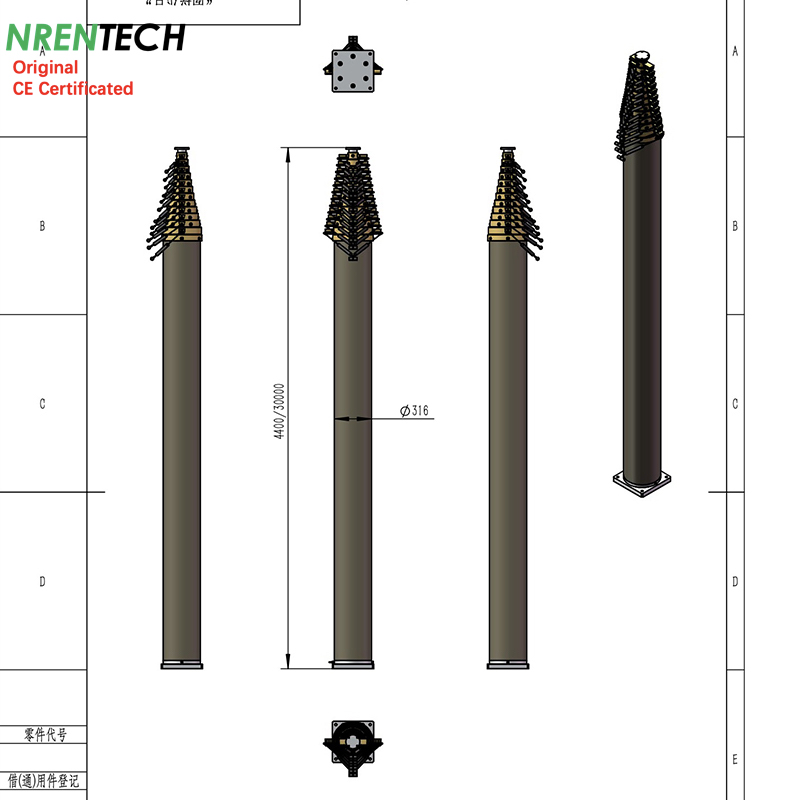

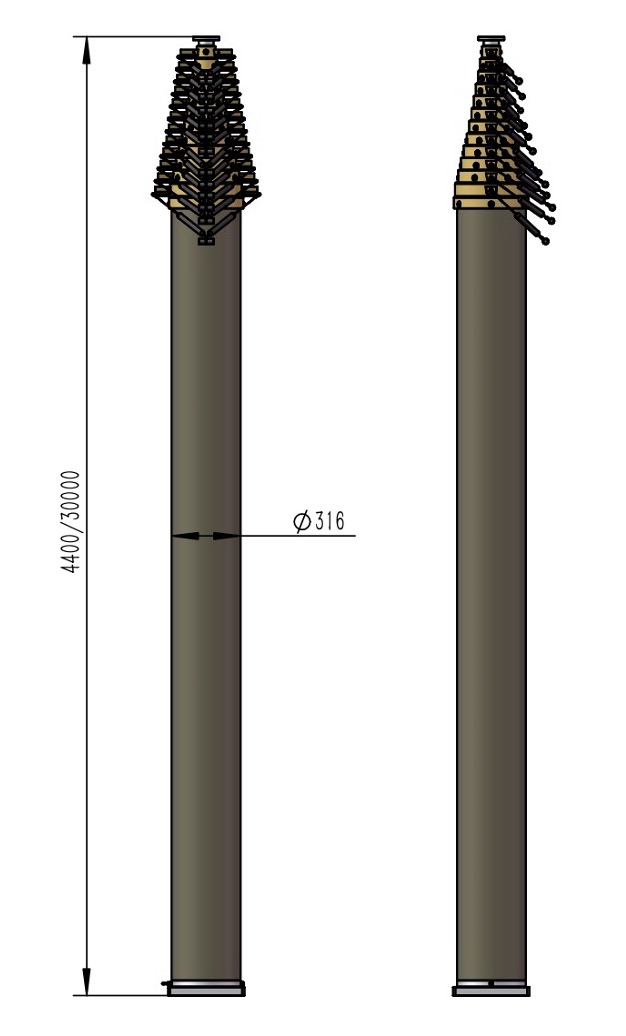

| Extended Height | : | 30 | m | 98.4 | ft | |
| Retracted Height | : | 4.4 | m | 14.4 | ft | |
| Vertical Payload | : | 30 | kg | 66 | lb | |
| Working air pressure | : | 0.25 | Mpa | 37 | PSI | |
| Collar Type | : | Locking (Automatic Extension, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 13 | ||||
| Top section diameter | : | 51 | mm | 2.0 | in | |
| Basement section diameter | : | 316 | mm | 12.4 | in | |
| Mast Weight | : | 480 | kg | 1056 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Retraction operation tool | ||||||
| Optional Accessories | : | Electric air compressor | AC220V/50hz | |||
| Guying Rope Kits | 5x4 (5 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 30m) | |||||
| Side Mounting Bracket | Steel Material | |||||

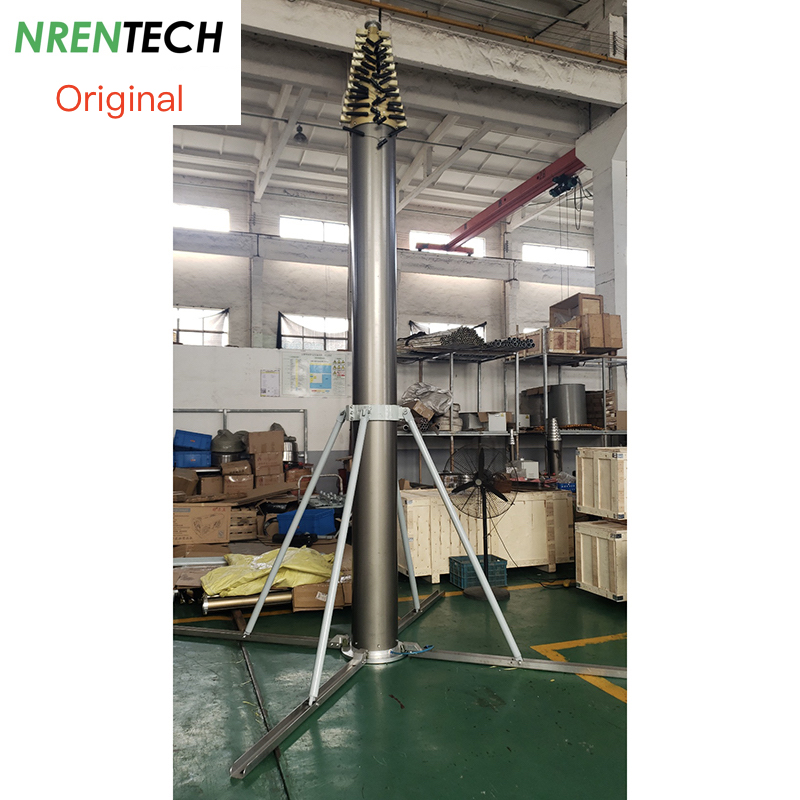

| Ground mounting Quadpod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20231115 | ||||||
