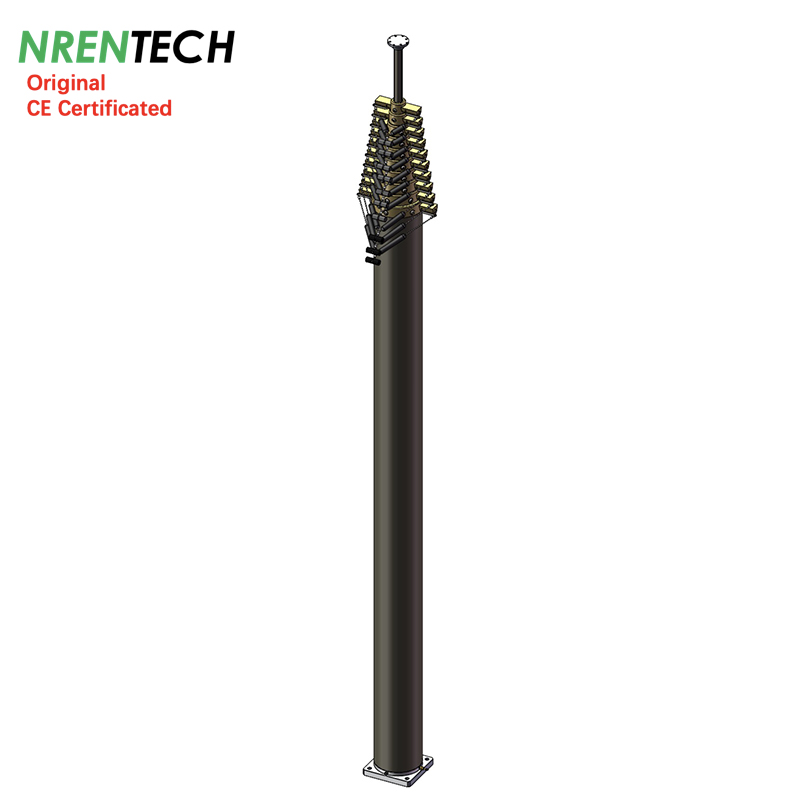

25m Lockable Pneumatic Telescopic Mast 15kg payloads
Item #: NR-3.9-25-15L-11S-36-229
1> Extended Height: 25m
2> Retracted Height: 3.9m
3> Payloads: 15kg max.
4> Type: Lockable
5> Number of sections: 11 sections
6> Section diameter*thickness: 36*3mm. 51*3mm, 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm, 180*5mm, 202*6mm, 229*7mm
7> Materials: aluminum alloy AL0603T5
8>Mast weight: 237kg approx.
9> Working air pressure: 0.25Mpa/29PSI recommended
10> Working working temperature: -15~85℃
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual, 1x over pressure protection valve
12> Optional accessories: electric air compressor DC12V or AC220V/50Hz, 4 layers and 4 directions guying rope kits with mounting spikes, ground mounting tripod, vehicle side mounting brackets
leading time: 20 days
data update on 20230827
25m Lockable Pneumatic Telescopic Mast-15kg Payloads
Item #: NR-3.9-25-15L-11S-36-229
Data update: 20230827
25m Lockable Pneumatic Telescopic Mast
Vertical payload 15kg maximum
3.9m closed height
Automatic extension, manual operation for down operating.
11 sections with 229mm base section diameter.
Aluminum alloy 6063T5 materials
Mast weight 237kg approx.
5x4 guying rope kits
Ground mounting, or side mounting.
0.2Mpa/29PSI working air pressur
| 25m Lockable Pneumatic Telescopic Mast-15kg Payload | ||||||
| NR-3.9-25-15L-11S-36-229 | ||||||
| ||||||
| Extended Height | : | 25 | m | 82 | ft | |
| Retracted Height | : | 3.9 | m | 12.8 | ft | |
| Vertical Payload | : | 15 | kg | 33 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Extention, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 11 | ||||
| Top section diameter | : | 36 | mm | 1.4 | in | |
| Basement section diameter | : | 229 | mm | 9.0 | in | |
| Mast Weight | : | 237 | kg | 521 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Retraction operation tool | ||||||
| Optional Accessories | : | Electric air compressor | AC220V/50hz | |||
| Guying Rope Kits | 5x4 (5 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 25m) | |||||
| Side Mounting Bracket | Aluminum Materials | |||||
| Ground mounting Tripod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20230827 | ||||||
