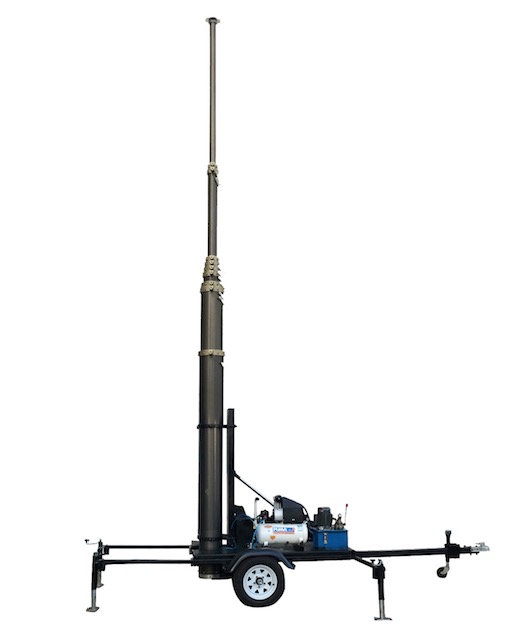

21m Mobile Trailer Mast Tower System
Part #: MT-21000
21m lockable pneumatic telescopic mast, 100kg payloads, 3.7m closed height, base section dia. 279mm
Mobile Trailer
Hydraulic tilting system
Leading time: 40 days
Information update on 5th Aug. 2022
5 years warranty by Nrentech
21m Mobile Trailer Mast Tower System
Part #: MT-21000
21m lockable pneumatic telescopic mast, 100kg payloads
Mobile Trailer
Hydraulic tilting system for mast tilting between vertical and horizotal (mast in closed status)
electric air compressor built on the trailer for mast lifting
guying lines kits
application for mobile telecommunication projects
Features:
21m Pneumatic Telescopic Mast
21m extended height
3.7m retracted height
100kg payloads max.
locking collar
9 sections, section dia. 98mm~279mm
working air pressure: 0.2Mpa/29PSI max.
aluminum alloy 6063T5 materials
mast weight 300kg approx.
mast equip guying lines 3 layers and 4 ways, 4 mounting spikes
steel welding, single axle with brake, 4 stabilizers, trailer hitch tow
Electric air compressor:
AC220V/50hz, 3KW, 12L air tank manual control included, control mast extend/retract
Hydraulic system:
AC220V/50hz, 750W, electric motor and manual operation included, control mast tilting vertical and horizontal
System weight: 1500kg approx.
Packing: one unit per 20' container recommendation
shipment: by ocean
