18m Mobile Trailer Mast Tower System
Part #: MT-18000
18m lockable pneumatic telescopic mast, 150kg payloads
Mobile Trailer
Hydraulic tilting system
Leading time: 40 days
Information update on 5th Aug. 2022
5 years warranty by Nrentech

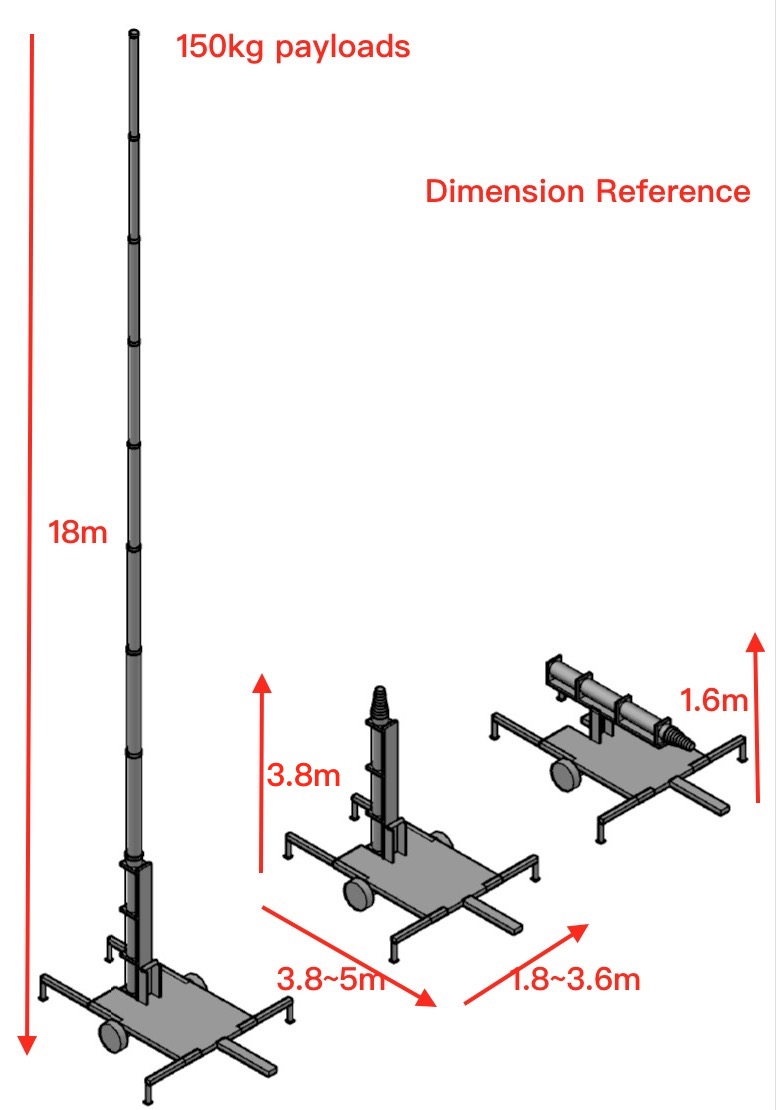

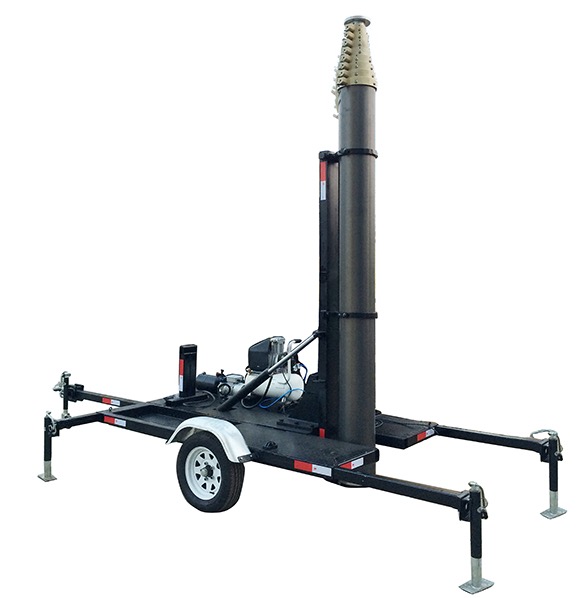

18m Mobile Trailer Mast Tower System
Part #: MT-18000
18m lockable pneumatic telescopic mast, 150kg payloads
Mobile Trailer
Hydraulic tilting system for mast tilting
electric air compressor built on the trailer
application for mobile telecommunication projects
Features:
18m Pneumatic Telescopic Mast
18m extended height
3m retracted height
150kg payloads max.
locking collar
9 sections, section dia. 98mm~279mm
working air pressure: 0.2Mpa/29PSI max.
aluminum alloy 6063T5 materials
mast weight 250kg approx.
mast equip guying lines 3 level and 4 ways
steel welding, single axle with brake, 4 stabilizers, trailer hitch tow
Electric air compressor:
AC220V/50hz, 3KW, 12L air tank, manual control included, control mast extend/retract
Hydraulic system:
AC220V/50hz, 750W, electric motor and manual operation included, control mast tilting vertical and horizontal
System weight: 1400kg approx.
Packing: one unit per 20' container recommendation
shipment: by ocean
