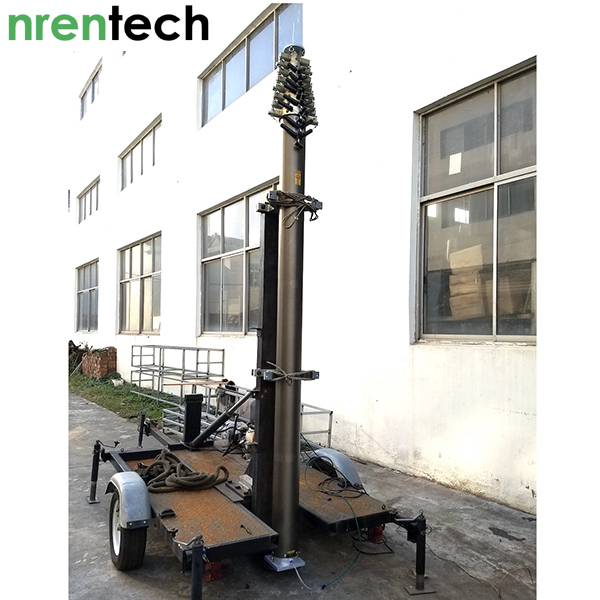

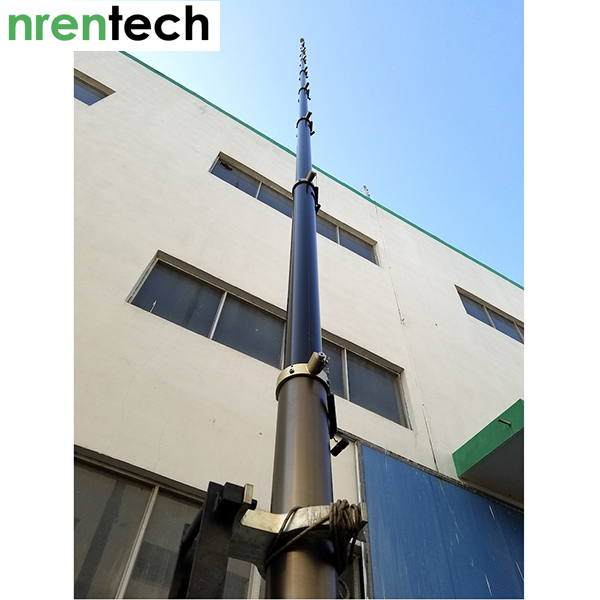

20m Lockable Pneumatic Telescopic Mast 15kg Payloads
3.5m retracted height
Item #: NR-3.7-20-15L-9S-36-180

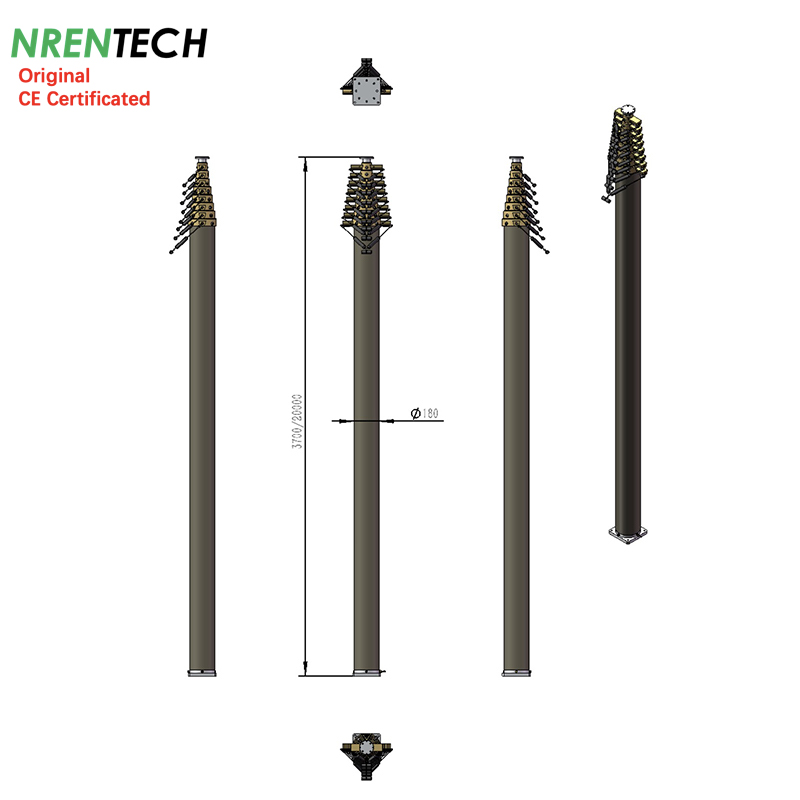

1> Extended Height: 20m
2> Retracted Height: 3.7m
3> Payloads: 15kg max.

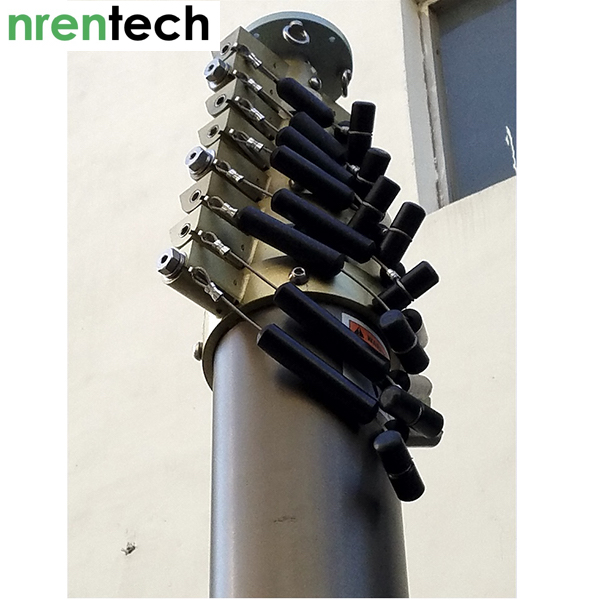

4> Type: Lockable
5> Number of sections: 9 sections
6> Section diameter*thickness: 36*3mm. 51*3mm, 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm, 180*5mm
7> Materials: aluminum alloy AL0603T5
8>Mast weight: 140kg approx.
9> Working air pressure: 0.25Mpa/29PSI recommended
10> Working working temperature: -15~85℃
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual, 1x over pressure protection valve

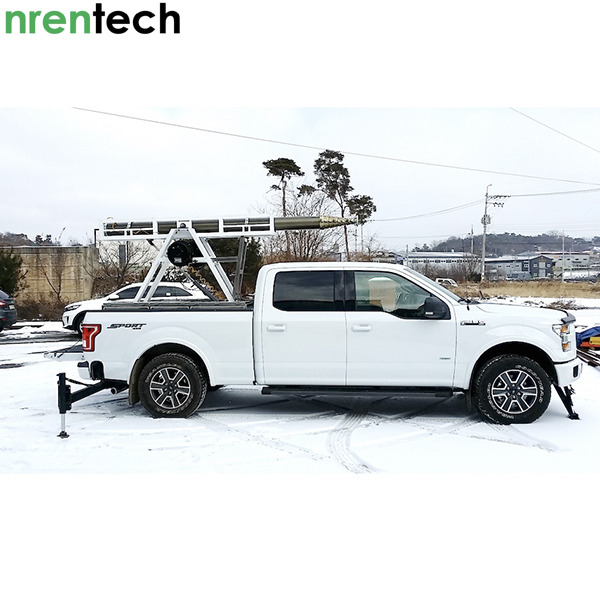

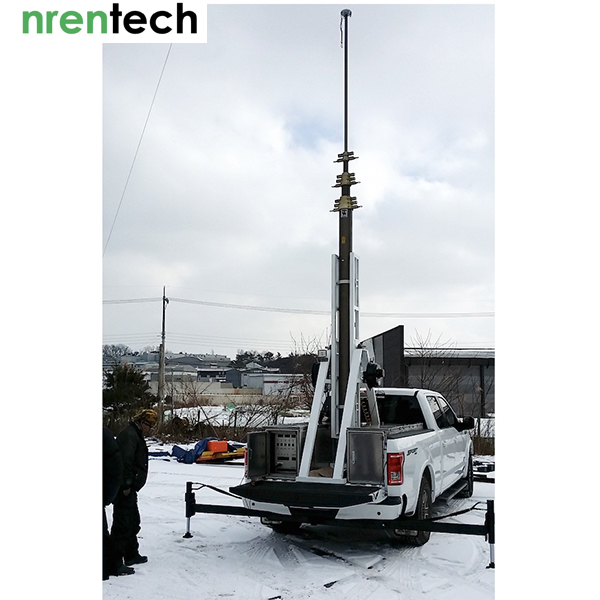

12> Optional accessories: electric air compressor DC12V or AC220V/50Hz, 4 layers and 4 directions guying rope kits with mounting spikes, ground mounting tripod, vehicle side mounting brackets
leading time: 20 days
information update on 20230801
| 20m Lockable Pneumatic Telescopic Mast-15kg Payload | ||||||
| NR-3.7-20-15L-9S-36-180 | ||||||
 | ||||||
| Extended Height | : | 20 | m | 65.6 | ft | |
| Retracted Height | : | 3.7 | m | 12.1 | ft | |
| Vertical Payload | : | 15 | kg | 33 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Extention, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 9 | ||||
| Top section diameter | : | 36 | mm | 1.4 | in | |
| Basement section diameter | : | 180 | mm | 7.1 | in | |
| Mast Weight | : | 140 | kg | 308 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Retraction operation tool | ||||||
| Optional Accessories | : | Electric air compressor | AC220V/50hz, DC12V, DC24V | |||
| Guying Rope Kits | 4x4 (4 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 20m) | |||||
| Side Mounting Bracket | Aluminum Materials | |||||
| Ground mounting Tripod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20230801 | ||||||
