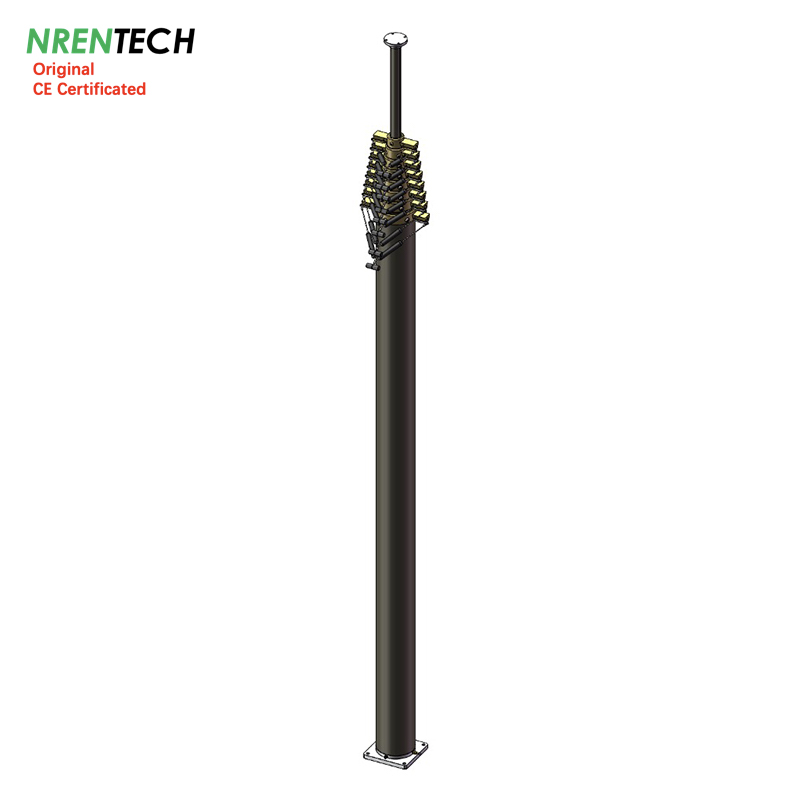

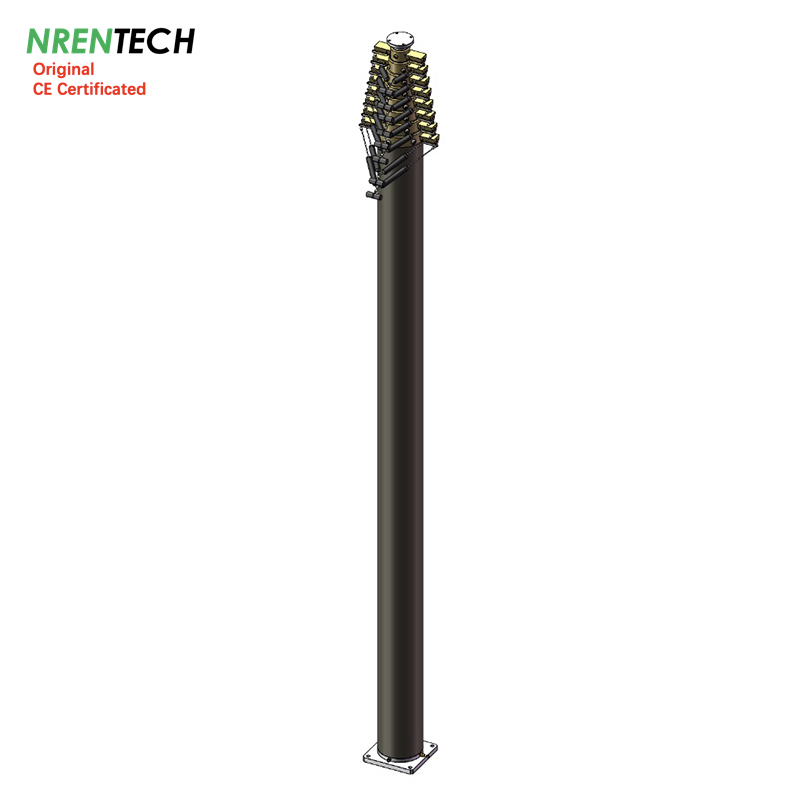

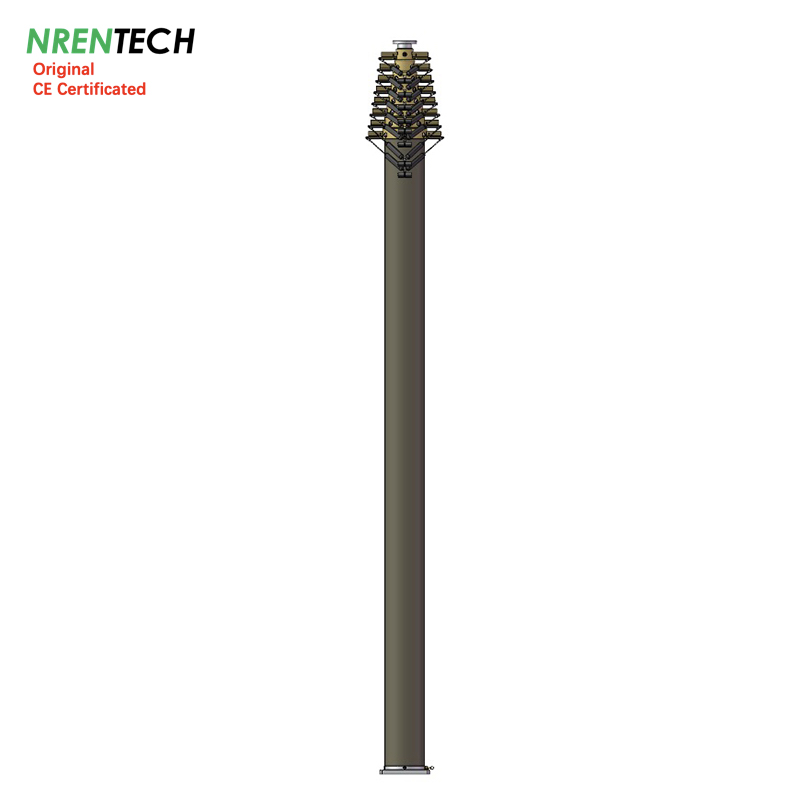

20m Lockable Pneumatic Telescopic Mast 30kg payloads-3.7m closed height
Part #: NR-3.7-20-30L-9S-51-202
1> Extended Height: 20m
2> Retracted Height: 3.7m
3> Vertical Payloads: 30kg @ 0.2Mpa/29PSI working air pressure
4> Collar type: locking type (automatic extension, retraction by manual operation)
5> Number of sections: 9 sections
6> Section diameter range: 51~202mm
7> Materials: Aluminum materials AL6063
8> Mast weight 175kg
9> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manul, 1x retraction operating tool. 1x guying ropes/wires mounting plates (stainelss plates and eyebolts)
Optional accessories:
Electric air compressor (AC220V/50hz, 1500W, 12L air tank)
Remote control kit (DC12V)
Ground mounting quadpod (stainless steel)
Vehicle side mounting bracket (aluminum alloy)
16 guying rope kits (4 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 20m)
application for mobile antenna, portable telecommunication antenna
30 days leading time
information update on 20240310
20m Lockable Pneumatic Telescopic Mast 30kg payloads-3.7m closed height
Part #: NR-3.7-20-30L-9S-51-202
1> Extended Height: 20m
2> Retracted Height: 3.7m
3> Vertical Payloads: 30kg @ 0.2Mpa/29PSI working air pressure
4> Collar type: locking type (automatic extension, retraction by manual operation)
5> Number of sections: 9 sections
6> Section diameter range: 51~202mm
7> Materials: Aluminum materials AL6063
8> Mast weight 175kg
9> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manul, 1x retraction operating tool. 1x guying ropes/wires mounting plates (stainelss plates and eyebolts)
Optional accessories:
Electric air compressor (AC220V/50hz, 1500W, 12L air tank)
Remote control kit (DC12V)
Ground mounting quadpod (stainless steel)
Vehicle side mounting bracket (aluminum alloy)
16 guying rope kits (4 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 20m)
application for mobile antenna, portable telecommunication antenna
30 days leading time
information update on 20240310
| 20m Lockable Pneumatic Telescopic Mast-30kg Payload | ||||||
| NR-3.7-20-30L-9S-51-202 | ||||||
 | ||||||
| Extended Height | : | 20 | m | 65.6 | ft | |
| Retracted Height | : | 3.7 | m | 12.1 | ft | |
| Vertical Payload | : | 30 | kg | 66 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Extension, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 9 | ||||
| Top section diameter | : | 51 | mm | 2.0 | in | |
| Basement section diameter | : | 202 | mm | 8.0 | in | |
| Mast Weight | : | 177 | kg | 389 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Retraction operation tool | ||||||
| Optional Accessories | : | Electric air compressor | AC220V/50hz, 1500W | |||
| Guying Rope Kits | 4x4 (4 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 20m) | |||||
| Side Mounting Bracket | Aluminum Materials | |||||

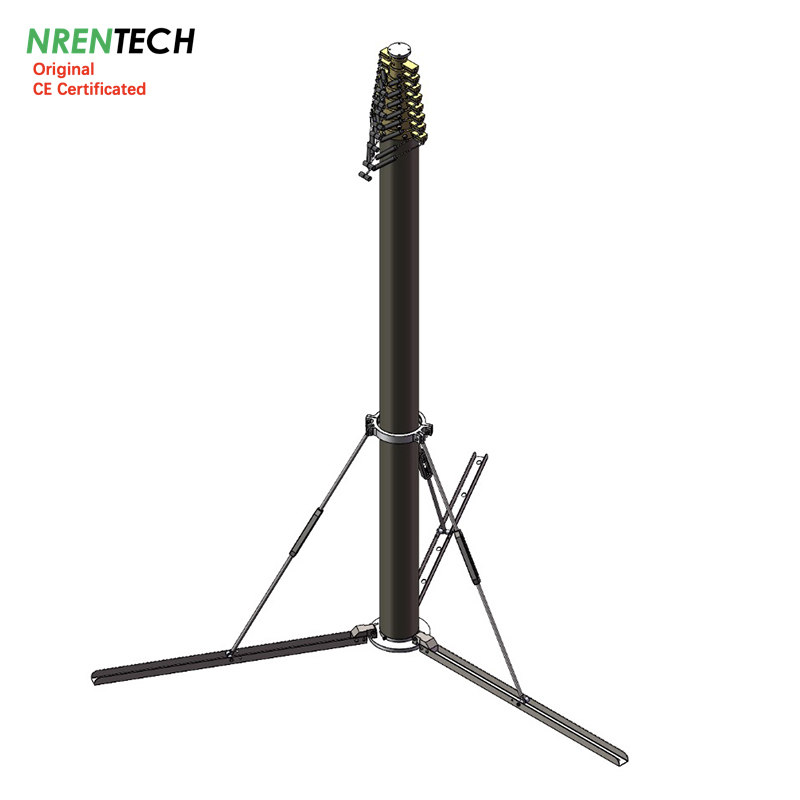

| Ground mounting Tripod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20231220 | ||||||
