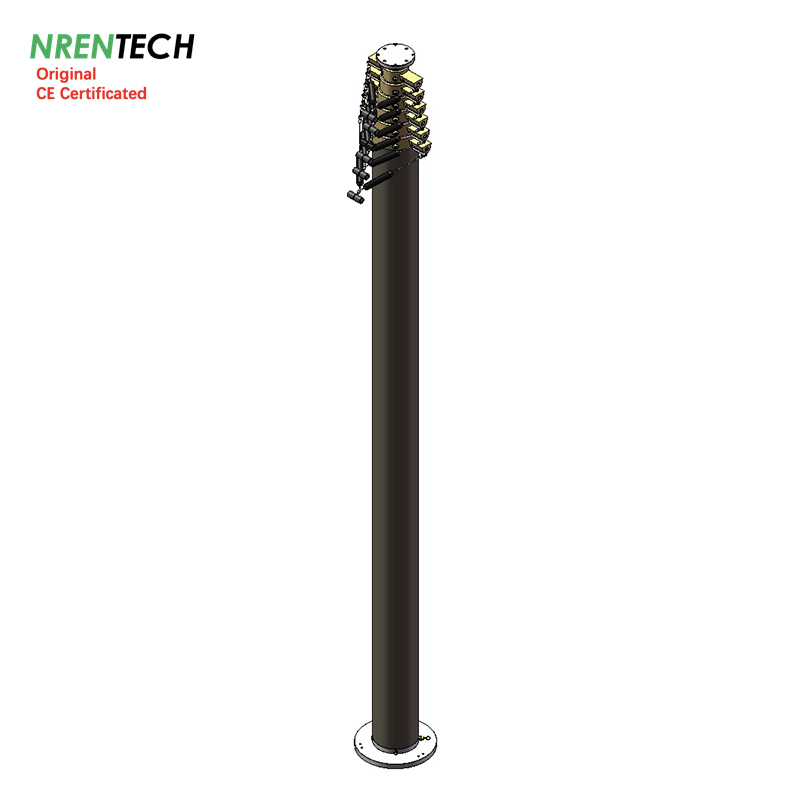

15m Locking Pneumatic Mast-50kg Payloads
Item #: NR-3.3-15-50L-7S-66-180

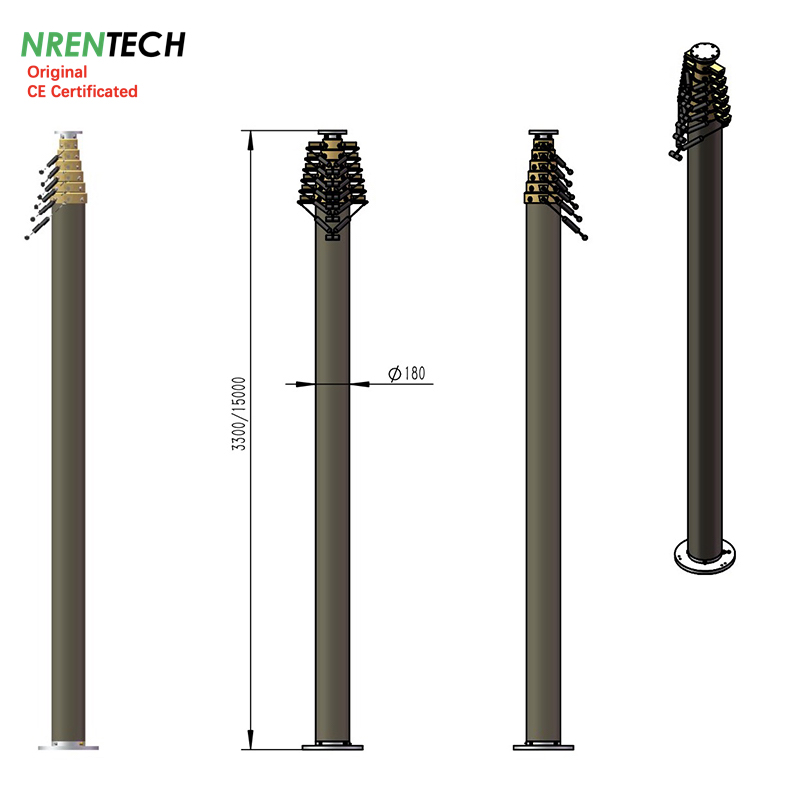

15m extended height/3.3m retracted height
7 sections/ base section dia. 180mm/mast weight 120kg approx./accessories: 1x top flange, 1x bottom flange, 1x air hose pipe

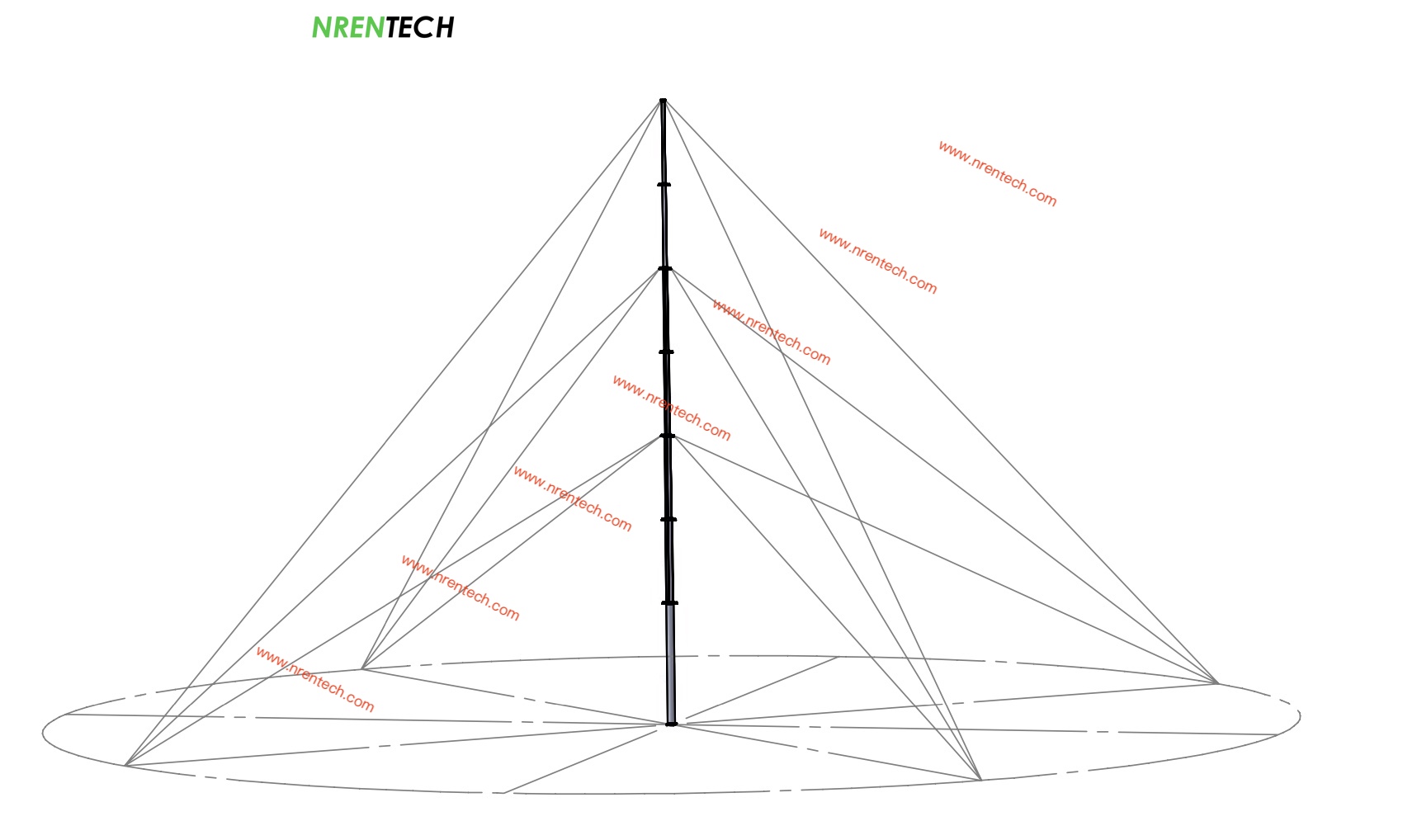

maximum working wind speed: 120km/h (guying wires mounted 3 layers and 4 ways, mounting radius 15m)
Charging accessories:
Ground mounting tripods
Guying rope kits 3 layers x 4 directions
Electric air compressor AC220V/50Hz (wireless available)
Side mounting brackets, Air Controller
Leading time: within 20 days
data update on 20240205
15m Lockable Pneumatic Telescopic Mast-50kg Payloads
15m Lockable Pneumatic Telescopic Mast-50kg Payloads | ||
1> | Item #: | NR-3.3-15-50L-7S-66-180 |
2> | Extended Height: | 15m |
3> | Retracted Height: | 3.3m |
4> | Maximum Payloads: | 50kg |
5> | Type: | T-Lockable, Anti-rotation |
6> | Inside Electric Wires | Non |
7> | Number of Sections: | 7 |
8> | Sections’ diameter*Thickness: | 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm, 180*5mm |
9> | Materials: | Aluminum Alloy, Stainless steel fasteners |
10> | Working Air Pressure: | 0.2Mpa/29PSI |
11> | Working Temperature: | -25~55 Degrees Celsius |
12> | Mast Weight: | 120kg |
13> | Wind Loads: | No less than 120km/h with guying wires (3 lays, 12 wires, 4 mounting pickets, mounting radius 15m) |
14> | Default accessories: | 1x top flange |
1x bottom flange | ||
1x air hose pipe | ||
1x air controller | ||
15> | Optional Accessories: | Ground Mounting Tripods |
Guying Rope Kits with Mounting Spikes 3 layers and 4 directions | ||
DC12V Electric Air Compressor | ||
AC220V/50Hz Electric Air Compressor | ||
Vehicle Side Mounting Brackets 2 pieces per set | ||
Remote Controller Kit |
