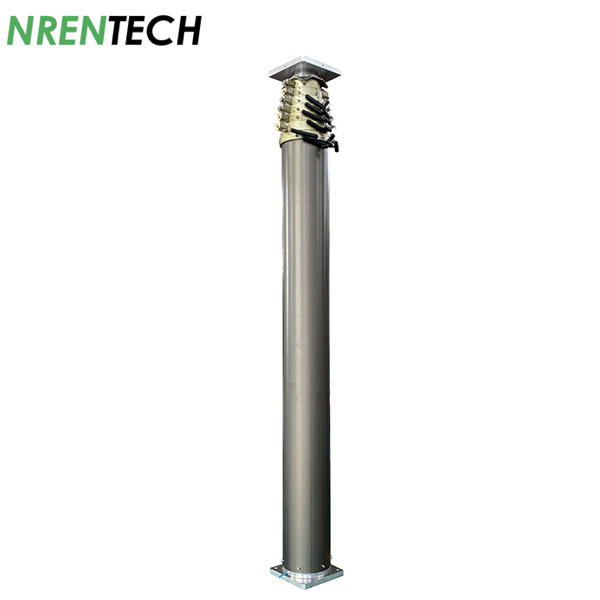

18m Locking Mast-350kg Payloads
3.8m Retracted Height
Item #: NR-3800-18000-350L
Number of sections: 7
Section dia. 160~316mm
Wind speed: 100km/h with guying lines
Mast weight: 390kg
leading time: 30 days
18m Lockable Pneumatic Telescopic Mast-350kg Payloads | ||
1> | Item #: | NR-3800-18000-350L |
2> | Extended Height: | 18m |
3> | Retracted Height: | 3.8m |
4> | Maximum Payloads: | 350kg |
5> | Type: | T-Lockable, Anti-rotation |
6> | Inside Electric Wires | non |
7> | Number of Sections: | 7 |
8> | Sections’ diameter*Thickness: | 160*5mm, 180*5mm, 202*6mm, 227*6mm, 252*6mm, 279*7mm, 316*8mm |
9> | Materials: | Aluminum Alloy, Stainless steel fasteners |
10> | Working Air Pressure: | 0.2Mpa/29PSI recommend |
11> | Working Temperature: | -25~55 Degrees Celsius |
12> | Mast Weight: | 390kg |
13> | Wind Loads: | 100km/h with guying wires |
14> | Default accessories: | 1x top flange |
1x bottom flange | ||
1x air hose pipe | ||
1x air controller | ||
15> | Optional Accessories: | Ground Mounting Tripods |
Guying Rope Kits with Mounting Spikes | ||
AC220V/50Hz Electric Air Compressor | ||
Vehicle Side Mounting Bracket | ||
Remote Controller Kit |
