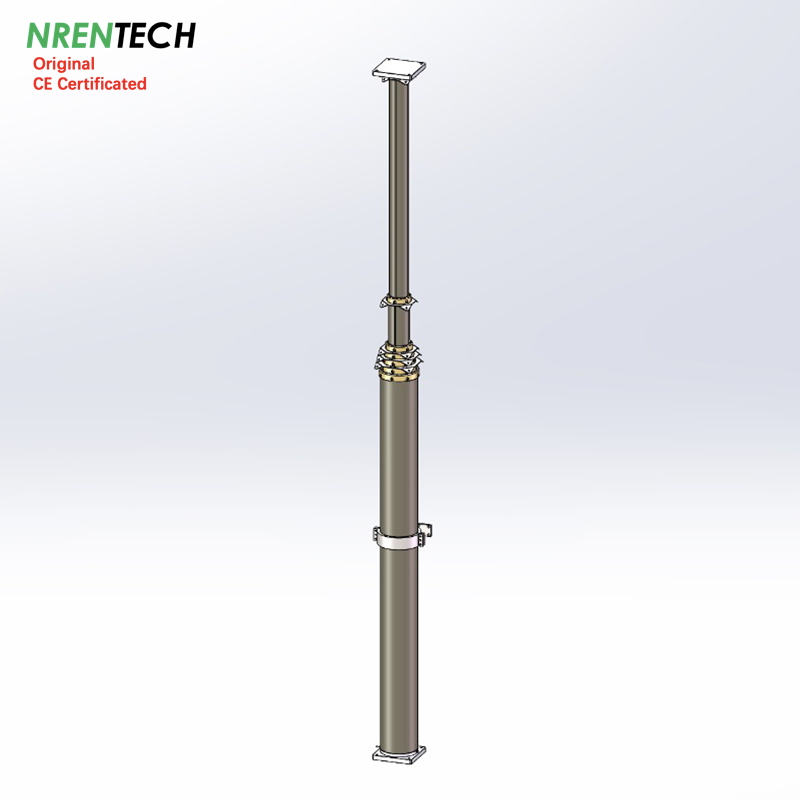

18m Non Lockable Pneumatic Mast 400kg Payloads

3.8m Closed Height
Item #: NR-3.8-18-400N-7S-160-316

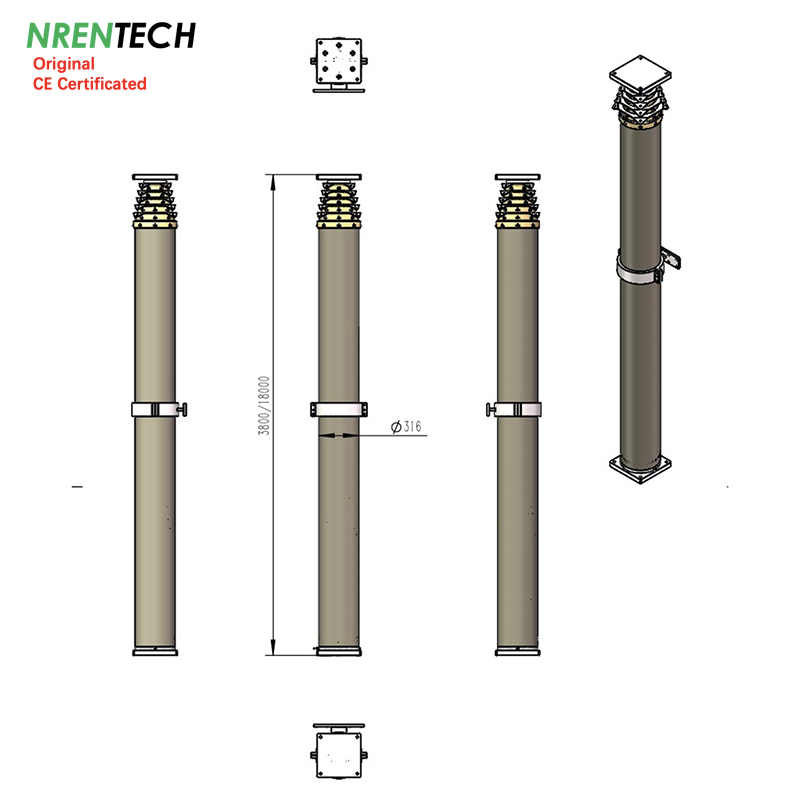

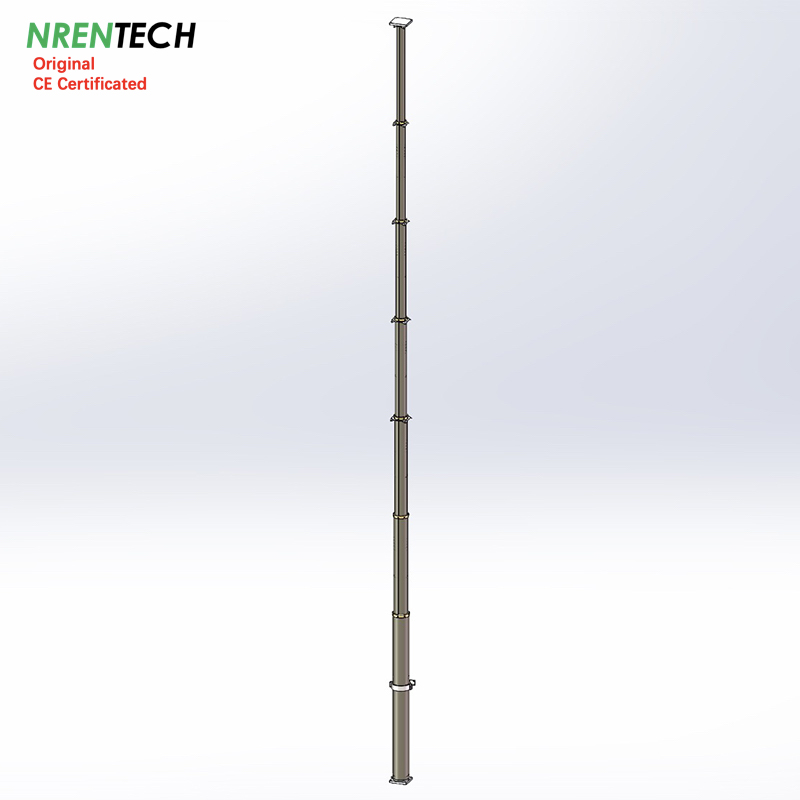

1> Extended Height: 18m

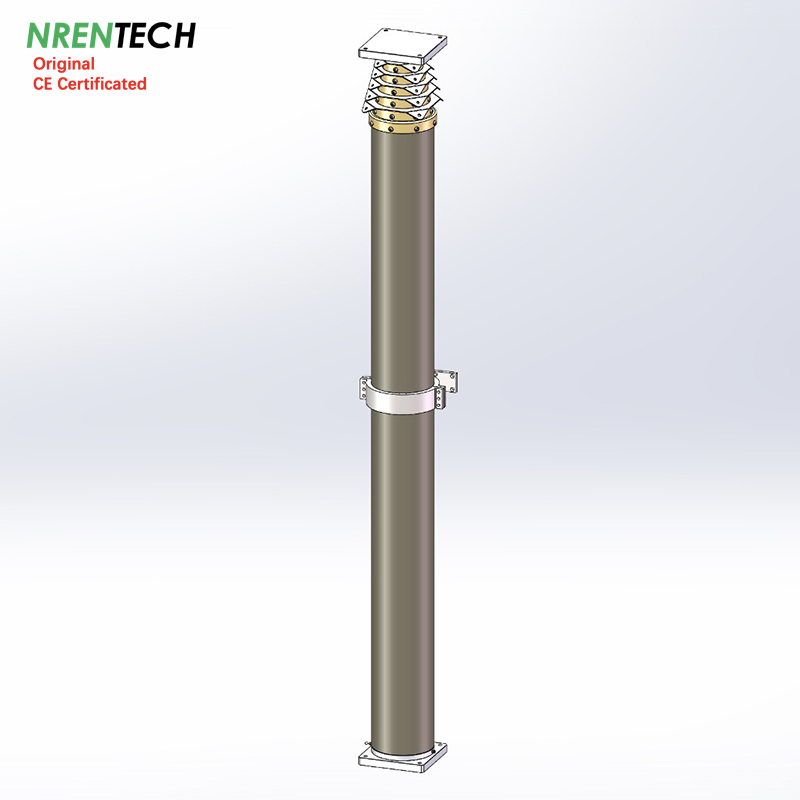

2> Closed Height: 3.8m
3> Vertical Payloads: 400kg @ 0.25Mpa/36PSI working air pressure as maximum
4> Collar type: non lockble collar (automatic extension and retraction)
5> Working air pressure: 0.25Mpa/36PSI as recommend
6> Number of sections: 7 sections
7> Section dia. 160mm~316mm
8> Materials: aluminum alloy 6063T6
9> Mast weight 390kg approx.
10> Default accessories: top flange, bottom flange, air hose pipe, air control manual, wires mounting plates

Chargeable accessories:
Side mounting bracket
ground mounting quadpod bracket
electric air compressor
remote control kit

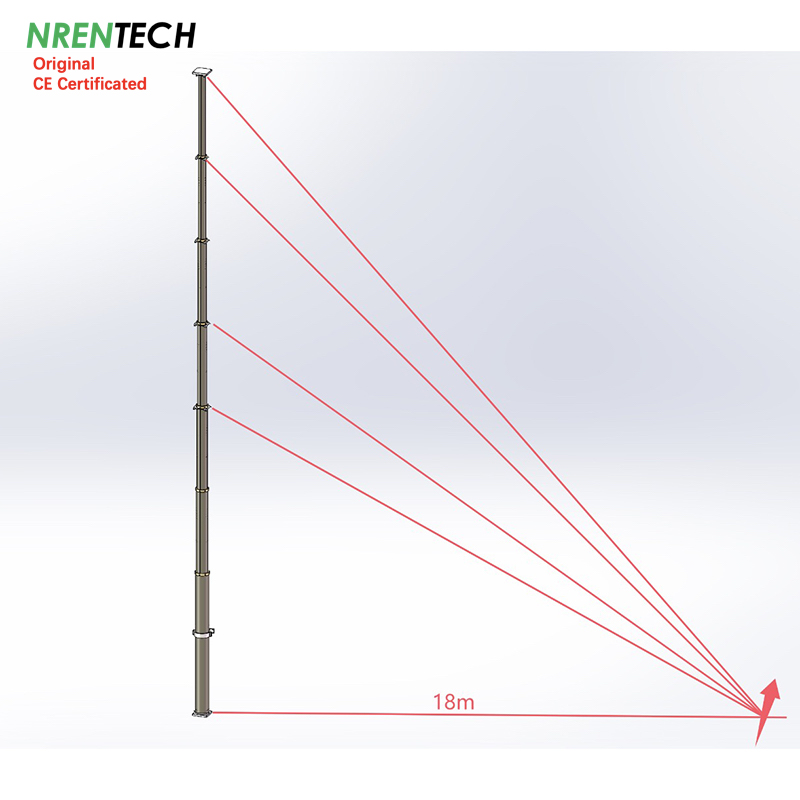

guying ropes/wires kits with mounitng metal stakes (4 layers, 4 ropes/wires each layer, mounting radius 18m)

Non Lockable Collar type (automatic extension and retraction. suitable for remote control system. Non Lockable mast suitable for temporary deployment hours or daily. For long time deployment should use a compressor automatic pumping system )

2 years guarantee by Nrentech
Leading time: 30 days
information updated on 20241101
