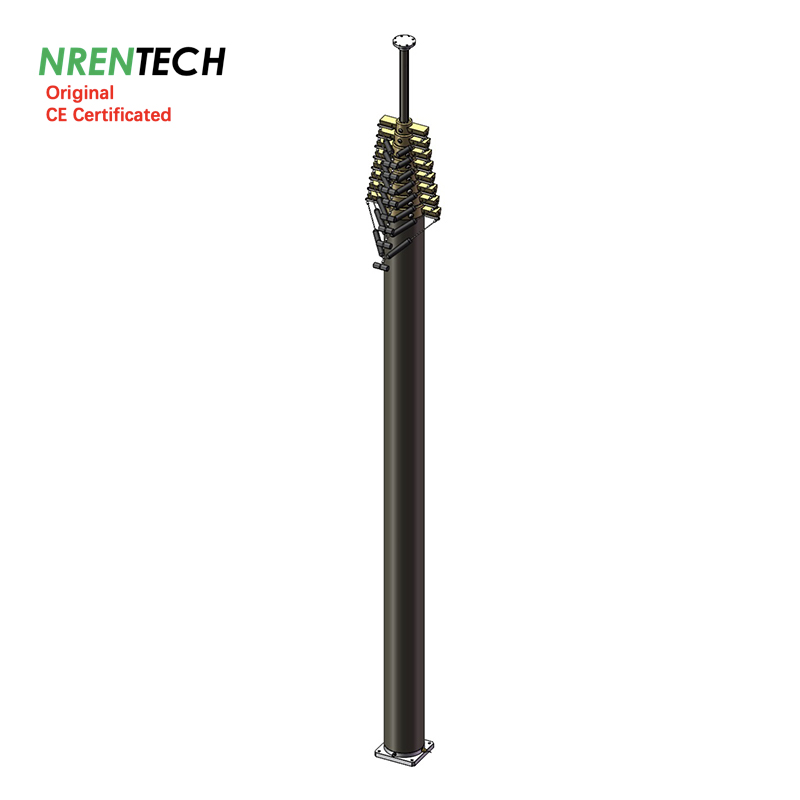

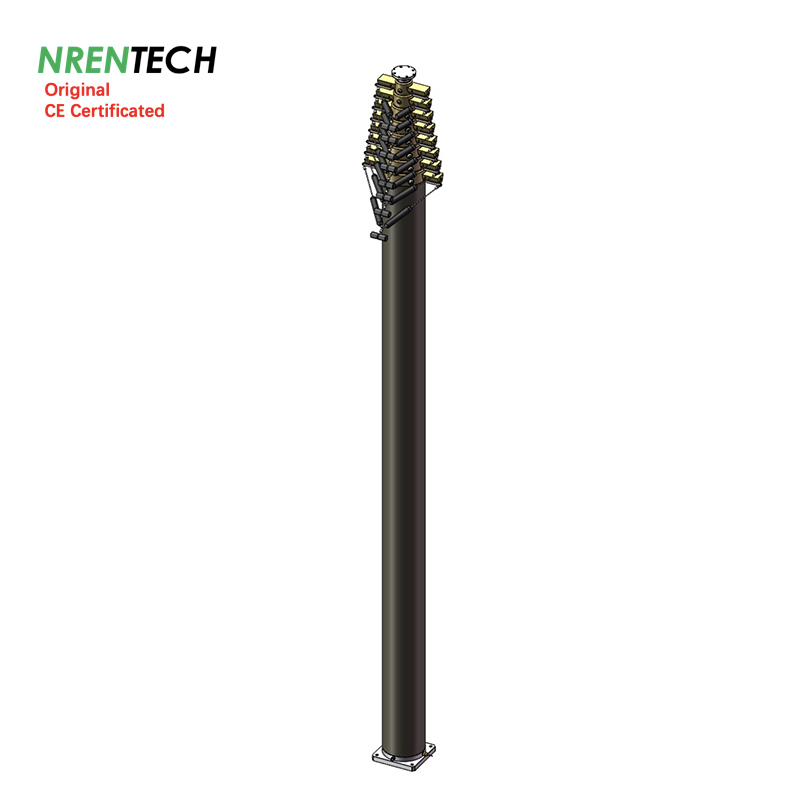

18m locking mast 15kg payloads NR-3.3-18-15L-9S-36-180, 3.3m closed height

‍‍‍‍18m lockable pneumatic telescopic mast
15kg payloads
3.3m closed height
Item #: NR-3.3-18-15L-9S-36-180
1> Extended Height: 18m
2> Retracted Height: 3.3m
3> Payloads: 15kg
4> Number of sections: 9
5> Section diameter*thickness: 36*3mm, 51‍*3mm, 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm, 180*5mm
6> Materials: aluminumum alloy 6063T5
7> Mast weight: 135kg approx.
8> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x over pressure protection valve.
9> Working air pressure: 0.2Mpa/29PSI as recommended
10> Working temperature: -25~85 Celsius Degrees.
11> Optional Accessories:
electric air compressor (wireless remote control)
ground mounting tripod bracket
4x4 guying ropes kits for 120km/h wind speed
vehicle side mounting brackets
air control manual

Leading time: 20 days
information update on 20230805

List price： U.S.＄0.00

Price： U.S.＄0.00

MemberPrice：

Ordinary： U.S.＄0.00

VIP： U.S.＄0.00

Weight：0.000KG

Quantity：

(Inventory: 0)

Buy now

Add to cart

Charging Accessories

Air Control Manual
Original ：U.S.＄100.00
With a price ：U.S.＄100

Quantity

DC12V electric air compressor FTC-357
Original ：U.S.＄185.00
With a price ：U.S.＄185

Quantity

Ground Mounting Tripod S
Original ：U.S.＄350.00
With a price ：U.S.＄350

Quantity

180mm Side Mounting Brackets
Original ：U.S.＄100.00
With a price ：U.S.＄100

Quantity

Guying ropes 8mm dia.
Original ：U.S.＄0.00
With a price ：U.S.＄0

Quantity

600W-8L AC Electric Air Compressor
Original ：U.S.＄150.00
With a price ：U.S.＄150

Quantity

Products Description

‍‍‍‍18m lockable pneumatic telescopic mast
15kg payloads
3.3m closed height
Item #: NR-3.3-18-15L-9S-36-180
1> Extended Height: 18m
2> Retracted Height: 3.3m
3> Payloads: 15kg
4> Number of sections: 9
5> Section diameter*thickness: 36*3mm, 51‍*3mm, 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm, 180*5mm
6> Materials: aluminumum alloy 6063T5
7> Mast weight: 135kg approx.
8> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x over pressure protection valve.
9> Working air pressure: 0.2Mpa/29PSI as recommended
10> Working temperature: -25~85 Celsius Degrees.
11> Optional Accessories:
electric air compressor (wireless remote control)
ground mounting tripod bracket
4x4 guying ropes kits for 120km/h wind speed
vehicle side mounting brackets
air control manual

Leading time: 20 days
information update on 20230805

18m Lockable Pneumatic Telescopic Mast-15kg Payload
NR-3.3-18-15L-9S-36-180

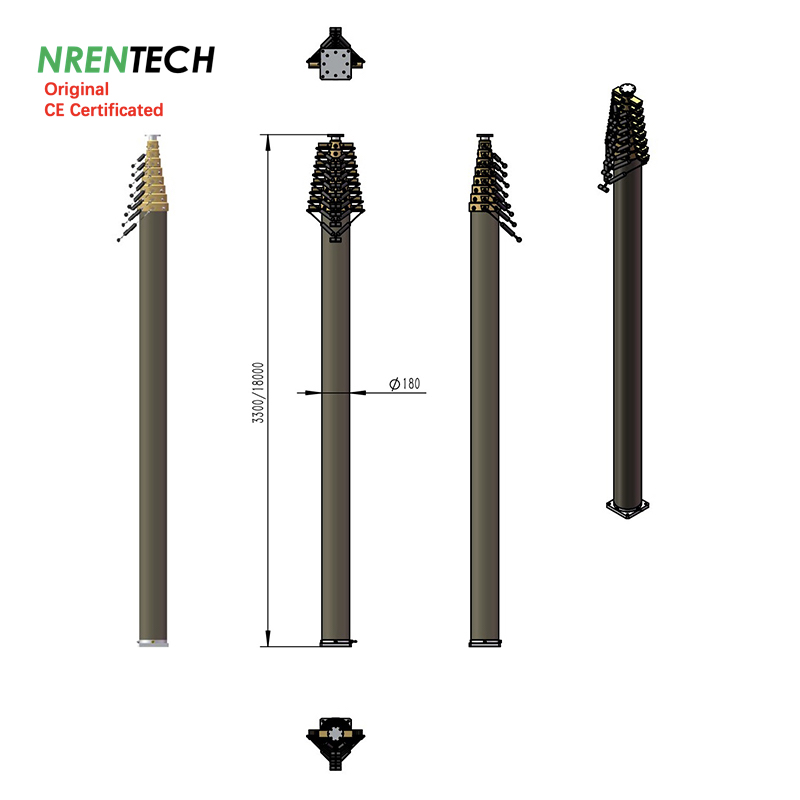

Extended Height	:	18	m	59.04	ft
Retracted Height	:	3.3	m	10.8	ft
Vertical Payload	:	15	kg	33	lb
Working air pressure	:	0.15	Mpa	22	PSI

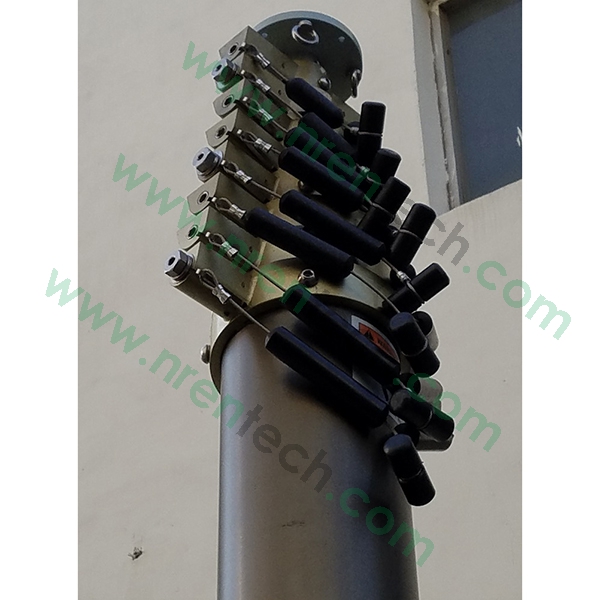

Collar Type	:	Locking (Automatic Extention, Manual Retraction)
Inside Electric Wires	:
Number of sections	:	9
Top section diameter	:	36	mm	1.4	in
Basement section diameter	:	180	mm	7.1	in
Mast Weight	:	126	kg	277	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual
		Retraction operation tool
Optional Accessories	:	Electric air compressor			DC12V, DC24V, AC220V/50hz
		Guying Rope Kits			4x4 (4 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 18m)
		Side Mounting Bracket			Aluminum alloy 6061 Materials
		Ground mounting Tripod			Stainless Materials
		Rotation Basement			Manual Rotation
		Remote control kit			12VDC
data update on 20230625

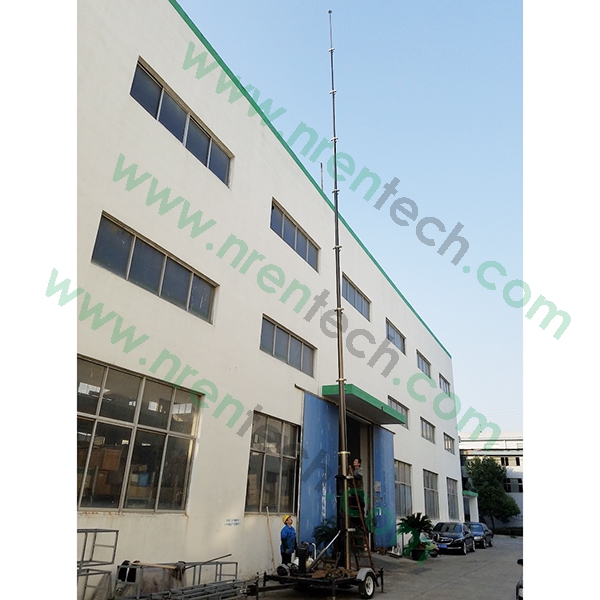

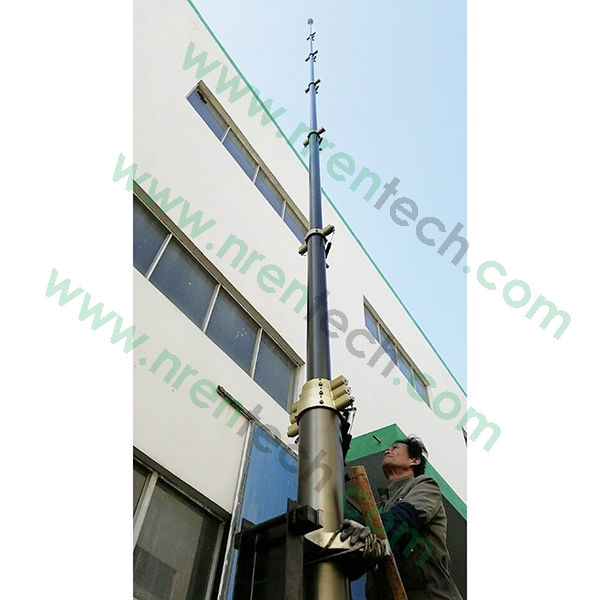

locking mast testing
