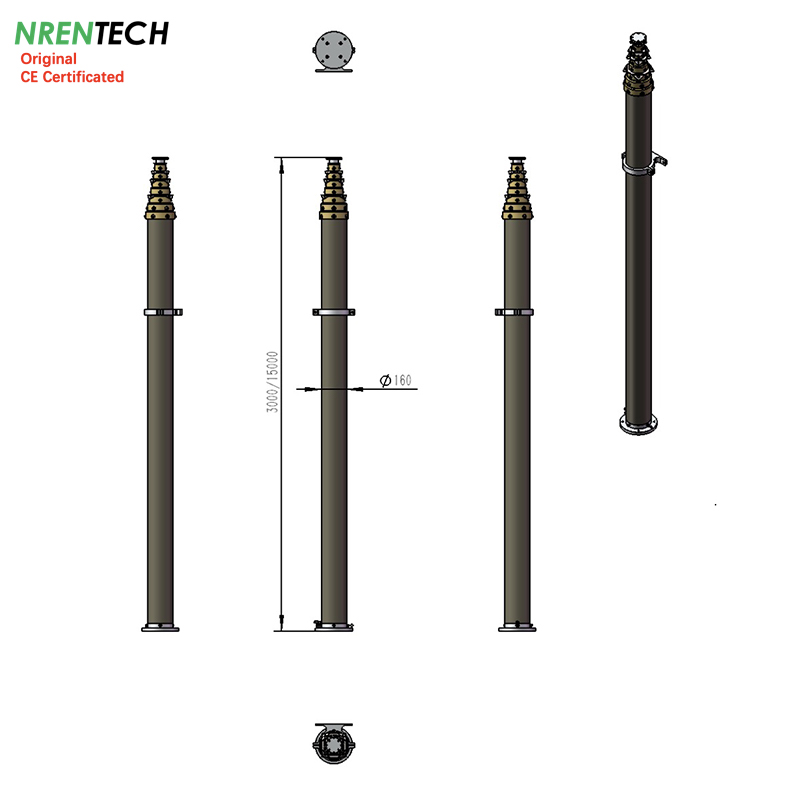

15m Pneumatic Telescopic Mast-15kg Payloads-3m closed height

15m Non-lockable Pneumatic Telescopic Mast-15kg payloads-3m closed height

1> Item #: NR-3.0-15-15N-8S-36-160
2> Extended Height: 15m
3> Retractable Height: 3m retracted height
4> Vertical Payloads: 15kg
5> Collar type: Non-lockable (automatic extension/retraction)
6> Number of sections: 8
7> Section diameter and thickness: 36*3mm,51*3mm, 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm
8> Materials: Aluminum alloy 6063T6
9> Mast weight: 90kg approx.
10> Working air pressure: 0.2Mpa/29PSI
11> Working temperature: -20~65 Degree Celsius
12> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air controller
13> Charging accessories:
Guying wires kits with mounting spikes 3 layers and 4 wires cach layer, mounting radius 15m from center
Electric air compressor: DC12V, DC24V or AC220V/50Hz

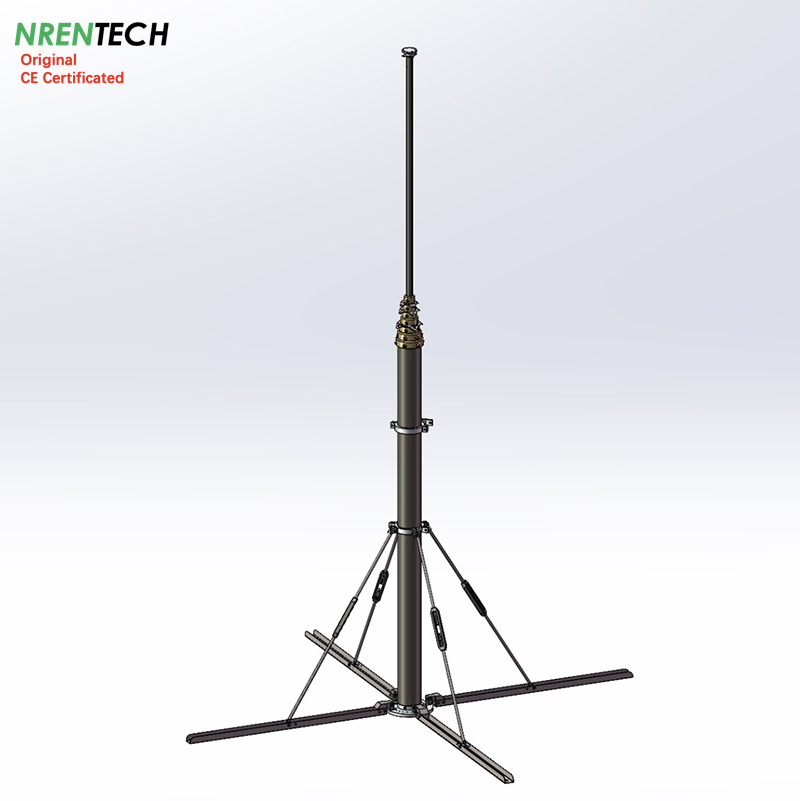

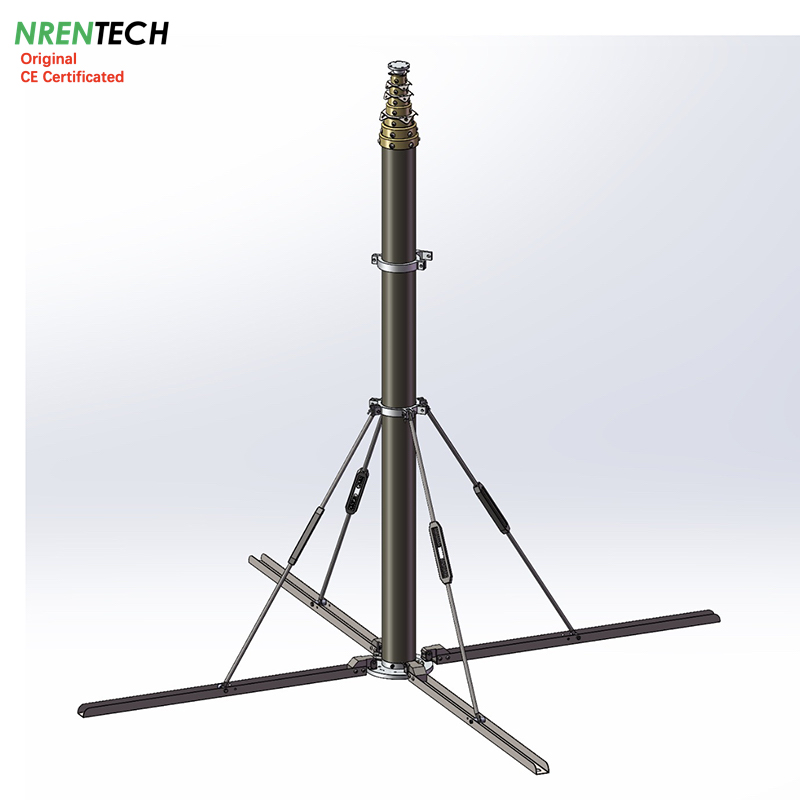

Ground mounting quadpod (stainless steel materials, unit weight 60kg approx.)
Side mounting bracket (aluminum materials)

Manufacture time: 30 days
data updated on 20241125

15m Non Lockable Pneumatic Telescopic Mast-15kg Payload
NR-3.0-15-15N-8S-36-160
Extended Height	:	15	m	49.2	ft
Retracted Height	:	3	m	9.8	ft
Vertical Payload	:	15	kg	33	lb
Working air pressure	:	0.15	Mpa	22	PSI
Collar Type	:	Non-Locking (Automatic Extension, Automatic Retraction)
Inside Electric Wires	:
Number of sections	:	8
Top section diameter	:	36	mm	1.4	in
Basement section diameter	:	160	mm	6.3	in
Mast Weight	:	90	kg	198	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual valve
		guying mounting plates
Optional Accessories	:	Electric air compressor			DC12V, AC220V
		Guying Rope Kits			3x4 (4 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 15m)
		Side Mounting Bracket			Aluminum Materials
		Ground mounting Quadpod			Stainless Materials, 60kg approx.
		Rotation Basement
		Remote control kit			DC12V
data update on 20241125
