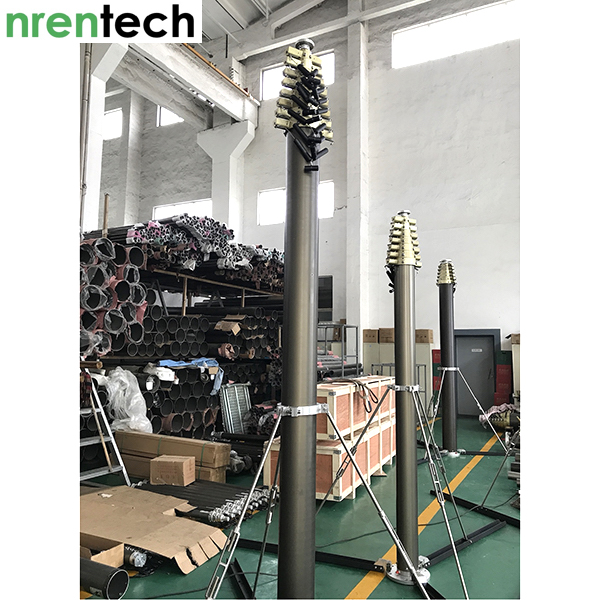

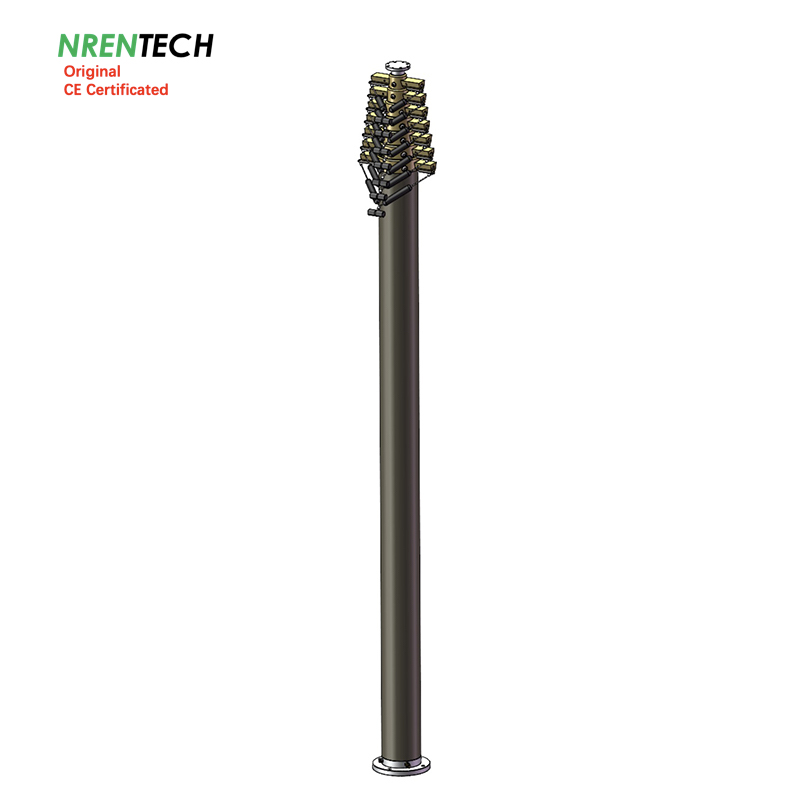

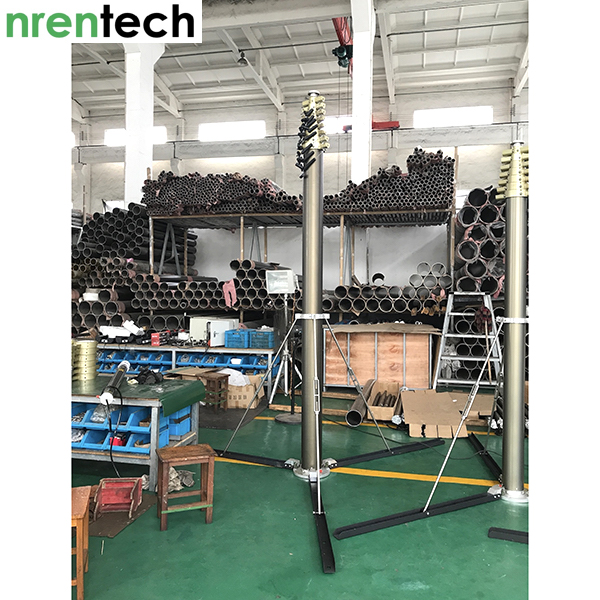

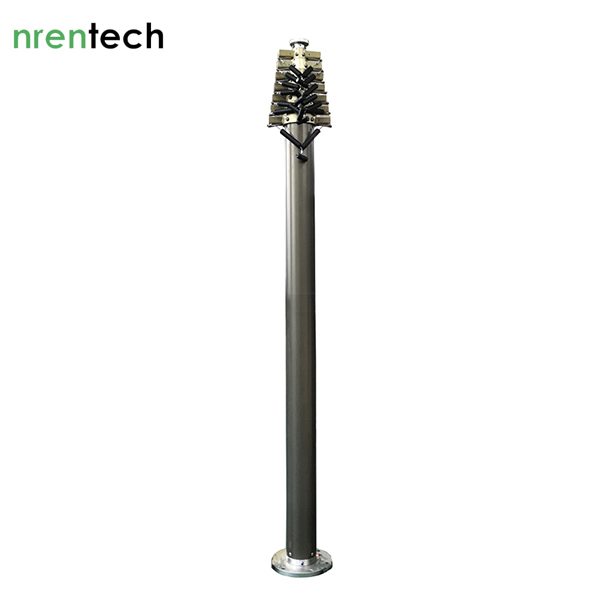

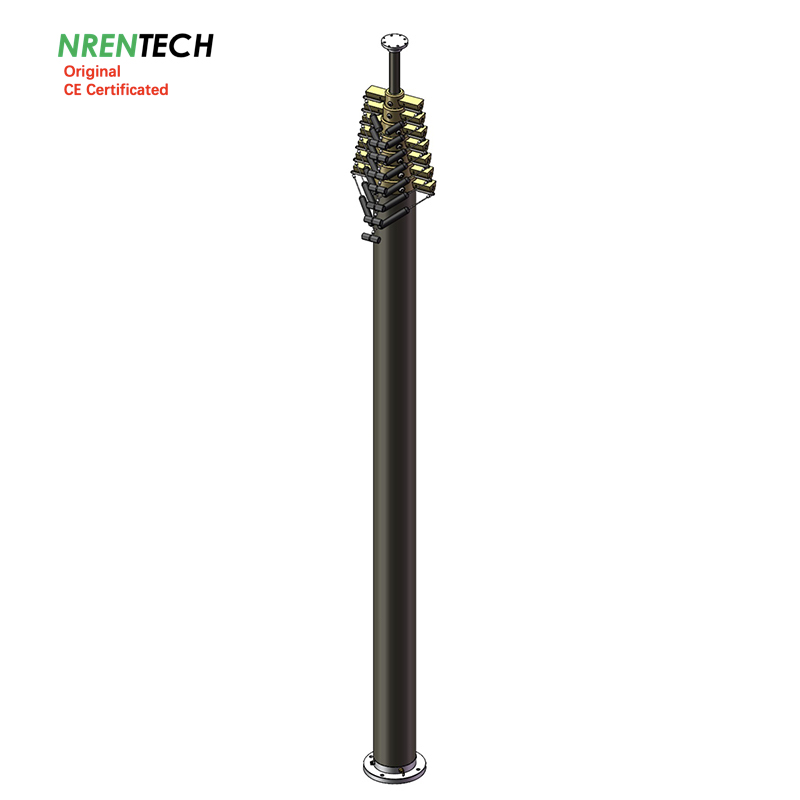

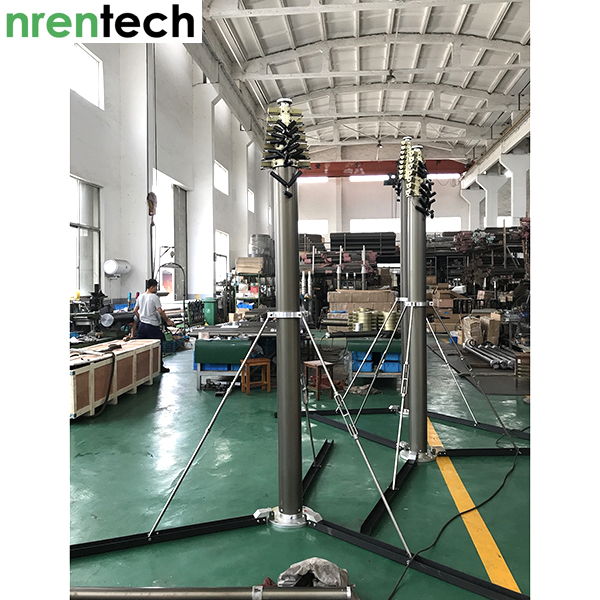

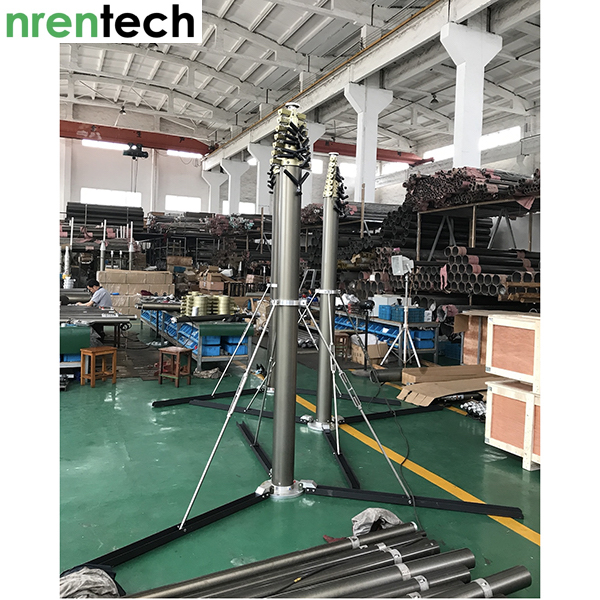

15m Lockable Pneumatic Mast-15kg payloads
Item #: NR-3.0-15-15L-8S-36-160

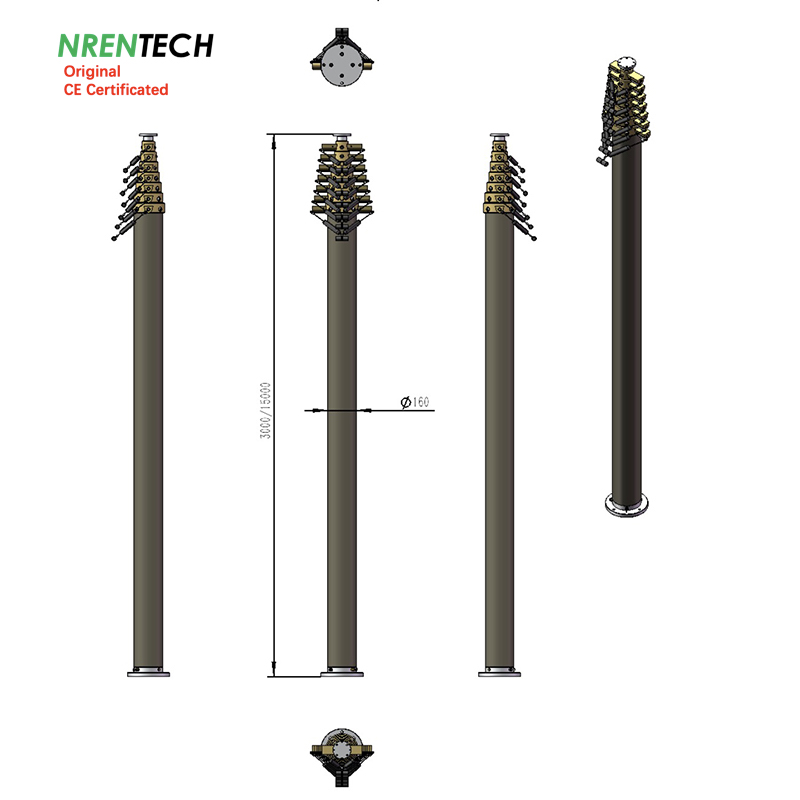

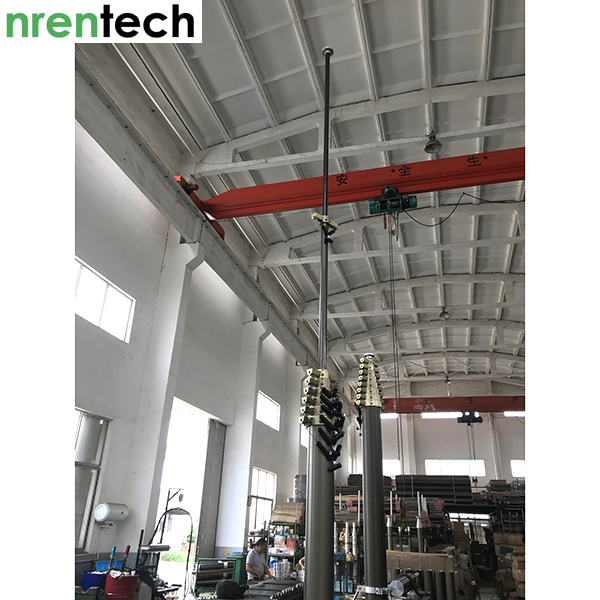

1> Extended Height: 15m
2> Retracted Height: 3m
3> Payloads: 15kg maximum @0.15Mpa/22PSI working air pressure
4> Type: T-Lockable, automatic extension/retraction by manual
5> Number of sections: 8
6> Section diameter*thickness: 36*3mm, 51*3mm, 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm
7> Materials: Aluminum alloy 6063T5
8> Mast Weight: 93kg approx.
9> Working air pressure: 0.15Mpa/22PSI recommend
10> Working temperature:-25~55 Celsius Degrees
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe,1x air controller
12> Optional accessories:
Electric air compressor DC12V or AC220V, Remote control kit, Ground mounting tripods, 4x4 guying rope kits for 120km/h wind speed, vehicle side mounting brackets.
data update on 20230625
leading time: 20 days
| 15m Lockable Pneumatic Telescopic Mast-15kg Payload | ||||||
| NR-3.0-15-15L-8S-36-160 | ||||||
 | ||||||
| Extended Height | : | 15 | m | 49.2 | ft | |
| Retracted Height | : | 3 | m | 9.8 | ft | |
| Vertical Payload | : | 15 | kg | 33 | lb | |
| Working air pressure | : | 0.15 | Mpa | 22 | PSI | |

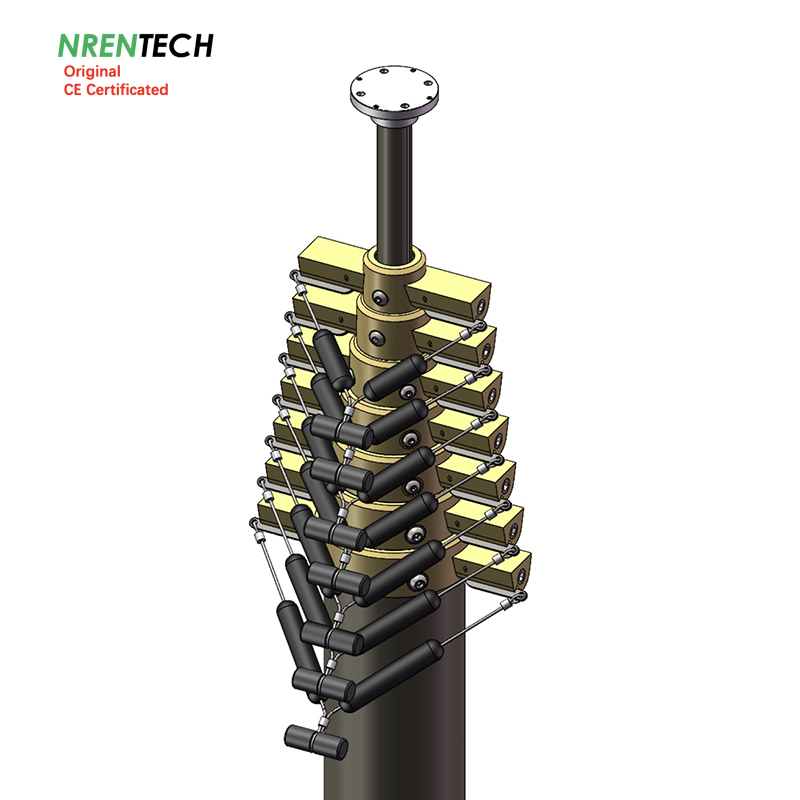

| Collar Type | : | Locking (Automatic Extention, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 8 | ||||
| Top section diameter | : | 36 | mm | 1.4 | in | |
| Basement section diameter | : | 160 | mm | 6.3 | in | |
| Mast Weight | : | 93 | kg | 204.6 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Retraction operation tool | ||||||
| Optional Accessories | : | Electric air compressor | DC12V, DC24V, AC220V/50hz | |||
| Guying Rope Kits | 3x4 (3 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 15m) | |||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20230625 | ||||||
