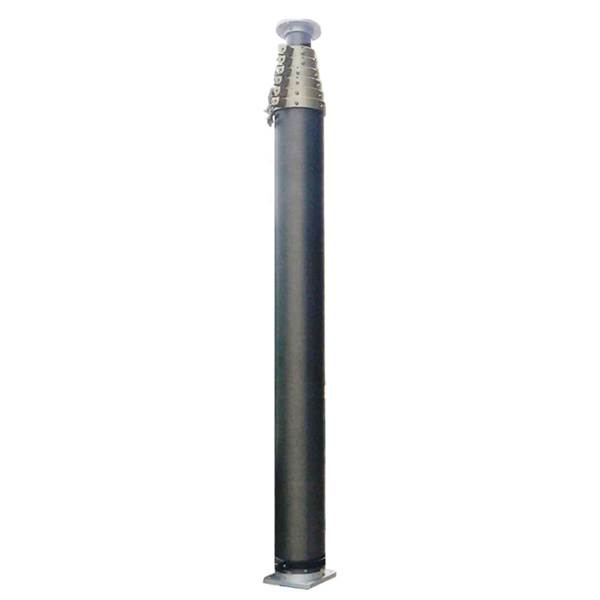

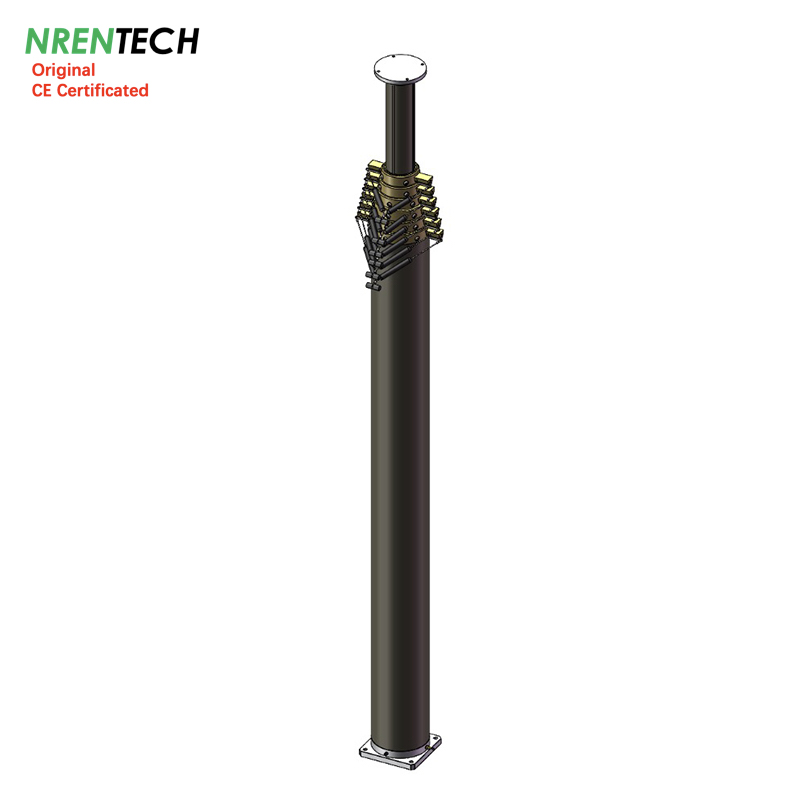

15m Pneumatic Telescopic Mast-300kg payloads
Item #: NR-3.3-15-300L-7S-140-279

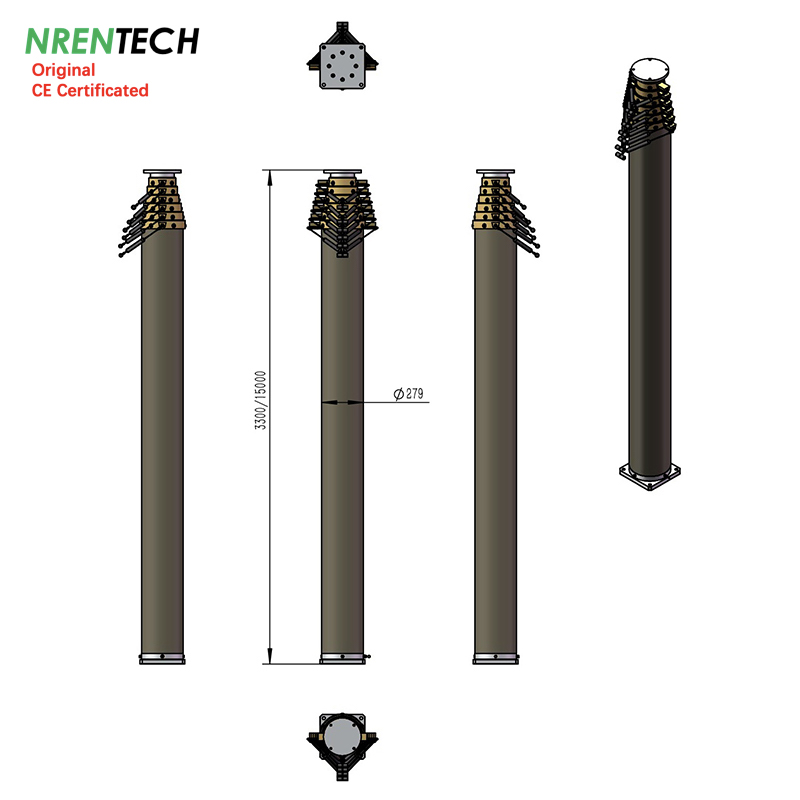

1> Extend height: 15m
2> Retract height: 3.3m
3> Vertical Payloads: 300kg @0.2Mpa/29PSI

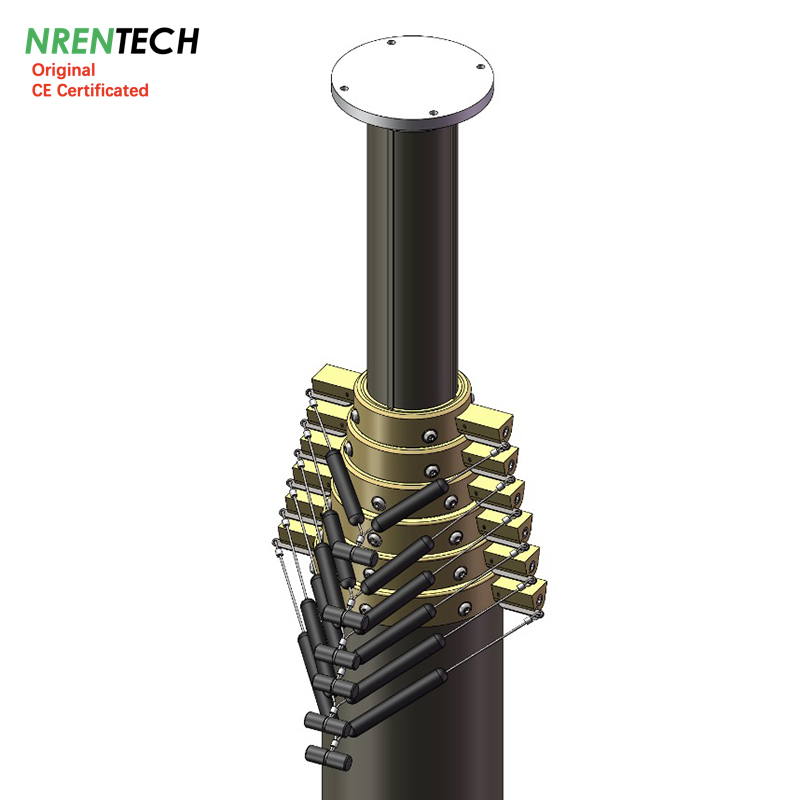

4> Collar type: Manual Locking collar (automatic extension, manual retraction)
5> Number of sections: 7 sections/ section dia. 140mm~279mm
6> Material: aluminum alloy 6063T5
7> Net Weight: 280kg approx.

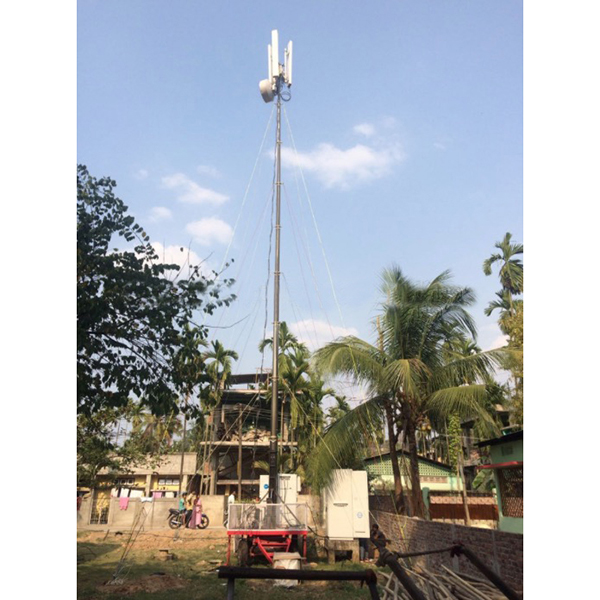

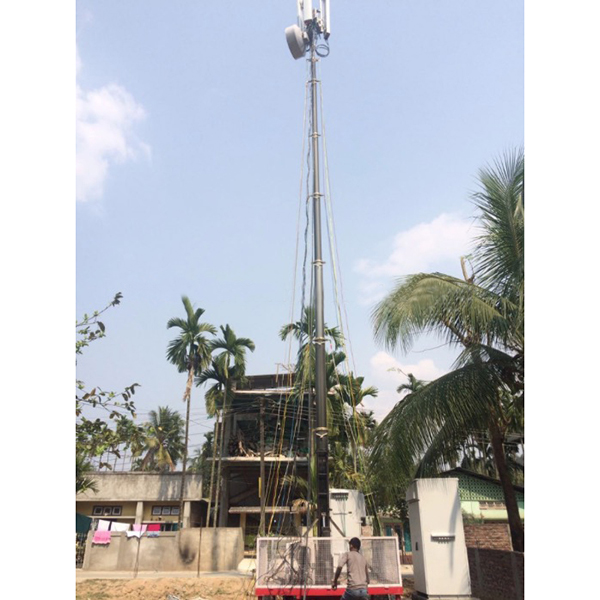

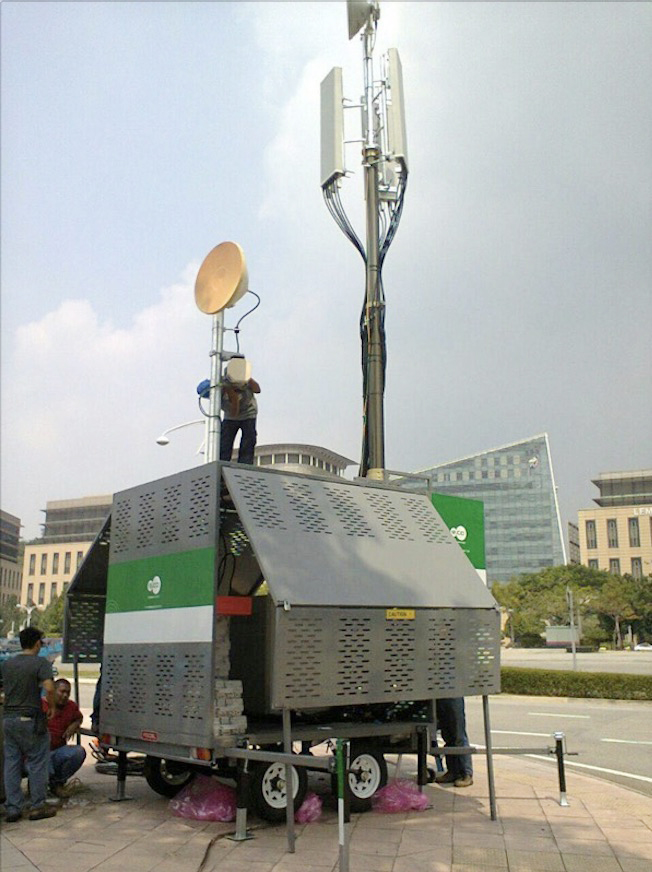

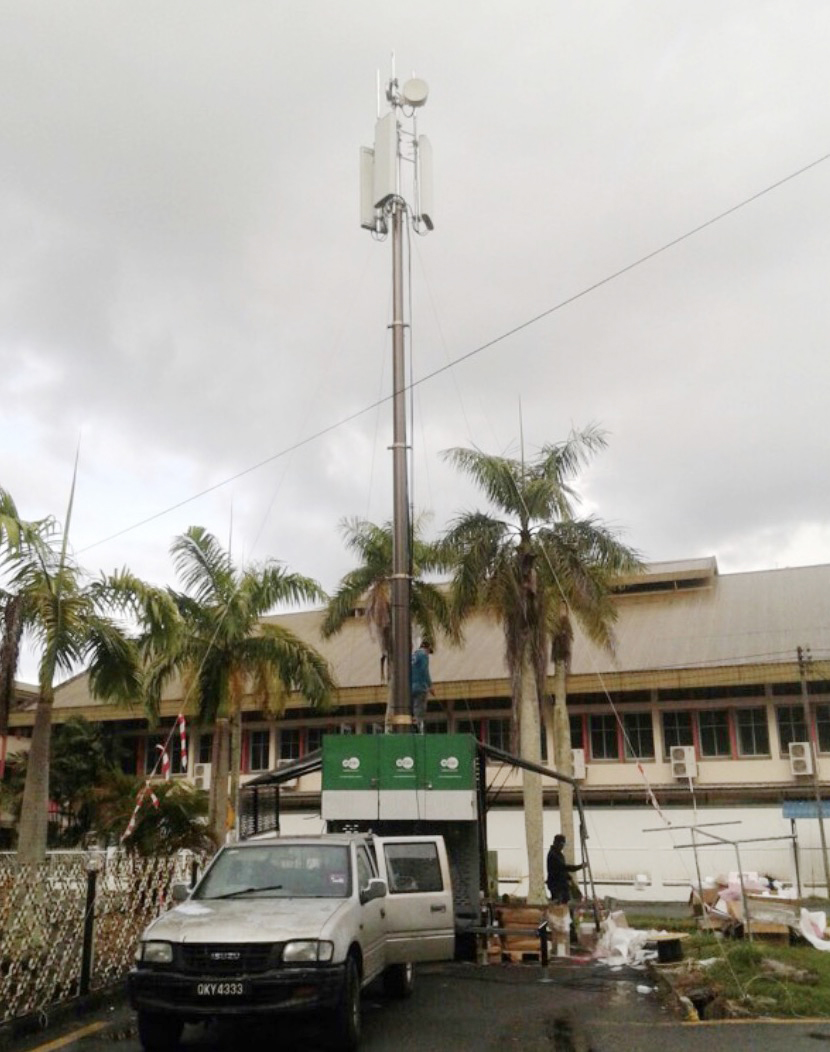

mast application for mobile telecommunication vehicle
Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual, 1x manual operation tool
Optional accessoires:

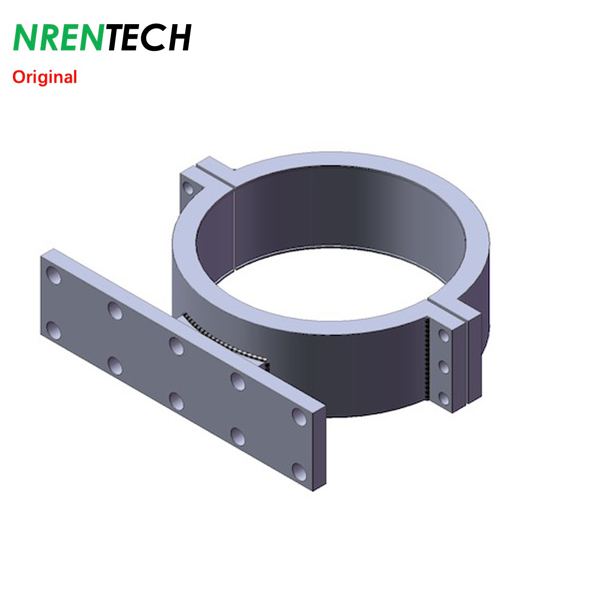

Vehicle side mounting brackets
AC220V/50Hz electric air compressor
Ground mounting tripods or quadpod
Wireless remote control
120km/h wind speed guying ropes mounting kits (3 layers x 4 directions, mounting radius 15m)
Leading time: within 20 days
data update on 20231005

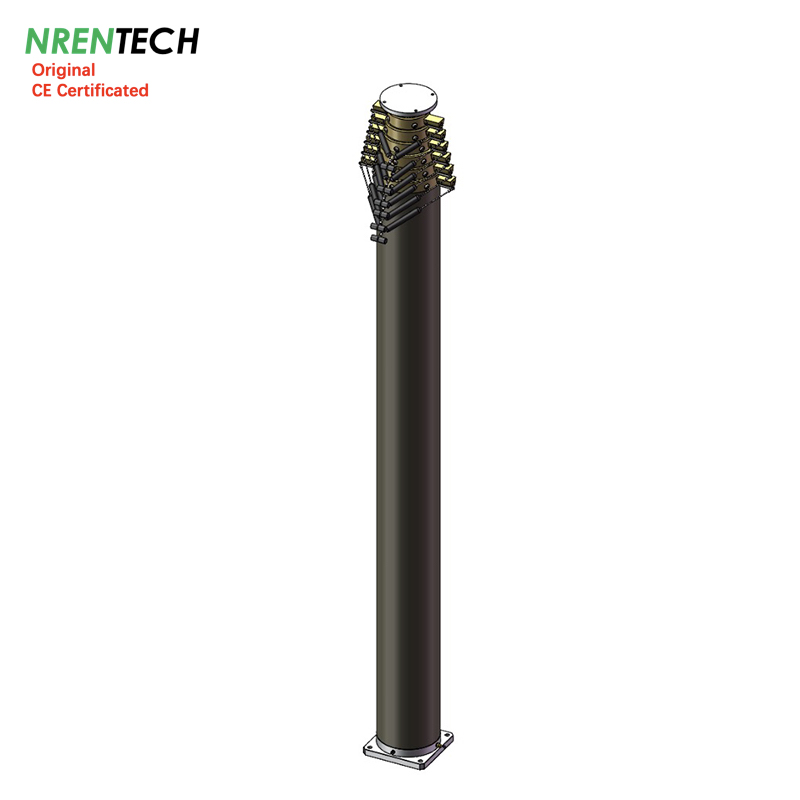

15m Lockable Pneumatic Telescopic Mast for 300kg payloads
15m Lockable Pneumatic Telescopic Mast-300kg Payloads | ||
1> | Item #: | NR-3.3-15-300L-7S-140-279 |
2> | Extended Height: | 15m |
3> | Retracted Height: | 3.3m |
4> | Maximum Payloads: | 300kg |
5> | Type: | T-Lockable, Anti-rotation |
6> | Inside Electric Wires | Non |
7> | Number of Sections: | 7 |
8> | Sections’ diameter*Thickness: | 140*5mm, 160*5mm, 180*5mm, 202*6mm, 227*6mm, 252*6mm, 279*7mm |
9> | Materials: | Aluminum Alloy, Stainless steel fasteners |
10> | Working Air Pressure: | 0.2Mpa/29PSI |
11> | Working Temperature: | -25~55 Degrees Celsius |
12> | Mast Weight: | 280kg |
13> | Wind Loads: | 120km/h (3x4 guide ropes) |
14> | Default accessories: | 1x top flange |
1x bottom flange | ||
1x air hose pipe | ||
1x air controller | ||
15> | Optional Accessories: | Ground Mounting Tripods/quadpod |
Guying Rope Kits with Mounting Spikes | ||
AC220V/50Hz Electric Air Compressor | ||
Vehicle Side Mounting Bracket | ||
Remote Controller Kit | ||
