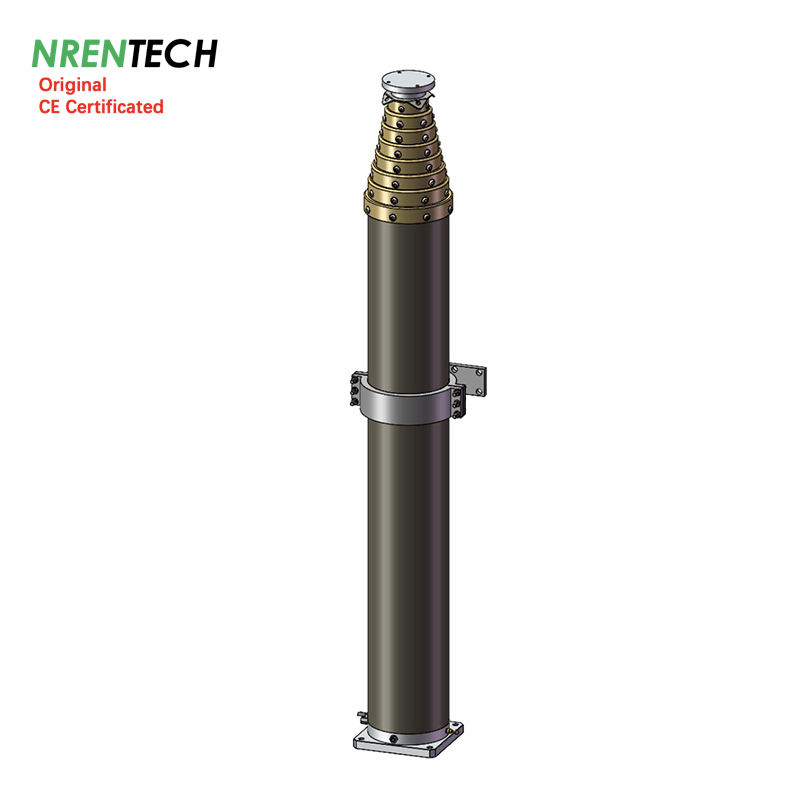

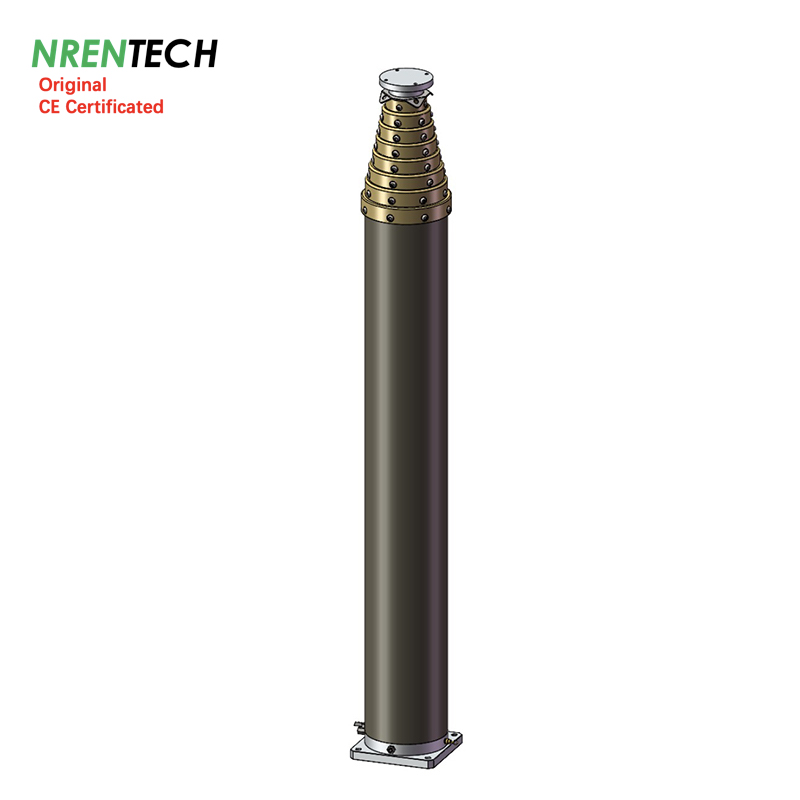

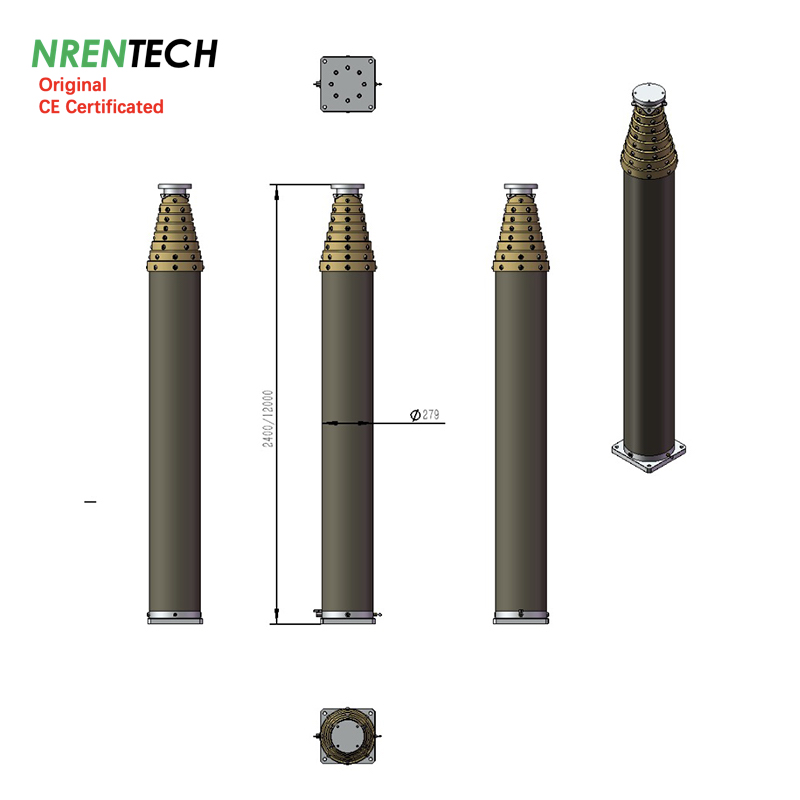

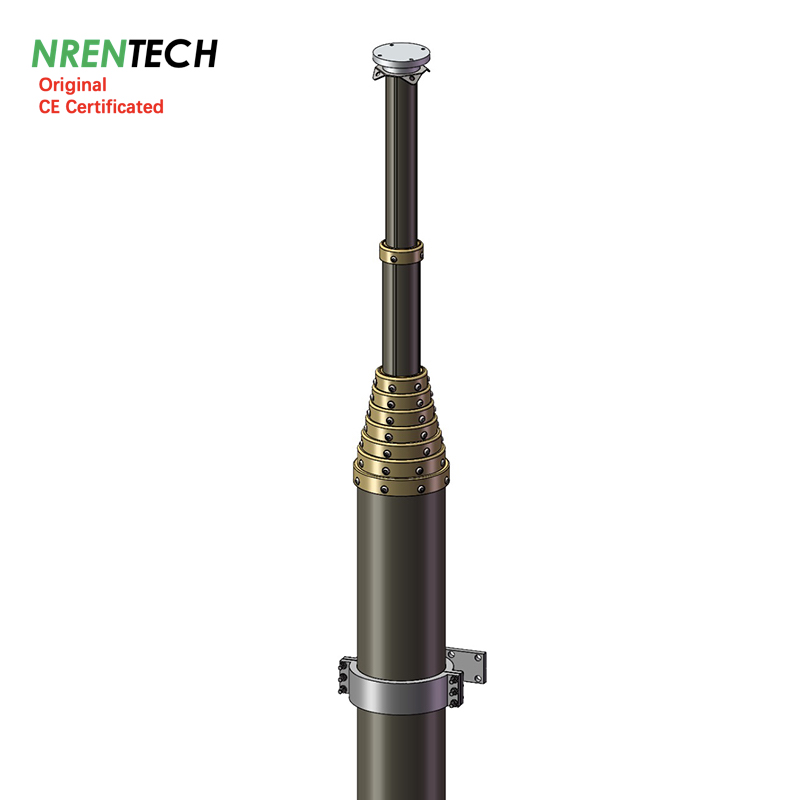

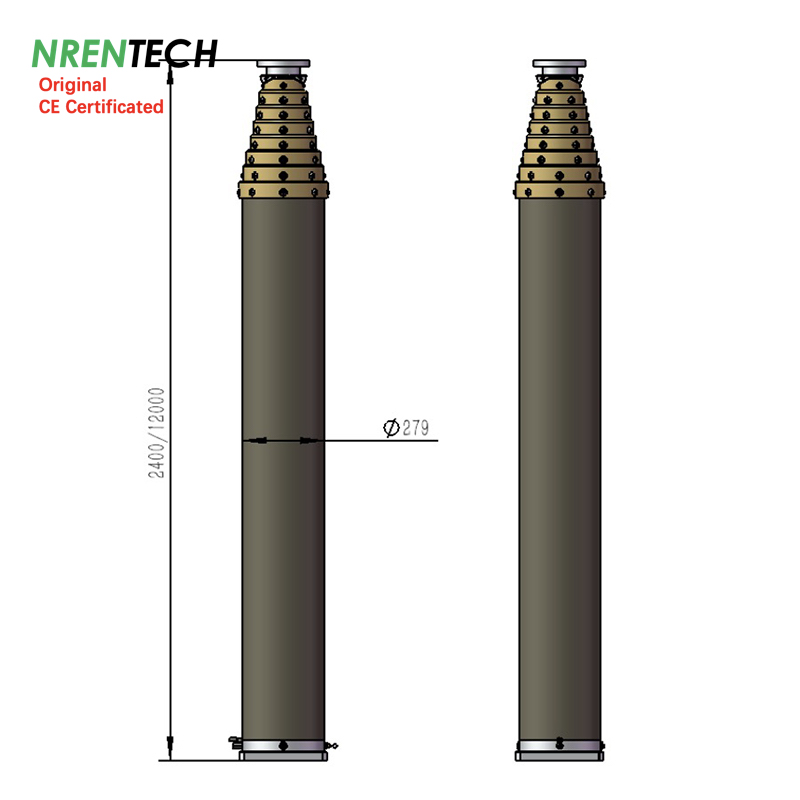

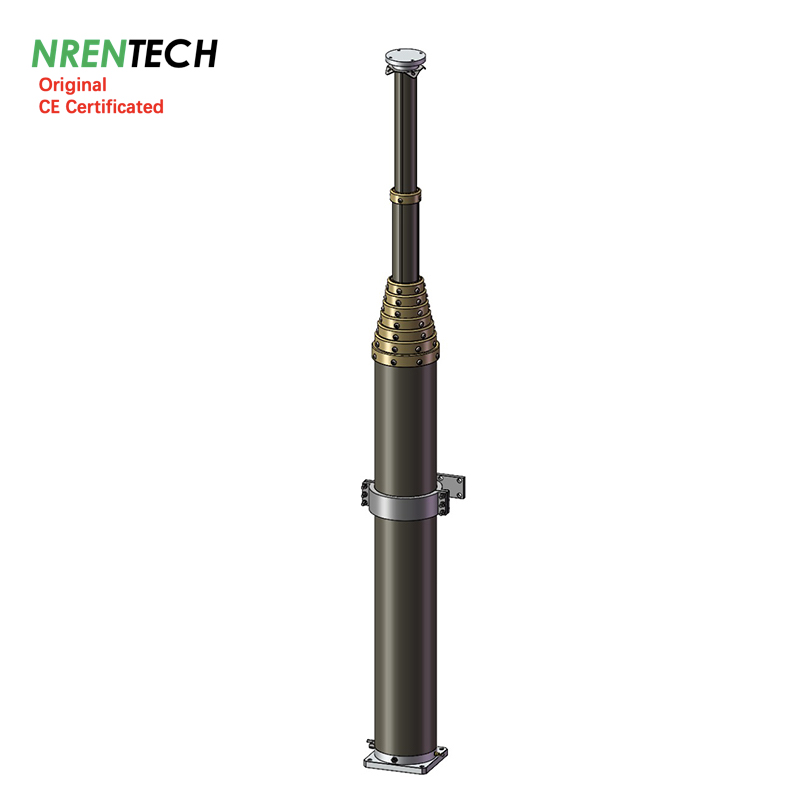

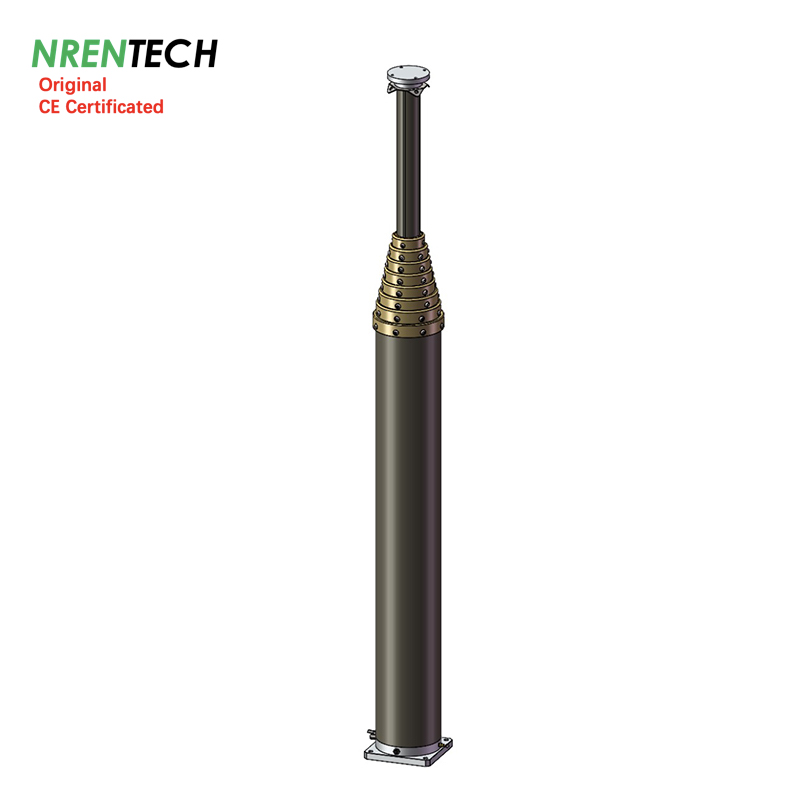

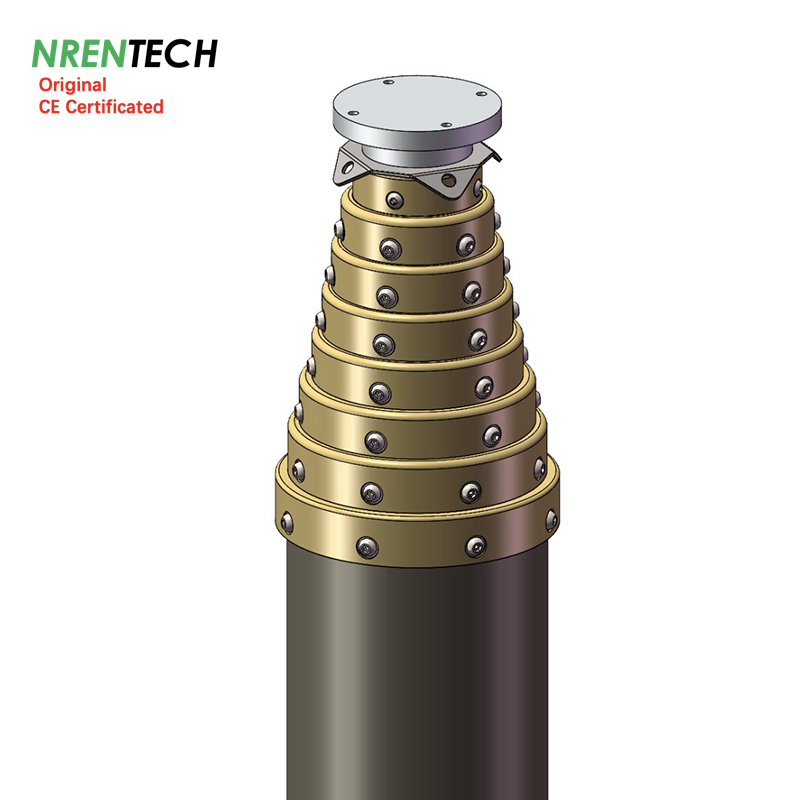

12m Non Lockable Pneumatic Telescopic Mast 150kg Payload 2.4m Closed Height
Item Code: NR-2.4-12-150N-9S-98-279
1> Extended Height: 12m
2> Retracted Height: 2.4m
3> Vertial Payload: 150kg @0.2Mpa/29PSI air pressure
4> Collars type: non lockable (automatic extension, automatic retraction)
5> Number of sections: 9 sections
6> Sections diameter range: 98~279mm
7> Materials: aluminum alloy6063T5
8> Mast weight: 213kg approx.
9> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve, guying mounting plate
10> Working air pressure: 0.2Mpa/29PSI recommend
10> Mast working temperature: -25~55 Celsius Degrees
11> Charging accessories:
AC220V/50hz compressor, 1500W approx.
vehicle side mounting brackets available NR-S279
ground mounting tripod bracket or quadpod bracket available
guying ropes kits: 1 layers, 4 ropes each layer, mounting radius 10m
Leading time: 30 days
One year guarantee
the lastest data has been updated on 20250415
12m Non Lockable Pneumatic Telescopic Mast 150kg Payload 2.4m Closed Height
Item Code: NR-2.4-12-150N-9S-98-279
1> Extended Height: 12m
2> Retracted Height: 2.4m
3> Vertial Payload: 150kg @0.2Mpa/29PSI air pressure
4> Collars type: non lockable (automatic extension, automatic retraction)
5> Number of sections: 9 sections
6> Sections diameter range: 98~279mm
7> Materials: aluminum alloy6063T5
8> Mast weight: 213kg approx.
9> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve, guying mounting plate
10> Working air pressure: 0.2Mpa/29PSI recommend
10> Mast working temperature: -25~55 Celsius Degrees
11> Charging accessories:
AC220V/50hz compressor, 1500W approx.
vehicle side mounting brackets available NR-S279
ground mounting tripod bracket or quadpod bracket available
guying ropes kits: 1 layers, 4 ropes each layer, mounting radius 10m
Leading time: 30 days
One year guarantee
the lastest data has been updated on 20250415
| 12m Non-Lockable Pneumatic Telescopic Mast-150kg Payload | ||||||
| NR-2.4-12-150N-9S-98-279 | ||||||
 | ||||||
| Extended Height | : | 12 | m | 39.36 | ft | |
| Retracted Height | : | 2.4 | m | 7.9 | ft | |
| Vertical Payload | : | 150 | kg | 330 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Non-Locking (Automatic Extension, Automatic Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 9 | ||||
| Top section diameter | : | 98 | mm | 3.9 | in | |
| Basement section diameter | : | 279 | mm | 11.0 | in | |
| Mast Weight | : | 213 | kg | 469 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual valve | ||||||
| guying ropes/wires mounting plates | ||||||
| Optional Accessories | : | Electric air compressor | AC220~240V/50hz/60Hz, 1500W | |||
| Guying Rope Kits | 1x4 (1 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 12m) | |||||
| Side Mounting Bracket | Steel Materials, 28kg approx. | |||||
| Ground mounting Quadpod | Stainless Materials, 60kg approx. | |||||
| Rotation Basement | ||||||
| Remote control kit | DC12V | |||||
| data update on 20250415 | ||||||
