12m Non-lockable Pneumatic Telescopic Mast-30kg payloads
1> Item #: NR-2.55-12-30N-7S-51-160
2> Extended Height: 12m
3> Retractable Height: 2.55m retracted height
4> Vertical Payloads: 30kg
5> Collar type: Non-lockable (automatic extension/retraction)
6> Number of sections: 7
7> Section diameter and thickness: 51*3mm, 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm
8> Materials: Aluminum alloy 6063T6
9> Mast weight: 75kg approx.
10> Working air pressure: 0.2Mpa/29PSI
11> Working temperature: -20~65 Degree Celsius
12> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air controller
13> Charging accessories:
Guying wires kits with mounting spikes 2 layers and 4 wires cach layer, mounting radius 12m from center

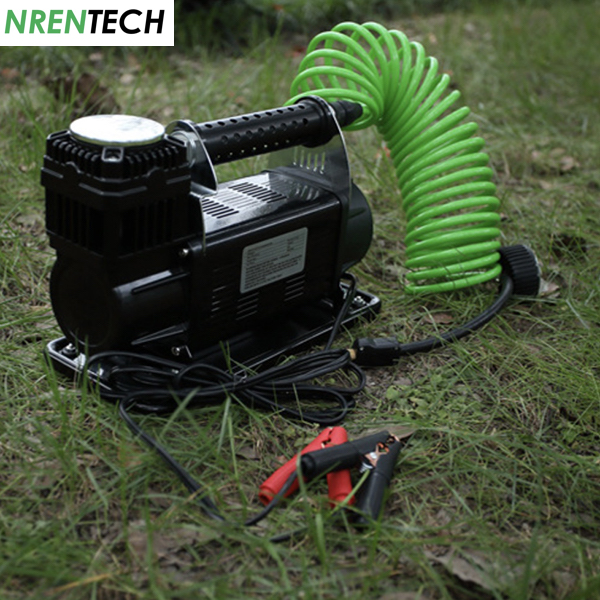

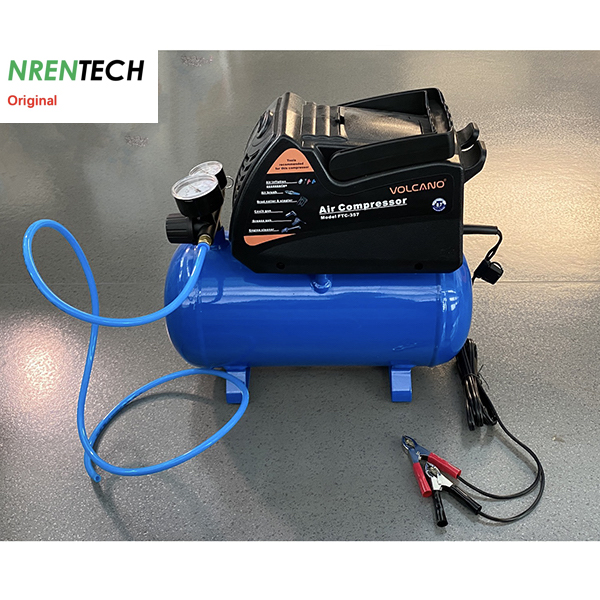

Electric air compressor: DC12V, DC24V or AC220V/50Hz

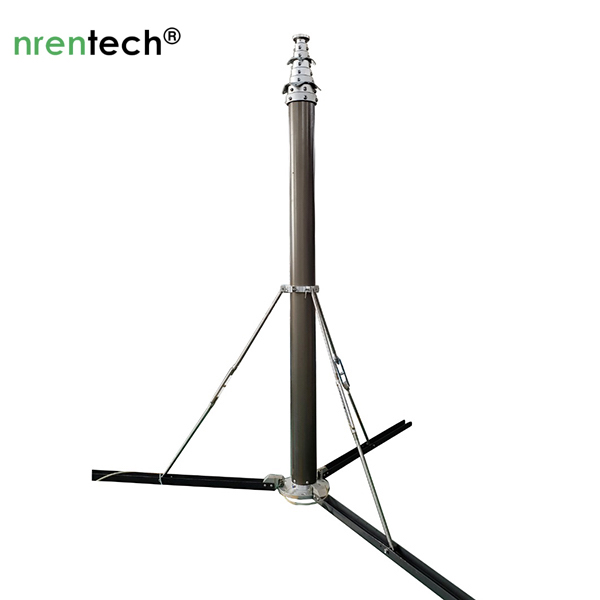

Ground mounting tripod (stainless steel materials)
Side mounting bracket (aluminum materials)
Manufacture time: 20 days
data update on 2022-03-27
12m Non-lockable Pneumatic Telescopic Mast-30kg payloads
1> Item #: NR-2.55-12-30N-7S-51-160 (old model: NR-2550-12000-30)
2> Extended Height: 12m
3> Retractable Height: 2.55m retracted height
4> Vertical Payloads: 30kg
5> Collar type: Non-lockable (automatic extension/retraction)
6> Number of sections: 7
7> Section diameter and thickness: 51*3mm, 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm
8> Materials: Aluminum alloy 6063T6
9> Mast weight: 75kg approx.
10> Working air pressure: 0.2Mpa/29PSI
11> Working temperature: -20~65 Degree Celsius
12> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air controller
13> Charging accessories:
Guying wires kits with mounting spikes 2 layers and 4 wires cach layer, mounting radius 12m from center
Electric air compressor: DC12V, DC24V or AC220V/50Hz
Ground mounting tripod (stainless steel materials)
Side mounting bracket (aluminum materials)
