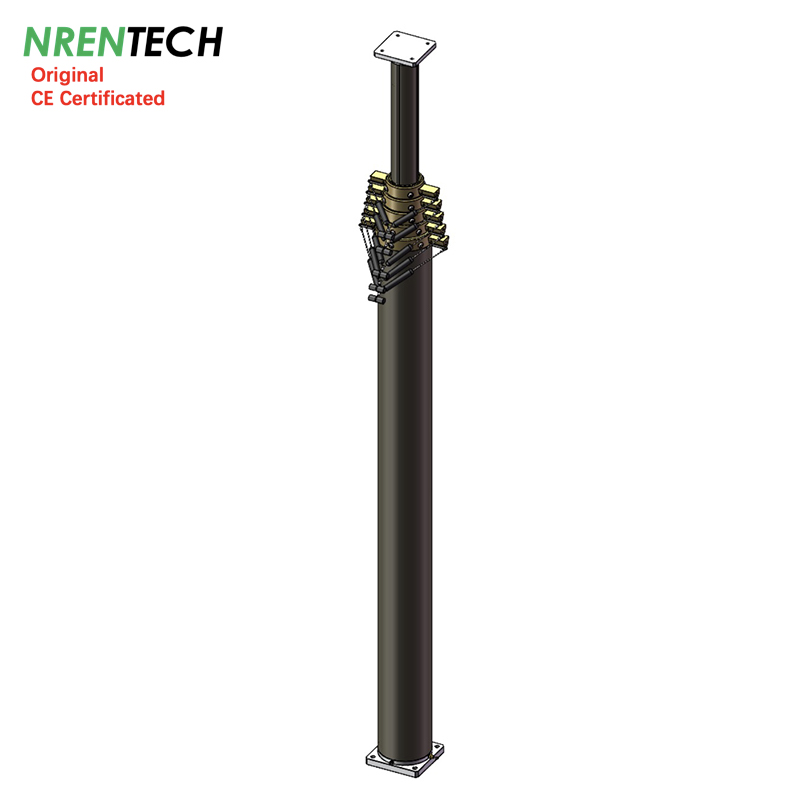

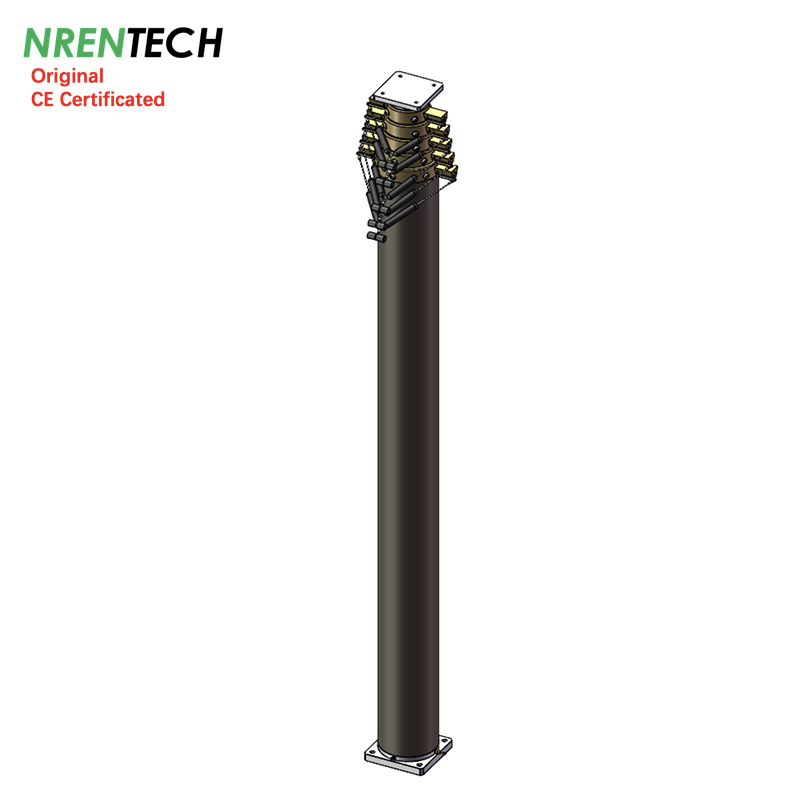

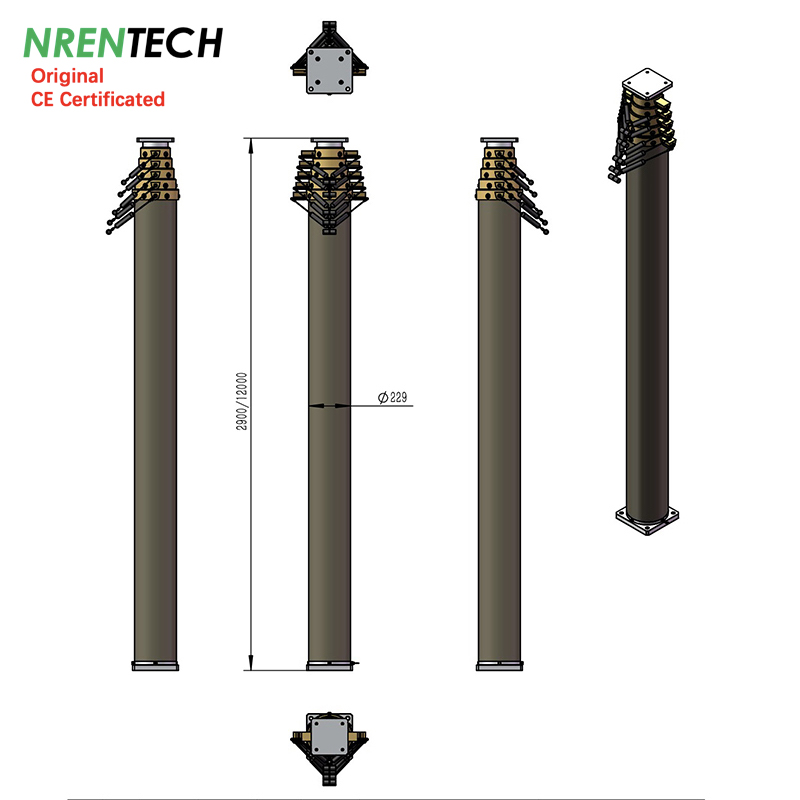

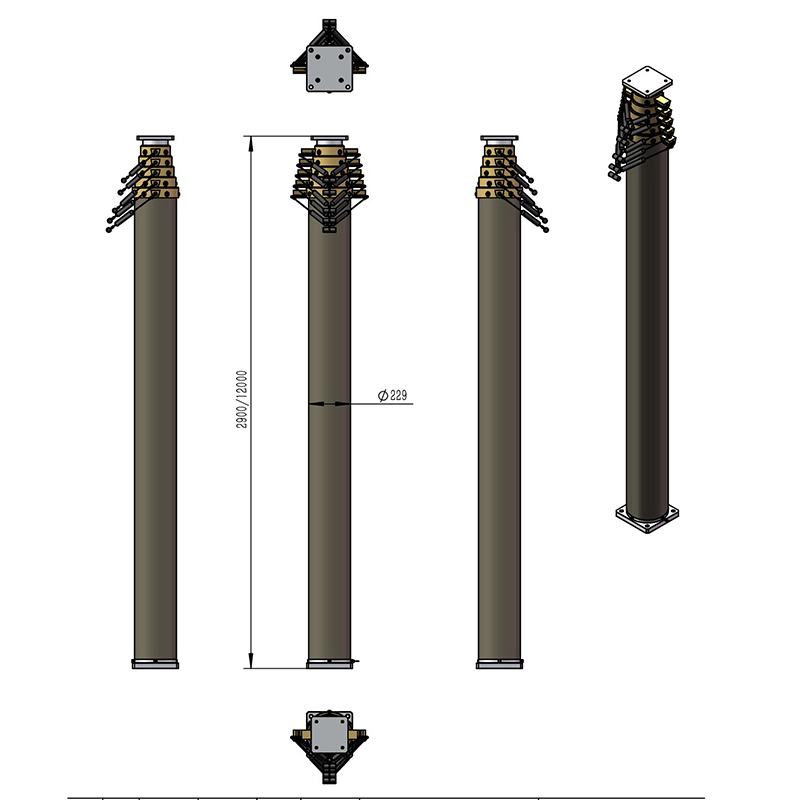

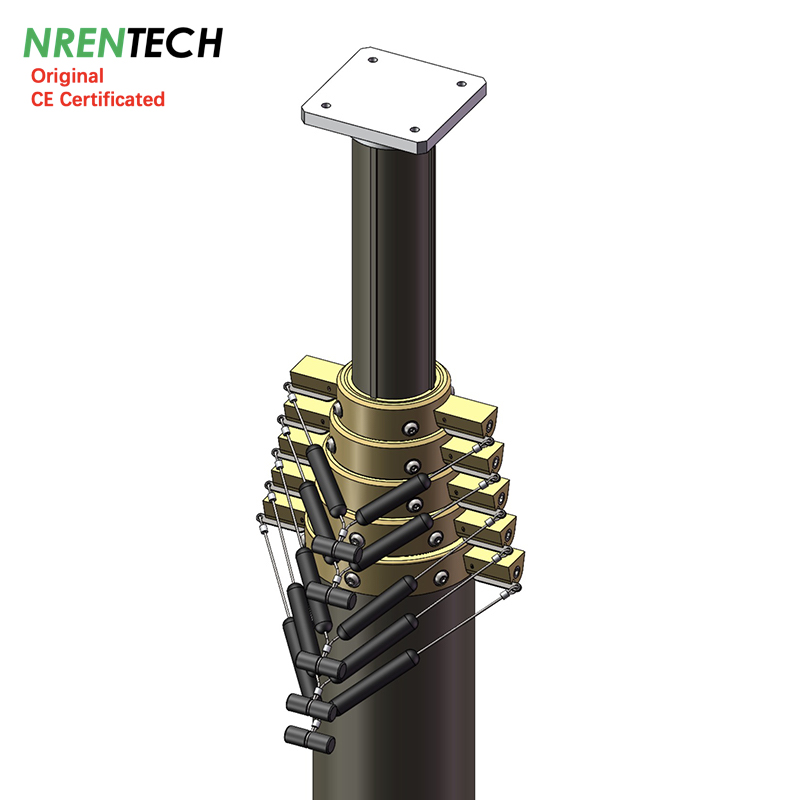

12m Locking Pneumatic Telescoping Mast 200kg Payloads
Item #: NR-2.9-12-200L-6S-118-229
1> Extended Height: 12m
2> Retracted Height: 2.9m
3> Payloads: 200kg maximum @ 0.2Mpa/22 PSI working air pressure
4> Type: lockable mast (automatic extension/ retraction by manual)
5> Number of sections: 6
6> Section dia. * thickness: 118*4mm, 140*5mm, 160*5mm, 180*5mm, 202*6mm, 229*7mm
7> Materials: aluminum alloy 6063T5
8> Mast weight: 166kg approx.
9> Working air preesure: 0.2Mpa/29PIS as maximum recommend
10> Working temperature: -25~55Celcius Degrees
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe.
Charging accessories: Ground mounting tripods, Guying wires kits for 120km/h wind speed, vehicle side mounting brackets, Air control manual, Electric air compressor DC or AC
leading time: 20 days
data update on 20240301
| 12m Lockable Pneumatic Telescopic Mast-200kg Payload | ||||||
| NR-2.9-12-200L-6S-118-229 | ||||||
 | ||||||
| Extended Height | : | 12 | m | 39.36 | ft | |
| Retracted Height | : | 2.9 | m | 9.5 | ft | |
| Vertical Payload | : | 200 | kg | 440 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Extention, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 6 | ||||
| Top section diameter | : | 118 | mm | 4.6 | in | |
| Basement section diameter | : | 229 | mm | 9.0 | in | |
| Mast Weight | : | 166 | kg | 365.2 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Optional Accessories | : | Electric air compressor | AC220V/50hz | |||
| Guying Rope Kits | 2x4 (2 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 12m) | |||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20231121 | ||||||
