Home >> 12m Locking Mast 300kg payloads NR-2.7-12-300L-7S-140-279
12m Locking Mast 300kg payloads NR-2.7-12-300L-7S-140-279
❤ Add to collection

12m Locking Mast 300kg payloads NR-2.7-12-300L-7S-140-279

12m Locking Pneumatic Telescoping Mast 300kg Payloads
Item #: NR-2.7-12-300L-7S-140-279
1> Extended Height: 12m
2> Retracted Height: 2.7m
3> Payloads: 300kg maximum @ 0.2Mpa/22 PSI working air pressure
4> Type: lockable mast (automatic extension/ retraction by manual)
5> Number of sections: 7
6> Section dia. * thickness: 140~279mm
7> Materials: aluminum alloy 6063T5
8> Mast weight: 230kg approx.
9> Working air preesure: 0.2Mpa/29PIS as maximum recommend
10> Working temperature: -25~55Celcius Degrees
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe.
Charging accessories: Ground mounting tripods, Guying wires kits for 120km/h wind speed, vehicle side mounting brackets, Air control manual, Electric air compressor DC or AC

leading time: 20 days
data update on 20230627

U.S.＄0.00
0.00
U.S.＄0.00
U.S.＄0.00
Weight：0.000KG
Quantity：
(Inventory: 99999)
Buy now
Add to cart
Charging Accessories

Original ：U.S.＄
0.00

  With the total price ：U.S.＄
0.00
Products Description

12m Locking Pneumatic Telescoping Mast 300kg Payloads
Item #: NR-2.7-12-300L-7S-140-279
1> Extended Height: 12m
2> Retracted Height: 2.7m
3> Payloads: 300kg maximum @ 0.2Mpa/22 PSI working air pressure
4> Type: lockable mast (automatic extension/ retraction by manual)
5> Number of sections: 7
6> Section dia. * thickness: 140~279mm
7> Materials: aluminum alloy 6063T5
8> Mast weight: 230kg approx.
9> Working air preesure: 0.2Mpa/29PIS as maximum recommend
10> Working temperature: -25~55Celcius Degrees
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe.
Charging accessories: Ground mounting tripods, Guying wires kits for 120km/h wind speed, vehicle side mounting brackets, Air control manual, Electric air compressor DC or AC

leading time: 20 days
data update on 20230627

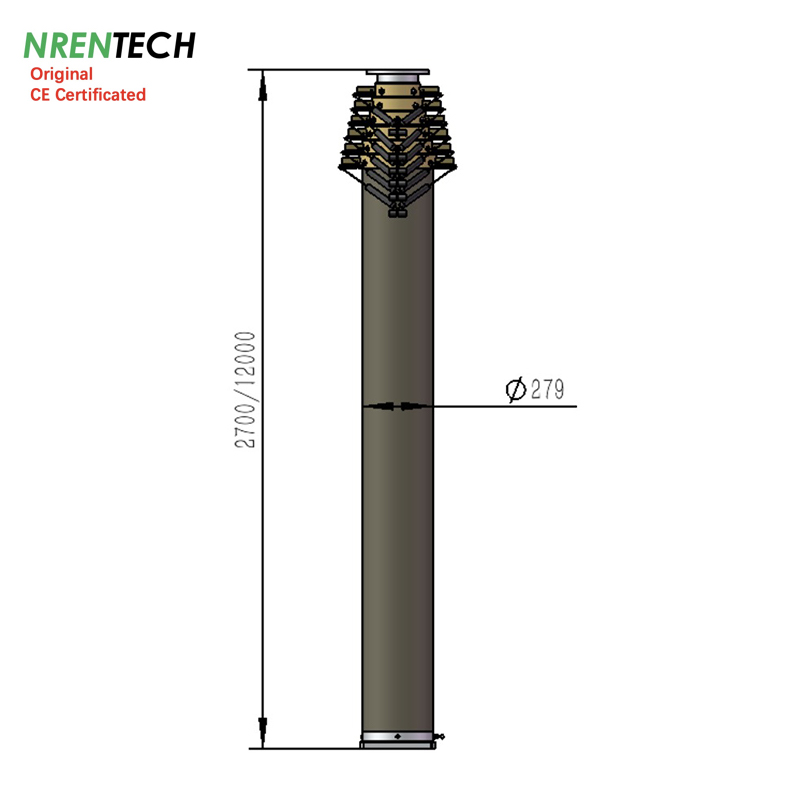

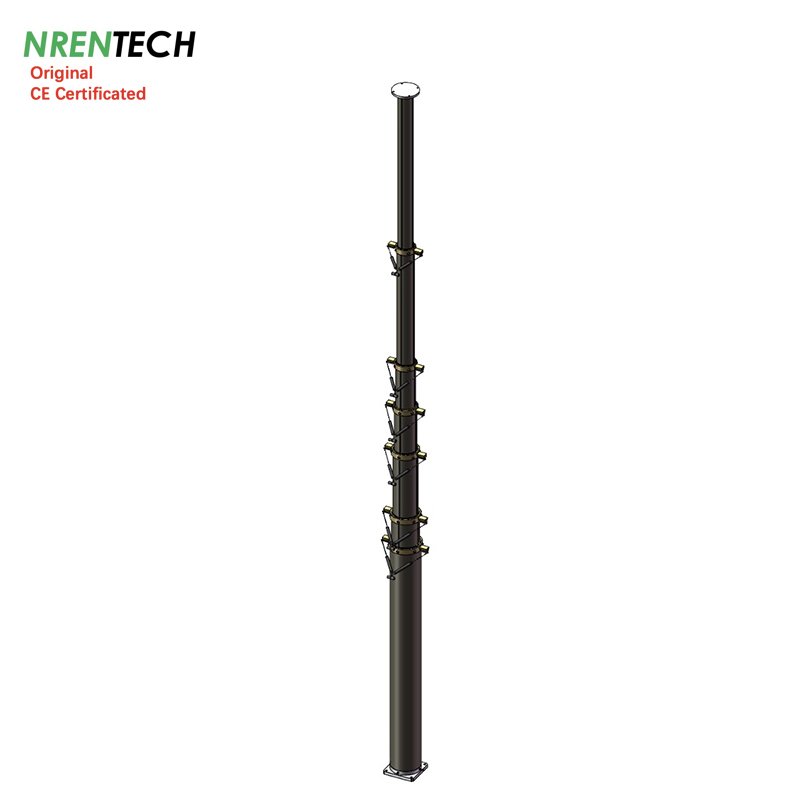

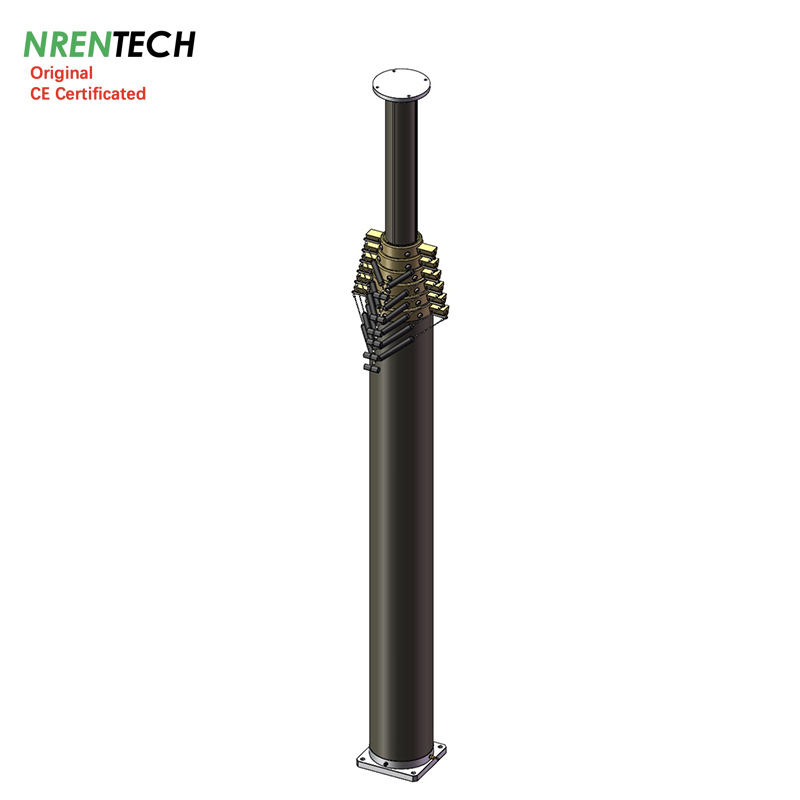

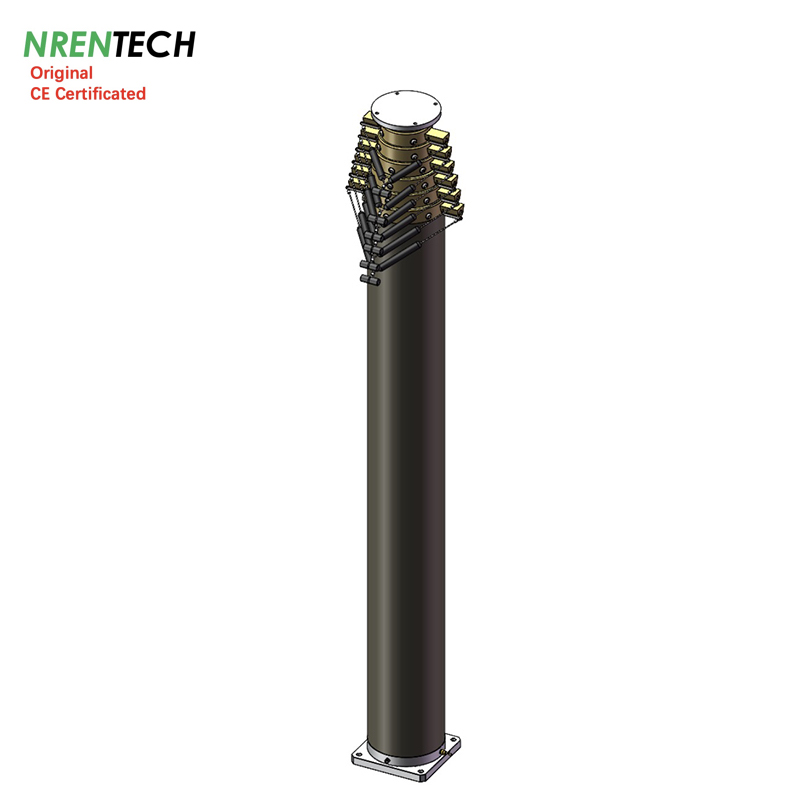

12m Lockable Pneumatic Telescopic Mast-300kg Payload
NR-2.7-12-300L-7S-140-279
Extended Height:12m39.36ft
Retracted Height:2.7m8.9 ft
Vertical Payload:300kg660lb
Working air pressure:0.2Mpa29 PSI
Collar Type:Locking (Automatic Extention, Manual Retraction)
Inside Electric Wires:



Number of sections:7



Top section diameter:140mm5.5 in
Basement section diameter:279mm11.0 in
Mast Weight:230kg506lb
Working temperature:-25~65 Celsius Degree
Materials:Aluminum alloy 6063T5
Default accessories:top flange
bottom flange
air hose pipe
air control manual
Optional Accessories:Electric air compressorAC220V/50hz
Guying Rope Kits2x4 (2 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 12m)
Side Mounting BracketSteel Materials
Ground mounting TripodStainless Materials
Rotation BasementManual Rotation
Remote control kit12VDC
data update on 20230702
