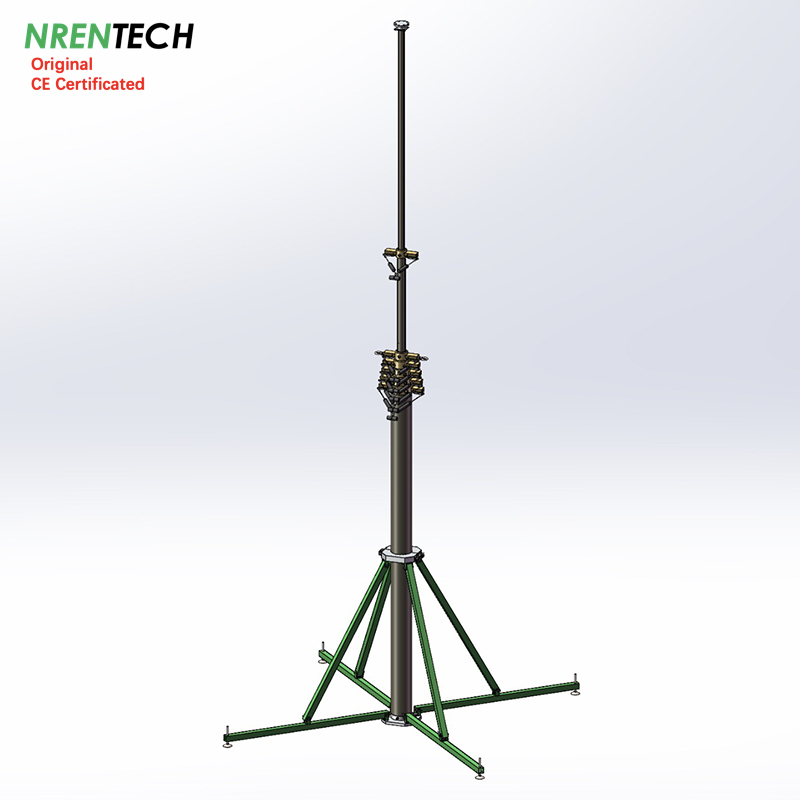

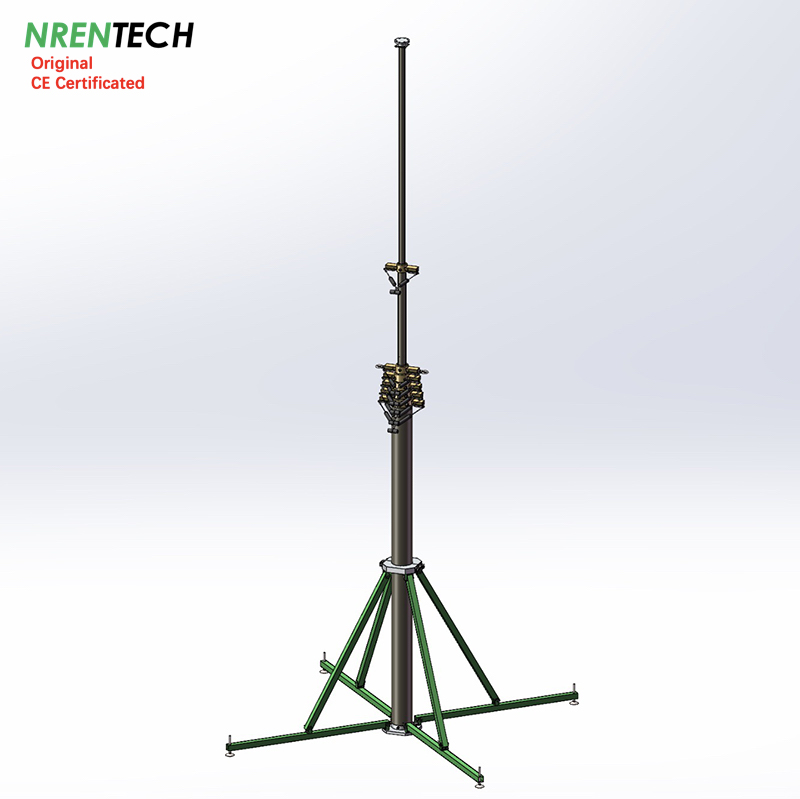

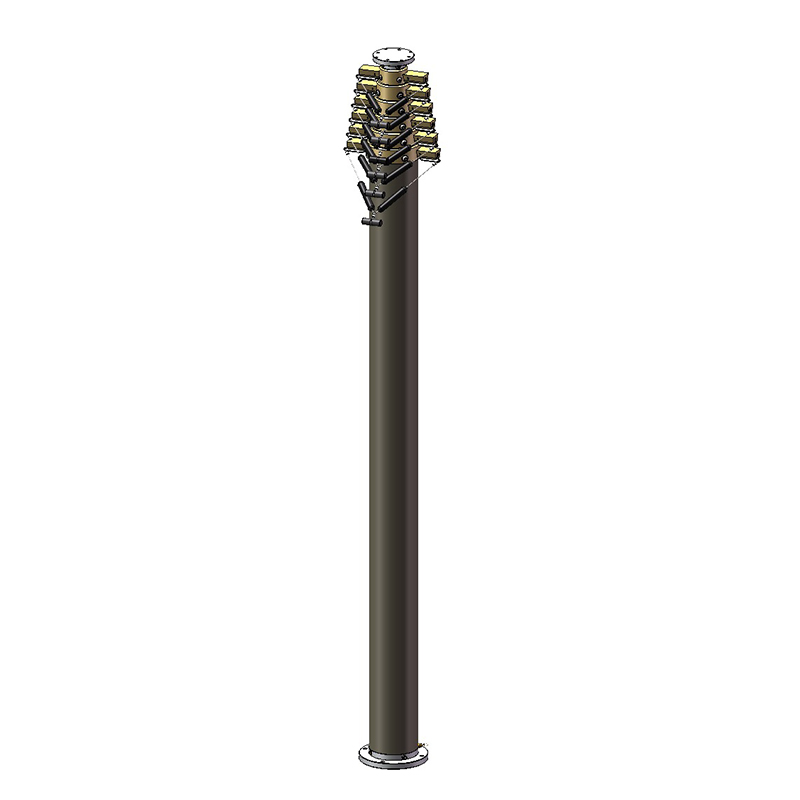

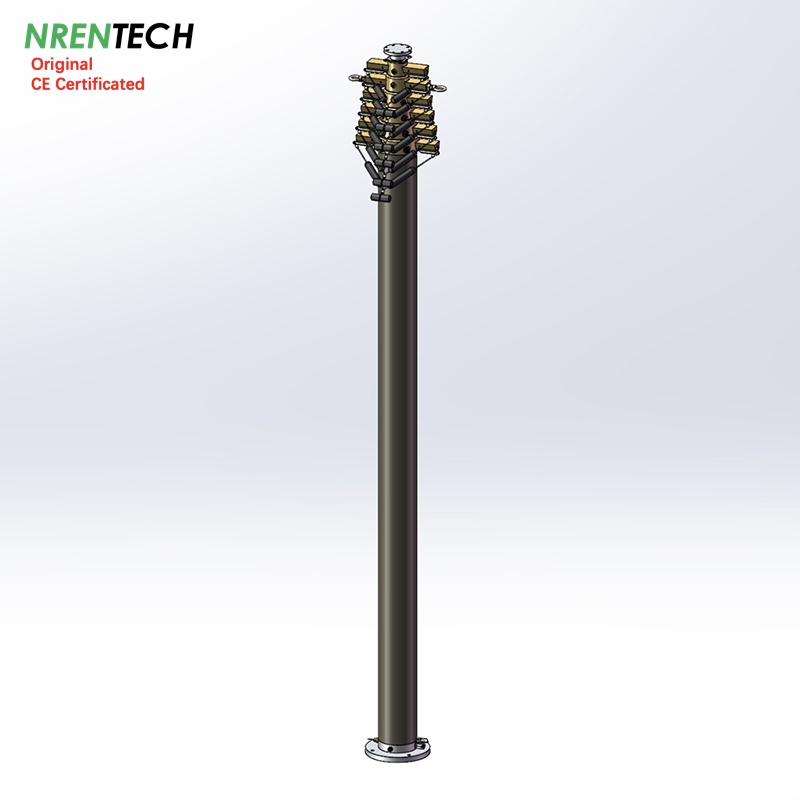

12m Locking Pneumatic Telescopic Mast 15kg payloads
Item #: NR-2.7-12-15-7S-36-140

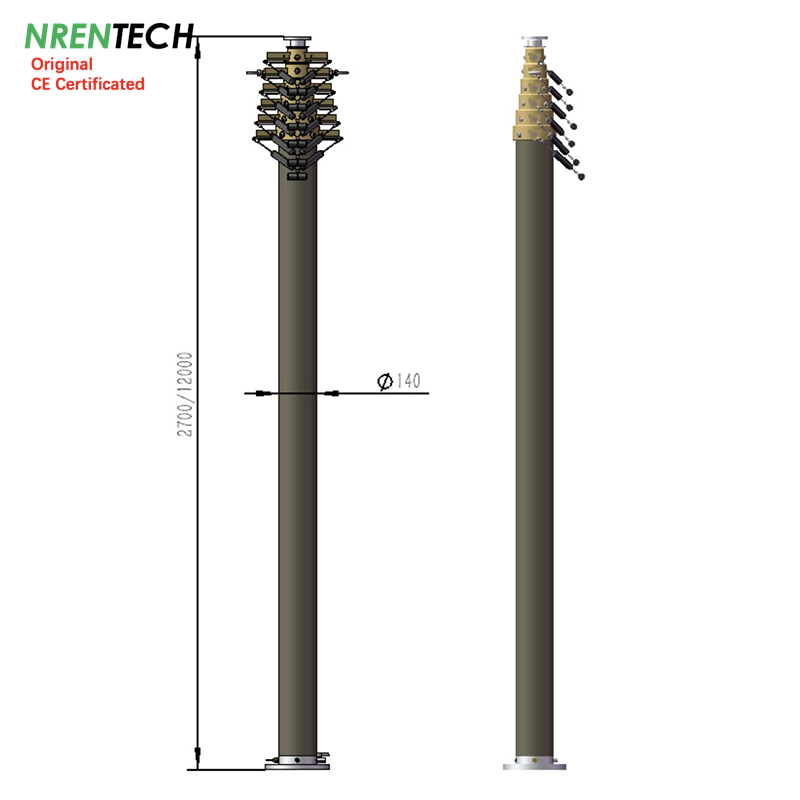

2.7m retracted/7 sections/base section dia. 140
mast weight 62kg
1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual as default accessories
Optional: guying wires 2 layers x 4 directions, DC12V electric air compressor, ground mounting tripod, side mounting brackets
update record: 2023.03.18, 20240301
leading time: 20 days
12m Lockable Pneumatic Telescopic Mast 15kg payloads
NR-2.7-12-15-7S-36-140
12m Lockable Pneumatic Telescopic Mast-15kg Payload | ||||||
NR-2.7-125-15L-7S-36-140 | ||||||

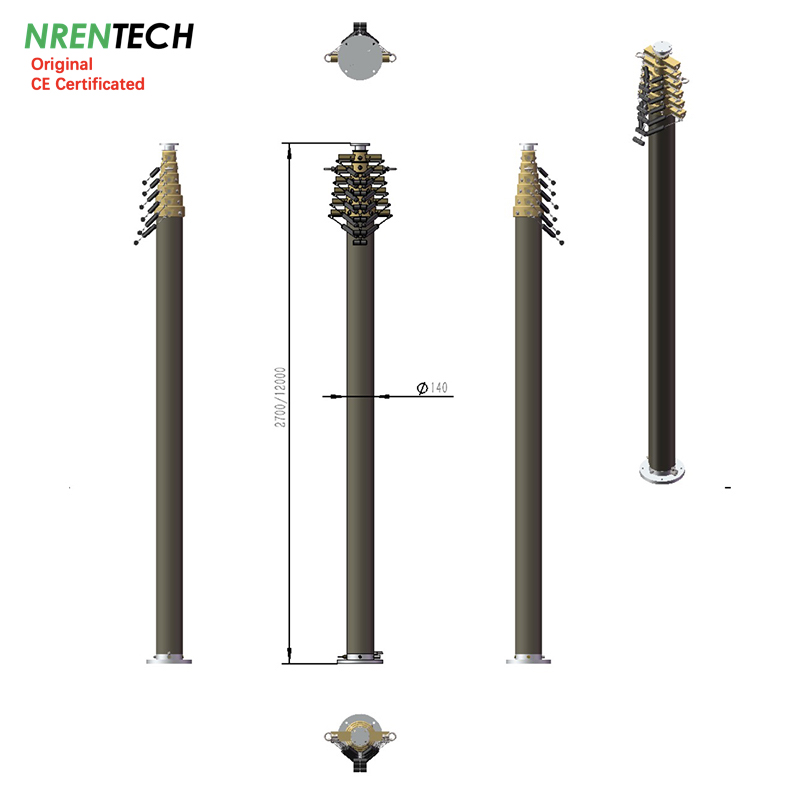

Extended Height | : | 12 | m | 39.36 | ft | |
Retracted Height | : | 2.7 | m | 8.9 | ft | |
Vertical Payload | : | 15 | kg | 33 | lb | |
Working air pressure | : | 0.15 | Mpa | 22 | PSI | |

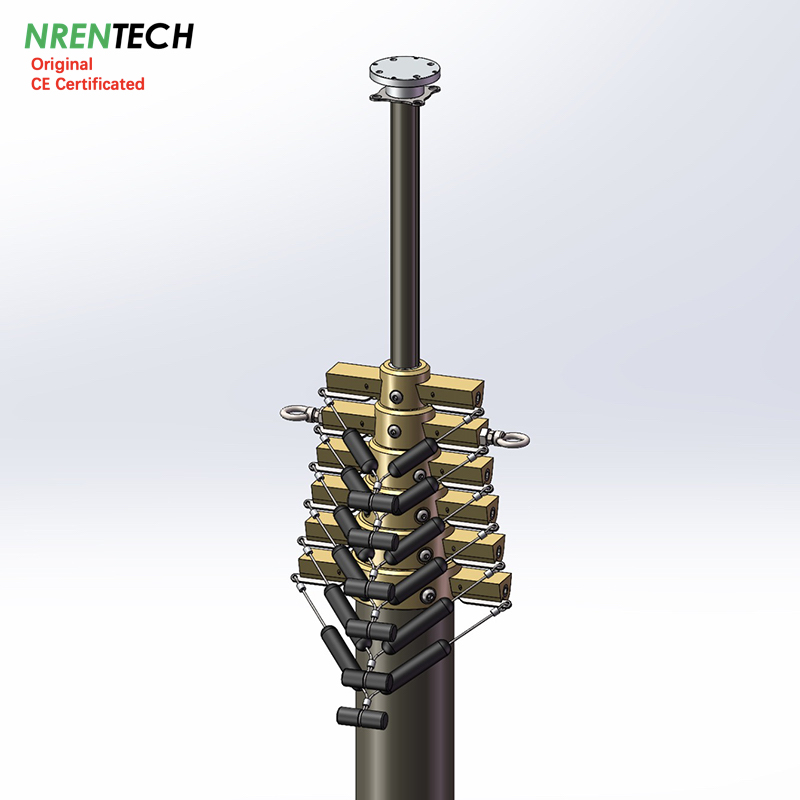

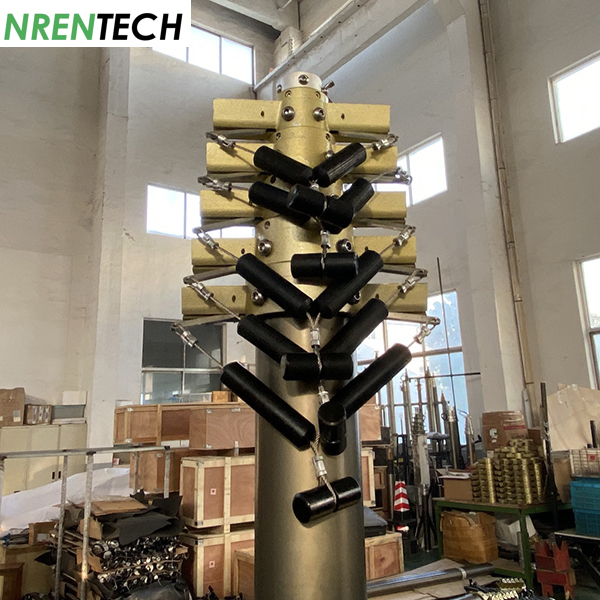

Collar Type | : | Locking (Automatic Extention, Manual Retraction) | ||||
Inside Electric Wires | : | |||||
Number of sections | : | 7 | ||||
Top section diameter | : | 36 | mm | 1.4 | in | |
Basement section diameter | : | 140 | mm | 5.5 | in | |
Mast Weight | : | 66 | kg | 145.2 | lb | |
Working temperature | : | -25~65 Celsius Degree | ||||
Materials | : | Aluminum alloy 6063T5 | ||||

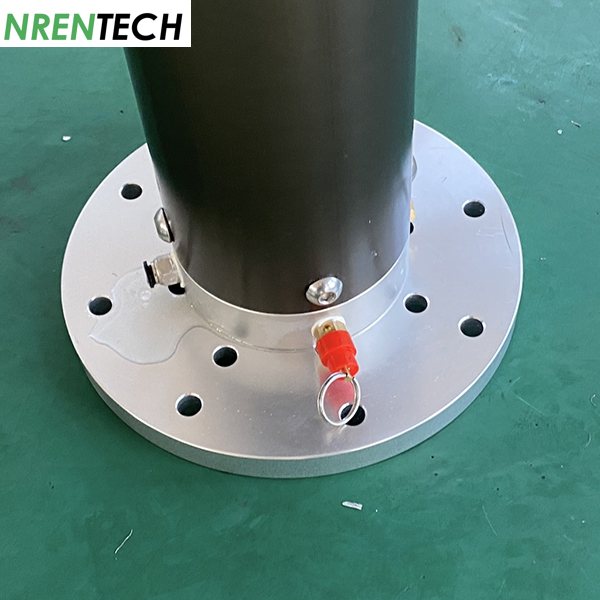

Default accessories | : | top flange | ||||
bottom flange | ||||||
air hose pipe | ||||||
air control manual | ||||||
Optional Accessories | : | Electric air compressor | DC12V, DC24V, AC220V/50hz | |||

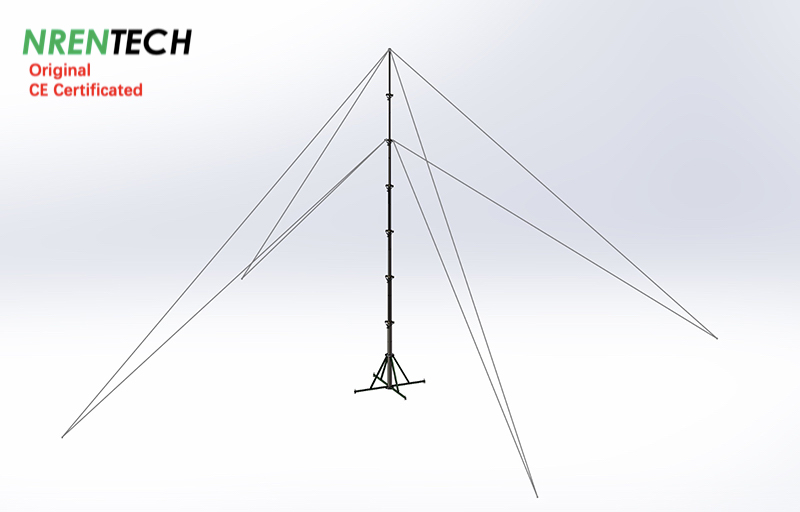

Guying Rope Kits | 2x4 (2 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 12m) | |||||
Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||

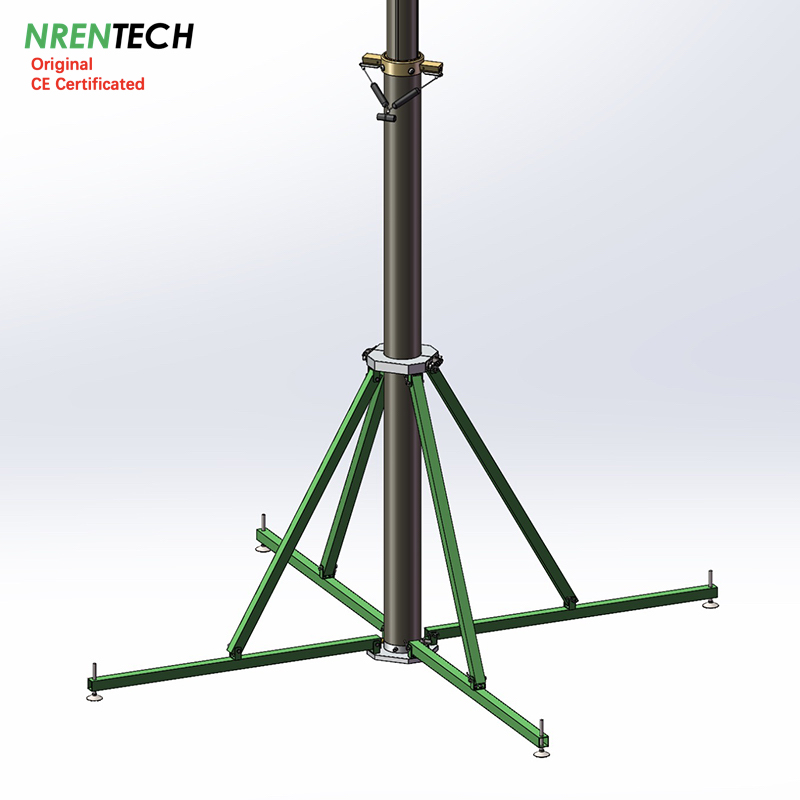

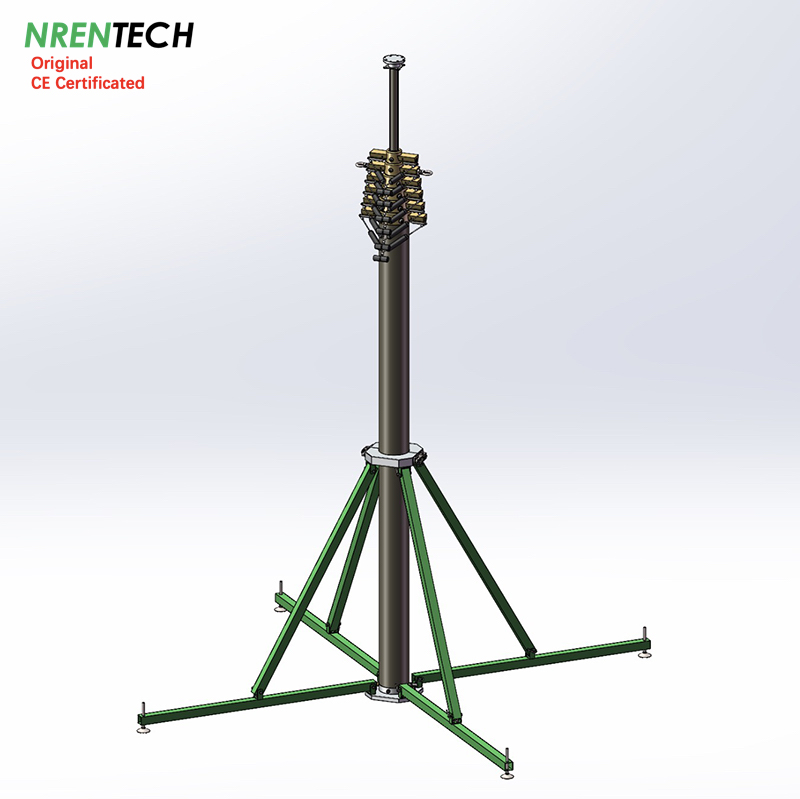

Ground mounting Tripod | Stainless Materials | |||||
Rotation Basement | Manual Rotation | |||||
Remote control kit | 12VDC | |||||
data last update on 20240301 |
