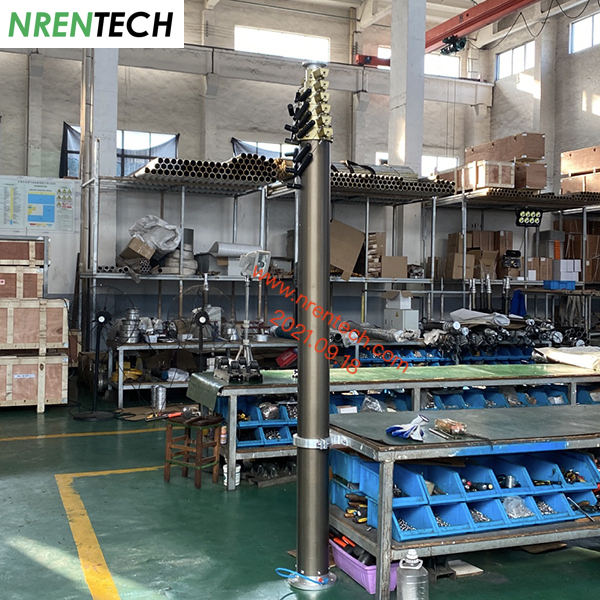

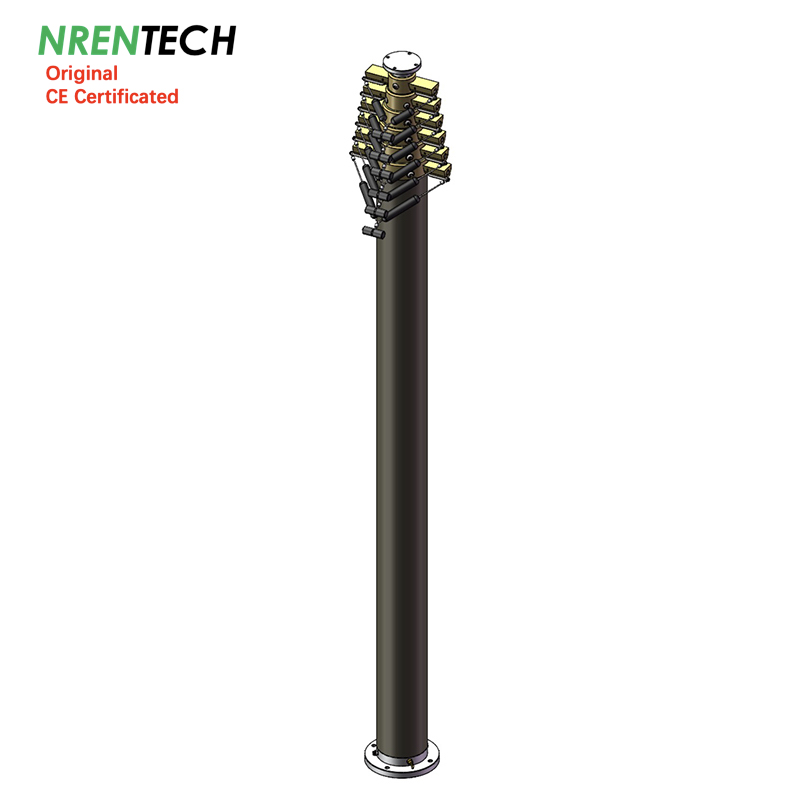

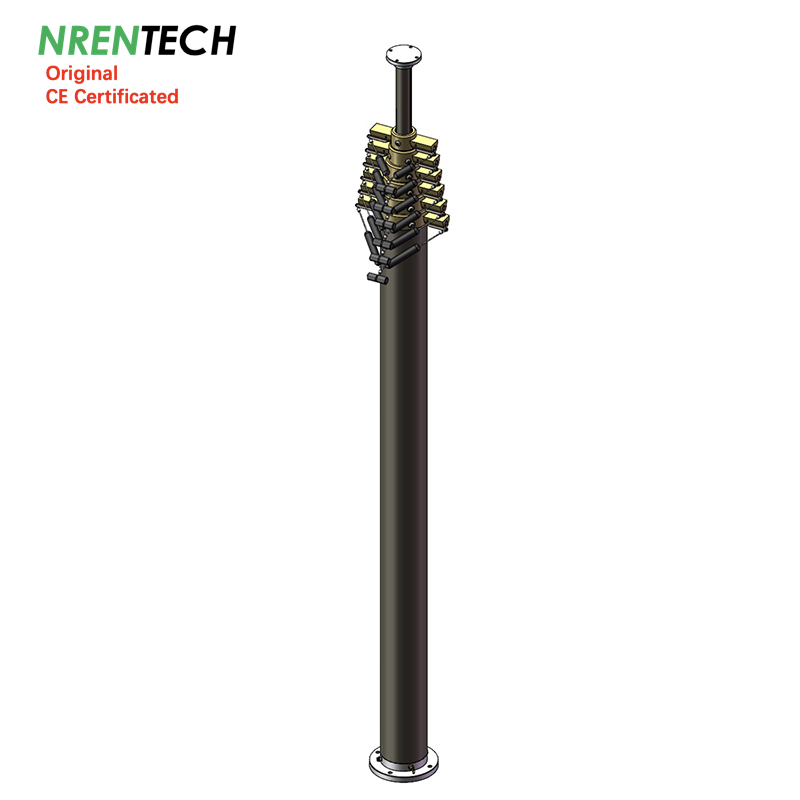

12m Lockable Pneumatic Telescopic Mast 30kg Payload-2.7m Close Height

Item #: NR-2.7-12-30L-7S-51-160

1> Extended Height: 12m

2> Closed Height: 2.7m

3> Vertical payload: 30kg @0.2Mpa/29PSI working air pressure

4> Collar type: T lockable (automatic extension, retraction by manual operating)

5> Number of sections: 7 pcs

6> Section tubes diameter range: 51mm~160mm

7> Materials: Aluminum alloy 6063T5

8> Mast weight: 83kg approx.

9> Default accessories: top flange, bottom flange, air hose pipe, air control valve, retraction operating tool, guy lines mounting plate and eyebolts.

Charging accessories: electric air compressor, wireless remote control kit DC12V, guying ropes kits (2 layers, 4 ropes each layer, mounting radius 12m), quadpod ground mounting brackets, aluminum side mounting brackets

Guarantee: 2 years
Leading time: 30 days
Latest Data updated on 20251029

12m Lockable Pneumatic Telescopic Mast-30kg Payload
NR-2.7-12-30L-7S-51-160

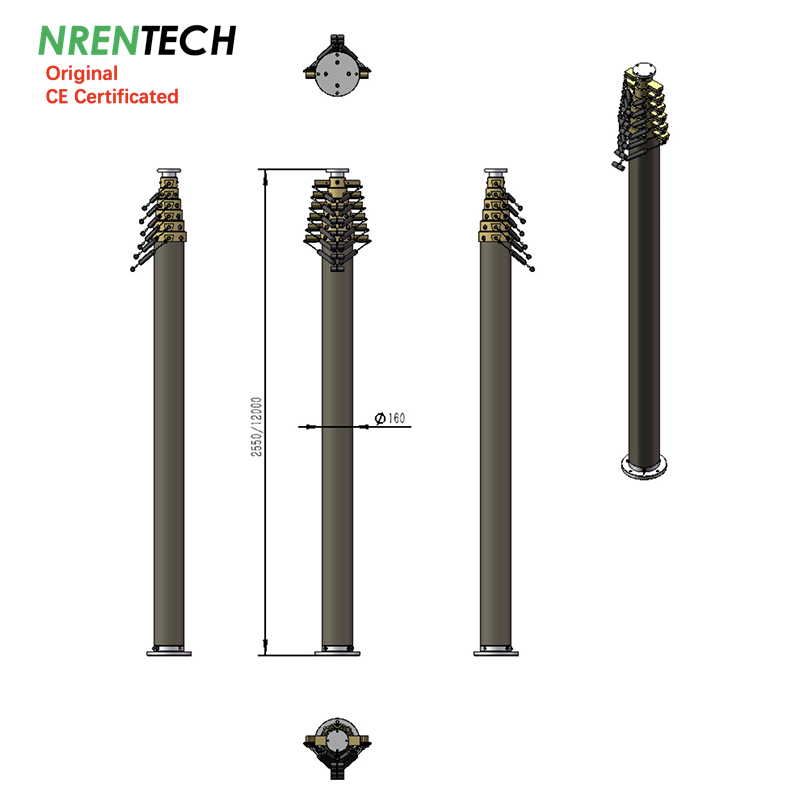

Extended Height	:	12	m	39.36	ft
Retracted Height	:	2.7	m	8.9	ft
Vertical Payload	:	30	kg	66	lb
Working air pressure	:	0.15	Mpa	22	PSI

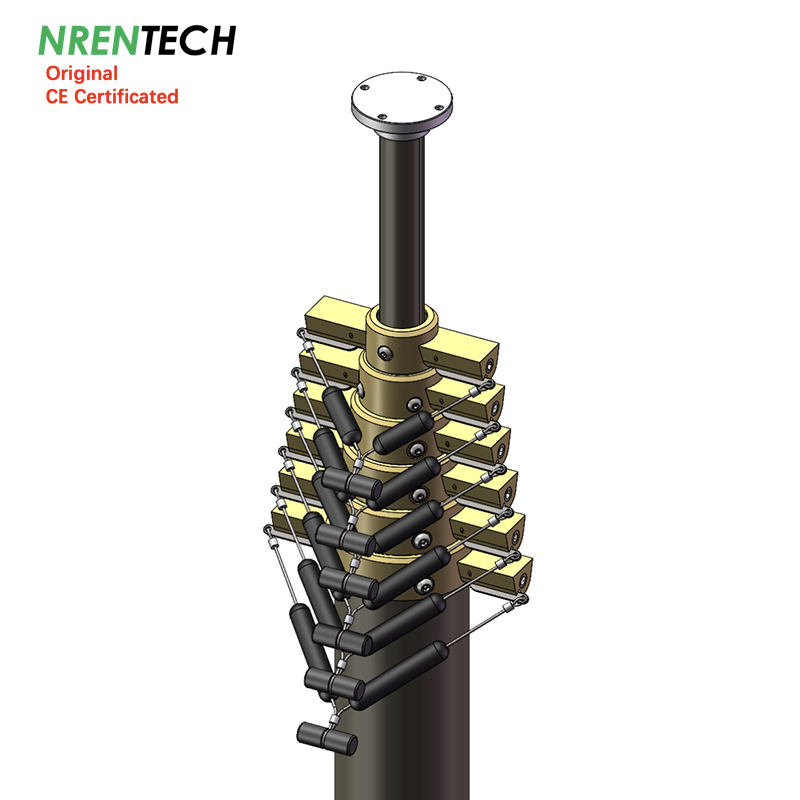

Collar Type	:	Locking (Automatic Extention, Manual Retraction)
Inside Electric Wires	:
Number of sections	:	7
Top section diameter	:	51	mm	2.0	in
Basement section diameter	:	160	mm	6.3	in
Mast Weight	:	83	kg	182.6	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual
Optional Accessories	:	Electric air compressor			DC12V, DC24V, AC220V/50hz
		Guying Rope Kits			2x4 (2 layers, 4 ropes each layer, 4 mounting spikes, mounting radius 12m)
		Side Mounting Bracket			Aluminum alloy 6061 Materials
		Ground mounting Tripod			Stainless Materials
		Rotation Basement			Manual Rotation
		Remote control kit			12VDC
data update on 20240301
