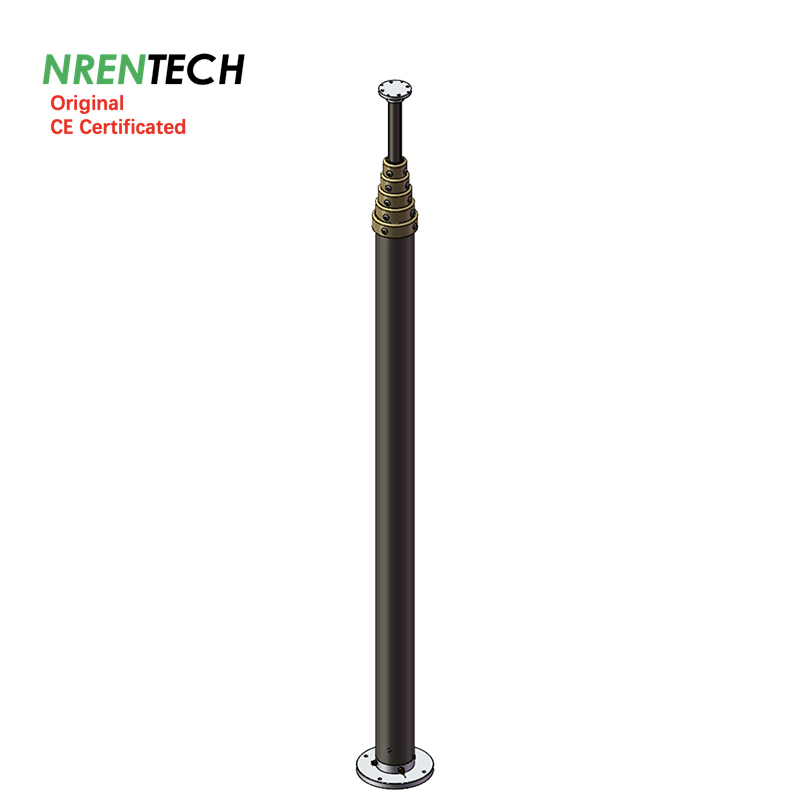

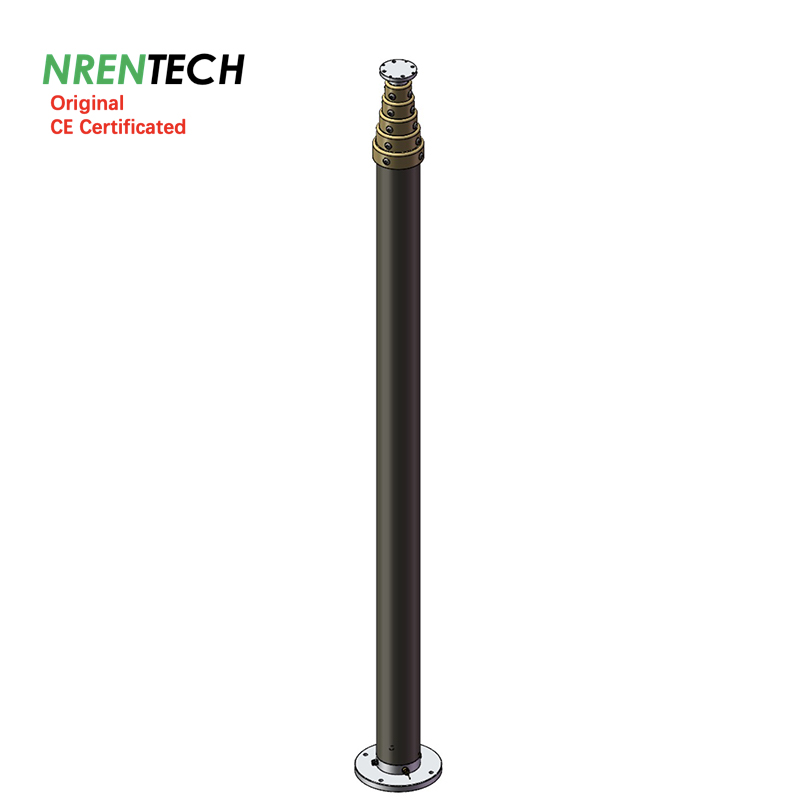

‍‍9m Non-lockable Pneumatic Telescopic Mast-15kg payloads
Item #: NR-2.2-9-15N-6S-36-118

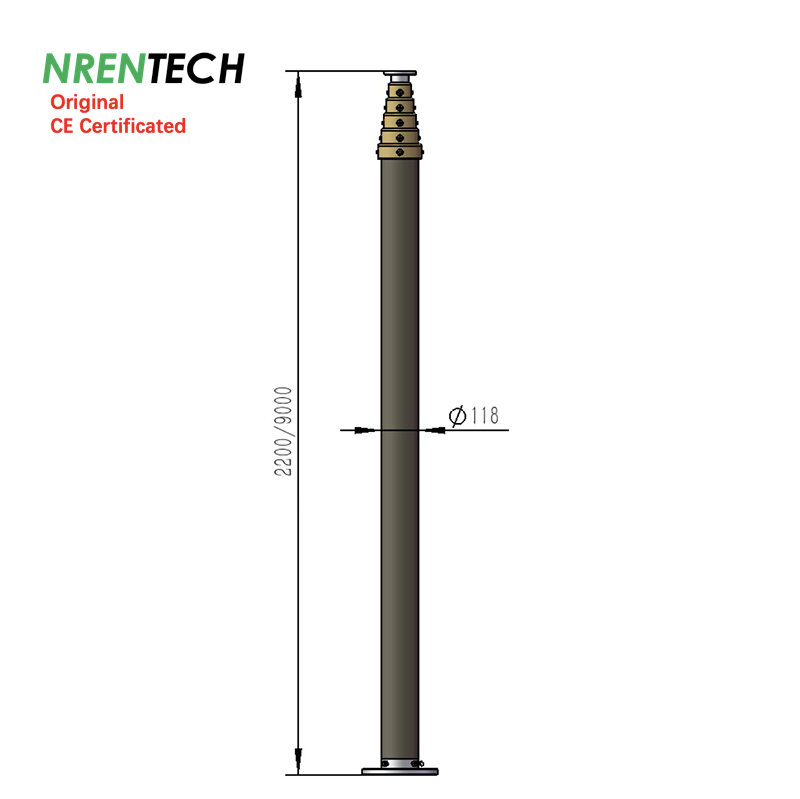

1> Extended Height: 9m
2> Retracted Height: 2.2m
3> Payloads: 15kg maximum @ 0.15Mpa/22 PSI working air pressure
4> Type: Non-lockable mast (automatic extension/ retraction)
5> Number of sections: 6
6> Section dia. * thickness: 36~118mm
7> Materials: aluminum alloy 6063T5
8> Mast weight: 35kg approx.
9> Working air preesure: 0.15Mpa/22PIS as maximum recommend
10> Working temperature: -25~55 Celcius Degrees
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control panel
Charging accessories: Ground mounting tripods, Guying wires kits 2x4, vehicle side mounting brackets, Electric air compressor DC or AC

leading time: 20 days
data update on 20230701‍‍
