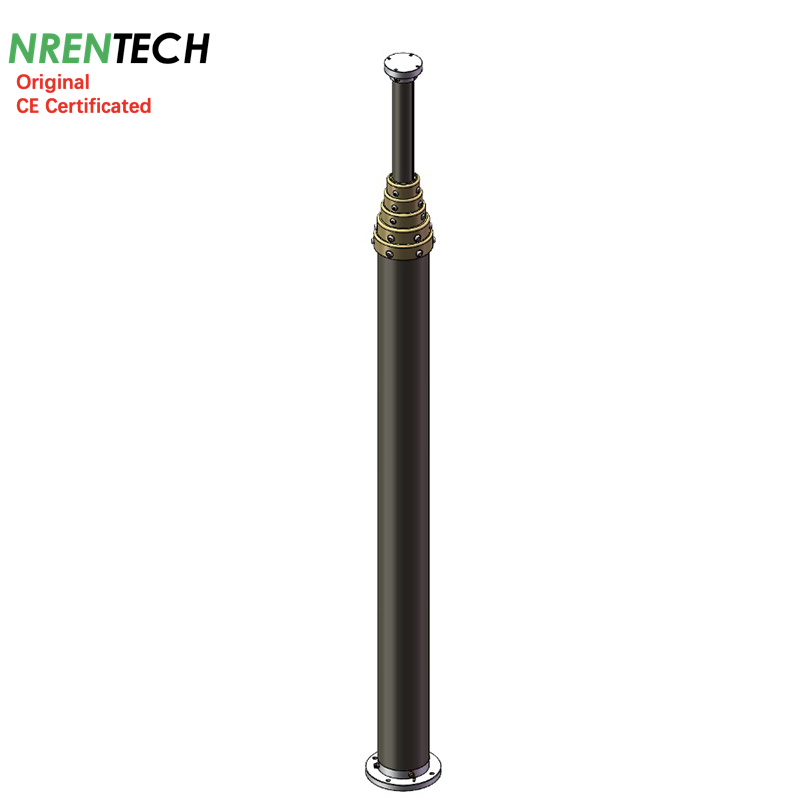

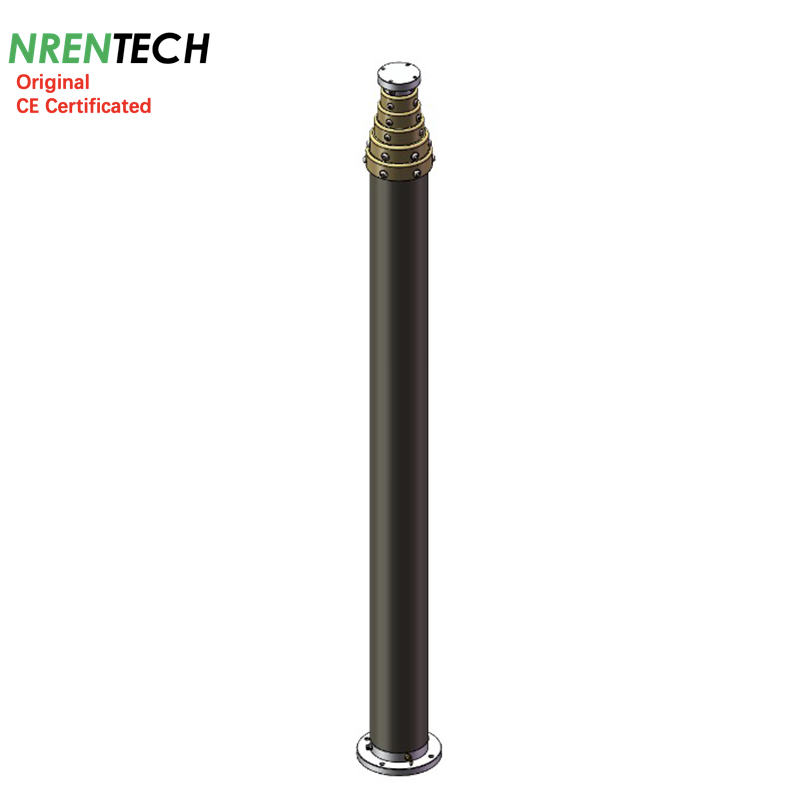

9m Non-lockable Pneumatic Telescopic Mast-50kg payloads
Item #: NR-2.2-9-50N-6S-66-160

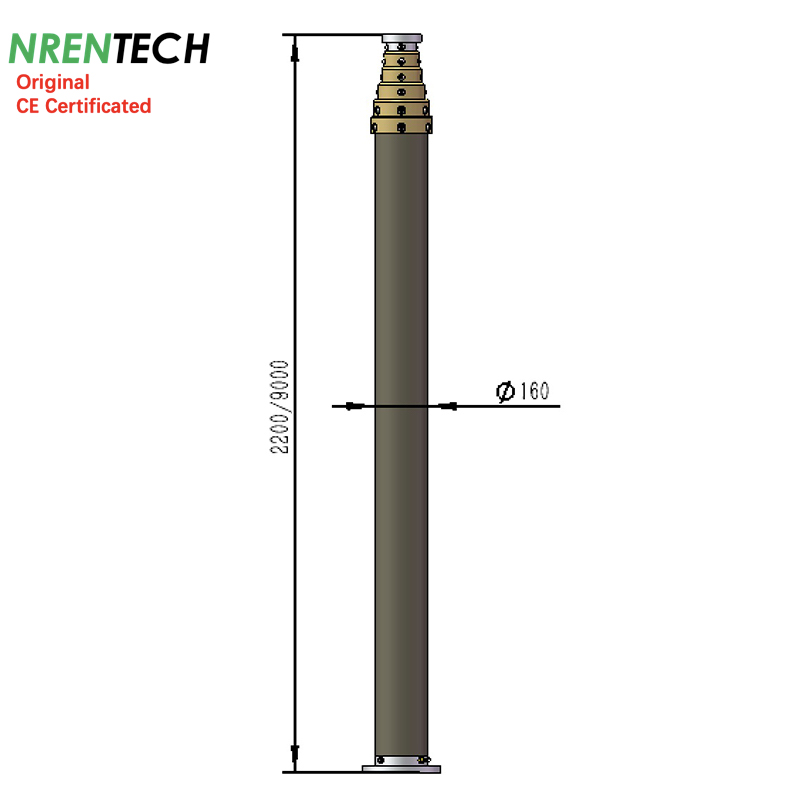

1> Extended Height: 9m
2> Retracted Height: 2.2m
3> Payloads: 50kg maximum @ 0.15Mpa/22 PSI working air pressure
4> Type: Non-lockable mast (automatic extension/ retraction)
5> Number of sections: 6
6> Section dia. * thickness: 66~160mm
7> Materials: aluminum alloy 6063T5
8> Mast weight: 64kg approx.
9> Working air preesure: 0.15Mpa/22PIS as maximum recommend
10> Working temperature: -25~55 Celcius Degrees
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control panel
Charging accessories: Ground mounting tripods, Guying wires kits 2x4, vehicle side mounting brackets, Electric air compressor DC or AC
leading time: 20 days
data update on 20230701
9m Pneumatic Telescopic Mast 50kg Payloads
| 9m Non-Lockable Pneumatic Telescopic Mast-50kg Payloads | ||
| 1> | Item #: | NR-2.2-9-50N-6S-66-160 |
| 2> | Extended Height: | 9m |
| 3> | Retracted Height: | 2.2m |
| 4> | Maximum Payloads: | 50kg |
| 5> | Type: | Non-Lockable, Anti-rotation |
| 6> | Inside Electric Wires | Non |
| 7> | Number of Sections: | 6 |
| 8> | Sections’ diameter*Thickness: | 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm |
| 9> | Materials: | Aluminum Alloy, Stainless steel fasteners |
| 10> | Working Air Pressure: | 0.2Mpa/29PSI |
| 11> | Working Temperature: | -25~55 Degrees Celsius |
| 12> | Mast Weight: | 64kg approx. |
| 13> | Wind Loads: | 120km/h with guying rope kits |
| 14> | Default accessories: | 1x top flange |
| 1x bottom flange | ||
| 1x air hose pipe | ||
| 1x air controller | ||
| 15> | Optional Accessories: | Ground Mounting Tripods |
| Guying Rope Kits with Mounting Spikes | ||
| DC12V Electric Air Compressor | ||
| AC220V/50Hz Electric Air Compressor | ||
| Vehicle Side Mounting Brackets 2 pieces per set | ||
| Remote Controller Kit | ||
