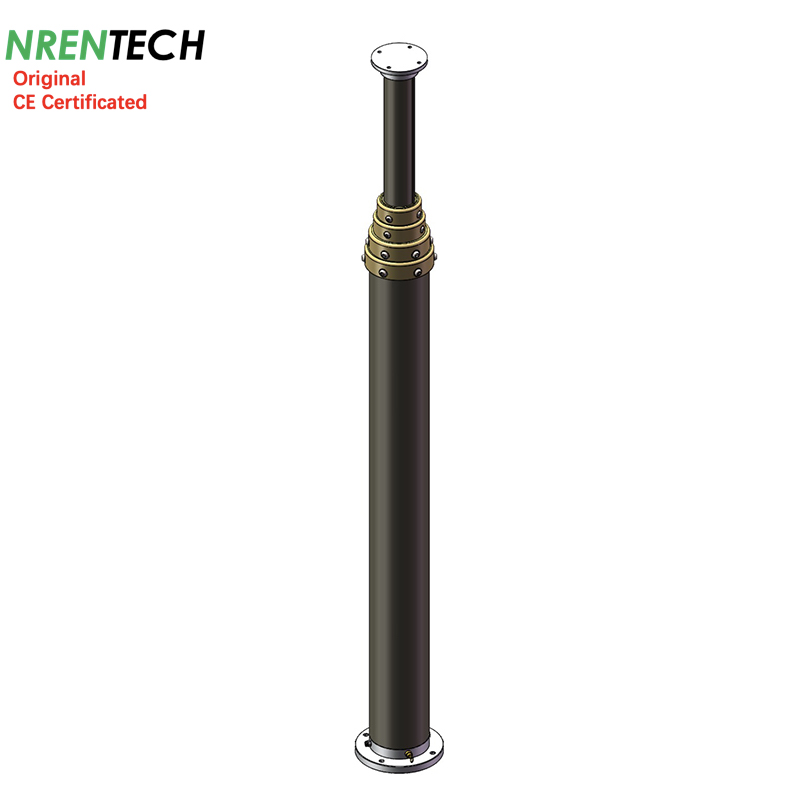

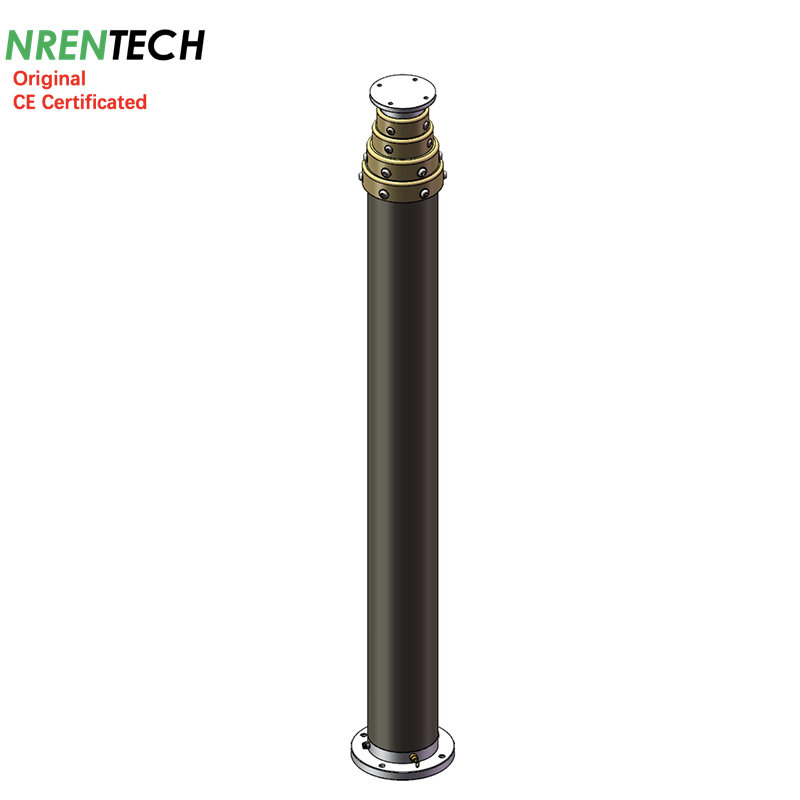

6m Pneumatic Telescopic Mast- 100kg Payloads
Non-lockable collar, automatic extension, automatic retraction
Item #: NR-1.75-6-100N-5S-82-160

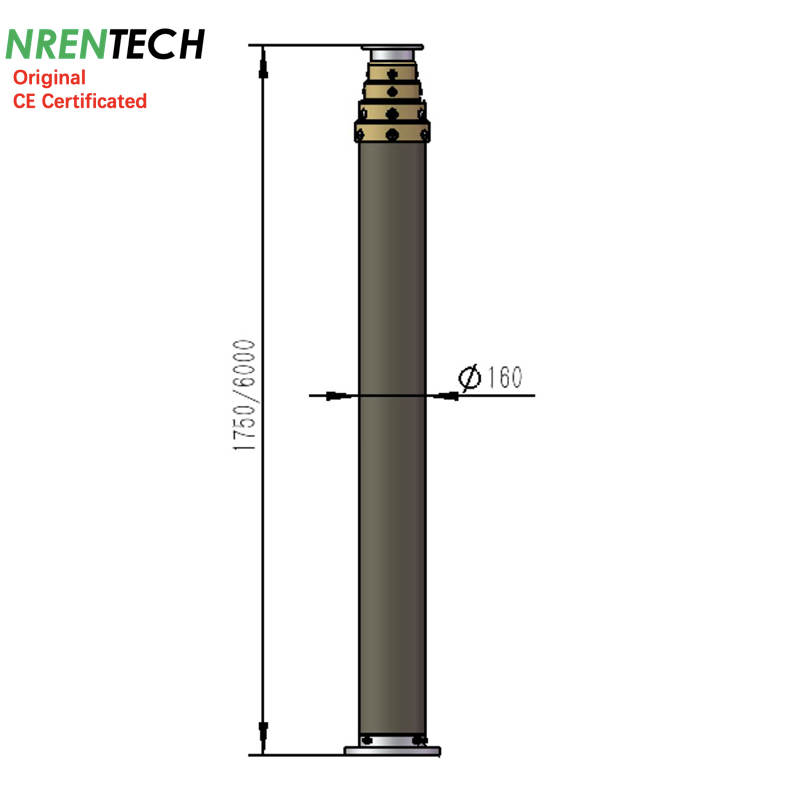

1.75m closed height
5 sections/section dia. 82mm~160mm
mast weight: 55kg approx.
catalouge update on 20230703
leading time: 20 days
6m Pneumatic Telescopic Mast- 100kg Payloads
Non-lockable collar, automatic extension, automatic retraction
Item #: NR-1.75-6-100N-5S-82-160
1.75m closed height
5 sections/section dia. 82mm~160mm
mast weight: 55kg approx.
catalouge update on 20230703
6m Non-lockable Pneumatic Telescopic Mast-100kg Payloads | ||
1> | Item #: | NR-1.75-6-100N-5S-82-160 |
2> | Extended Height: | 6m |
3> | Retracted Height: | 1.75m |
4> | Maximum Vertical Payloads: | 100kg |
5> | Type: | T-Lockable, Anti-rotation |
6> | Inside Electric Wires | non |
7> | Number of Sections: | 5 |
8> | Sections’ diameter*Thickness: | 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm |
9> | Materials: | Aluminum Alloy, Stainless steel fasteners |
10> | Working Air Pressure: | 0.2Mpa/29PSI |
11> | Working Temperature: | -25~55 Degrees Celsius |
12> | Mast Weight: | 55kg approx. |
13> | Wind Loads: | 120km/h |
14> | Default accessories: | 1x top flange |
1x bottom flange | ||
1x air hose pipe | ||
1x over pressure release protection | ||
1x air controller | ||
15> | Optional Accessories: | Ground Mounting Tripods |
Guying Rope Kits with Mounting Pickets | ||
DC12V Electric Air Compressor | ||
AC220V/50Hz Electric Air Compressor | ||
Vehicle Side Mounting Brackets 1 pieces per set | ||
Remote Controller Kit |
