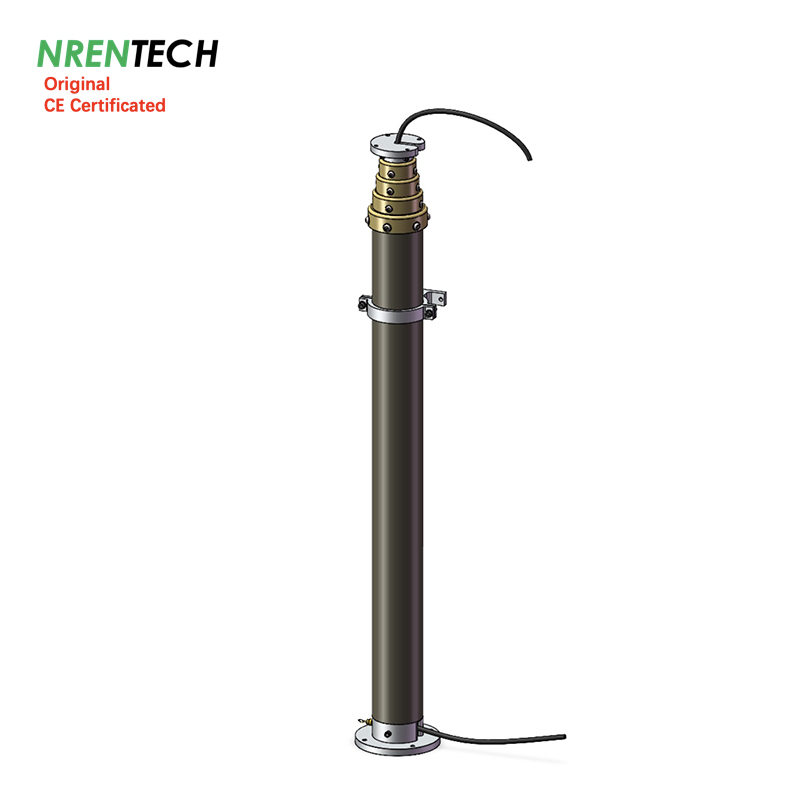

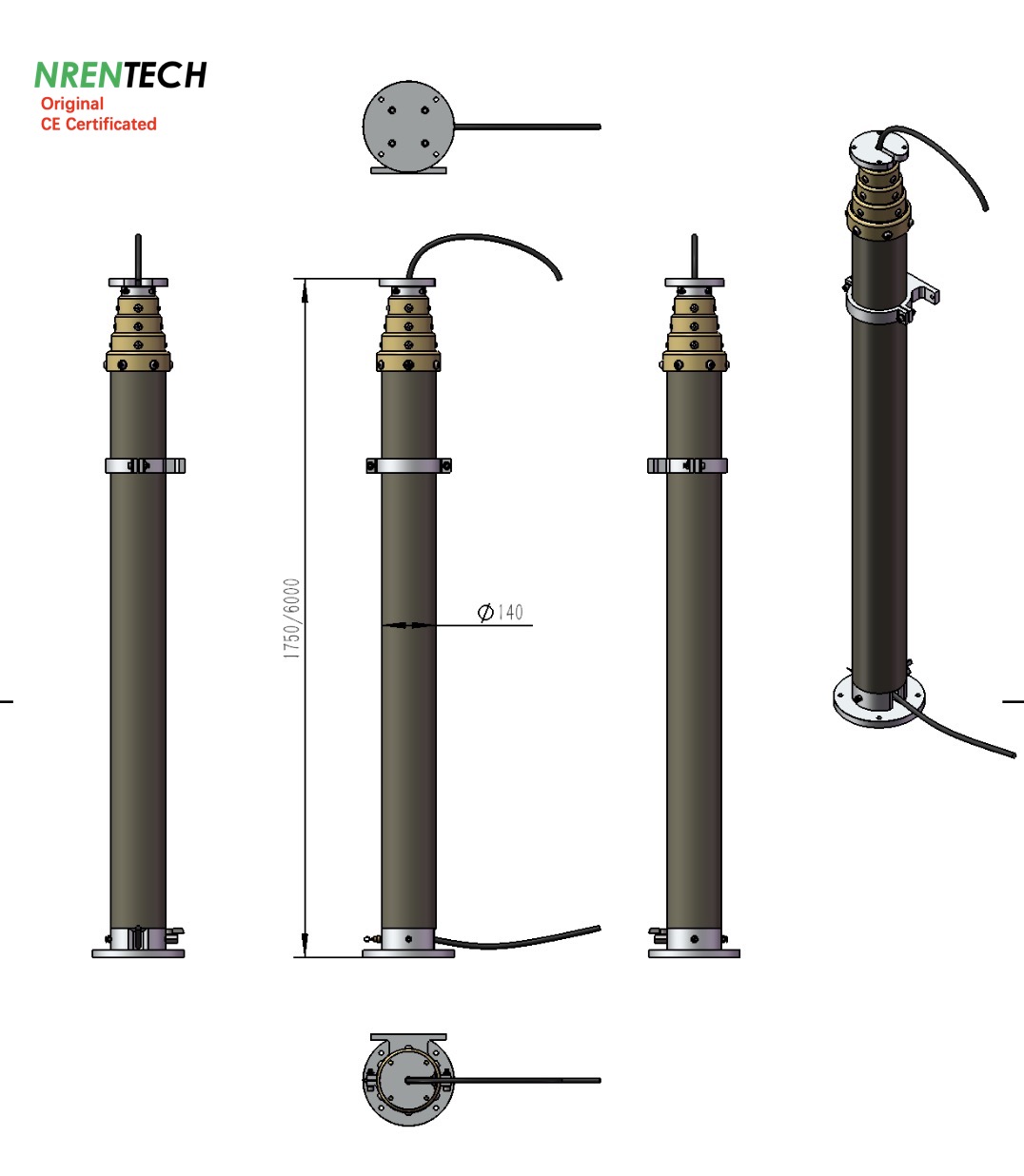

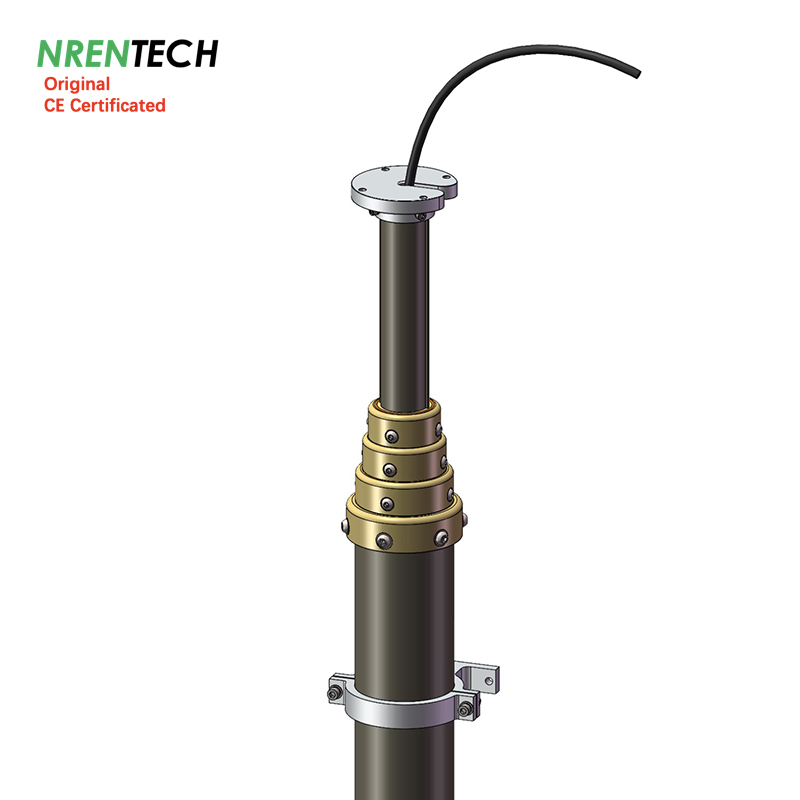

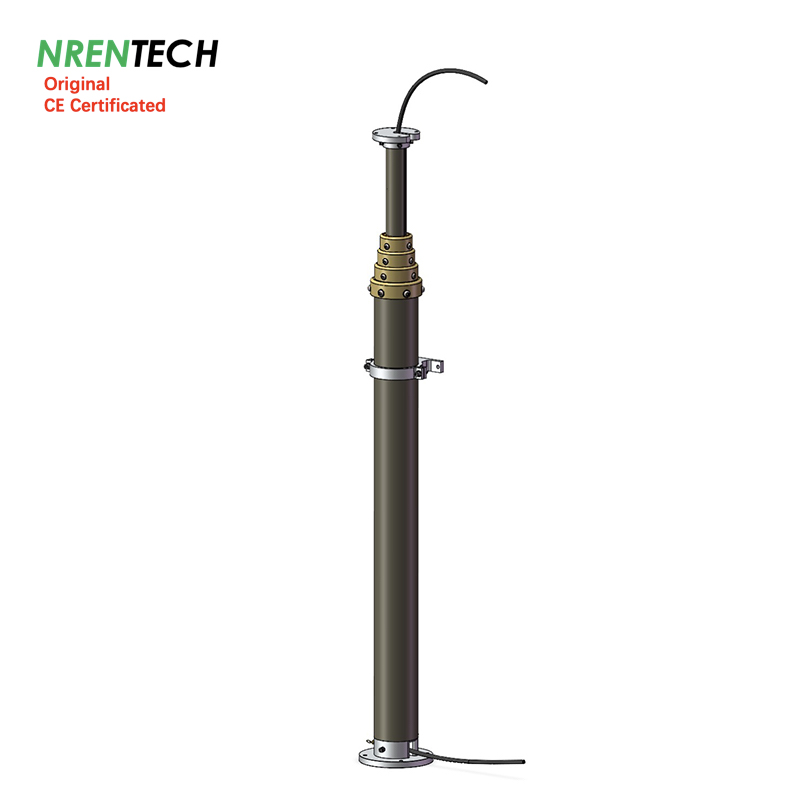

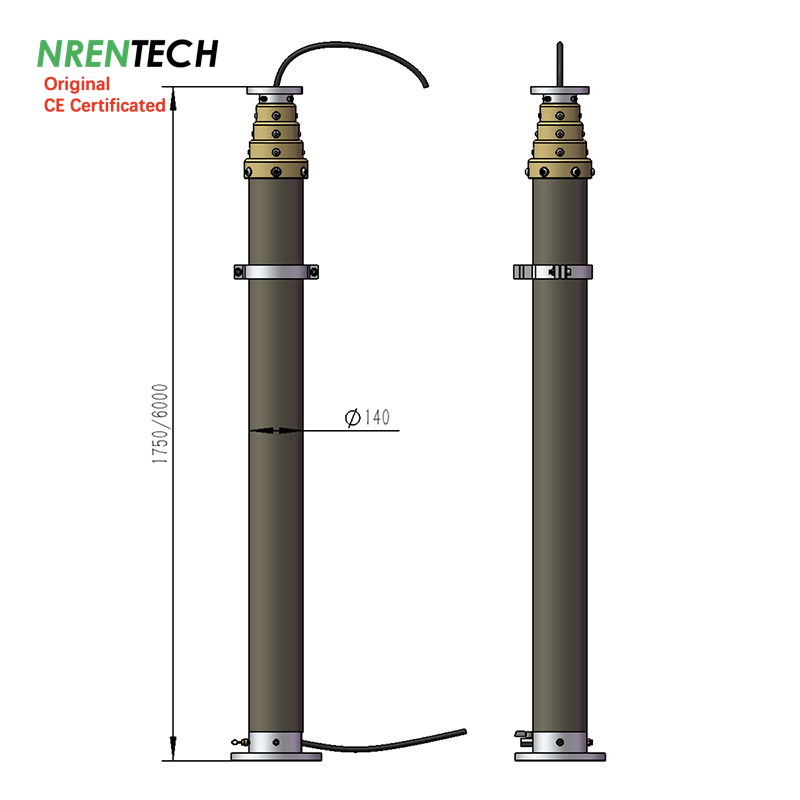

6m Pneumatic Telescopic Lighting Mast 50kg payload
Item #: NR-1.75-6.0-50D-5S-66-140

1> Extended Height: 6m
2> Closed Height: 1.75m
3> Inside electric wires: 4x1.5mm^2 + 2x2.5mm^2 power wires
4> Vertical Payload: 50kg @0.15Mpa/22PSI working air pressure
5> Collar type: non-lockable type (autimatic extension, automatic retraction. such type mast can be controlled remotely or automaticly. Nrentech non-lockable mast can keep more than 7 days without dropping when mast in default air pressure working. With Nrentech compact electric control box, the mast can keep working height weekly, monthly or more )
6> Number of sections: 5
7> Section diameter: 66mm~140mm
8> Mast materials: aluminum alloy 6063T5
9> Mast weight: 45kg approx.
10> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve, 1x side mounting bracket
11> Chargeable accessorries: electric air compressor (or compact electric control box with inside compressor built, control mast extension, retraction, lights on/off. The electric control box also mounted air pressure sensor inside to make sure the compressor can work/stop automatic to keep the non-locakble mast full working height) , ground mounting tripod or quadpod, guying rope kit

Leading time: 20 days
Guarantee: one year

the latest data information was updated on 2025.02.22

6m Lighting Pneumatic Telescopic Mast-50kg Payload
NR-1.75-6-50D-5S-66-140
Extended Height	:	6	m	19.68	ft
Retracted Height	:	1.75	m	5.7	ft
Vertical Payload	:	50	kg	110	lb
Inside Electric Wires	:	2x2.5 sq.mm + 4x1.5 sq.mm
Working air pressure	:	0.2	Mpa	29	PSI
Collar Type	:	non-lockable mast (automatic extension/retraction)
Inside Electric Wires	:
Number of sections	:	5
Top section diameter	:	66	mm	2.6	in
Basement section diameter	:	140	mm	5.5	in
Mast Weight	:	45	kg	99	lb
Working temperature	:	-25~65 Celsius Degree
Materials	:	Aluminum alloy 6063T5
Default accessories	:	top flange
		bottom flange
		air hose pipe
		air control manual
Optional Accessories	:	Electric air compressor			DC12V, DC24V, AC220V/50hz
		Compact control box			air compressor inside built, control mast extension/retraction, lights light on/off, wireless remote controller
		Guying Rope Kits
		Side Mounting Bracket			Aluminum alloy 6061 Materials
		Ground mounting Tripod/Quadpod			Stainless material
		Rotation Basement
		Remote control kit
data update on 20250222
