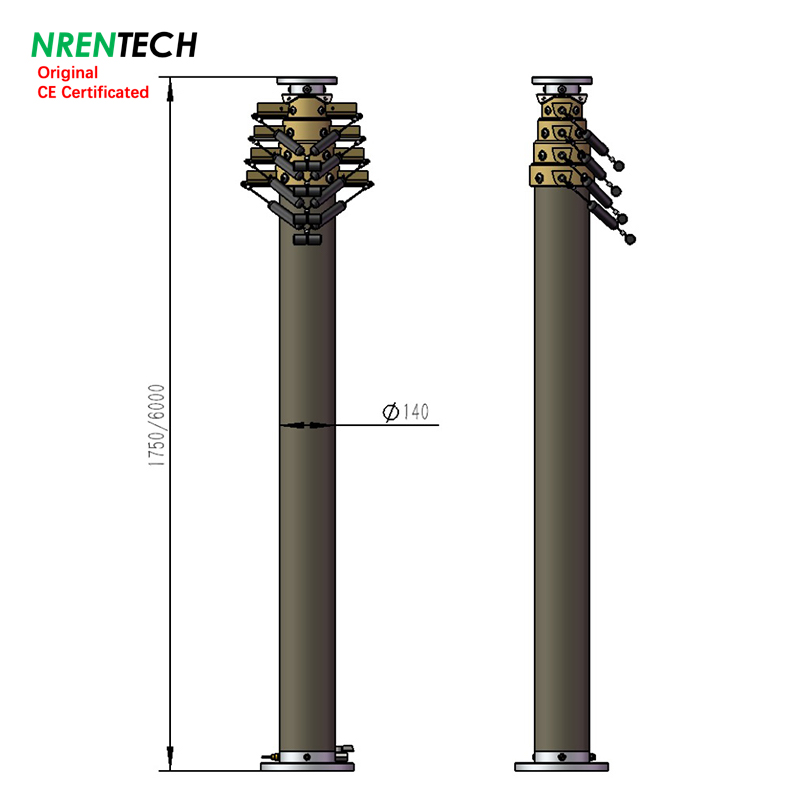

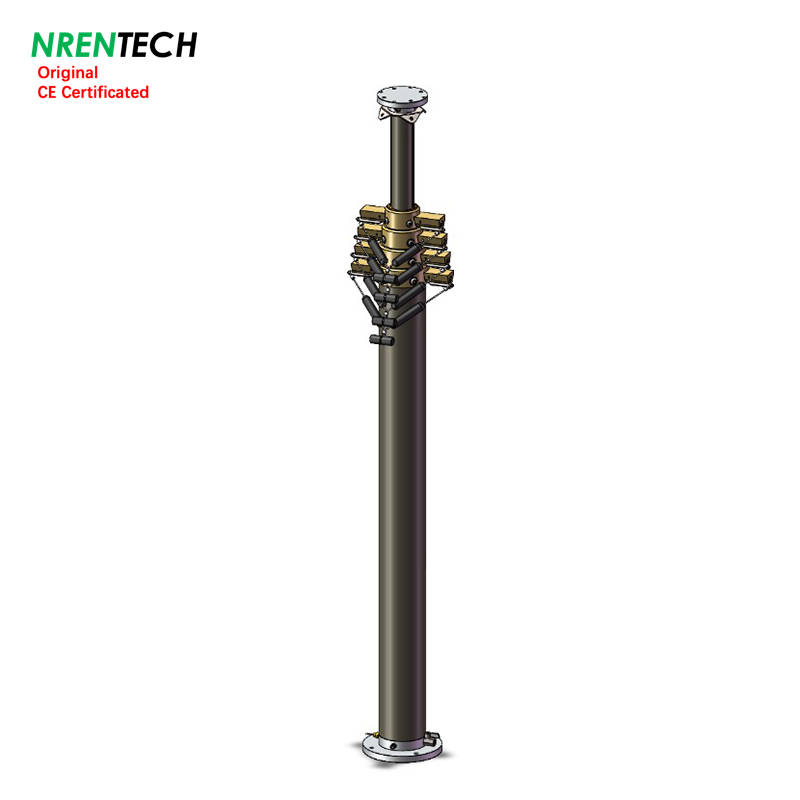

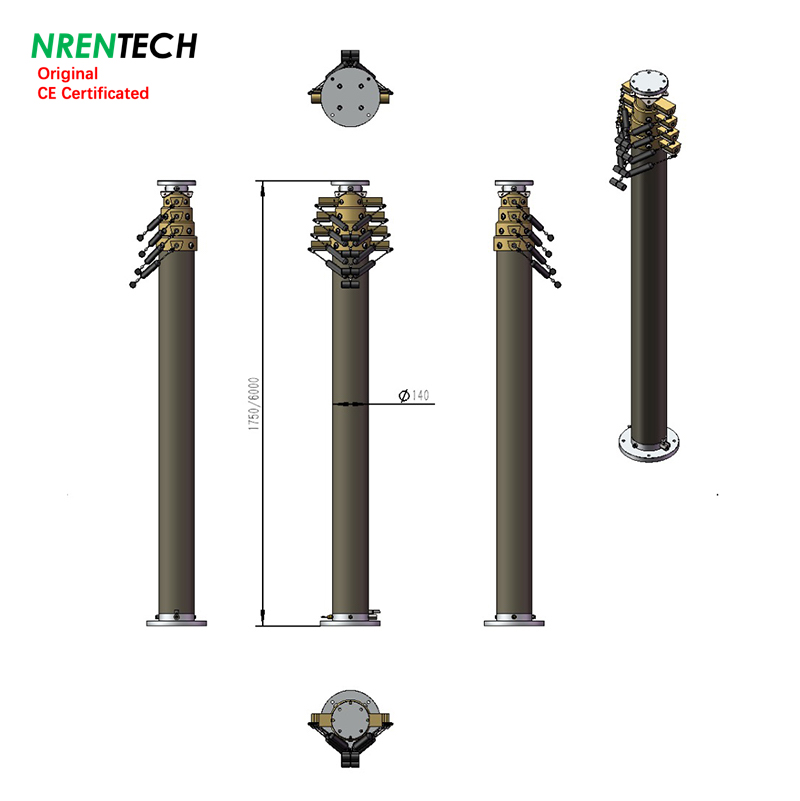

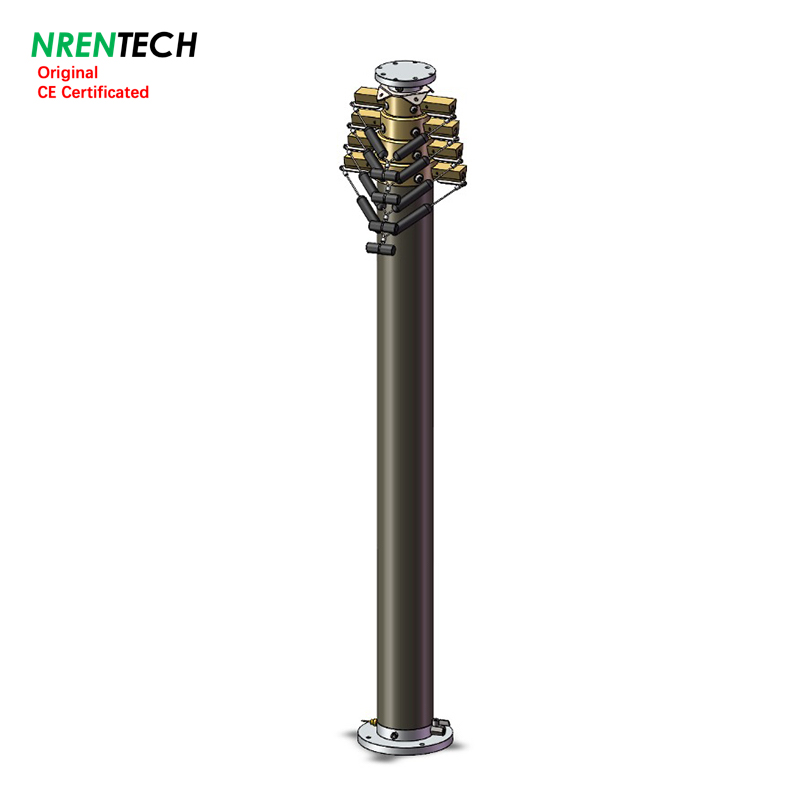

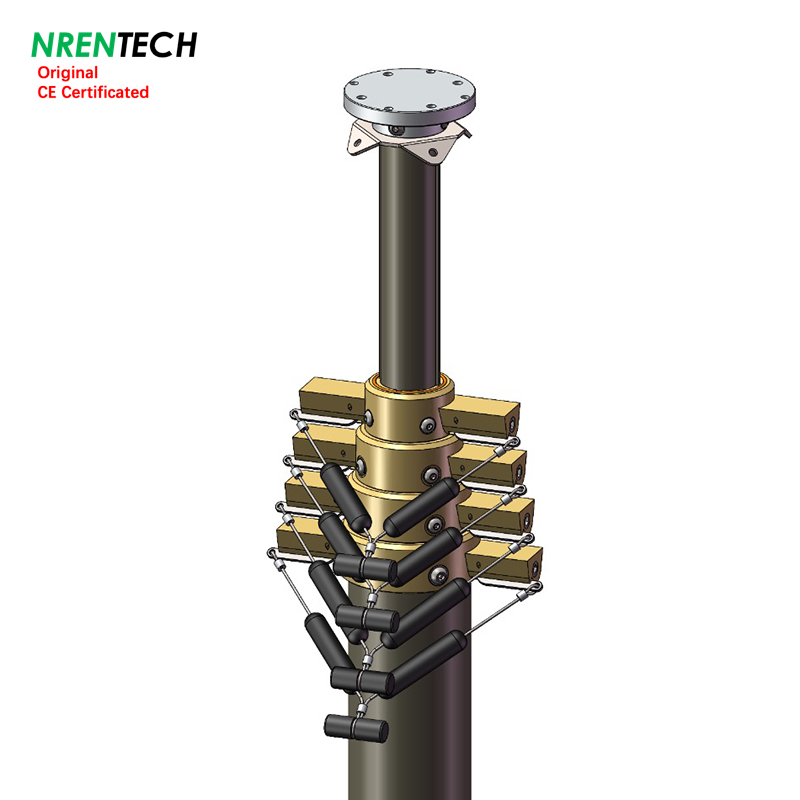

6m Lockable Pneumatic Telescoping Mast 50kg Payload-1.75m closed height
Item #: NR-1.75-6.0-50L-5S-66-140
1> Extended Height: 6m
2> Closed Height: 1.75m
3> Vertical payload: 50kg in vertical @0.15Mpa/22PSI
4> Type: Lockable (automatic extension/retraction by manual)
5> Number of sections: 5
6> Section diameter: 66mm~140mm
7> Materials: Aluminum Alloy materials 6063T5
8> Mast weight: 44kg approx.
9> Working air pressure: maximum 0.15Mpa/22PSI
10> Installation: Vertical only
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve, 1x side mounting bracket)
12> Chargeable accessories: Electric air compressor, ground mounting tripod/quadpod bracket, remote control kit.
leading time: 20 days
guarantee: one year
the latest information was updated on 20250110
6m Lockable Pneumatic Telescoping Mast 50kg Payload-1.75m closed height
Item #: NR-1.75-6.0-50L-5S-66-140
1> Extended Height: 6m
2> Closed Height: 1.75m
3> Vertical payload: 50kg in vertical @0.15Mpa/22PSI
4> Type: Lockable (automatic extension/retraction by manual)
5> Number of sections: 5
6> Section diameter: 66mm~140mm
7> Materials: Aluminum Alloy materials 6063T5
8> Mast weight: 44kg approx.
9> Working air pressure: maximum 0.15Mpa/22PSI
10> Installation: Vertical only
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve, 1x side mounting bracket)
12> Chargeable accessories: Electric air compressor, ground mounting tripod/quadpod bracket, remote control kit.
leading time: 20 days
guarantee: one year
the latest information was updated on 20250110
| 6m Lockable Pneumatic Telescopic Mast-50kg Payload | ||||||
| NR-1.75-6-50L-5S-66-140 | ||||||
 | ||||||
| Extended Height | : | 6 | m | 19.68 | ft | |
| Retracted Height | : | 1.75 | m | 5.7 | ft | |
| Vertical Payload | : | 50 | kg | 110 | lb | |
| Working air pressure | : | 0.15 | Mpa | 22 | PSI | |
| Collar Type | : | Locking (Automatic Extention, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 5 | ||||
| Top section diameter | : | 66 | mm | 2.6 | in | |
| Basement section diameter | : | 140 | mm | 5.5 | in | |
| Mast Weight | : | 44 | kg | 96.8 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Optional Accessories | : | Electric air compressor | DC12V, DC24V, AC220V/50hz | |||
| Guying Rope Kits | 1x4 (1 layer, 4 ropes each layer, 4 mounting spikes, mounting radius 6m) | |||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Tripod | Stainless Materials | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20250110 | ||||||
