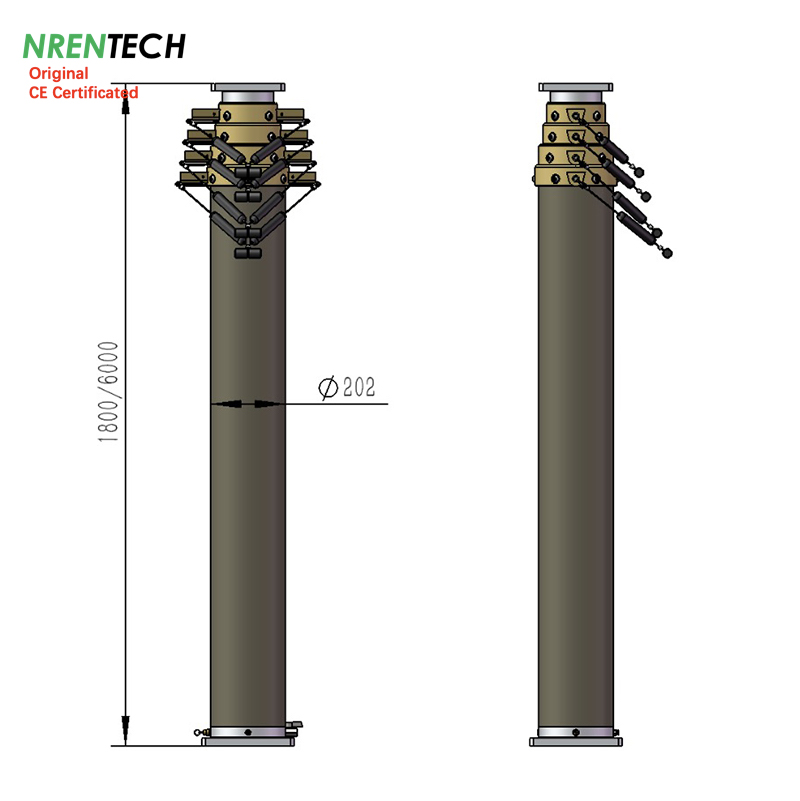

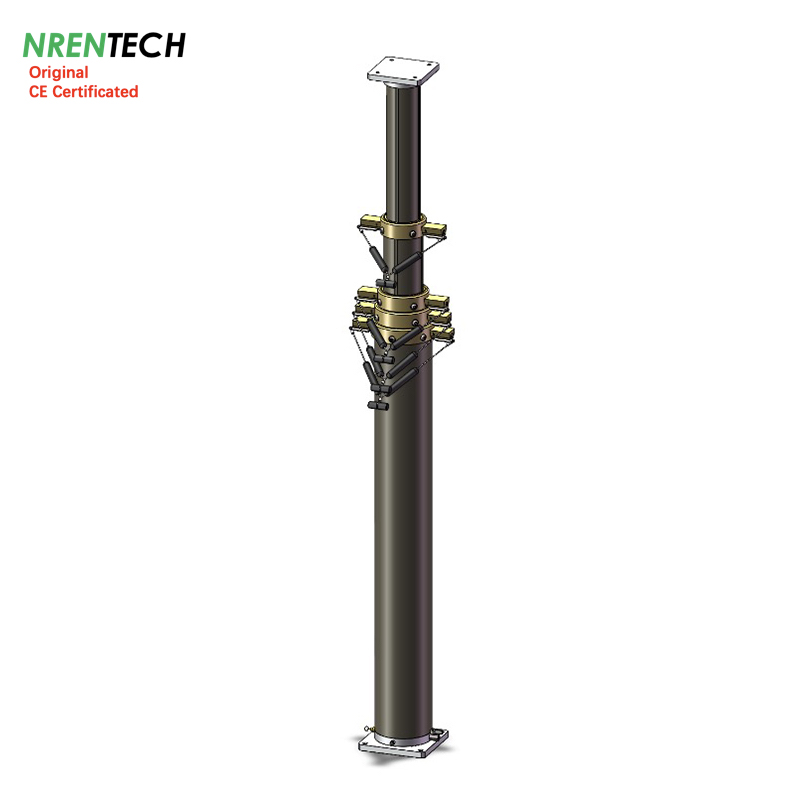

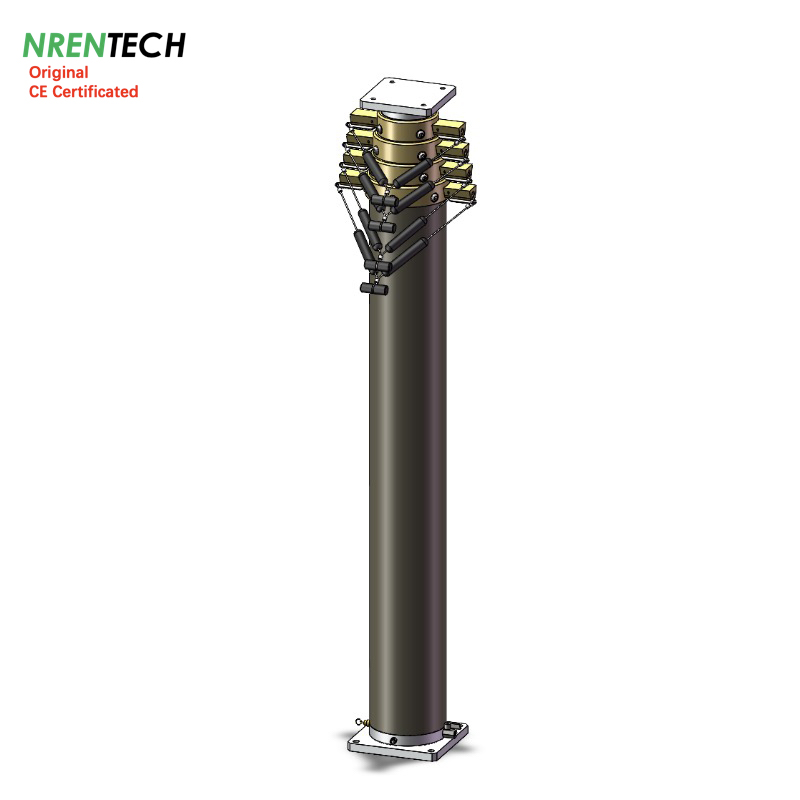

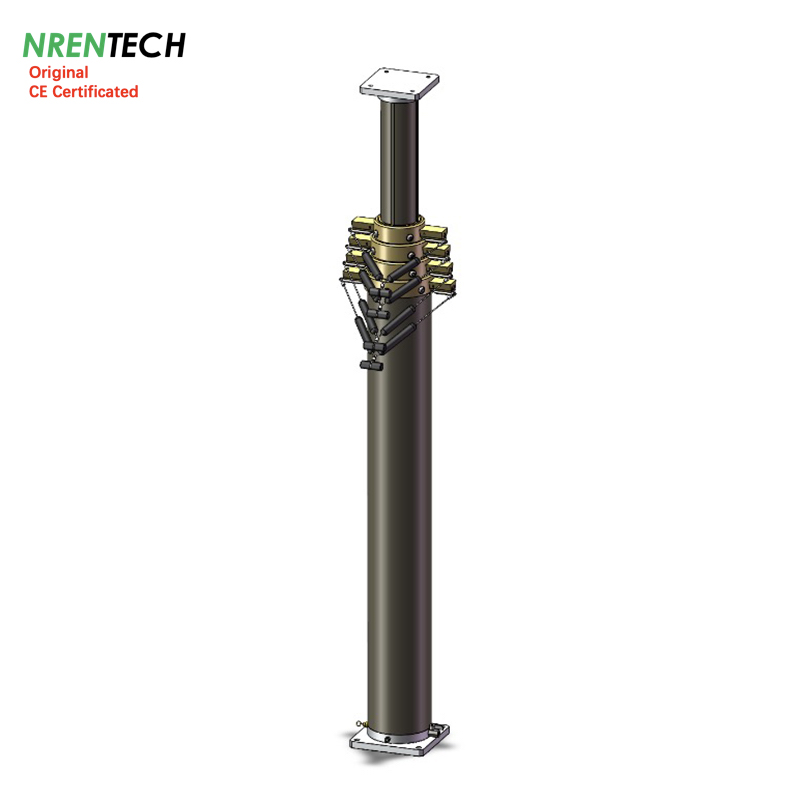

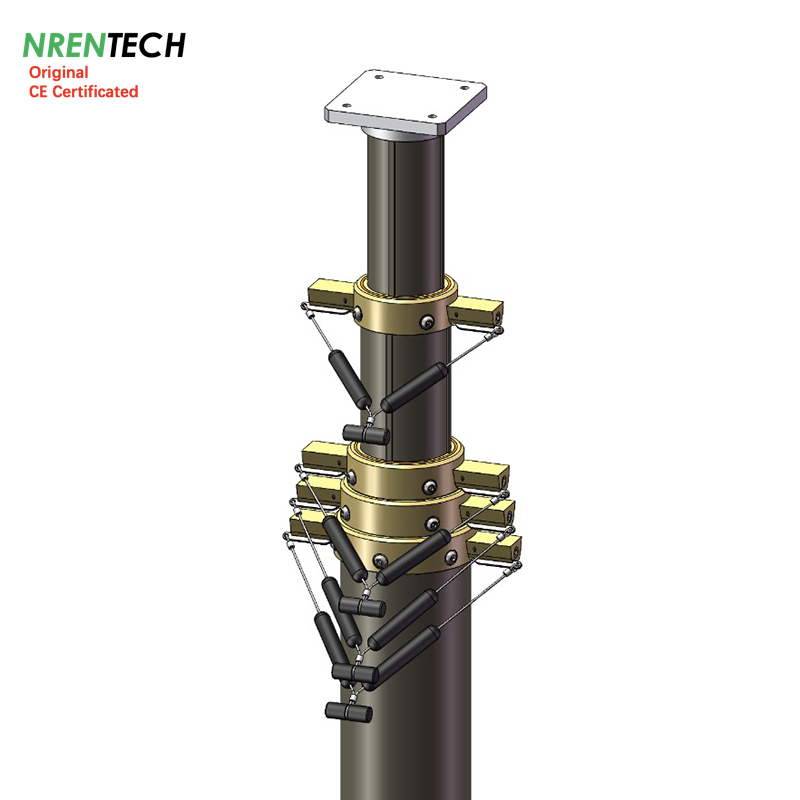

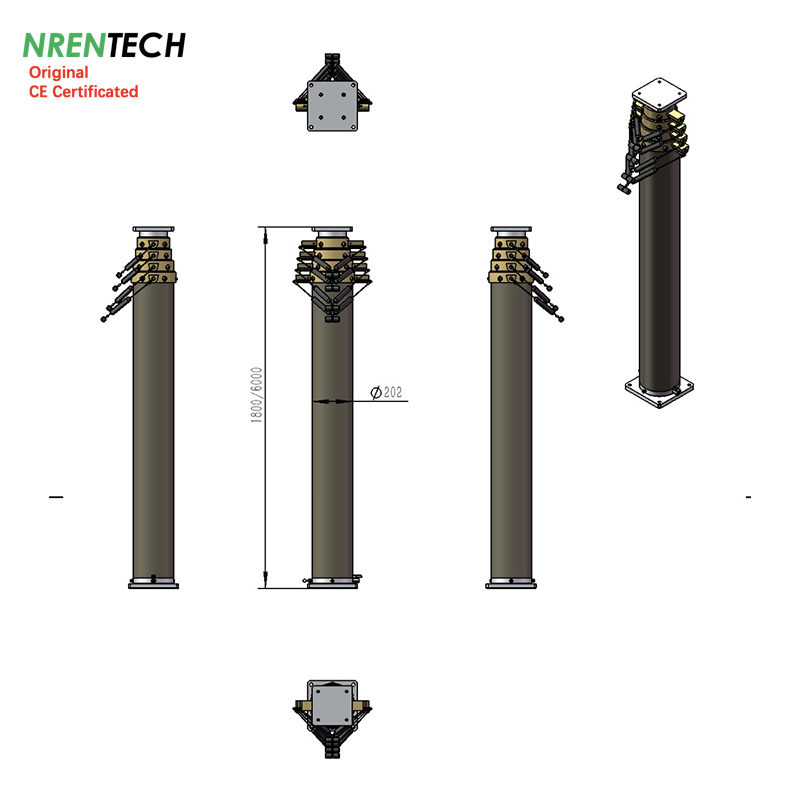

6m Lockable Pneumatic Telescoping Mast 200kg payload 1.8m closed height
Item #: NR-1.8-6.0-200L-5S-118-202
1> Extended Height: 6m
2> Closed Height: 1.8m
3> Vertical payload: 200kg in vertical @0.2Mpa/29PSI
4> Type: Lockable (automatic extension/retraction by manual)
5> Number of sections: 5
6> Section diameter: 118mm~202mm
7> Materials: Aluminum Alloy materials 6063T5
8> Mast weight: 87kg approx.
9> Working air pressure: maximum 0.2Mpa/29PSI
10> Installation: Vertical only
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve, 1x side mounting bracket)
12> Chargeable accessories: Electric air compressor, ground mounting tripod/quadpod bracket, remote control kit.
leading time: 20 days
guarantee: one year
the latest information was updated on 20250110
6m Lockable Pneumatic Telescoping Mast 200kg payload 1.8m closed height
Item #: NR-1.8-6.0-200L-5S-118-202
1> Extended Height: 6m
2> Closed Height: 1.8m
3> Vertical payload: 200kg in vertical @0.2Mpa/29PSI
4> Type: Lockable (automatic extension/retraction by manual)
5> Number of sections: 5
6> Section diameter: 118mm~202mm
7> Materials: Aluminum Alloy materials 6063T5
8> Mast weight: 87kg approx.
9> Working air pressure: maximum 0.2Mpa/29PSI
10> Installation: Vertical only
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual valve, 1x side mounting bracket)
12> Chargeable accessories: Electric air compressor, ground mounting tripod/quadpod bracket, remote control kit.
leading time: 20 days
guarantee: one year
the latest information was updated on 20250110
| 6m Lockable Pneumatic Telescopic Mast-200kg Payload | ||||||
| NR-1.8-6-200L-5S-118-202 | ||||||
 | ||||||
| Extended Height | : | 6 | m | 19.68 | ft | |
| Retracted Height | : | 1.8 | m | 5.9 | ft | |
| Vertical Payload | : | 200 | kg | 440 | lb | |
| Working air pressure | : | 0.2 | Mpa | 29 | PSI | |
| Collar Type | : | Locking (Automatic Extension, Manual Retraction) | ||||
| Inside Electric Wires | : | |||||
| Number of sections | : | 5 | ||||
| Top section diameter | : | 118 | mm | 4.6 | in | |
| Basement section diameter | : | 202 | mm | 8.0 | in | |
| Mast Weight | : | 87 | kg | 191.4 | lb | |
| Working temperature | : | -25~65 Celsius Degree | ||||
| Materials | : | Aluminum alloy 6063T5 | ||||
| Default accessories | : | top flange | ||||
| bottom flange | ||||||
| air hose pipe | ||||||
| air control manual | ||||||
| Optional Accessories | : | Electric air compressor | DC12V, DC24V, AC220V/50hz | |||
| Guying Rope Kits | ||||||
| Side Mounting Bracket | Aluminum alloy 6061 Materials | |||||
| Ground mounting Quadpod | 40kg approx. | |||||
| Rotation Basement | Manual Rotation | |||||
| Remote control kit | 12VDC | |||||
| data update on 20250110 | ||||||
