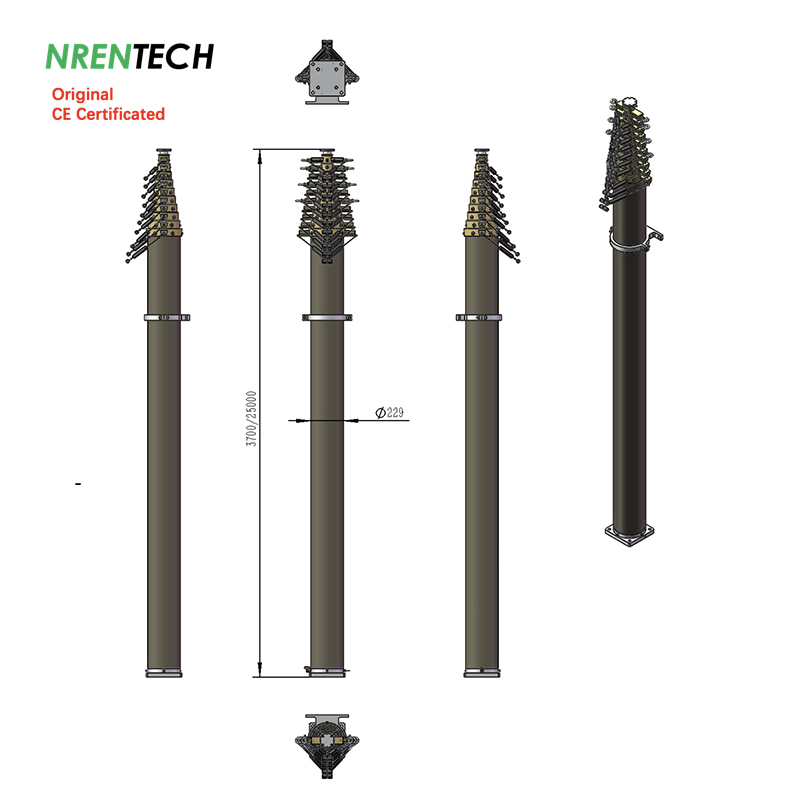

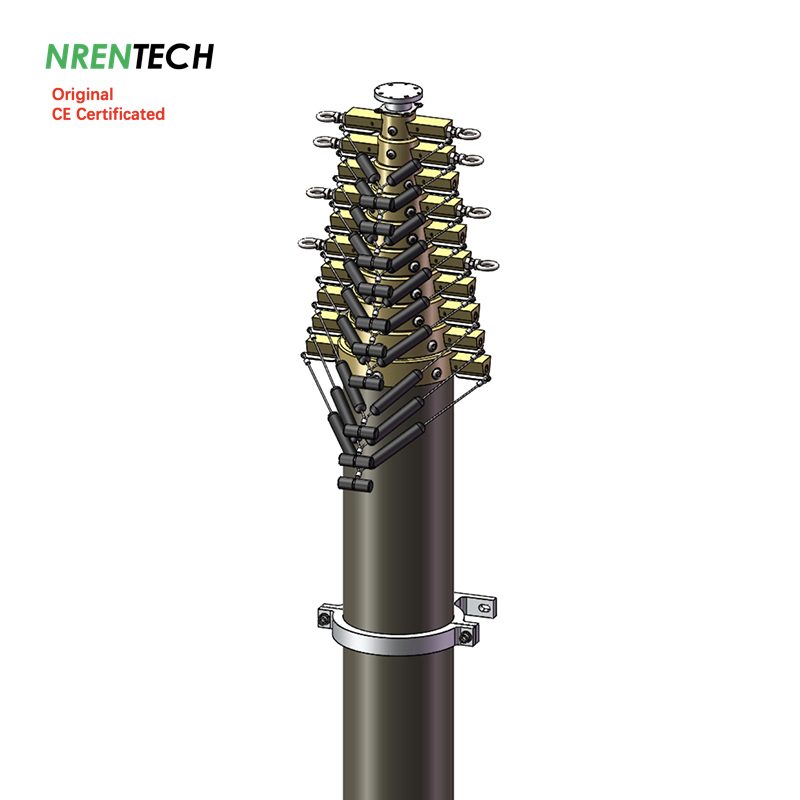

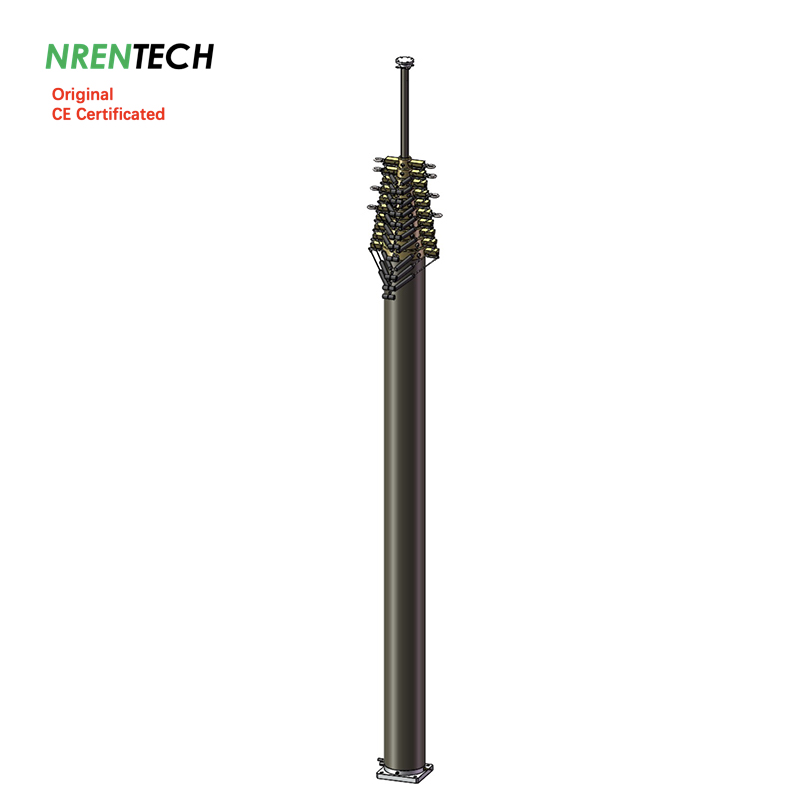

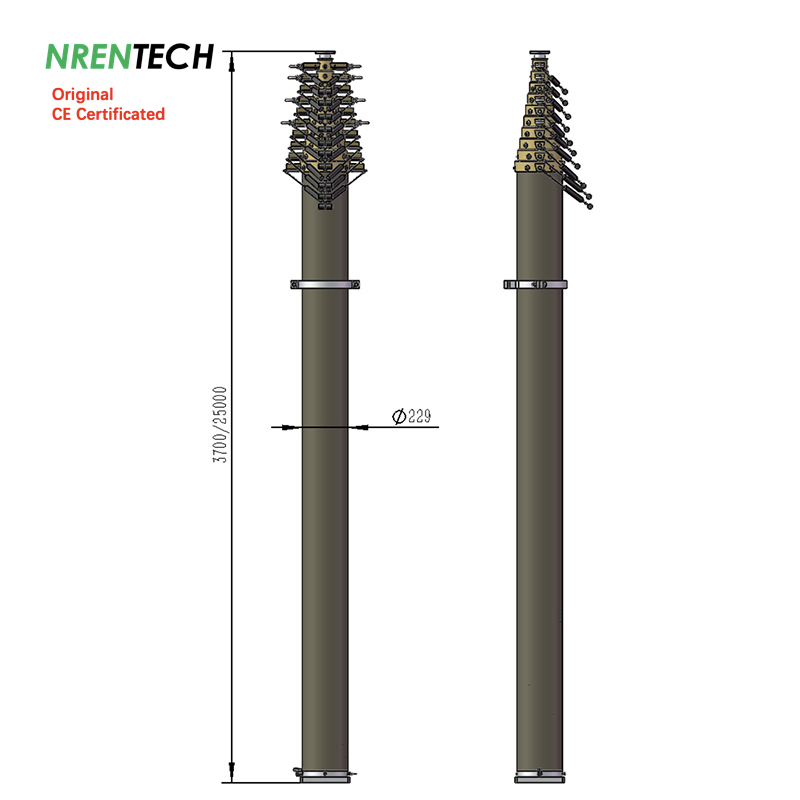

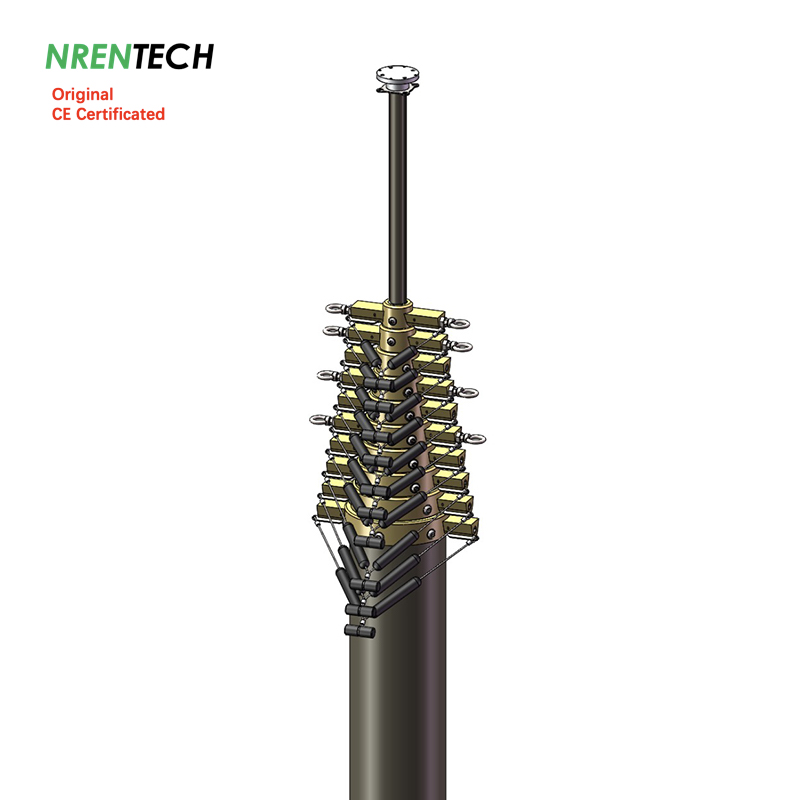

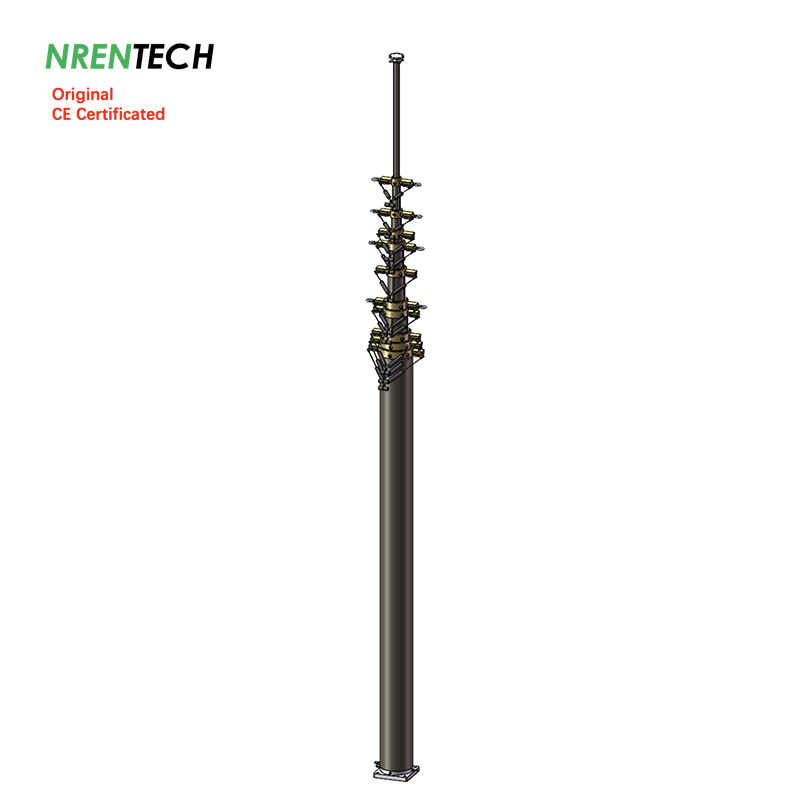

25m Lockable Pneumatic Telescopic Mast 10kg payloads
3.7m closed height
Item #: NR-3.7-25-10L-11S-36-229

1> Extended Height: 25m

2> Nest Height: 3.7m

3> Vertical payload: 10kg @0.2Mpa/29PSI

4> Type: lockable type (automatic extension, retraction by manual operating)

5> Number of sections: 11 sections

6> Section diameter: 36mm~229mm

7> Materials: Aluminum alloy 6063T5, Hard Anodizing Treatment

8> Mast weight: 225kg approx.

9> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control valve, 1x air hose pipe, 1x retraction operating tool, guy ropes mounting plate and eyebolts.

10> Wind load: 25N/m^2 (23kmh with 10kg payload with 1 m^2 windward area) without guy lines

Charging accessories:
side mounting bracket NR-S229, aluminum material,
Rotation basement NR-R229 (manual rotation)
Guy lines kit: 5 layers, 4 ropes each layer, 4 mounting stakes, mounting radius 25m
Ground mounting quadpod bracket: NR-QUADPOD229
Electric air compressor: AC220V/50hz, 1500W, 12L air tank
Remote control kit: AC220V/50hz

Guarantee: 2 years
Manufacture time: 30 days
the Latest Data was updated on 20260314
